Product SKU: HV-ANV-L7012R
Product Overview

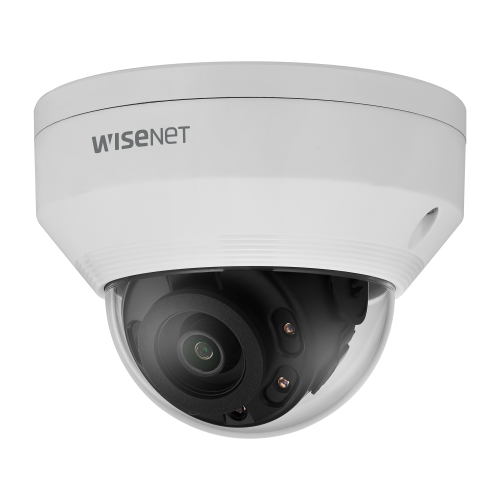

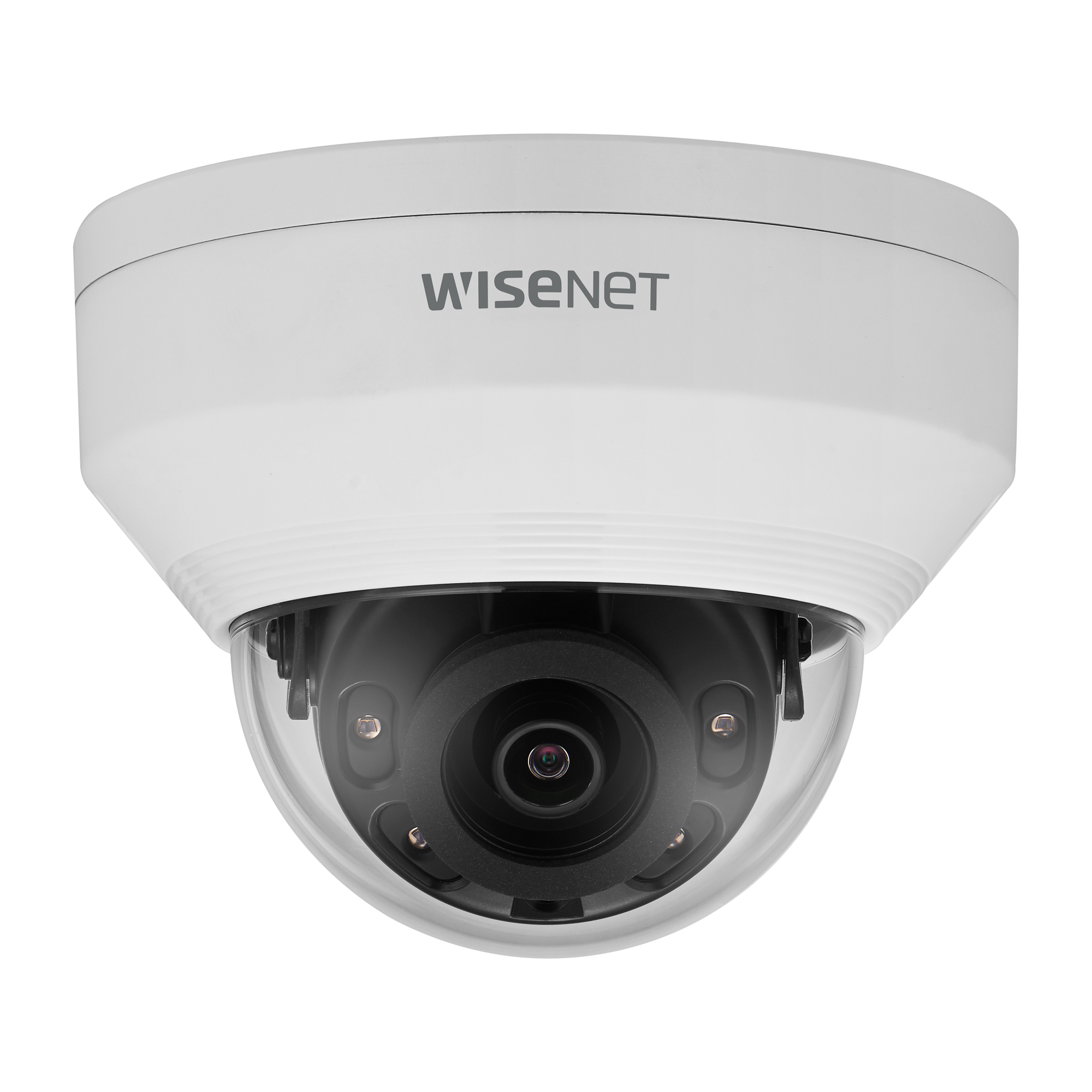

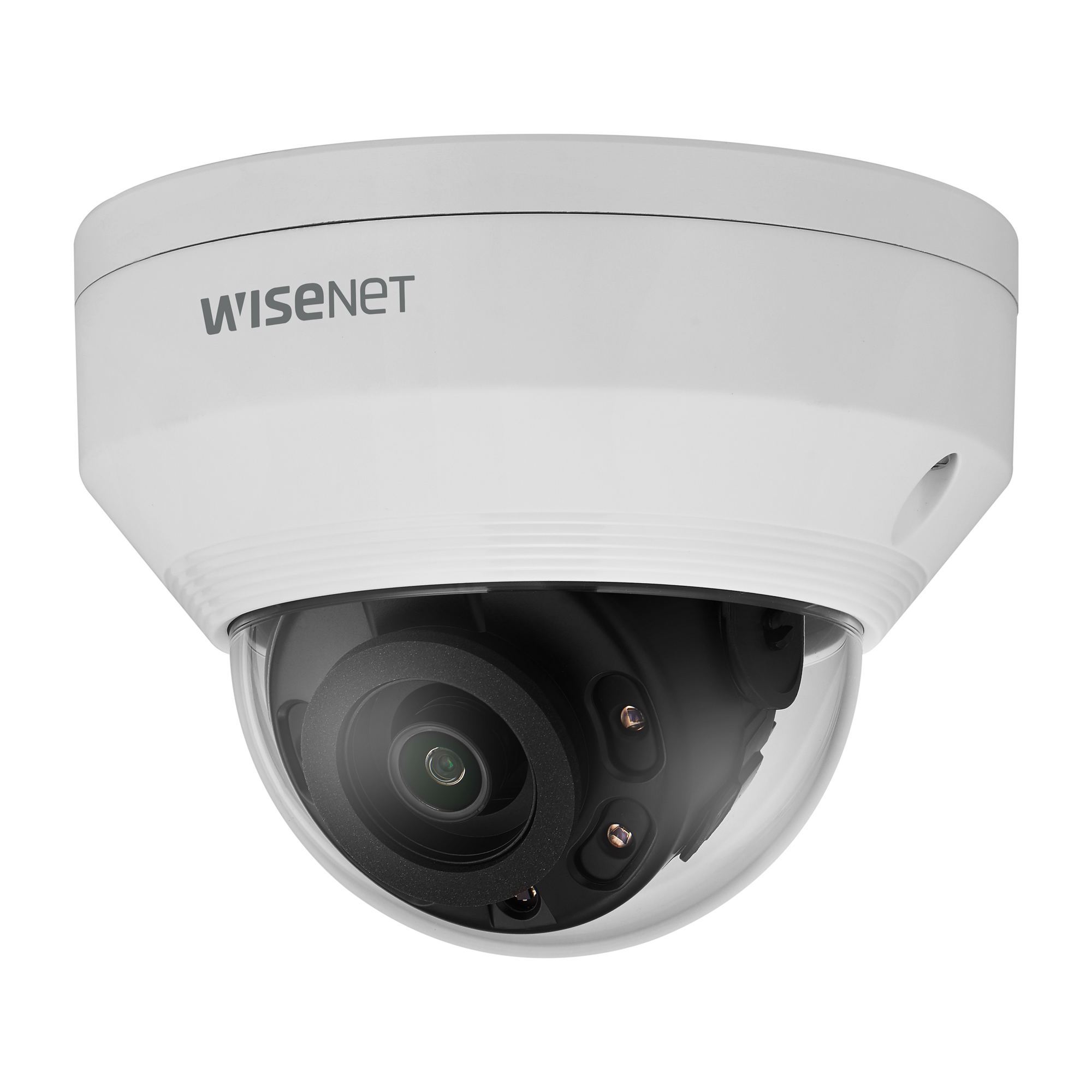

Outdoor entry points, covered walkways, and building perimeters that need a low-profile camera with genuine weather and impact resistance are exactly where the HV-ANV-L7012R fits. This outdoor vandal dome from the Hanwha Wisenet A Series pairs a 4MP sensor with a fixed 3mm lens delivering a 107.5-degree horizontal field of view, making it well suited to wide-angle coverage across doorways, car park access lanes, and external corridor ceilings. Equipped with a 20m IR range and Day and Night ICR switching, the camera maintains usable image quality after dark without the need for supplementary lighting. The IP66 weather seal and IK10 impact rating protect the housing against both weather exposure and deliberate interference. WiseStream II compression reduces bandwidth and storage load, and onboard analytics including motion detection, virtual line crossing, enter/exit, and defocus detection support smarter monitoring without requiring a separate analytics server.
Key Capabilities
4MP Wide-Angle Fixed Lens
The 3mm fixed lens produces a 107.5-degree horizontal field of view at 4MP resolution, allowing a single camera to cover wide entry areas, external corridors, or parking access points without requiring motorised adjustment during installation.
20m Infrared Night Vision
Built-in IR LEDs with a 20m viewable range switch the sensor to black and white mode in darkness, maintaining scene detail at entrances and pathways even when ambient lighting drops to 0 lux.
IP66 and IK10 Rated Housing
The outdoor-rated dome housing meets IP66 for dust and water ingress protection and IK10 for impact resistance, making it suitable for exposed external mounting where the camera may face weather, dirt accumulation, or deliberate interference.
120dB Wide Dynamic Range
A 120dB WDR rating helps the camera manage high-contrast scenes such as doorways with bright outdoor light behind subjects, reducing silhouetting and preserving detail across shadowed and illuminated areas simultaneously.
Onboard Analytics and WiseStream II
Defocus detection, virtual line crossing, directional detection, enter/exit zones, motion detection, and tampering alerts are all processed onboard. WiseStream II adaptive compression lowers bitrate without sacrificing image quality, reducing storage requirements across multi-camera deployments.
Best For
- External Building Entry Points: The 107.5-degree HFoV and IK10-rated dome housing suit covered external doorways and building entrances where wide scene coverage and tamper resistance are both priorities.
- Covered Car Park Ceilings and Access Lanes: The wide-angle 3mm lens captures broad lateral coverage across parking aisles or boom gate approaches from a ceiling-mounted position.
- Commercial Perimeter Corridors and Walkways: The IP66 rating and 20m IR range handle partially exposed walkways where weather and low-light conditions are recurring factors.
- Installations Requiring Edge Storage: The onboard Micro SD/SDHC/SDXC slot supports up to 128GB of local recording, providing continuity of footage if network connectivity is interrupted.
Why Choose the HV-ANV-L7012R
The HV-ANV-L7012R is positioned in the Hanwha Wisenet A Series as a cost-effective outdoor vandal dome that does not strip out the analytics features typically reserved for higher-tier cameras. Where a basic outdoor dome might offer motion detection only, this model includes virtual line crossing, directional detection, enter/exit zone monitoring, defocus detection, and tampering alerts, all processed onboard. The confirmed IK10 impact rating means the dome housing resists the kind of physical interference that unrated housings cannot. WiseStream II compression is particularly useful for installers managing NVR storage budgets across multi-camera sites, as it reduces bitrate dynamically while maintaining image integrity. The fixed 3mm lens simplifies installation by eliminating the need for varifocal adjustment, which suits high-volume or straightforward deployments. Available at Security Wholesalers, the HV-ANV-L7012R is a practical choice for commercial and medium-density residential sites that need outdoor-rated analytics without the cost of a premium tier.
Buyer Decision Tips
Fixed Lens Coverage Planning: The 3mm fixed lens at 107.5 degrees HFoV is optimised for wide-angle scenes viewed from ceiling or soffit heights of around 2.5 to 4 metres. If your mounting position is further away from the subject or you need to identify faces or read number plates at distance, a narrower fixed lens or varifocal model would be more appropriate. Confirm your installation height and required coverage width before ordering, as the lens cannot be changed after purchase.
Key Features & Technical Specifications
| Model |
HV-ANV-L7012R |
| Resolution |
4 Megapixel |
| Frame Rate |
Up to 30fps (H.265 / H.264) |
| Lens |
3mm fixed focal |
| Horizontal Field of View |
107.5 degrees |
| Minimum Illumination (Colour) |
0.1 Lux (F1.6, 1/30 sec) |
| Minimum Illumination (B/W) |
0 Lux (IR LED on) |
| IR Viewable Length |
20m |
| Day/Night |
Day and Night with ICR (auto switching) |
| Wide Dynamic Range |
120dB |
| Video Compression |
H.265, H.264, MJPEG |
| Streaming |
Multiple streaming supported, WiseStream II |
| Analytics |
Motion detection, tampering, defocus detection, directional detection, virtual line crossing, enter/exit zone |
| Hallway View |
90 degrees / 270 degrees rotation supported |
| LDC |
Lens Distortion Correction supported |
| Local Storage |
Micro SD / SDHC / SDXC slot (up to 128GB) |
| Power |
PoE (Power over Ethernet) |
| Ingress Protection |
IP66 |
| Vandal Resistance |
IK10 |
| Series |
Hanwha Wisenet A Series (Essential Value Range) |
Ideal Use Cases
External Building Entrances
The IK10-rated vandal dome housing and 107.5-degree wide-angle lens make this camera well suited to ceiling-mounted positions above external doorways where tamper resistance and broad entry coverage are both required.
Covered Car Parks
Mounted on a covered car park ceiling, the wide 3mm lens captures lateral coverage across aisles while the 20m IR range provides visibility in poorly lit areas after hours.
Retail Shopfronts and External Walkways
The IP66 rating handles exposure to rain splash and dust along external retail corridors, while virtual line crossing and enter/exit analytics help identify unauthorised access patterns.
Stairwells and Internal Common Areas
The hallway view mode (90 and 270 degree rotation) reshapes the video output into a portrait-orientation frame, which improves coverage efficiency in narrow stairwells and corridor spaces.
Multi-Camera Commercial Sites
WiseStream II adaptive compression reduces per-camera bitrate without degrading image quality, which lowers NVR storage requirements across larger deployments where bandwidth management is a consideration.
Choosing the Right Model
- Choose this model if: You need an outdoor-rated vandal dome with a wide-angle fixed lens, onboard analytics including virtual line and zone detection, and IP66 plus IK10 protection for exposed external mounting at a value-range price point.
- Choose a different model if: Your mounting position requires adjustable focal length to frame a specific scene, as the fixed 3mm lens cannot be changed. A varifocal dome would provide that framing flexibility. Alternatively, if you need coverage beyond 20m in darkness, a model with a longer IR range would be more appropriate.
FAQs
- Is the HV-ANV-L7012R suitable for fully exposed outdoor mounting without additional shelter?
Yes. The camera carries an IP66 ingress protection rating, which means it is sealed against dust and protected against powerful water jets. It also carries an IK10 impact rating. These two ratings together make it appropriate for exposed external wall or ceiling mounting without requiring a protective housing or shelter.
- What does the hallway view mode do and when should I use it?
Hallway view rotates the image output to a portrait-orientation frame (90 or 270 degrees) rather than the standard landscape format. This is useful in narrow corridors, stairwells, or aisle-style spaces where the standard wide landscape frame wastes resolution on walls and the ceiling rather than the length of the space being monitored.
- What is the effective coverage area with the 3mm fixed lens?
The 3mm lens provides a 107.5-degree horizontal field of view. At a ceiling height of approximately 3 metres, this captures a wide-angle view suitable for general area monitoring. It is optimised for broad scene coverage rather than detailed subject identification at longer distances. If you require identification at distances beyond approximately 5 to 6 metres, a narrower lens angle would be more effective.
- Does the HV-ANV-L7012R support local recording without an NVR?
Yes. The camera includes a Micro SD/SDHC/SDXC card slot supporting cards up to 128GB. This allows continuous or event-triggered local recording directly on the camera, which provides a degree of footage continuity if the network connection or NVR becomes unavailable.
- What analytics events does the camera detect onboard?
The HV-ANV-L7012R processes the following analytics onboard: motion detection, tampering detection, defocus detection, virtual area intrusion, enter and exit zone monitoring, virtual line crossing, and directional detection. These events can trigger recording, alerts, or NVR-based actions without requiring a separate analytics server or additional licensing.
- Is this camera available through Security Wholesalers and is it compatible with third-party NVRs?
The HV-ANV-L7012R is part of the Security Wholesalers range. Regarding compatibility, as a network camera it supports standard ONVIF protocols, which allows integration with many third-party NVR platforms. For full access to WiseStream II compression, hallway view, and onboard analytics, pairing with a Hanwha Wisenet NVR is recommended, as these features may not be exposed via generic ONVIF connections on non-Hanwha recorders.
