Product SKU: HV-ANO-L7022R
Product Overview

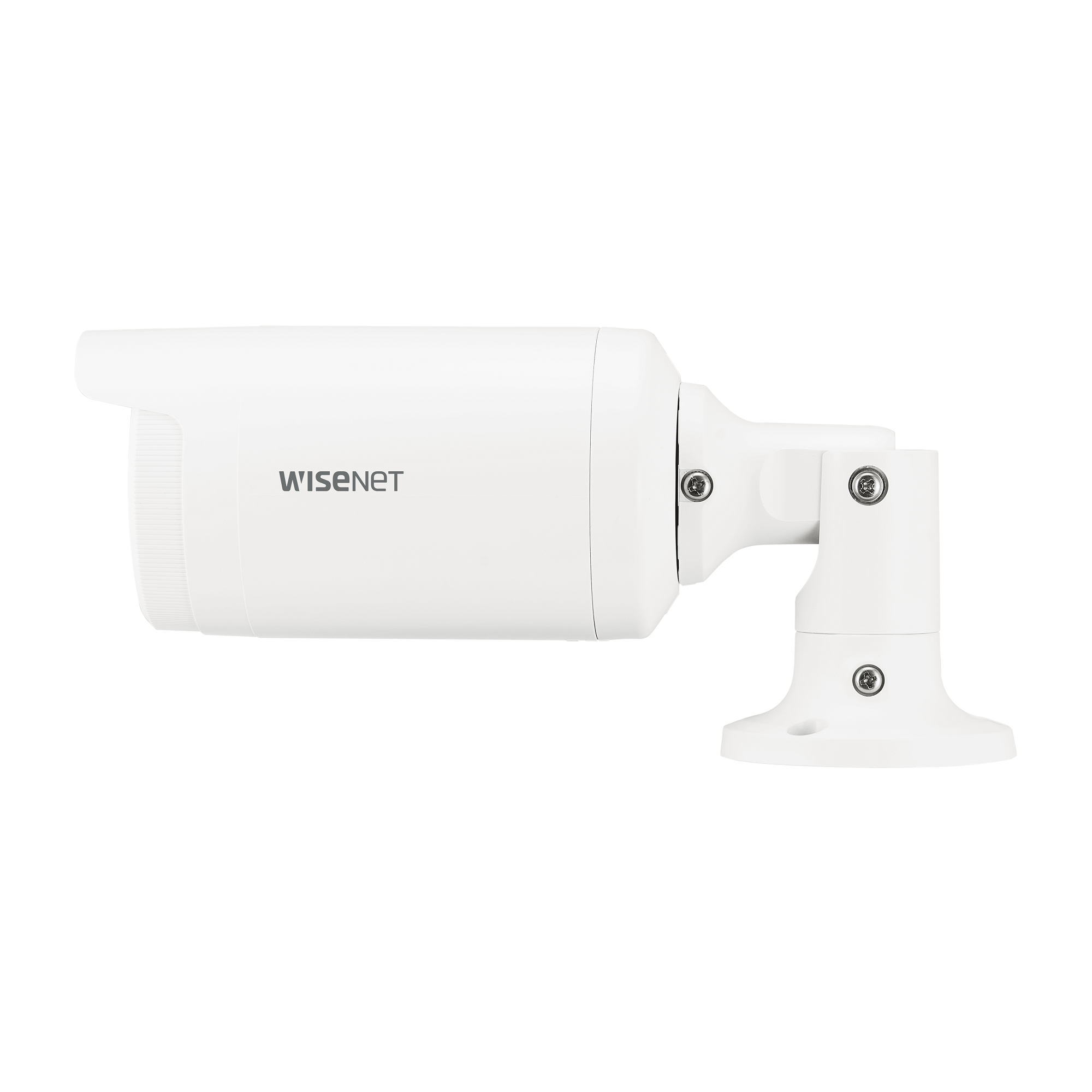

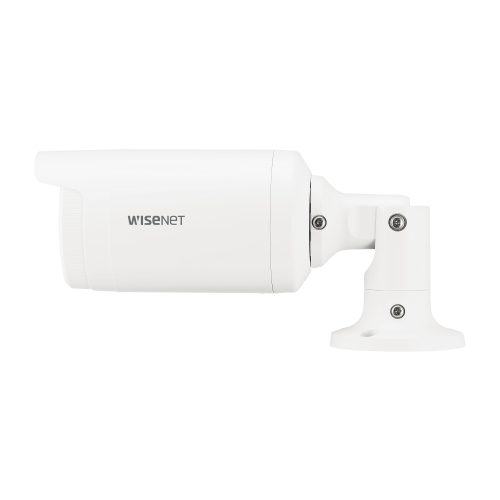

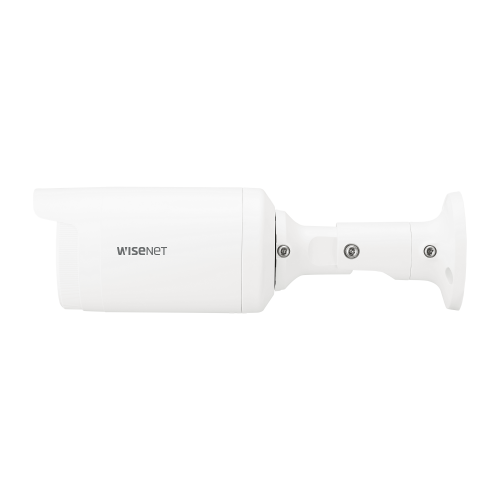

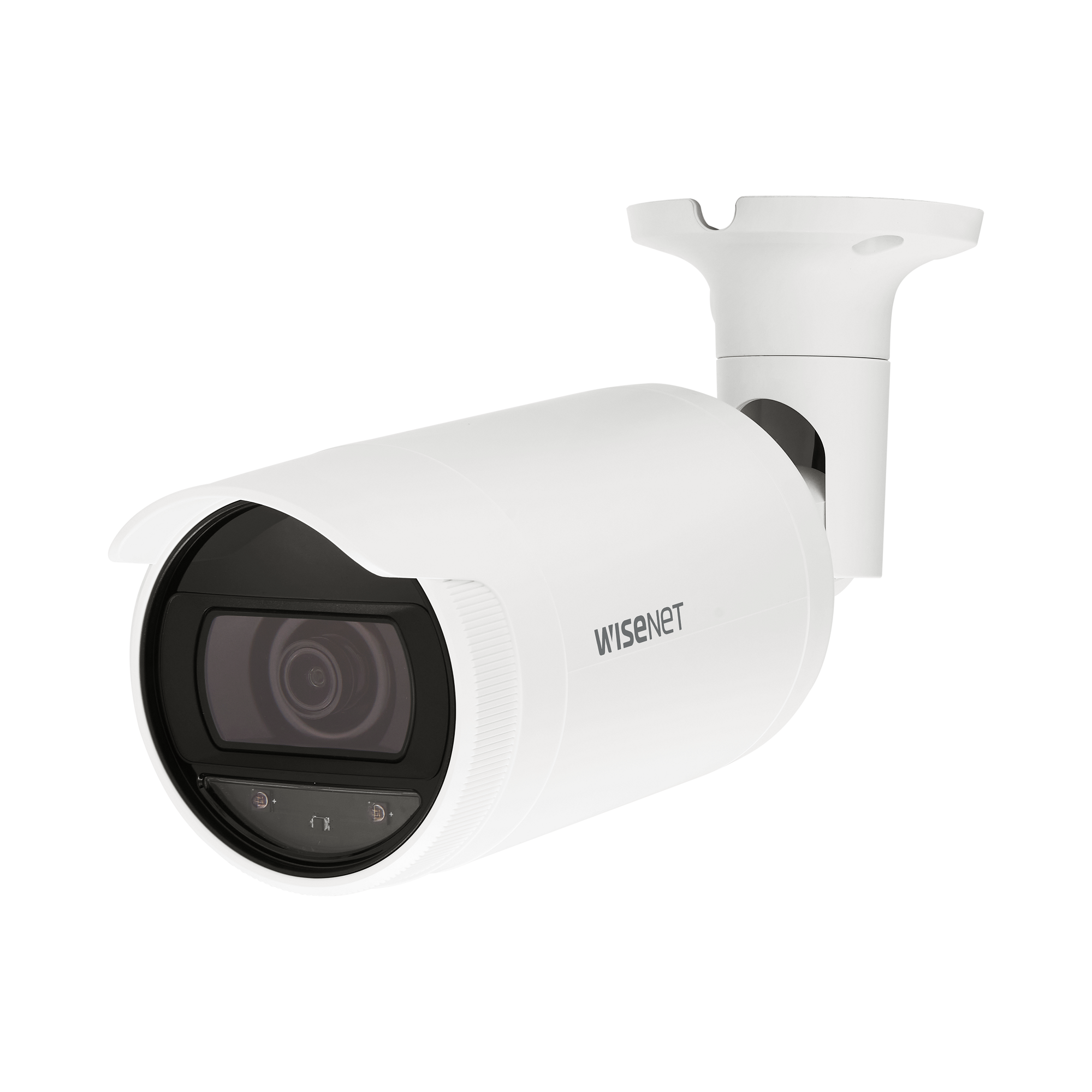

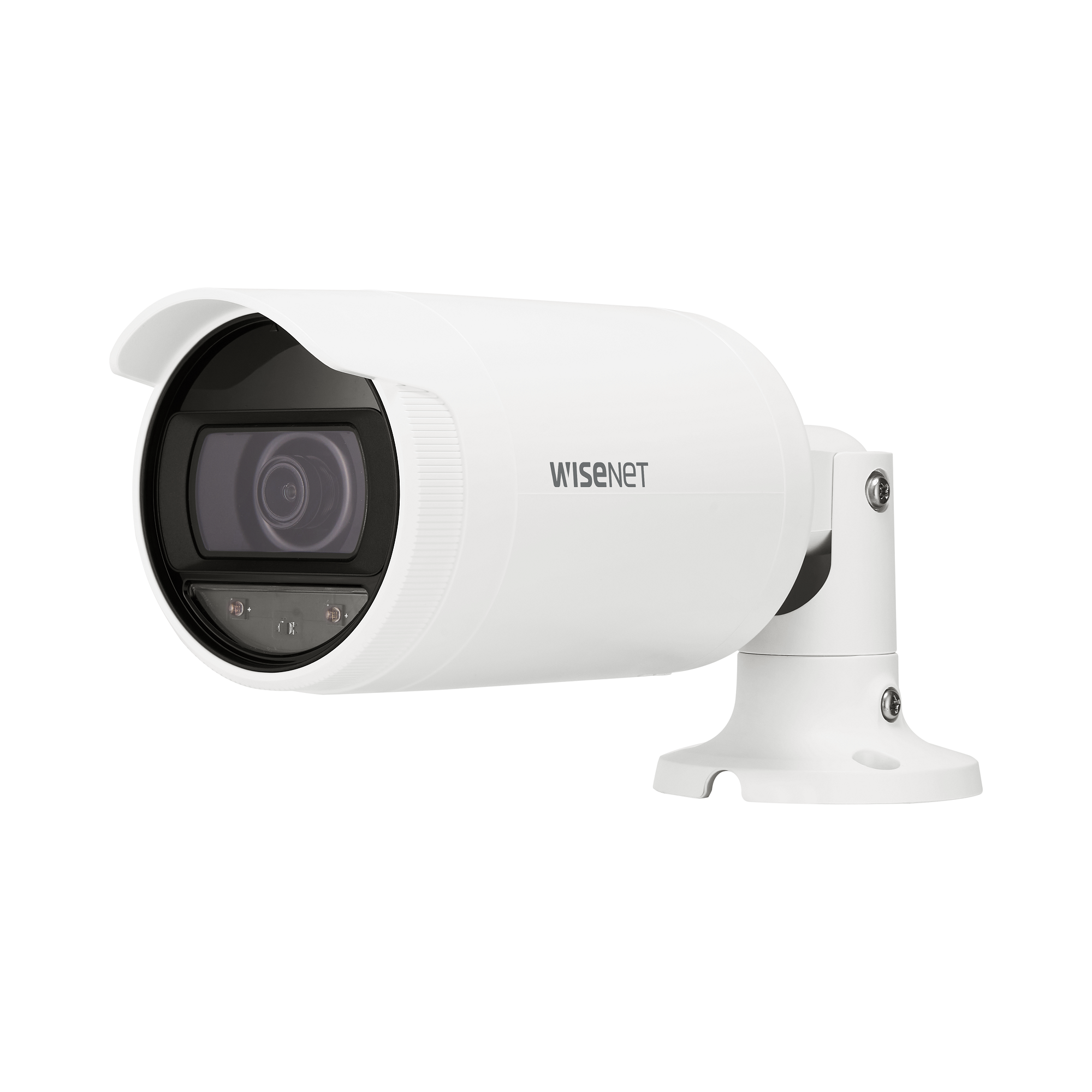

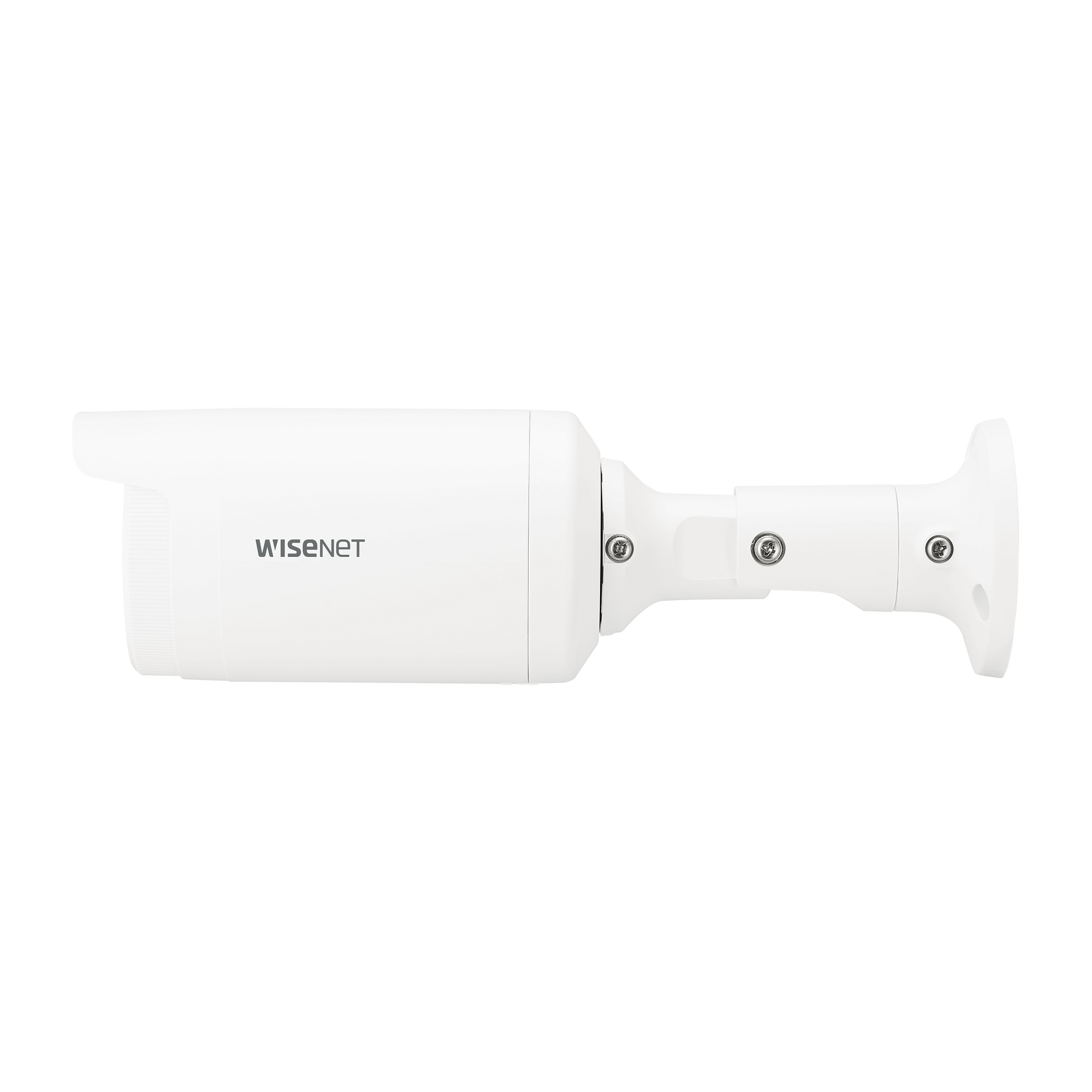

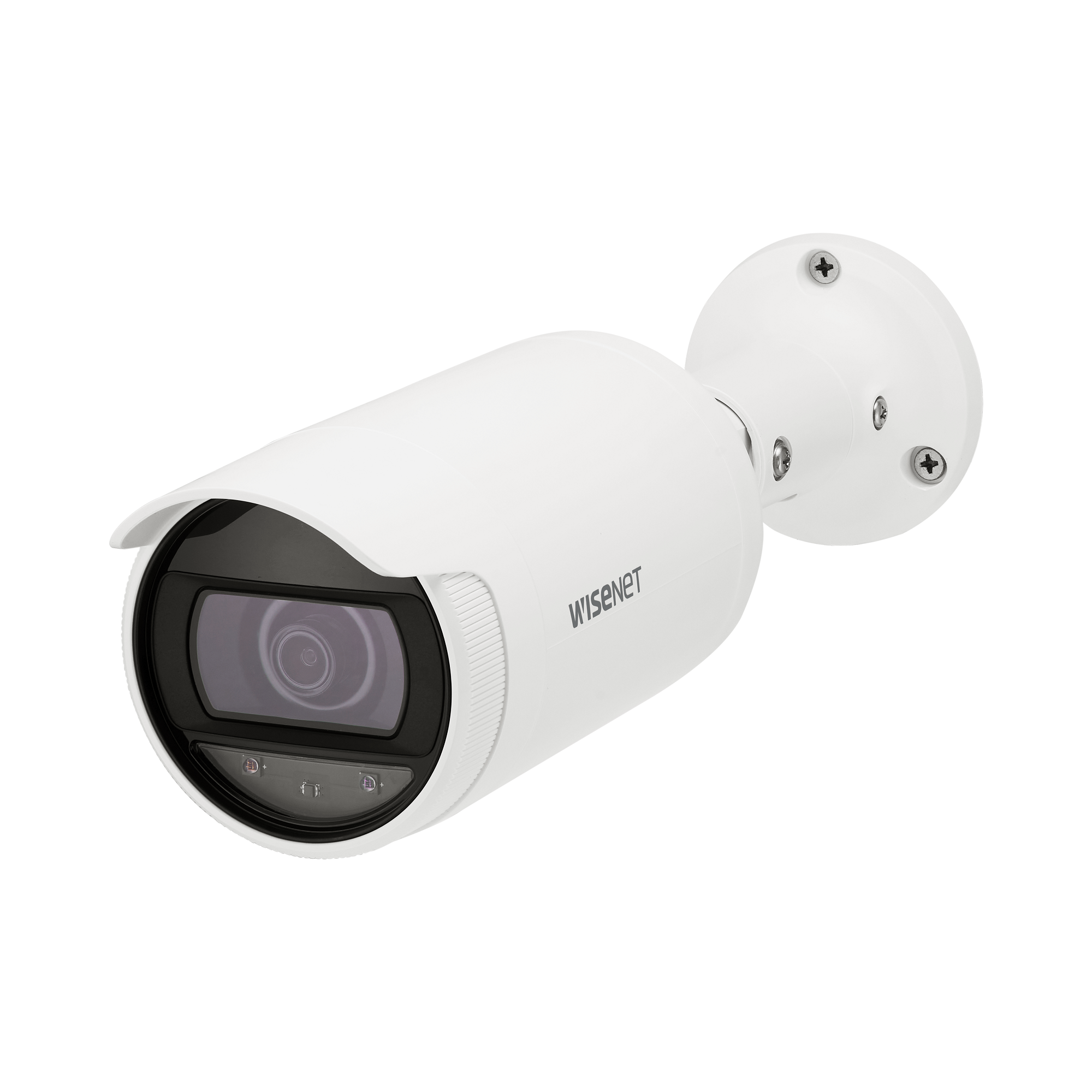

Built for directional outdoor coverage along perimeters, driveways, and building exteriors, the ANO-L7022R is a compact IR bullet camera from Hanwha Vision’s Wisenet A Series. It delivers 4MP resolution at up to 30fps using H.265 compression, keeping bandwidth and storage demands low without sacrificing image detail. Featuring a fixed 4mm lens with a 78.2-degree horizontal field of view and 25m IR range, it is well suited to monitoring mid-distance approaches, loading areas, and fenced boundaries where a fixed coverage zone is sufficient. Equipped with 120dB Wide Dynamic Range and a true Day/Night ICR filter, it handles mixed lighting and direct sun exposure reliably. WiseStream II further reduces bitrate during low-activity periods, and onboard analytics including virtual line crossing, intrusion detection, and defocus detection add a layer of event-based intelligence. A micro SD slot supports up to 128GB of local storage for edge recording, and PoE simplifies single-cable installation.
Key Capabilities
4MP Fixed Lens with Wide Horizontal Coverage
The fixed 4mm lens captures a 78.2-degree horizontal field of view at 2560 x 1440 resolution, making it practical for covering building facades, gateways, and mid-range outdoor approaches without requiring lens adjustment during installation.
25m Infrared Night Vision
Built-in IR LEDs extend visibility to 25m in complete darkness, with the Day/Night ICR filter automatically switching to monochrome mode at night. This supports continuous outdoor monitoring without relying on external lighting in car parks or access routes.
120dB Wide Dynamic Range
A 120dB WDR rating allows the ANO-L7022R to hold detail in scenes that combine bright sunlight and deep shadow, such as entry gates, covered loading bays, or any exterior position affected by direct sun or artificial lighting contrast.
H.265 Compression with WiseStream II
H.265 encoding combined with Hanwha’s WiseStream II technology dynamically reduces bitrate during low-motion periods. This is particularly useful on multi-camera perimeter installations where network bandwidth and NVR storage capacity need to be managed across many channels.
Onboard Video Analytics
Includes virtual line crossing, directional detection, intrusion, enter/exit zone monitoring, defocus detection, and tampering alerts. These analytics generate targeted event notifications rather than constant motion triggers, reducing unnecessary review time on recorded footage.
Best For
- Perimeter and Fence Line Monitoring: The bullet housing and fixed 4mm lens deliver a consistent directional view along boundaries, fences, and property edges where a defined coverage angle is suitable.
- Car Parks and Loading Areas: 120dB WDR manages the high-contrast lighting conditions common in open car parks and undercover loading docks, maintaining readable detail across the scene.
- Commercial Entry Points and Driveways: The 25m IR range and virtual line crossing detection support monitoring of driveways and gates where after-hours access is a concern.
- Hallway and Corridor Coverage: The hallway view mode (90 or 270-degree rotation) allows the ANO-L7022R to be oriented for long narrow corridor shots when required, broadening its placement options beyond typical outdoor perimeter use.
Why Choose the ANO-L7022R
The ANO-L7022R sits in the Wisenet A Series as a no-compromise entry into Hanwha Vision’s outdoor bullet range, offering genuine analytics capabilities that simpler value cameras in the same price bracket omit. While many cameras at this tier offer basic motion detection only, the ANO-L7022R includes virtual line crossing, directional detection, intrusion zone monitoring, and defocus detection as standard, allowing event-based recording and smarter alert filtering. The 120dB WDR rating handles outdoor contrast that would wash out or underexpose scenes on cameras with lower WDR. H.265 with WiseStream II keeps storage manageable even on extended retention periods, and the IP66 rating confirms dust and water resistance for exposed outdoor positions. PoE support means a single Cat 6 cable handles both power and data, reducing installation complexity. The ANO-L7022R is available at Security Wholesalers as part of the Hanwha Wisenet A Series range for installers and integrators across Australia.
Buyer Tip: The ANO-L7022R uses a fixed 4mm lens, which gives a 78.2-degree horizontal field of view at a fixed distance. Before purchasing, confirm the mounting position and distance to the target zone suits this angle. If you need to cover a narrower approach from a greater distance, or require zoom adjustment after installation, a varifocal bullet model would be the more practical choice. For most standard perimeter and entry point positions at 6m to 15m mounting height, the 4mm focal length is well suited.
Key Features & Technical Specifications
| Model |
ANO-L7022R |
| Camera Type |
IR Bullet, Fixed Lens |
| Resolution |
4MP (2560 x 1440) |
| Frame Rate |
Up to 30fps (H.265 / H.264) |
| Lens |
4mm fixed focal length |
| Horizontal Field of View |
78.2 degrees |
| Minimum Illumination |
0.1 Lux (Colour, F1.6, 1/30sec) / 0 Lux (B/W, IR on) |
| IR Viewable Length |
25m |
| Day/Night |
True Day/Night with Auto ICR |
| Wide Dynamic Range |
120dB WDR |
| Video Compression |
H.265, H.264, MJPEG; multiple streaming supported |
| Bandwidth Optimisation |
WiseStream II |
| Analytics |
Defocus detection, directional detection, motion detection, intrusion, enter/exit, virtual line crossing, tampering |
| Hallway View |
90-degree / 270-degree rotation supported |
| Local Storage |
Micro SD / SDHC / SDXC slot, up to 128GB |
| Power |
PoE (IEEE 802.3af) / 12V DC |
| Weatherproofing |
IP66 |
| Operating Temperature |
-30°C to +55°C |
Ideal Use Cases
Industrial Yard Perimeters
The bullet housing suits wall or pole mounting along yard boundaries, and the 25m IR range covers approaches and pathways after dark without requiring external lighting infrastructure.
Commercial Car Parks
120dB WDR manages the contrast between sunlit open areas and shaded undercover zones. Virtual line crossing and intrusion detection can flag unauthorised after-hours vehicle access.
Building Entry Points and Gates
Mounted above access gates or building entry doors, the ANO-L7022R uses enter/exit zone detection to log defined crossing events, giving operators a structured record of access activity.
Warehouse Exteriors
IP66 weatherproofing handles exposed outdoor mounting on warehouse walls facing loading docks or external storage yards, and the operating range of -30°C to +55°C covers harsh Australian climate conditions.
Long Corridor and Hallway Monitoring
Hallway view mode rotates the image 90 or 270 degrees to suit portrait-oriented scenes, making this camera practical for long internal corridors or stairwells where a standard landscape frame wastes coverage area.
Choosing the Right Model
- Choose this model if: You need a 4MP outdoor bullet camera with event-based analytics, 120dB WDR, and PoE installation for a fixed perimeter or entry point position where a 4mm lens and 25m IR range suit the mounting distance and coverage zone.
- Choose a different model if: Your installation requires a longer IR range beyond 25m, the ability to adjust the field of view after mounting using a varifocal lens, or higher resolution for detail capture at extended distances. A varifocal or longer-range IR bullet would better serve those scenarios.
FAQs
- What does the ANO-L7022R’s 78.2-degree horizontal field of view look like in practice?
At a mounting height of around 3m to 4m and aimed along a driveway or fence line, the 78.2-degree HFoV from the 4mm lens covers a scene width of approximately 4m to 6m at 5m distance. It is suited to mid-range focused coverage rather than wide-area overview. Confirm your target distance and required scene width before committing to the fixed 4mm lens.
- Does the ANO-L7022R work in complete darkness?
Yes. The built-in IR LEDs and true Day/Night ICR filter allow the camera to produce monochrome footage in 0 Lux conditions with IR active. The effective IR viewable length is 25m. Beyond this range or in partially lit conditions, image quality will reduce progressively.
- What analytics does the ANO-L7022R support without additional licensing?
The ANO-L7022R includes defocus detection, directional detection, motion detection, virtual line crossing, enter/exit zone monitoring, intrusion detection, and tampering detection as standard features. These are processed onboard and do not require additional software licences to operate.
- Is the ANO-L7022R suitable for outdoor installation in harsh Australian conditions?
Yes. The IP66 rating confirms the housing is dust-tight and protected against heavy water ingress, making it appropriate for exposed outdoor positions. The operating temperature range of -30°C to +55°C covers most Australian outdoor environments including extreme summer heat in northern and western regions.
- How does WiseStream II affect storage and bandwidth on the ANO-L7022R?
WiseStream II dynamically adjusts the bitrate based on scene complexity. In low-activity scenes such as an empty car park at night, the bitrate drops significantly, which reduces NVR storage consumption and network bandwidth usage. During high-activity periods the bitrate increases to maintain image quality. This makes multi-camera deployments more manageable on limited network infrastructure.
- Can the ANO-L7022R record locally without a network recorder?
Yes. The onboard micro SD slot accepts cards up to 128GB, allowing edge recording directly on the camera. This provides a fallback recording option if the NVR connection is interrupted, or can be used as the primary recording method in smaller standalone installations. Security Wholesalers can assist with compatible SD card recommendations for Hanwha Wisenet A Series cameras.
