Product SKU: HV-ANE-L7012L
Product Overview

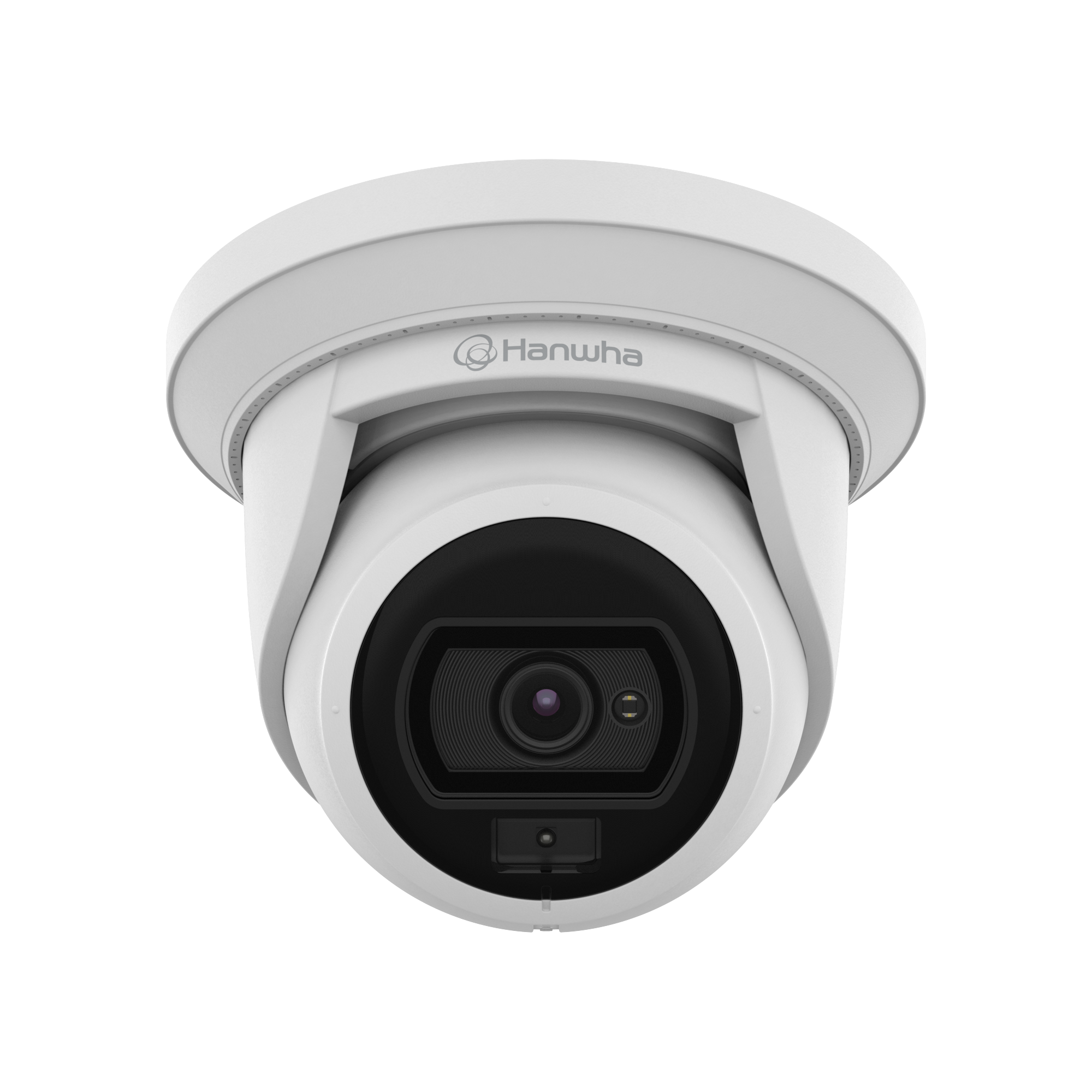

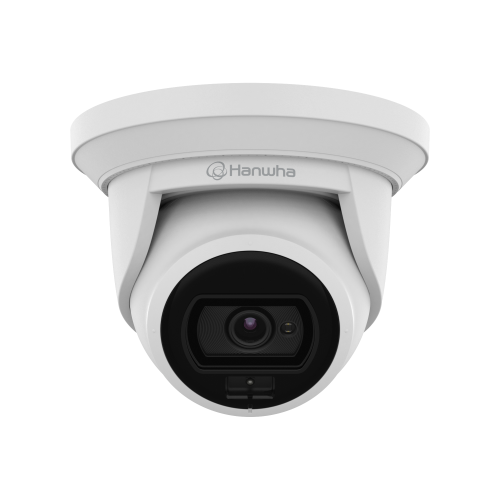

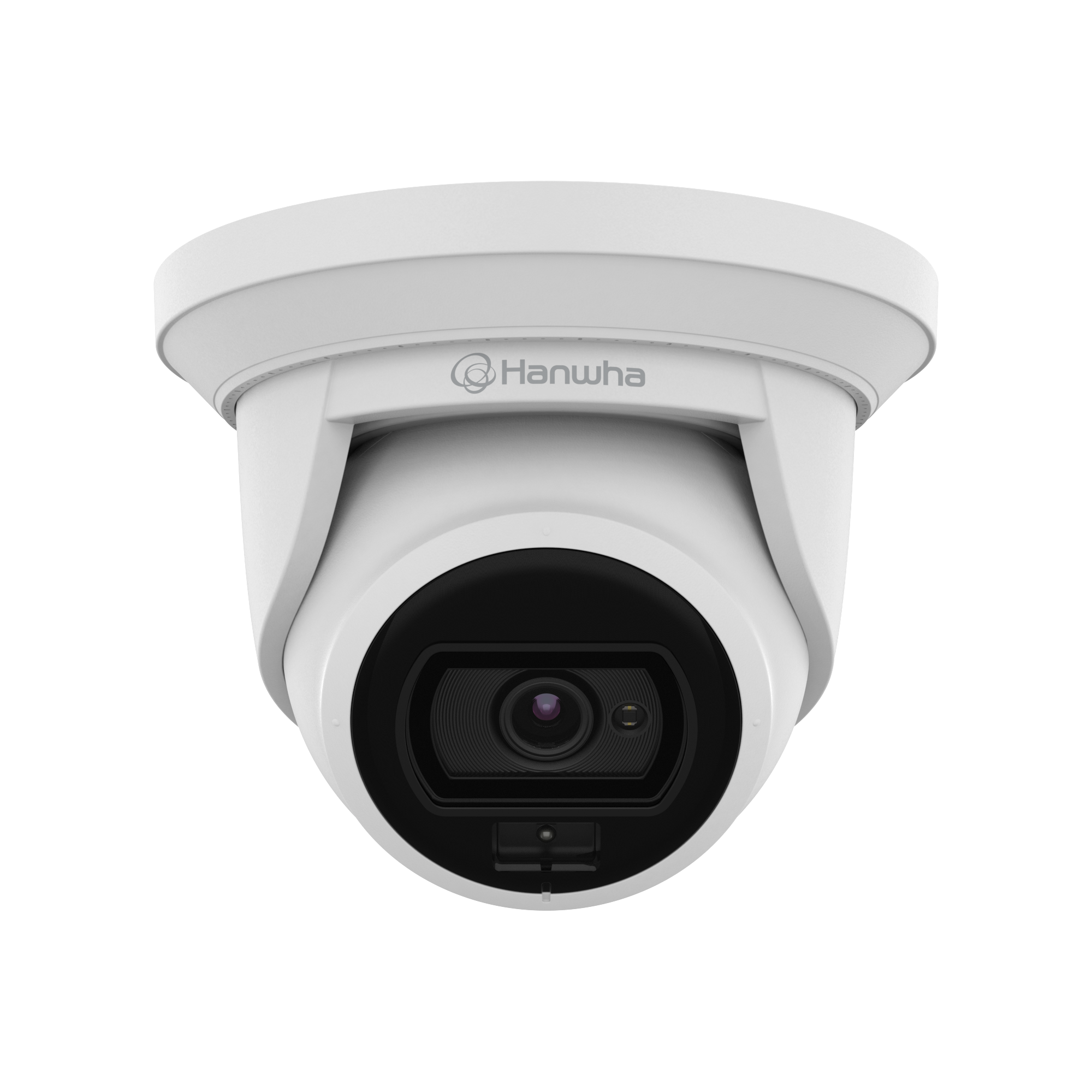

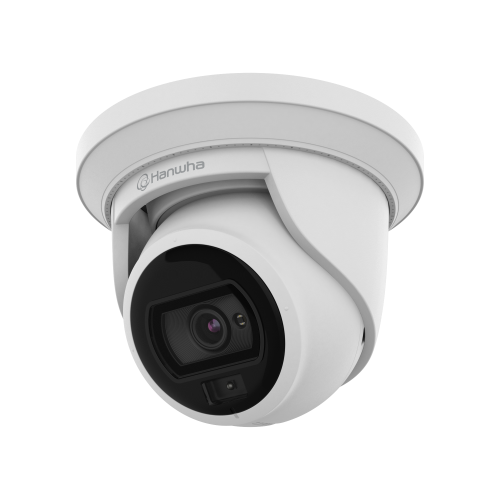

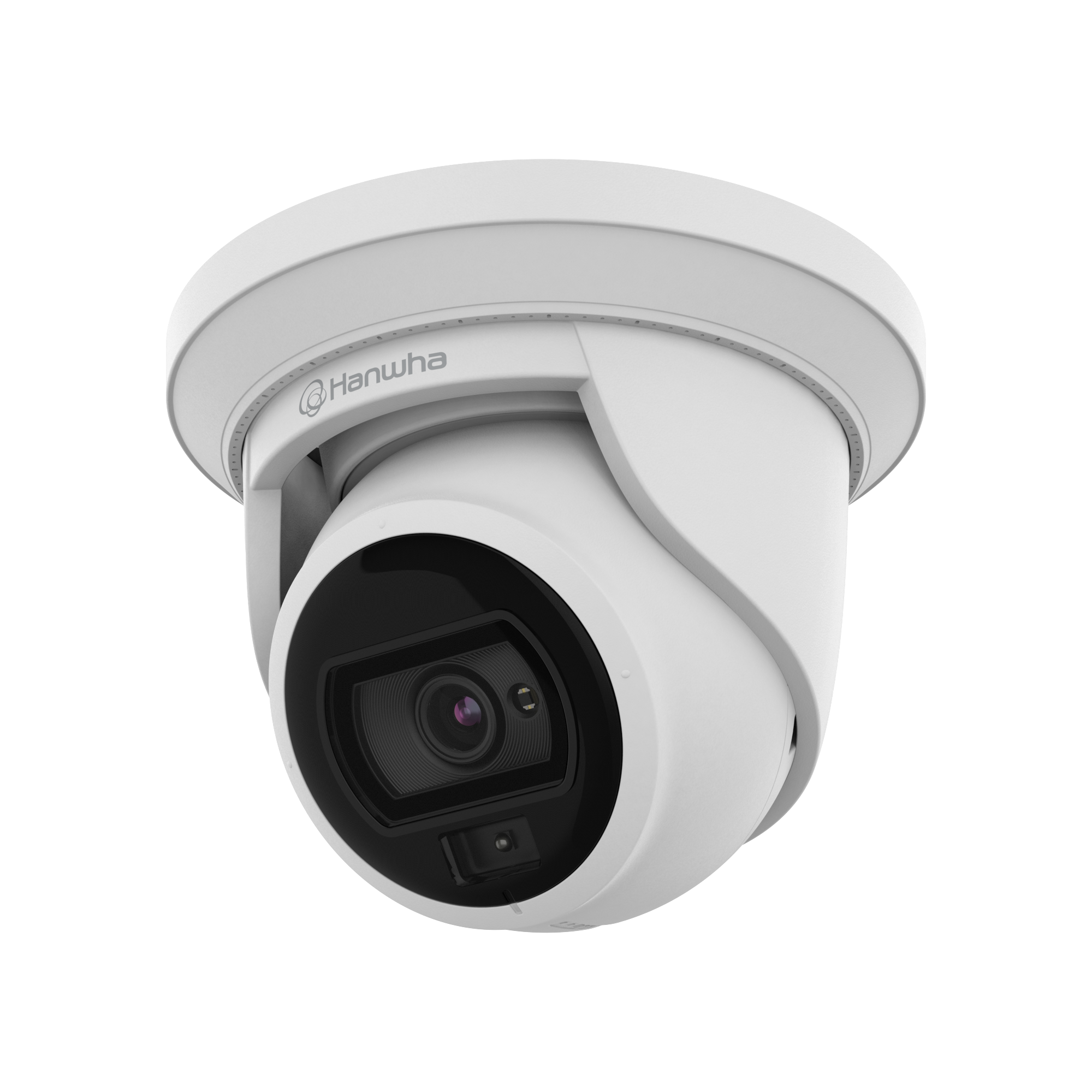

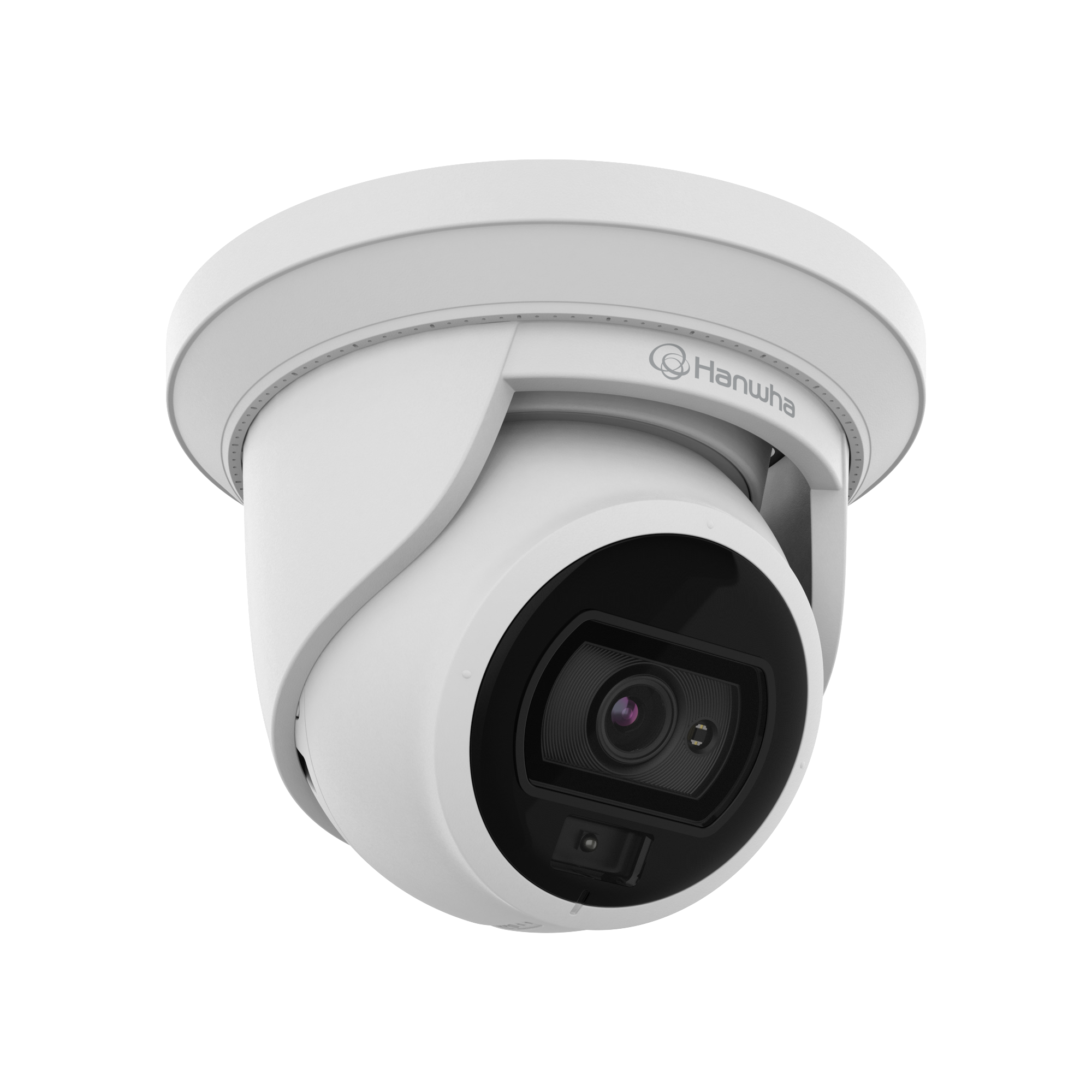

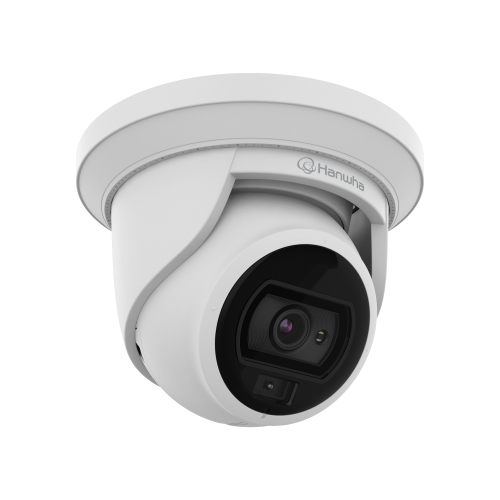

This super-compact flateye camera is built for discreet, flush-mounted installations where a low-profile footprint matters as much as image quality. The HV-ANE-L7012L sits within the Hanwha Wisenet A Series and suits ceiling and wall applications in corridors, reception areas, retail shopfronts, stairwells, and covered entrances. Featuring a 3mm fixed lens with a 98.3-degree horizontal field of view, it captures wide-angle coverage across confined and open interior spaces without distortion, thanks to built-in Lens Distortion Correction. White light illumination delivers 24-hour full-colour video, removing the monochrome switching typical of traditional IR cameras. Equipped with 120dB True WDR and WiseStream II compression, the camera handles backlit scenes and network load efficiently. The IK10 vandal resistance and IP66 weather rating extend its usefulness to semi-exposed outdoor locations. Hallway View with 270-degree rotation support allows footage to be reoriented to suit corridor or portrait-style layouts without physically repositioning the unit.
Key Capabilities
White Light 24-Hour Colour
Built-in white light illumination means footage stays in full colour around the clock. Installers fitting cameras in corridors, lobbies, or covered entries benefit from identifiable colour detail at night without relying on separate lighting infrastructure.
4MP Wide-Angle Fixed Lens
The 3mm lens delivers a 98.3-degree horizontal field of view at 2560 x 1440 resolution, covering wide interior spaces from a single mounting point. Lens Distortion Correction keeps straight lines accurate at the frame edges, which matters in tiled or lined environments.
120dB True Wide Dynamic Range
True WDR at 120dB manages scenes where bright light enters through windows or doorways while the camera still needs to capture detail in shadowed areas. Useful for reception desks, entry foyers, and shopfronts with glass facades.
Intelligent Video Analytics
On-board IVA includes virtual area intrusion, enter/exit detection, virtual line crossing with direction, motion detection, and tampering alerts. These allow rule-based alerting without requiring a separate analytics server or upgraded NVR licence.
Hallway View and WiseStream II
Hallway View with 270-degree digital rotation reframes the image to a portrait orientation, maximising coverage in long corridors without dead zones. WiseStream II reduces bitrate by up to 50 percent versus standard H.265, lowering storage and network demands.
IK10 Vandal Resistance and IP66 Rating
IK10 is the highest standard impact resistance rating, protecting the camera housing against deliberate physical strikes in publicly accessible areas. IP66 dust and water resistance allows installation in covered outdoor areas, car park entry points, and semi-exposed locations.
Best For
- Corridor and Hallway Monitoring: The Hallway View 270-degree rotation feature reorients footage to portrait mode, filling long narrow passageways with a single camera rather than requiring multiple units.
- Reception and Entry Lobbies: The 3mm wide-angle lens combined with 120dB True WDR captures the full width of a reception counter or foyer entrance while handling backlit window glare.
- Retail and Public-Facing Interiors: The super-compact flateye profile blends into ceilings unobtrusively, and the IK10 rating provides protection in environments where customer contact with fittings is possible.
- Covered Outdoor and Semi-Exposed Installations: IP66 and IK10 ratings allow mounting under eaves, at covered car park entrances, or in stairwells open to the elements where a traditional indoor dome would not be suitable.
Why Choose the HV-ANE-L7012L
The HV-ANE-L7012L stands apart from standard dome and turret cameras through its flateye housing, which provides an ultra-low mounting profile that integrates cleanly into commercial ceilings and wall surfaces. Unlike basic entry-level cameras that switch to monochrome at night, this model uses white light illumination to maintain full-colour footage 24 hours a day, a meaningful advantage in spaces where identifying clothing, vehicles, or individuals is critical. The combination of on-board IVA, WiseStream II compression, and local microSD storage up to 128GB means the camera contributes to detection and storage independently, reducing the processing burden on connected recorders. The NDAA compliance status also makes it a viable option for projects requiring supply chain restrictions on camera hardware. Available through Security Wholesalers, the HV-ANE-L7012L is a well-specified compact camera for commercial installers needing a discreet, durable, and analytically capable unit in a single housing.
Buyer Decision Tips
Lens and Field of View: The 3mm fixed lens on this model is not interchangeable. At 98.3 degrees horizontal, it is optimised for wide coverage at close to medium distances, such as a corridor width of 3-6 metres or a room up to 8-10 metres deep. If your application requires a narrower focal length to cover a longer distance, such as a 20-metre aisle or external approach path, a different focal length camera would be more appropriate. Confirm your mounting height and scene width before specifying this unit.
Key Features & Technical Specifications
| Model |
HV-ANE-L7012L |
| Resolution |
4MP (2560 x 1440) |
| Lens |
3mm fixed lens |
| Field of View |
Horizontal: 98.3 degrees / Vertical: 54.2 degrees |
| Frame Rate |
30fps at all resolutions |
| Compression |
H.265 / H.264 / MJPEG triple codec |
| Night Vision |
White light illumination – 24-hour full-colour video |
| Day and Night |
Day and Night with ICR (IR Cut Filter) |
| Wide Dynamic Range |
120dB True WDR |
| Video Analytics |
Virtual area (intrusion / enter / exit), virtual line (crossing / direction), motion detection, tampering |
| Hallway View |
270-degree digital rotation support |
| Compression Technology |
WiseStream II |
| Local Storage |
MicroSD / SDHC slot (max. 128GB) |
| Power |
PoE (Power over Ethernet) |
| Weatherproofing |
IP66 |
| Vandal Resistance |
IK10 |
| Lens Distortion Correction |
Yes |
| Compliance |
NDAA Compliant |
| Camera Series |
Hanwha Wisenet A Series |
Ideal Use Cases
Office and Commercial Corridors
Hallway View with 270-degree rotation reorients the 4MP image to cover the full length of narrow passages from a single ceiling-mounted unit, reducing camera count in multi-floor commercial buildings.
Reception Desks and Entry Foyers
The 3mm wide-angle lens and 120dB True WDR capture the full counter width and handle incoming natural light through glass entry doors without washing out facial detail at the desk.
Retail Shopfronts and Aisles
White light 24-hour colour footage captures clothing and product detail in retail environments where monochrome night vision would not support loss prevention review. The IK10 rating protects the unit in publicly accessible areas.
Stairwells and Lift Lobbies
The super-compact flateye profile mounts flush to low-clearance ceilings and walls without protruding, making it well suited to stairwell landings, lift lobbies, and confined ceiling spaces where a dome housing would be impractical.
Covered Car Park Entries and Semi-Exposed Areas
IP66 dust and water resistance combined with IK10 impact protection allows installation at ticketed boom gate entry points, covered walkways, and semi-exposed building access points where environmental exposure is a factor.
Choosing the Right Model
- Choose this model if: Your installation requires a very low-profile, flush-mounting camera with wide-angle coverage, 24-hour full-colour footage via white light, IK10 vandal protection, and on-board IVA analytics in a PoE-powered unit.
- Choose a different model if: Your scene requires coverage beyond 10-12 metres depth or a narrower focal length to read detail at distance. A fixed lens at 3mm is not adjustable, so applications needing a 6mm, 8mm, or varifocal option would be better served by a different camera with a longer or motorised lens. Similarly, if two-way audio communication is needed at the camera location, a model with a confirmed built-in speaker and microphone should be selected instead.
FAQs
- What does the flateye housing design mean for installation?
The flateye form factor is an ultra-compact, flat-bodied profile that sits much closer to the mounting surface than a standard dome or bullet housing. This makes it suitable for low-clearance ceilings, recessed wall positions, and confined spaces where a conventional camera body would protrude noticeably or interfere with the surrounding structure.
- Does the HV-ANE-L7012L produce colour footage at night?
Yes. The camera uses white light illumination to maintain full-colour video 24 hours a day. Unlike traditional IR cameras that switch to monochrome in low light, this model keeps colour active in dark conditions, which is useful for identifying clothing, vehicle colour, and other detail that would be lost in a greyscale image.
- What analytics does the camera support without an external licence?
On-board IVA includes virtual area detection for intrusion, enter, and exit events, virtual line crossing with direction filtering, standard motion detection, and tampering alerts. These rules are processed within the camera itself and do not require an additional analytics licence on the NVR or a separate server.
- How does Hallway View work on this camera?
Hallway View applies a digital 270-degree rotation to the image output, converting the standard landscape frame into a portrait orientation. This fills the width of a narrow corridor from ceiling height without leaving large areas of wasted frame on either side, and it can be applied without physically repositioning the camera bracket.
- Can the HV-ANE-L7012L store footage locally without an NVR?
Yes. The camera includes a microSD and SDHC card slot supporting cards up to 128GB. This allows edge recording directly to the installed card, which serves as a backup or standalone recording option where a centralised recorder is not used or available.
- Is the HV-ANE-L7012L suitable for government or restricted projects requiring NDAA compliance?
Yes. The camera is confirmed as NDAA compliant, making it eligible for installations where procurement restrictions require cameras sourced from approved supply chains. This is confirmed in the product specifications and is part of what Security Wholesalers stocks this unit to support. Installers working on government, defence-adjacent, or council projects should verify the specific NDAA section applicable to their project requirements.
