Product SKU: SBP-300CMTS
Product Overview

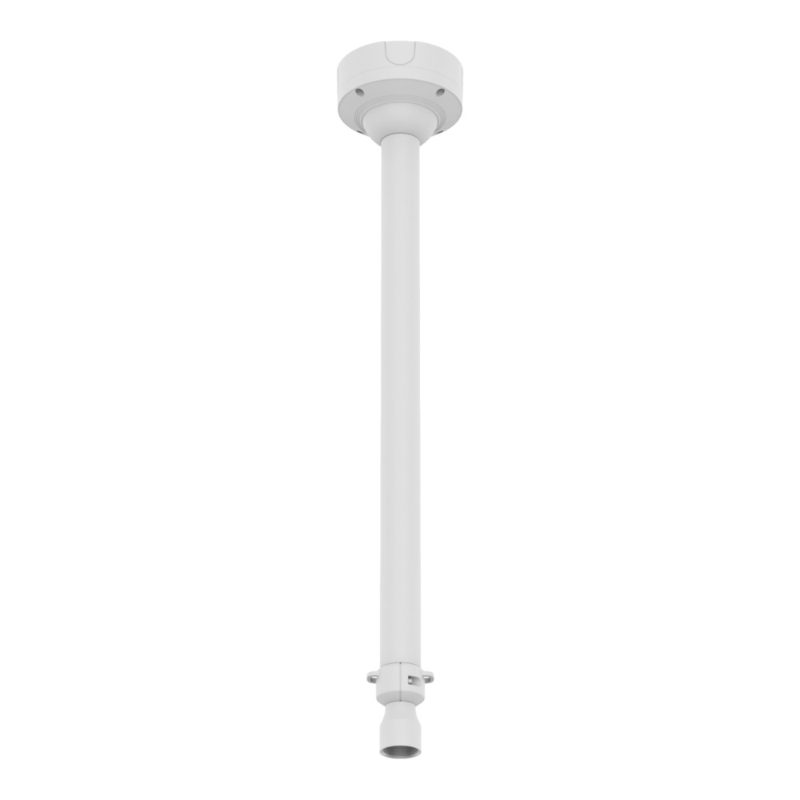

For installers positioning Hanwha cameras on high ceilings where a fixed-length mount cannot bridge the distance or align the viewing angle correctly, the SBP-300CMTS telescopic ceiling mount provides the reach and flexibility the job requires. This aluminum ball head ceiling mount extends from 956.5mm to 1667.5mm, allowing the drop length to be set during installation without sourcing a different bracket. The swivel ball head adjusts pan and tilt independently up to 45 degrees in each direction, so the camera angle can be dialled in after the mount is secured to the ceiling. It supports a maximum load of 20kg and is designed to work with Hanwha hanging adaptors including the SBP-120HMW, SBP-140HMW, SBP-160HMW1, and SBP-180HMW1 series, as well as compatible pipe extensions. Finished in white to RAL9003, it is well suited to indoor commercial environments where ceiling infrastructure is visible. This is a special order product with a 6 to 8 week lead time.
Key Capabilities
Telescopic Length Adjustment
The mount extends from 956.5mm to 1667.5mm, giving installers a single bracket that covers a wide range of ceiling drop requirements. This removes the need to order multiple fixed-length extensions to match different ceiling heights on the same project.
Swivel Ball Head
Pan and tilt adjustment of up to 45 degrees in each direction allows the attached camera to be pointed precisely at the intended coverage zone after the mount is fixed. This is particularly useful on suspended ceilings where exact positioning at the bracket stage is difficult.
20kg Maximum Load Capacity
Rated to support up to 20kg, this mount can carry Hanwha camera assemblies including housings and additional pipe extensions without structural concern. The aluminum construction keeps the mount itself at a manageable 3,750g while maintaining the required load rating.
Hanwha Ecosystem Compatibility
Designed to mate with Hanwha hanging adaptors including the SBP-120HMW, SBP-140HMW, SBP-160HMW1, and SBP-180HMW1, and compatible pipe extensions such as the SBP-C15P and SBP-150CMP, SBP-300CMP, and SBP-900CMP. This keeps the ceiling assembly fully within the Hanwha mounting ecosystem.
Best For
- High-Ceiling Commercial Installations: The telescopic range from 956.5mm to 1667.5mm makes this mount suited to atriums, sports halls, and large retail spaces where cameras need to descend significantly from the ceiling structure to achieve effective coverage height.
- Installations Requiring Post-Fix Angle Adjustment: The ball head with 45-degree pan and tilt range allows the camera direction to be corrected after the mount is locked to the ceiling, which is useful when access to the ceiling fixing point is limited during fine-tuning.
- Hanwha Camera Systems Using Hanging Adaptors: Installers who have already specified Hanwha hanging adaptors or pipe extensions can integrate this mount directly without requiring adaptor plates or third-party hardware.
Why Choose the SBP-300CMTS
The SBP-300CMTS addresses a specific installation requirement: delivering a substantial, adjustable ceiling drop for Hanwha camera assemblies where fixed-length brackets are impractical. The telescopic body spans from just under one metre to over 1.6 metres, and the ball head swivel provides 45-degree adjustment on both pan and tilt axes after mounting, which is not available on rigid straight-arm alternatives. The 20kg load rating and aluminum construction ensure the mount handles the combined weight of hanging adaptors, pipe extensions, and camera housings without flex. It is finished in white (RAL9003) to blend with commercial ceiling finishes. As a special order product, the 6 to 8 week lead time should be factored into project scheduling. The SBP-300CMTS is available at Security Wholesalers for projects that require a verified Hanwha-compatible ceiling mounting solution at this drop range.
Buyer Decision Tips
Plan for the Lead Time: The SBP-300CMTS is a special order item with a 6 to 8 week supply window. If this mount is part of a staged installation or a project with a fixed completion date, place the order well in advance of the on-site work schedule to avoid delays at the camera installation phase.
Confirm Your Hanging Adaptor Model Before Ordering: The SBP-300CMTS is designed for use with specific Hanwha hanging adaptors and pipe extensions. Before ordering, verify that your camera housing’s hanging adaptor model appears on the Hanwha compatibility list. Using the Hanwha Toolbox or the product page on the Hanwha Vision website will confirm the exact supported models for your configuration.
Key Features & Technical Specifications
| Model |
SBP-300CMTS |
| Mount Type |
Swivel ball head telescopic ceiling mount |
| Colour |
White |
| RAL Code |
RAL9003 |
| Material |
Aluminum |
| Telescopic Length Range |
956.5mm to 1667.5mm (37.66″ to 65.65″) |
| Diameter |
180mm (7.09″) |
| Weight |
3,750g (8.27lb) |
| Pan Adjustment |
±45° |
| Tilt Adjustment |
±45° |
| Rotation |
None |
| Maximum Load Capacity |
20kg |
| Conduit Hole |
19.1mm (3/4″) M25 |
| Compatible Hanging Adaptors |
SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1 (and others – confirm via Hanwha Toolbox) |
| Compatible Pipe Extensions |
SBP-C15P, SBP-150CMP, SBP-300CMP, SBP-900CMP |
| Supply Type |
Special order – 6 to 8 week lead time |
Ideal Use Cases
Shopping Centres and Atriums
High vaulted ceilings in retail and atrium environments often require a ceiling drop well beyond what a standard bracket provides. The SBP-300CMTS telescopes to over 1.6 metres, bringing cameras to an effective monitoring height in these large open spaces.
Warehouses and Distribution Centres
Camera positions in warehouses are often constrained by racking height and ceiling structure. The telescopic adjustment and 20kg load rating allow this mount to support Hanwha camera housings at the right height without custom fabrication.
Sports Halls and Gymnasiums
High-ceiling sports facilities need cameras positioned at a height that avoids interference with play while maintaining field coverage. The SBP-300CMTS provides the drop distance and the ball head swivel to angle the camera toward the court or playing area after fixing.
Convention and Exhibition Spaces
Temporary or semi-permanent camera installations in exhibition halls benefit from a mount that can be adjusted on-site without returning to the ceiling fixing point. The ball head adjustment of ±45° in pan and tilt allows angle changes from ground level during setup.
Choosing the Right Model
- Choose this model if: Your installation requires a ceiling drop between approximately 957mm and 1668mm, you need swivel angle adjustment after the mount is fixed, and you are working within the Hanwha mounting ecosystem using compatible hanging adaptors or pipe extensions.
- Choose a different model if: Your ceiling drop requirement falls outside the telescopic range of this mount, you need a fixed-length non-telescopic bracket for a lower-profile installation, or you are mounting a non-Hanwha camera that does not accept Hanwha hanging adaptors. In those cases, a fixed-length Hanwha ceiling mount or a different bracket series better suited to the camera housing should be considered.
FAQs
- What is the telescopic range of the SBP-300CMTS?
The SBP-300CMTS extends from 956.5mm (approximately 37.66 inches) to 1667.5mm (approximately 65.65 inches). This range allows the installer to set the ceiling drop to suit the specific height of the space without needing additional fixed-length extensions.
- What is the maximum load the SBP-300CMTS can support?
This mount is rated to a maximum load of 20kg. This covers the combined weight of a Hanwha camera housing, hanging adaptor, and any pipe extensions attached below the mount head, which is sufficient for the Hanwha camera assemblies this mount is designed to support.
- Which Hanwha hanging adaptors are confirmed compatible with the SBP-300CMTS?
Confirmed compatible hanging adaptors include the SBP-120HMW, SBP-140HMW, SBP-160HMW1, and SBP-180HMW1. Compatible pipe extensions include the SBP-C15P, SBP-150CMP, SBP-300CMP, and SBP-900CMP. For a complete list of supported models, the Hanwha Toolbox or the Hanwha Vision product page should be consulted before ordering.
- How much angle adjustment does the ball head provide?
The swivel ball head provides ±45 degrees of pan adjustment and ±45 degrees of tilt adjustment. There is no rotation function on this mount. This range is generally sufficient to correct camera aim after the mount has been fixed to the ceiling, which is particularly useful in installations where precise positioning at the fixing point is difficult.
- What is the conduit hole size on the SBP-300CMTS?
The conduit hole is 19.1mm in diameter, equivalent to a 3/4 inch conduit opening, with an M25 thread size. This allows cables to be routed internally through the mount body for a clean installation finish on visible ceiling drops.
- How long does it take to receive the SBP-300CMTS, and can I order it through Security Wholesalers?
The SBP-300CMTS is a special order product available through Security Wholesalers with a lead time of 6 to 8 weeks from the date of order. This lead time should be accounted for during project planning, particularly if this mount is on the critical path for completing a camera installation on a scheduled date.
