Product SKU: SBP-301HM5
Product Overview

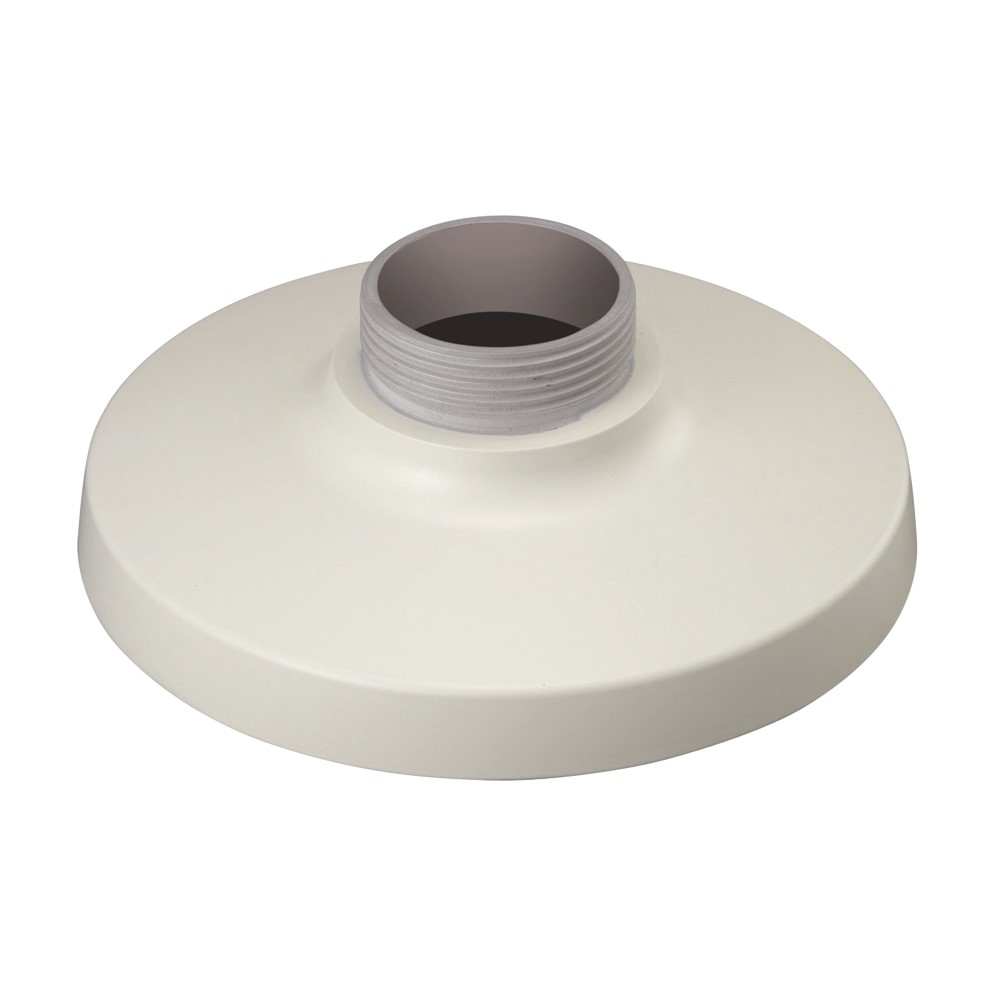

Designed specifically for pendant-style installations, the SBP-301HM5 is a Wisenet hanging mount built to suit the QNE-7080RV series camera. Where surface or ceiling-flush mounting is not practical, this accessory allows the QNE-7080RV to be suspended from a ceiling, conduit drop, or structural fitting in a clean pendant configuration. Constructed from aluminium and weighing just 197g, the mount keeps the camera stable without adding unnecessary load to the support structure. The PF 1 1/2 inch mount screw thread provides compatibility with standard pipe fittings commonly used in commercial and industrial ceiling installations. With an operating temperature range of -50 to 60 degrees Celsius and humidity tolerance up to 100 percent, it suits both indoor and covered outdoor environments where temperature extremes or condensation may be a factor. This is a purpose-built Hanwha Wisenet accessory and not a universal fitting.
Key Capabilities
Purpose-Built Compatibility
Engineered specifically for the QNE-7080RV series, this mount ensures a precise mechanical fit without adaptation or modification. Using a purpose-matched accessory reduces installation risk and ensures the camera is held securely at the correct angle and alignment.
Pendant Mounting Configuration
The hanging mount enables a pendant drop installation, positioning the QNE-7080RV camera below the ceiling surface. This suits open-plan spaces, atriums, and high-bay areas where a flush-mount approach would place the camera too far from the coverage zone.
Aluminium Construction
At 197g, the aluminium body keeps overall camera assembly weight low while providing the rigidity needed for a stable pendant installation. Aluminium resists corrosion and maintains structural integrity across a wide range of temperatures and humidity conditions.
Wide Environmental Tolerance
Rated for operation between -50 and 60 degrees Celsius with humidity tolerance from 0 to 100 percent, this mount handles the temperature swings and moisture levels found in warehouses, cold storage facilities, covered outdoor areas, and industrial environments.
Best For
- High-Ceiling Pendant Installations: Allows the QNE-7080RV to be dropped below a high ceiling so its field of view covers the intended floor area, rather than being lost against a remote ceiling surface.
- Open-Plan Commercial Spaces: Suited to atriums, foyers, shopping centres, and large retail floors where a pendant-mounted camera delivers wider downward coverage than a flush ceiling mount would achieve.
- Industrial and Warehouse Environments: The -50 to 60 degree Celsius operating range and full humidity tolerance make this mount appropriate for use in temperature-controlled storage, cold rooms, and covered loading areas.
Why Choose the SBP-301HM5
The SBP-301HM5 is a Hanwha Wisenet accessory designed for one specific job: mounting the QNE-7080RV series in a hanging pendant configuration. Unlike generic third-party brackets, this mount is matched to the QNE-7080RV’s body dimensions and fixing points, which means no guesswork, no adapters, and no risk of misalignment during installation. The aluminium body keeps assembly weight at 197g, which is relevant when suspending from conduit drops or suspended ceiling infrastructure where load capacity may be limited. The PF 1 1/2 inch screw thread aligns with standard pipe fittings used by installers in commercial and industrial projects, simplifying integration with existing ceiling infrastructure. Available at Security Wholesalers, this mount is stocked as part of the broader Hanwha Wisenet accessory range to support complete camera installations rather than piecemeal sourcing.
Buyer Decision Tips
Buyer Tip: This mount is specific to the QNE-7080RV series and is not a universal Wisenet accessory. Before ordering, confirm that your camera model is within the QNE-7080RV series. If you require a surface ceiling mount, wall mount, or pole mount for the same camera, a different SBP-series accessory will be required. Check the QNE-7080RV installation documentation for the full list of compatible mounting options to ensure you select the correct bracket for your installation configuration.
Key Features & Technical Specifications
| Model |
SBP-301HM5 |
| Mount Type |
Hanging / Pendant Mount |
| Compatible Camera |
QNE-7080RV series |
| Material |
Aluminium |
| Weight |
197g |
| Mount Screw Size |
PF 1 1/2 inch |
| Operating Temperature |
-50 to 60 degrees Celsius |
| Operating Humidity |
0 to 100 percent |
| Brand |
Hanwha Wisenet |
Ideal Use Cases
Retail Atriums and Foyers
Large entry spaces with high ceilings benefit from a pendant-mounted QNE-7080RV that can be positioned closer to floor activity, improving coverage quality compared to a camera mounted directly to a distant ceiling surface.
Warehouses and Distribution Centres
The -50 to 60 degree Celsius operating range suits high-bay warehouse environments where temperature variation between season or shift hours is significant. The aluminium construction handles industrial humidity levels without degradation.
Cold Storage and Temperature-Controlled Rooms
With an operating temperature floor of -50 degrees Celsius, this mount is one of the few accessories suited for use inside cold rooms and freezer storage environments where standard aluminium fittings remain structurally sound.
Open-Plan Commercial Buildings
Office buildings, shopping centres, and transit hubs with suspended ceilings or structural beam drops can use this hanging mount with standard PF 1 1/2 inch pipe fittings, integrating into existing ceiling infrastructure without custom fabrication.
Choosing the Right Model
- Choose this model if: You are installing a QNE-7080RV series camera in a location that requires a pendant drop configuration, such as a high-bay ceiling, atrium, or suspended ceiling grid where flush-mounting would compromise the camera’s downward field of view.
- Choose a different model if: You need a wall mount, pole mount, or flush ceiling surface mount for the QNE-7080RV, or if your camera model is outside the QNE-7080RV series. A different SBP-series accessory will be required for those configurations.
FAQs
- Which camera is the SBP-301HM5 designed to fit?
The SBP-301HM5 is designed specifically for the QNE-7080RV series camera. It is not a universal Wisenet hanging mount. If you are installing a different Hanwha Wisenet model, you will need to verify a compatible mount accessory for that specific camera before purchasing.
- What does a hanging mount do differently from a standard ceiling mount?
A hanging mount suspends the camera below the ceiling surface in a pendant configuration. This is useful in environments with high ceilings where mounting flush to the ceiling would place the camera too far from the intended coverage zone, reducing image detail at floor level. The pendant position brings the camera closer to the monitored area.
- What is the mount screw thread size and what does it connect to?
The SBP-301HM5 uses a PF 1 1/2 inch screw thread, which is compatible with standard pipe fittings widely used in commercial and industrial ceiling installations. This allows the mount to connect to conduit drops or pendant pipe assemblies without requiring non-standard adapters in most commercial fit-out scenarios.
- Can this mount be used in cold storage or outdoor covered areas?
Yes. The operating temperature range of -50 to 60 degrees Celsius and humidity tolerance of 0 to 100 percent means the mount is suited to cold rooms, freezer storage environments, and covered outdoor spaces where temperature and moisture levels exceed what standard accessories are rated for.
- Where can I find the installation guide for the SBP-301HM5?
The installation guide is available as a PDF download linked in the Additional Information section below. Security Wholesalers provides this documentation alongside the product to assist installers with correct mounting procedures, screw torque requirements, and fitting orientation for the QNE-7080RV.
