Product SKU: SBP-122HMW
Product Overview

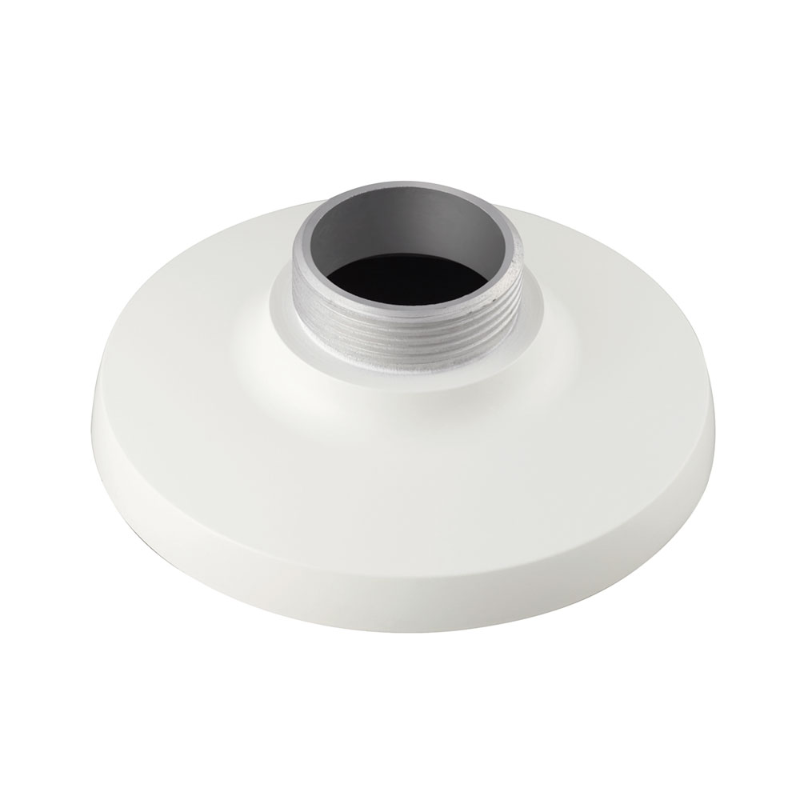

Installers fitting Hanwha dome cameras in high-ceiling or suspended environments will find the SBP-122HMW hanging adapter mount a straightforward solution for pendant-style mounting. Constructed from aluminium and finished in white, this adapter is designed to suit Hanwha A-series, QND-80x0R, and QNV-80x0R dome cameras, including the QND-8080R, QNV-8010R, QNV-8020R, and QNV-8030R models. It provides a secure, purpose-built interface between the camera and a hanging or pendant arm, allowing the camera to hang face-down from ceiling structures such as suspended ceilings, open-beam ceilings, or structural drops where direct surface mounting is not practical. At 159g and 128.2 x 47mm, the SBP-122HMW is compact and light enough not to add stress to the mounting arm or camera housing. It is well suited to retail floors, atriums, warehouses, and any indoor space where ceiling-drop mounting is the preferred installation method.
Key Capabilities
Aluminium Construction
The SBP-122HMW is machined from aluminium, keeping the adapter lightweight at 159g while providing the structural rigidity needed to hold a dome camera securely in a pendant configuration over time.
Confirmed Camera Compatibility
Engineered specifically for Hanwha A-series, QND-80x0R, and QNV-80x0R dome cameras. This purpose-built fit eliminates guesswork and avoids the alignment issues that can come with generic third-party adapters.
Pendant / Hanging Mount Style
Designed for drop or pendant installations where the camera hangs face-down from a ceiling arm or pipe. This is the correct adapter to use when a surface flush-mount is not achievable due to ceiling structure or height.
Compact Profile
At 128.2 x 47mm, the SBP-122HMW adds minimal bulk to the camera assembly. The slim profile keeps the overall installation tidy, which matters in retail, hospitality, or public-facing environments.
Best For
- High-Ceiling Indoor Spaces: Suited to atriums, warehouses, and large retail floors where the camera needs to be dropped from a ceiling arm to achieve a practical mounting height and field of view.
- Suspended or Open-Beam Ceilings: Provides the correct interface for attaching Hanwha QND-80x0R or QNV-80x0R cameras to pendant poles or arms in spaces where direct ceiling flush-mounting is not an option.
- Professional Hanwha Installations: Designed as a genuine Hanwha accessory, making it the appropriate choice for integrators who want confirmed mechanical compatibility rather than relying on an aftermarket solution.
Why Choose the SBP-122HMW
The SBP-122HMW is a purpose-built Hanwha accessory, which means the mechanical interface between the adapter and the camera body is designed to the same tolerances as the camera itself. Generic pendant adapters may fit loosely, cause misalignment, or require modification on site. This adapter removes that uncertainty for installers using the QND-8080R, QNV-8010R, QNV-8020R, or QNV-8030R in pendant configurations. The aluminium body keeps weight low while maintaining the rigidity a hanging installation requires. At 128.2 x 47mm, it integrates cleanly without adding unnecessary bulk. For installers who want to complete a Hanwha dome installation correctly without compromise, this is the matching mount to reach for. The SBP-122HMW is available at Security Wholesalers as part of the broader Hanwha mounting accessories range.
Buyer Decision Tips
Check Your Camera Model Before Ordering: The SBP-122HMW is confirmed for Hanwha A-series, QND-80x0R, and QNV-80x0R dome cameras. If you are installing a different Hanwha camera series, verify the mount compatibility against the camera’s accessory list before purchasing, as Hanwha produces multiple hanging adapter variants for different dome families.
Key Features & Technical Specifications
| Model |
SBP-122HMW |
| Type |
Hanging Adapter Mount |
| Compatible Cameras |
Hanwha A-series, QND-80x0R, QNV-80x0R (including QND-8080R, QNV-8010R, QNV-8020R, QNV-8030R) |
| Material |
Aluminium |
| Colour |
White |
| Dimensions |
128.2 x 47mm |
| Weight |
159g |
| Brand |
Hanwha Vision |
Ideal Use Cases
Large Retail Floors
Where cameras need to hang from ceiling arms at a lowered height to achieve effective coverage of aisles and checkout areas, the SBP-122HMW provides the pendant connection for compatible Hanwha dome cameras.
Warehouse Interiors
High ceilings in warehouses often require a pendant drop to bring the camera into a useful monitoring position. The aluminium build keeps the hanging assembly light enough for standard ceiling arm setups.
Atriums and Open-Plan Lobbies
Architectural spaces with exposed structure or suspended ceilings benefit from a pendant mount that allows the dome camera to hang cleanly without an unsightly flush plate where one cannot be fitted.
Commercial Installations Requiring Genuine Accessories
Integrators specifying Hanwha systems for commercial contracts often require matched accessories. The SBP-122HMW is a genuine Hanwha component, making it appropriate for projects with strict equipment compatibility requirements.
Choosing the Right Model
- Choose this model if: You are installing a Hanwha QND-80x0R or QNV-80x0R dome camera (including the QND-8080R, QNV-8010R, QNV-8020R, or QNV-8030R) in a pendant or hanging configuration where direct ceiling surface mounting is not suitable.
- Choose a different model if: Your camera is from a different Hanwha series outside the A-series or 80x0R family, or if you need a surface mount, wall mount, or corner mount bracket rather than a hanging adapter. Hanwha produces separate mounting accessories for each dome family, so confirming the camera series first will point you to the correct bracket.
FAQs
- Which Hanwha cameras is the SBP-122HMW compatible with?
The SBP-122HMW is confirmed for use with Hanwha A-series dome cameras, QND-80x0R series cameras, and QNV-80x0R series cameras. Specific confirmed models include the QND-8080R, QNV-8010R, QNV-8020R, and QNV-8030R. If your camera model is outside these families, check the camera’s datasheet accessory list before ordering.
- What type of mounting does the SBP-122HMW support?
The SBP-122HMW is a hanging adapter, meaning it is designed for pendant or drop-style installations where the camera hangs face-down from a ceiling arm, pipe, or pendant pole. It is not a surface flush mount or wall bracket. If you need to mount the camera directly to a flat ceiling or wall, a different bracket from the Hanwha accessory range would apply.
- What are the dimensions and weight of the SBP-122HMW?
The adapter measures 128.2 x 47mm and weighs 159g. The lightweight aluminium construction keeps the overall pendant assembly manageable, which is useful when working with standard ceiling pendant arms that have defined load limits.
- Why use a genuine Hanwha mount rather than a generic adapter?
Genuine Hanwha accessories are machined to match the mounting interface of the camera housing directly. Generic adapters may not align correctly with the camera base, can introduce movement over time, or may not provide the correct cable routing path, which can create installation issues in professional environments. The SBP-122HMW is the accessory Hanwha specifies for these camera models in pendant configurations.
- Is the SBP-122HMW suitable for outdoor pendant installations?
The product data does not confirm an IP or weather rating for the SBP-122HMW itself. If you are installing in an outdoor or exposed environment, verify that the full mounting assembly, including the pendant arm and any junction box, provides the required environmental protection to suit the camera’s own IP rating. For confirmed outdoor use, check with Security Wholesalers to ensure the complete mounting solution is appropriate for the installation.
Additional Information
No additional downloads available for this product.
