Product Overview

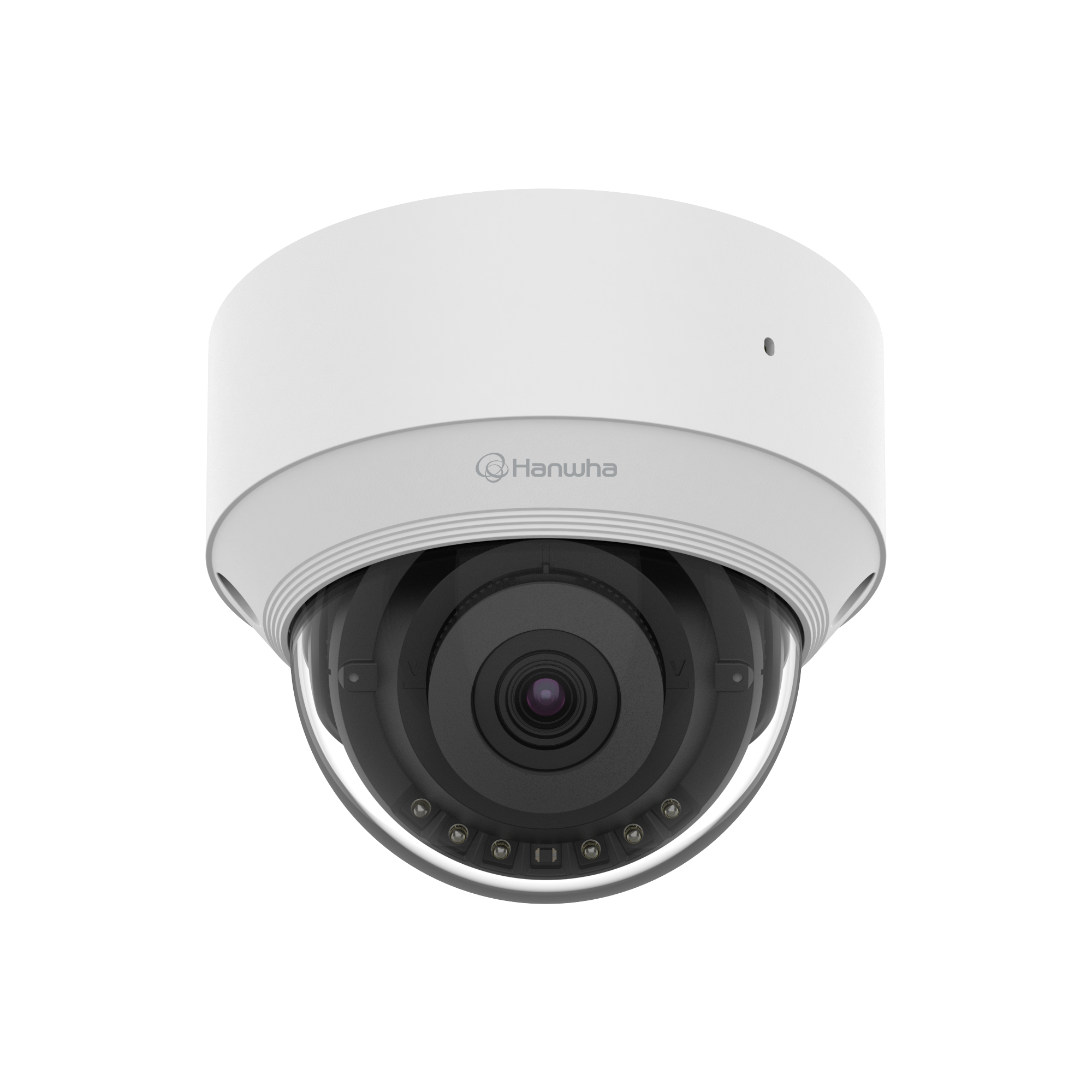

For indoor spaces where wide coverage and intelligent detection need to coexist with a discreet ceiling profile, the Hanwha QND-C8013R delivers a capable 5 MP dome camera suited to offices, retail floors, corridors, classrooms, and reception areas. Its fixed 3.0 mm lens produces a 100 degree horizontal field of view, making it well suited to ceiling-mounted positions in small to medium-sized rooms where broader coverage matters more than telephoto reach. Featuring a 1/2.8 inch progressive-scan CMOS sensor, the QND-C8013R captures 2592 x 1944 resolution video at up to 30 fps with integrated IR illumination reaching 25 m. Built-in AI analytics classify people and vehicles, detect virtual line crossings, intrusion events, and loitering, enabling event-driven monitoring without constant manual review. It also includes 120 dB WDR and WiseStream III smart compression to manage bandwidth and storage efficiently. IK10-rated impact resistance adds a layer of tamper protection appropriate for publicly accessible indoor spaces.
Key Capabilities
5 MP Wide-Angle Indoor Coverage
The fixed 3.0 mm lens delivers a 100 degree horizontal field of view at 5 MP resolution, capturing broad indoor areas from a single ceiling-mount point without the complexity of a varifocal adjustment.
AI Object Classification and Event Detection
Onboard AI distinguishes people from vehicles and triggers alerts for intrusion, loitering, and virtual line crossing. Best-shot capture assists with post-event review, reducing the time spent scrubbing through unrelated footage.
120 dB WDR for Mixed-Lighting Environments
Retail aisle ends, reception desks near windows, and corridor junctions often combine bright overhead lighting with shadowed zones. The 120 dB WDR balances both extremes simultaneously, preserving usable detail across the full frame.
25 m IR Night Vision
Integrated infrared LEDs maintain clear monochrome imaging in complete darkness up to 25 m, supporting 24-hour monitoring in rooms where lighting is switched off after hours, such as storerooms, server rooms, and staff areas.
WiseStream III Compression and Edge Storage
WiseStream III reduces bandwidth and storage demands compared to standard H.265 encoding. A built-in microSD/SDHC/SDXC slot supports up to 256 GB of local edge recording, providing a fallback if network connectivity is interrupted.
Best For
- Ceiling-Mounted Office and Reception Coverage: The wide 100 degree horizontal field of view suits open-plan areas and reception desks where a single camera needs to cover multiple movement paths from a central ceiling point.
- Retail Aisles and POS Monitoring: At 5 MP resolution with AI people classification, the QND-C8013R captures usable detail at checkouts and aisle intersections without requiring additional cameras to fill the same zone.
- Classrooms and Educational Corridors: The discreet dome housing sits unobtrusively on ceilings in teaching spaces, and the IK10 impact rating provides resistance to accidental or deliberate contact in student-accessible areas.
- 24-Hour Indoor Monitoring: With 25 m IR illumination and WiseNR II noise reduction, the camera maintains clean imagery in low-light conditions such as storerooms, staff break rooms, or server rooms monitored outside business hours.
Why Choose the QND-C8013R
The QND-C8013R stands apart from lower-resolution indoor domes through the combination of genuine 5 MP output, onboard AI classification, and WiseStream III compression working together as a practical system rather than a spec-sheet exercise. A basic 2 MP dome captures a scene; this camera classifies who and what is in it, flags specific event types, and does so while consuming less storage than a comparable H.264 stream. The IK10 housing makes it appropriate for spaces where cameras may be within reach of occupants, and NDAA-compliant firmware addresses procurement requirements for government and commercial facility projects. Edge recording via microSD provides local redundancy without additional hardware. Available through Security Wholesalers, the QND-C8013R is a considered choice for installers who need AI-capable indoor coverage without specifying a full enterprise-tier system.
Buyer Decision Tips
Lens and Mounting Height: The fixed 3.0 mm lens is optimised for mounting heights between 2.5 m and 3.5 m. At that range the 100 degree horizontal field of view covers small to medium rooms effectively. If the ceiling height exceeds 4 m or the monitoring priority is a narrow corridor rather than an open area, a different lens focal length would produce more useful framing. Because this lens is fixed, there is no adjustment available after installation, so ceiling position planning is essential before cable runs are committed.
Key Features & Technical Specifications
| Model Number |
QND-C8013R |
| Camera Type |
5 MP Indoor Network Dome |
| Image Sensor |
1/2.8 inch Progressive Scan CMOS |
| Maximum Resolution |
2592 x 1944 |
| Frame Rate |
Up to 30 fps |
| Lens |
Fixed 3.0 mm |
| Field of View (H/V) |
Approx. 100 degrees H / 73 degrees V |
| Minimum Illumination |
Colour 0.05 lux @ F1.6 / B&W 0.005 lux @ F1.6 |
| IR Range |
Up to 25 m |
| Wide Dynamic Range |
120 dB |
| Noise Reduction |
WiseNR II |
| Video Compression |
H.265 / H.264 / MJPEG |
| Smart Codec |
WiseStream III |
| AI Analytics |
People and vehicle classification, intrusion detection, loitering detection, line crossing |
| Edge Storage |
microSD / SDHC / SDXC (up to 256 GB) |
| Power Supply |
PoE (IEEE 802.3af Class 3) |
| Power Consumption |
Max 8.1 W / Typical 3.5 W |
| Operating Temperature |
0 degrees C to +40 degrees C |
| Vandal Resistance |
IK10 |
| Housing Material |
Aluminium / Polycarbonate |
| Finish Colour |
White (RAL 9003) |
| Compliance |
NDAA compliant |
| Manufacturer |
Hanwha Vision (Wisenet Series) |
Ideal Use Cases
Corporate Office Entryways and Reception
The 100 degree horizontal field of view covers entry doors, visitor seating, and front desk areas from a single ceiling mount. AI people classification logs movement events without requiring staff to manually review hours of continuous footage.
Retail Shop Floors and Checkout Zones
5 MP resolution at 30 fps captures sufficient detail at POS terminals and aisle intersections. Virtual line and intrusion zone configuration allows the system to flag entries into staff-only or restricted areas automatically.
School Classrooms and Corridors
The discreet dome profile sits flush on classroom ceilings without drawing attention. IK10-rated impact resistance is relevant in educational environments where cameras may be within reach during maintenance or in hallways with high foot traffic.
Healthcare and Aged-Care Common Areas
Unobtrusively mounted on ceilings in waiting areas and common rooms, the QND-C8013R monitors patient and visitor movement without an obtrusive housing profile. Loitering detection supports safety monitoring in spaces where staff supervision is intermittent.
After-Hours Storeroom and Server Room Monitoring
With 25 m IR illumination and WiseNR II noise reduction, the camera maintains usable imagery when internal lighting is off. Edge recording via microSD ensures footage is captured locally even if network access is unavailable during off-hours periods.
Choosing the Right Model
- Choose this model if: You need a discreet 5 MP indoor dome with AI event detection, wide-angle ceiling coverage, and NDAA compliance for a professional or government facility project where both performance and procurement requirements must be met.
- Choose a different model if: The installation site is outdoors or in a semi-exposed environment – this camera has no IP weather rating and is rated for indoor use only. If the ceiling height exceeds 4 m or the priority is a narrow corridor requiring a tighter field of view, a dome with a longer focal length would produce more useful framing. For sites requiring full-colour night vision without switching to IR monochrome, a camera with white-light illumination would be more appropriate.
FAQs
- Is the QND-C8013R rated for outdoor or semi-outdoor installation?
No. The QND-C8013R carries no IP ingress protection rating and is designed specifically for indoor environments. It should not be mounted in locations exposed to rain, condensation, or direct weather. Its operating temperature range of 0 to 40 degrees C is also aligned with controlled indoor conditions rather than outdoor extremes.
- What mounting height works best with the 3.0 mm fixed lens?
Hanwha recommends mounting between 2.5 m and 3.5 m for optimal coverage with the 3.0 mm lens. At that height range the 100 degree horizontal field of view covers small to medium rooms effectively. Because the lens is fixed, ceiling position planning before cabling is essential – there is no focal length adjustment available post-installation.
- What AI detection events does this camera support?
The QND-C8013R supports people and vehicle classification, virtual line crossing detection, intrusion zone detection, and loitering detection. It also performs best-shot capture, which saves a high-quality still of a detected subject to assist with post-event identification and review.
- Can the camera record without being connected to an NVR?
Yes. The camera has a built-in microSD/SDHC/SDXC card slot supporting cards up to 256 GB. This allows continuous or event-triggered edge recording directly on the camera, providing local footage storage if network connectivity to an NVR is unavailable or as a redundancy layer alongside network recording.
- How does WiseStream III affect storage requirements?
WiseStream III is Hanwha’s smart compression technology that dynamically adjusts bitrate based on scene activity. Complex or busy scenes receive more data, while static scenes are compressed more aggressively. The result is reduced storage consumption and lower network bandwidth usage compared to a fixed-bitrate H.265 stream at equivalent quality, which is particularly useful for systems with many cameras sharing NVR storage.
- Is the QND-C8013R NDAA compliant, and what does that mean for procurement?
Yes, the QND-C8013R is NDAA compliant. This means it does not contain components from manufacturers listed under Section 889 of the National Defence Authorisation Act, which is a procurement requirement for government agencies, federally funded facilities, and a growing number of commercial enterprises with strict supply-chain security policies. Security Wholesalers supplies this camera as part of the Hanwha Vision Wisenet range, which meets this compliance standard across the product line.
