Product SKU: QRN-1630S
Product Overview

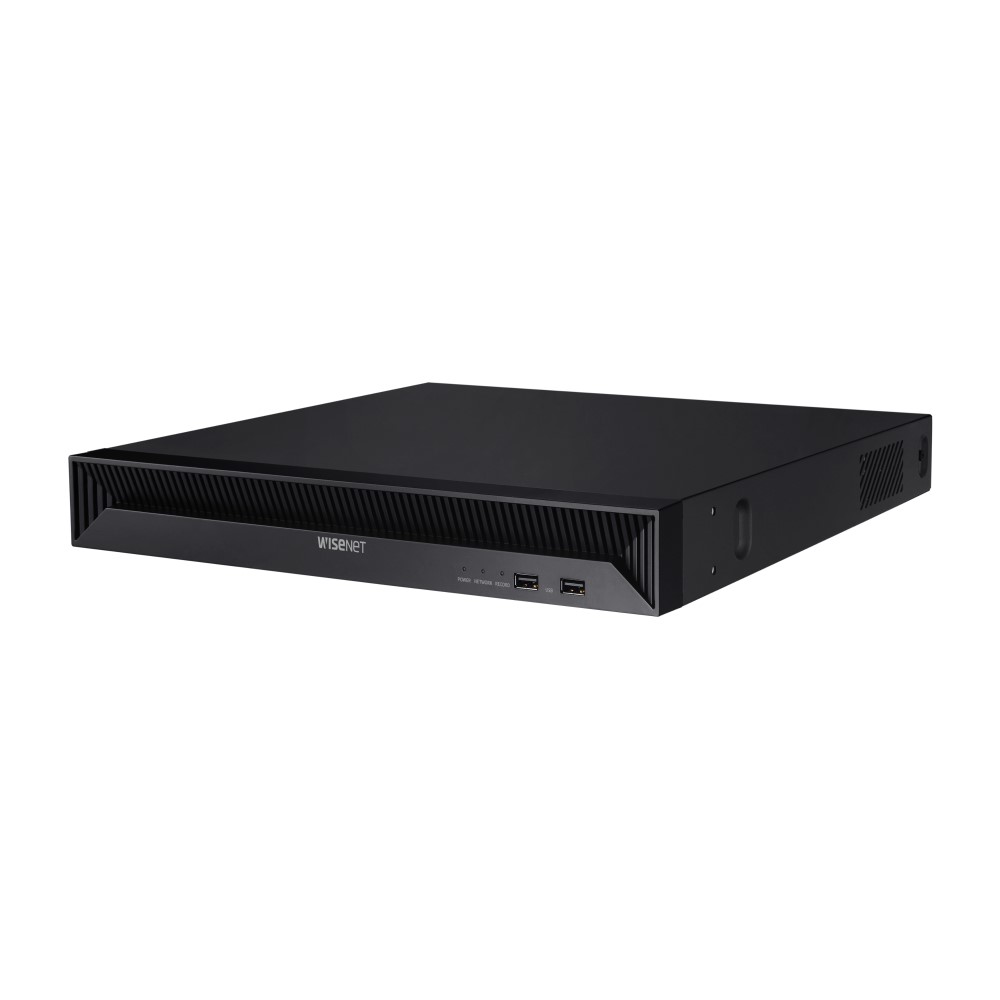

Built for small-to-medium commercial and larger domestic installations, the Hanwha QRN-1630S is a 16-channel Wisenet NVR that brings together integrated PoE switching, high-resolution recording, and streamlined remote access in a single unit. With 16 built-in PoE ports, cameras connect directly to the recorder without requiring a separate PoE switch, simplifying both the equipment list and the installation process. Featuring H.265 compression, the QRN-1630S can reduce storage consumption by up to 50% compared to H.264-only recorders, which directly lowers the cost of long-term footage retention. Equipped with support for cameras up to 8MP resolution and a 128Mbps recording bandwidth ceiling, it handles high-definition multi-camera workloads without bottlenecking image quality. It also includes dual HDMI outputs for simultaneous monitoring across 2 displays, ARB support for edge-recorded backup, and P2P QR code connectivity for quick remote access via the Wisenet mobile app. The unit ships without a hard drive and accepts up to 2 SATA drives with a combined maximum capacity of 20TB.
Key Capabilities
16 Built-In PoE Ports
All 16 channels include integrated PoE, so IP cameras connect directly to the NVR over a single Cat cable carrying both data and power. This removes the need for a separate PoE switch and simplifies rack space and wiring planning on small-to-medium site builds.
8MP Camera Support Across All Channels
Each of the 16 channels supports cameras up to 8MP, allowing installers to deploy high-resolution coverage across every position in the system without resolution trade-offs on individual channels.
H.265 Compression with Up to 50% Storage Saving
H.265 encoding reduces storage requirements by up to 50% compared to H.264. On a 16-camera installation running continuously, this difference translates directly into longer retention periods from the same hard drive capacity, or lower storage costs for the same retention target.
Dual HDMI Outputs
Two independent HDMI outputs allow the QRN-1630S to drive 2 monitors simultaneously, supporting a live view display in one location and a management or playback display in another without additional hardware.
P2P QR Code Remote Access
The Wisenet mobile app connects to the recorder via P2P QR code pairing, removing the need for manual port forwarding during commissioning. This is particularly useful for installer teams managing multiple client sites or handovers to non-technical end users.
ARB (Automatic Recovery Backup) Support
ARB allows compatible cameras with onboard storage to automatically sync edge-recorded footage back to the NVR if the network connection was interrupted during recording. This closes footage gaps caused by temporary network outages without manual intervention.
Best For
- Small-to-Medium Commercial Sites: The 16-channel capacity and integrated PoE switching suit retail stores, offices, warehouses, and small industrial sites where a single recorder needs to serve up to 16 cameras without additional switching equipment.
- Installations Prioritising Storage Efficiency: H.265 compression with up to 50% storage reduction is well suited to sites where retention duration is important but HDD budget or physical bay count is limited.
- Dual-Monitor Monitoring Stations: The 2 independent HDMI outputs allow a dedicated live view screen alongside a separate playback or management display, making this a practical choice for reception desks or security rooms with existing dual-screen setups.
- Installer-Managed Multi-Site Deployments: P2P QR code commissioning via the Wisenet mobile app reduces remote access setup time, making the QRN-1630S practical for installers managing multiple client locations with varying levels of IT support on site.
Why Choose the QRN-1630S
The QRN-1630S differentiates itself from basic 16-channel NVRs through the combination of fully integrated 16-port PoE, 8MP per-channel recording, and H.265 compression in a single unit. A recorder without built-in PoE at this channel count requires a separate managed PoE switch, adding cost, rack space, and a potential point of failure. The 128Mbps network recording bandwidth provides headroom for running high-resolution cameras across all channels without forcing resolution compromises. ARB support adds a layer of footage continuity that simpler NVRs without edge-backup recovery cannot provide. The dual HDMI output is a practical feature for monitoring stations that require split-screen or separate display arrangements. The QRN-1630S is available at Security Wholesalers and ships without a hard drive, allowing buyers to specify surveillance-rated drives matched to their retention and budget requirements.
Buyer Decision Tips
Storage Planning: The QRN-1630S ships with no hard drive installed and supports a maximum of 2 SATA drives with a combined ceiling of 20TB. For a 16-camera installation running at high resolution continuously, calculate your target retention period before selecting drive capacity. A single 10TB surveillance-rated drive will serve lighter workloads, while 2 drives at maximum capacity suits sites requiring extended retention or higher bitrate streams across all channels.
Bandwidth Headroom: The 128Mbps total recording bandwidth is shared across all 16 channels. When specifying cameras, check the bitrate per camera at your chosen resolution and frame rate settings. Running 16 cameras at high bitrates simultaneously will approach this ceiling. Enable H.265 on all connected cameras where supported to keep per-channel bitrates within a manageable range and preserve headroom across the full channel count.
Key Features & Technical Specifications
| Model |
QRN-1630S |
| Channel Count |
16 channels |
| Maximum Camera Resolution |
8MP per channel |
| Network Recording Bandwidth |
128Mbps |
| Video Compression |
H.265, H.264, MJPEG |
| Recording Mode |
Dual track recording |
| Built-In PoE Ports |
16 x PoE (plug and play) |
| HDD Bays |
2 x SATA |
| Maximum Storage Capacity |
Up to 20TB total (across 2 drives) |
| HDD Included |
No |
| Video Outputs |
2 x HDMI |
| ARB Support |
Yes |
| Remote Access |
Wisenet mobile app, P2P QR code connect |
| Storage Efficiency |
H.265 reduces storage by up to 50% vs H.264 |
Ideal Use Cases
Retail Stores and Shopping Centres
The 16-channel capacity with 8MP per-channel support suits multi-zone retail coverage across floor areas, entry points, stockrooms, and service counters. Dual HDMI outputs allow a public-facing monitor and a back-office review station to operate from the same recorder.
Office Buildings and Corporate Premises
Integrated PoE across all 16 ports simplifies structured cabling in multi-floor office environments where running separate power to cameras at each position adds complexity. H.265 compression supports long-term footage retention without requiring oversized storage budgets.
Warehouses and Light Industrial Facilities
The 128Mbps bandwidth ceiling accommodates high-resolution camera streams from loading docks, internal aisles, and perimeter positions. ARB support is useful in warehouse environments where network interruptions from equipment interference may occur.
Larger Domestic Installations
Properties requiring more than 8 camera positions can use the QRN-1630S to cover all external and internal zones from a single recorder. P2P QR code access via the Wisenet app provides straightforward remote viewing without requiring networking expertise from the homeowner.
Installer-Managed Multi-Site Projects
P2P QR code commissioning reduces the time required to configure remote access at handover, making the QRN-1630S a practical choice for security integrators deploying across multiple client sites with limited on-site IT support available at each location.
Choosing the Right Model
- Choose this model if: You need a 16-channel NVR with fully integrated PoE ports, 8MP camera support across all channels, and H.265 compression to reduce storage overhead, and you want dual HDMI output for a two-display monitoring setup.
- Choose a different model if: Your installation requires more than 16 camera positions, in which case a higher channel count NVR would be needed. If your camera count is 8 or fewer, an 8-channel NVR will provide the same per-channel capability at a lower cost and with a smaller storage and footprint requirement.
- Choose a different model if: You require more than 2 HDD bays or a combined storage capacity beyond 20TB. Installations with extended retention targets across 16 high-bitrate cameras may require a recorder with additional SATA bays or external storage expansion support.
FAQs
- Does the QRN-1630S come with a hard drive included?
No. The QRN-1630S ships without any hard drive. It supports up to 2 SATA drives with a combined maximum capacity of 20TB. Buyers should select surveillance-rated drives sized to their required retention period and camera bitrate settings before installation.
- Do I need a separate PoE switch to connect cameras to the QRN-1630S?
No. The recorder includes 16 built-in PoE ports, one for each channel. Each camera connects directly to the NVR via a single Cat cable, which carries both data and power. No external PoE switch is required for the camera connections themselves, though a separate network switch is still needed if the NVR needs to connect to a broader LAN or internet gateway.
- What is the maximum resolution supported per channel?
Each of the 16 channels supports cameras up to 8MP resolution. The total recording bandwidth across all channels is capped at 128Mbps, so running all 16 cameras at maximum resolution and frame rate simultaneously will require attention to per-camera bitrate settings to stay within this ceiling.
- How does the P2P QR code remote access work?
During commissioning, the QRN-1630S generates a QR code that can be scanned using the Wisenet mobile app on a smartphone or tablet. This establishes a P2P connection to the recorder without requiring manual port forwarding on the client router. The process is faster than traditional remote access configuration and reduces the likelihood of connectivity issues at handover.
- What is ARB and when is it useful on the QRN-1630S?
ARB stands for Automatic Recovery Backup. When a compatible IP camera with onboard SD card storage loses its network connection to the NVR, it continues recording locally. Once the connection is restored, the camera automatically transfers the edge-recorded footage to the NVR to fill the gap. This is particularly useful in installations where network interruptions are possible, such as wireless bridge segments or congested network environments.
- Can the QRN-1630S output to 2 monitors at the same time?
Yes. The QRN-1630S includes 2 independent HDMI outputs, allowing simultaneous connection to 2 displays. This supports setups where a live view feed is shown on one screen while playback, configuration, or event review is handled on a second monitor without switching inputs.
- Where can I purchase the QRN-1630S and compatible surveillance hard drives in Australia?
The QRN-1630S is part of the Security Wholesalers range, and compatible surveillance-rated hard drives in capacities from 2TB to 8TB are also listed on the site. Selecting a WD Purple or Seagate Skyhawk drive is recommended for continuous recording workloads, as these are rated specifically for the write cycles associated with surveillance applications.
