Product SKU: SBP-302CM-50W
Product Overview
For installers fitting Hanwha pendant or hanging mount cameras in high-ceiling environments, the CT-SBP-302CM-50W provides a 50cm extension pole in white that drops the camera to a more practical viewing height. Constructed from aluminium and steel, the pole measures 500mm in length with a 48.0mm diameter and carries a maximum load rating of 13.6kg, making it suited to the weight demands of full Hanwha camera and mount assemblies. The male top and female bottom NPT threads allow multiple CT-SBP-302CM-50W poles to be stacked in series, giving installers flexibility to reach the exact drop height required without cutting or fabricating custom hardware. It is designed for use with Hanwha hanging mounts using 1.5-inch NPT threading, and a compatible adapter such as the CT-SBP-302CMAW or CT-SBP-302CMB is required to complete the installation. The white finish matches standard white Hanwha mounting hardware for a consistent appearance.
Key Capabilities
500mm Drop Extension
Adds exactly 50cm of vertical drop to a hanging mount assembly, allowing the camera to be positioned lower from the ceiling or structural mount point for a usable viewing angle in atriums, foyers, and high-ceiling commercial spaces.
Stackable Design

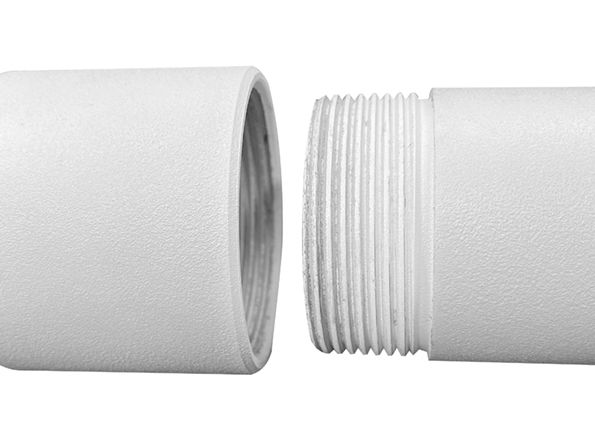

The male top and female bottom NPT threading allows multiple poles to be connected end-to-end, so installers can achieve greater drop lengths without sourcing custom fabrication or alternative hardware.
13.6kg Load Rating
The aluminium and steel construction supports a maximum load of 13.6kg, providing sufficient structural capacity for Hanwha camera and bracket assemblies typically used in pendant hanging configurations.
White Finish for Visual Consistency
The white powder-coated finish matches standard white Hanwha hanging mount hardware, keeping the overall assembly visually consistent in public-facing indoor environments such as lobbies, retail floors, and open-plan offices.
Best For
- High-Ceiling Indoor Spaces: Drops the camera assembly 500mm from the structural mount point, bringing the camera to a more effective monitoring height in foyers, atriums, shopping centres, and double-height commercial spaces.
- Stacked Drop Configurations: Multiple CT-SBP-302CM-50W poles can be threaded together, making this the practical solution when a single 50cm drop is not enough for the required camera position.
- White Hanwha Mount Systems: Specifically suited to installations using white Hanwha hanging mount hardware and a compatible adapter (CT-SBP-302CMAW or CT-SBP-302CMB), ensuring thread compatibility and finish consistency.
Why Choose the CT-SBP-302CM-50W
The CT-SBP-302CM-50W is engineered specifically for Hanwha hanging mount systems, using NPT threading that is directly compatible with the Hanwha mount ecosystem rather than a generic pole that may require additional adaption or may not achieve a secure fit. The 13.6kg load rating and aluminium-steel construction provide a reliable structural base for full camera and bracket assemblies. The stackable threaded design gives installers a scalable solution: a single pole provides 50cm of drop, and multiple poles combined extend that reach incrementally without cutting or custom fabrication. The white finish keeps the appearance clean in public-facing indoor environments where a mismatched finish would be visually inconsistent. Available at Security Wholesalers, the CT-SBP-302CM-50W is the straightforward, brand-matched extension option for Hanwha hanging mount installations that require additional drop length.
Buyer Decision Tips
Adapter Requirement: The CT-SBP-302CM-50W does not include an adapter. A separate CT-SBP-302CMAW or CT-SBP-302CMB adapter is required to connect this pole to the hanging mount. Confirm which adapter suits your specific Hanwha mount before ordering, as the adapter type determines compatibility with the ceiling bracket or structural anchor point being used.
Key Features & Technical Specifications
| Model |
CT-SBP-302CM-50W |
| Product Type |
Extension Pole for Hanging Mounts |
| Length |
500mm (50cm) |
| Pole Diameter |
48.0mm |
| Material |
Aluminium and Steel |
| Finish / Colour |
White |
| Thread (Top) |
11.0 NPT Male |
| Thread (Bottom) |
11.0 NPT Female |
| Maximum Load Rating |
13.6kg |
| Weight |
0.6kg |
| Compatible Mount Type |
Hanwha hanging mounts using 1.5-inch NPT |
| Required Adapter |
CT-SBP-302CMAW or CT-SBP-302CMB (sold separately) |
| Stackable |
Yes – multiple poles can be connected to increase total drop length |
| Cable Routing |
Not applicable |
Ideal Use Cases
Foyers and Atriums
High-ceiling entry spaces often require a pendant camera to be dropped well below the ceiling line to achieve effective coverage. The 500mm extension pole brings the camera into a usable monitoring position, and poles can be stacked if more drop is needed.
Shopping Centres and Retail Floors
Large open retail environments with structural ceiling mounts benefit from the additional drop this pole provides, positioning the camera at an angle that captures customer and stock areas rather than just an overhead perspective.
Commercial Offices and Open-Plan Workspaces
Where ceiling-mounted Hanwha cameras need to be lowered from a pendant arm or bracket for better field of view, the white finish of the CT-SBP-302CM-50W blends with standard commercial ceiling and fitting colours.
Stacked Multi-Pole Configurations
Installers requiring more than 50cm of total drop can connect multiple CT-SBP-302CM-50W poles in series using the male-female NPT thread design, incrementally extending the assembly without sourcing non-standard hardware.
Choosing the Right Model
- Choose this model if: You are installing a Hanwha hanging mount camera in a high-ceiling space that requires an additional 50cm of drop, or you plan to stack multiple poles for a greater total extension length, and your installation uses white Hanwha mounting hardware with 1.5-inch NPT compatibility.
- Choose a different model if: Your installation uses a surface mount or wall bracket configuration rather than a pendant or hanging mount style, as this pole is specifically designed for hanging mount drop applications and does not suit flat or angled surface mounting scenarios.
FAQs
- What is the CT-SBP-302CM-50W used for?
The CT-SBP-302CM-50W is a 50cm extension pole that adds drop length to Hanwha hanging mount camera installations. It is used when the camera needs to be positioned lower from a ceiling, soffit, or structural mounting point to achieve a more effective viewing angle rather than a direct overhead perspective.
- Can multiple poles be joined together to get more drop length?
Yes. The pole features an NPT male thread at the top and an NPT female thread at the bottom, which allows multiple CT-SBP-302CM-50W units to be connected end-to-end. Each additional pole adds another 500mm of drop to the total assembly length.
- Is an adapter included with this pole?
No. A separate adapter is required to connect the CT-SBP-302CM-50W to the hanging mount. The compatible adapters are the CT-SBP-302CMAW and CT-SBP-302CMB. The correct adapter depends on the specific Hanwha hanging mount and ceiling bracket being used in the installation.
- What is the maximum weight this pole can support?
The CT-SBP-302CM-50W has a confirmed maximum load rating of 13.6kg. This covers the combined weight of a compatible Hanwha camera body and mounting hardware in a typical pendant hanging configuration. Available through Security Wholesalers, this pole is matched to the load demands of standard Hanwha hanging mount assemblies.
- Is this pole suitable for outdoor hanging mount installations?
The product data does not confirm an outdoor or weatherproof rating for the CT-SBP-302CM-50W. It is primarily described for use in ceiling and pendant hanging mount applications. Confirm suitability with the specific Hanwha hanging mount system being used if an outdoor installation is intended.
Additional Information
No additional downloads available for this product.
