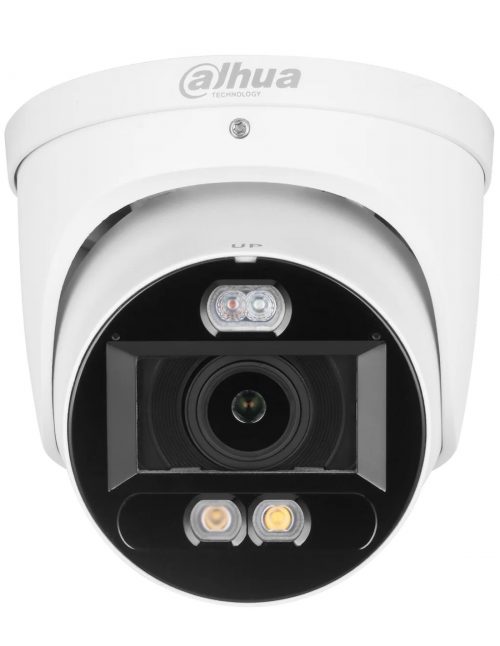

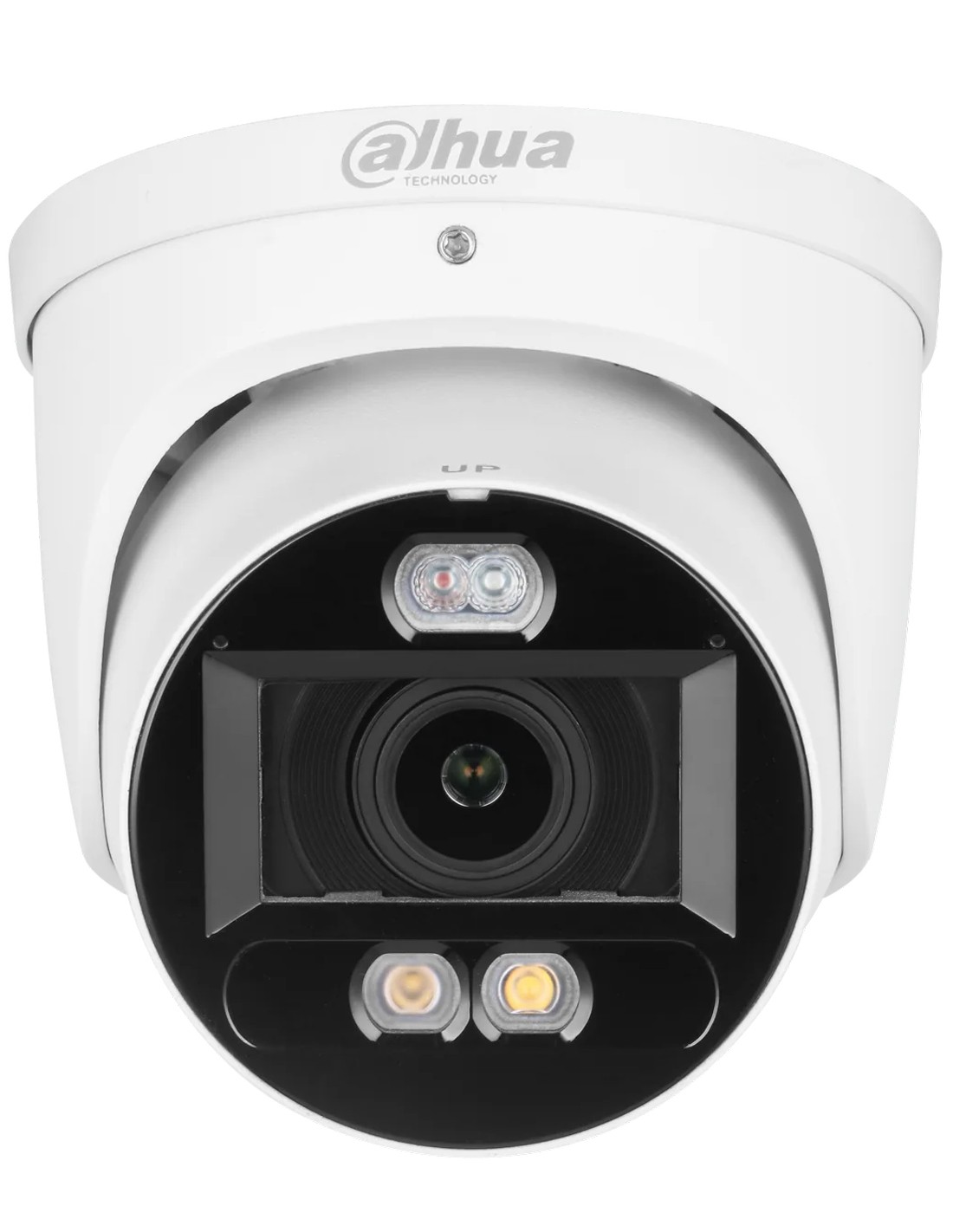

Dahua TIOC DH-IPC-HDW3649H-ZAS-PV-ANZ 6MP Motorised Zoom Blue / Red Light IP Turret Camera
$357.00$431.00
SAVE $74.00FREE DELIVERYWARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support
Dahua 6MP TiOC 2.0 IP Turret Camera | Motorised 2.7-13.5mm Zoom | Dual Illuminators | Built-in Dual Mic and Speaker | SMD 4.0 | IP67
The Dahua DH-IPC-HDW3649H-ZAS-PV-ANZ delivers 6MP outdoor surveillance with a motorised 2.7-13.5mm zoom lens, full-colour night vision, and active deterrence via strobe lights and a built-in speaker. Equipped with SMD 4.0 intelligence, it accurately identifies humans and vehicles to minimise false alarms across a range of environments. Built with dual microphones and a built-in speaker, it supports two-way audio for real-time interactive monitoring. It also includes MicroSD storage up to 256GB and carries IP67 weather resistance for reliable all-season performance.
Key Features
Motorised Zoom Lens: 2.7-13.5mm motorised varifocal lens allows remote zoom and focus adjustments for wide-angle or close-up monitoring.
6MP CMOS Sensor: 1/2.7″ sensor delivers up to 3200×1800 resolution at 25/30fps for clear, high-definition video in varied lighting conditions.
Smart Dual Illuminators: Switches between IR and full-colour warm light based on motion events, providing up to 30m visibility in both modes.
SMD 4.0 and Perimeter Protection: AI-powered Smart Motion Detection 4.0 with tripwire and intrusion detection accurately filters humans and vehicles to reduce false alerts.
Two-Way Audio and Active Deterrence: Built-in dual microphones, speaker, and strobe lights enable two-way talk and real-time deterrence responses.
Advanced Compression: Supports H.265, Smart H.264+/H.265+, AI codecs, and ROI technology to optimise bandwidth and storage efficiency.
Combining active deterrence with motorised zoom flexibility, the DH-IPC-HDW3649H-ZAS-PV-ANZ is a 6MP TiOC 2.0 turret camera built for outdoor installations where passive recording is not enough. Featuring a motorised 2.7-13.5mm varifocal lens, it covers everything from a wide 113-degree entrance view down to a 36-degree telephoto frame, all adjustable remotely after the camera is mounted. TiOC 2.0 brings together full-colour night vision, red and blue strobe lights, a built-in siren, and SMD 4.0 human and vehicle classification in a single turret housing. Built-in dual microphones and a speaker support two-way audio communication, while IP67 weather resistance and local MicroSD storage up to 256GB make this camera suitable for exposed outdoor positions with or without a connected recorder. It is well suited to driveways, retail frontages, warehouse perimeters, and car parks where both deterrence and coverage flexibility are priorities.
Key Capabilities
Smart Dual Illumination
The camera switches automatically between an infrared illuminator and a warm white light illuminator based on detection events. Both modes reach up to 30 metres, delivering full-colour imagery when a human or vehicle is detected and reducing unnecessary light output during quiet periods.

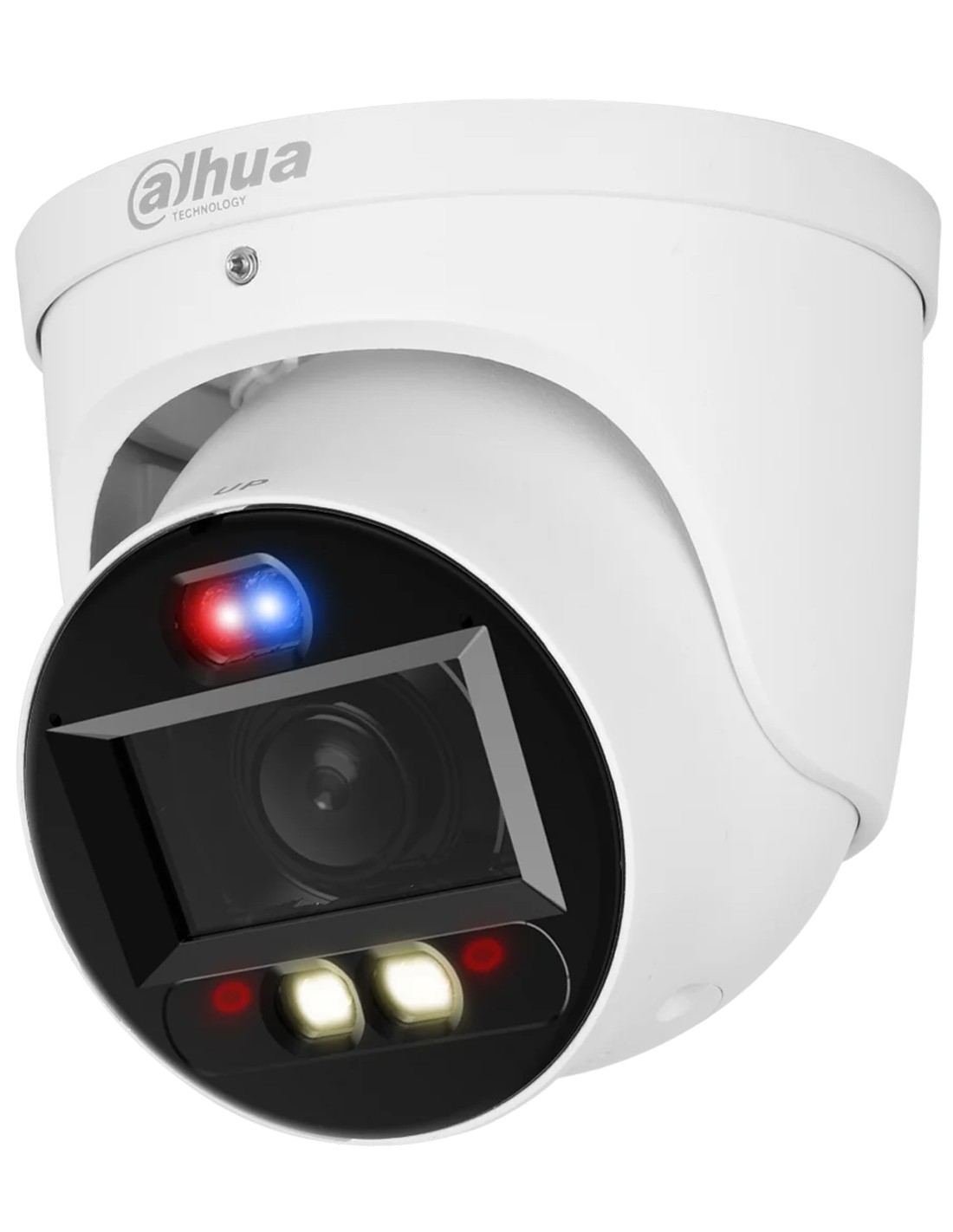

Red and Blue Strobe Active Deterrence
Upon detecting a human or vehicle target, the camera can activate red and blue strobe lights and a built-in siren automatically or on operator command. This visible and audible response is designed to interrupt and deter intruders at the point of entry rather than simply record the event.
Motorised Varifocal Lens
The 2.7-13.5mm motorised lens adjusts remotely via NVR or web interface, spanning a 113-degree wide-angle to a 36-degree telephoto field of view. This eliminates the need for physical access after installation, which is particularly valuable for cameras mounted at height or in difficult locations.
SMD 4.0 Human and Vehicle Classification
Smart Motion Detection 4.0 uses AI to distinguish humans and vehicles from other motion sources such as animals, foliage, and shadows. Tripwire and intrusion detection rules add a further layer of precision, so alerts are generated only for relevant targets crossing defined zones.
Two-Way Audio with Dual Microphones
Dual built-in microphones and a built-in speaker enable live two-way audio communication through the camera. Operators can issue verbal warnings or speak with visitors in real time, adding a direct communication layer that supports both deterrence and access management without additional hardware.
Efficient Compression and Local Storage
H.265, Smart H.264+/H.265+, AI codec, and ROI encoding reduce bandwidth and storage demands across multi-camera systems. A MicroSD card slot supports up to 256GB of local storage, providing a standalone recording option or a backup layer independent of NVR connectivity.
Best For
Residential Driveways and Entrances: The motorised zoom lens allows precise framing of long or narrow approaches, and the active strobe and siren response can discourage trespassers before they reach the property.
Retail and Commercial Frontages: Full-colour night vision ensures usable after-hours footage, while two-way audio allows staff or monitoring personnel to communicate directly through the camera during and outside business hours.
Warehouse and Industrial Perimeters: Tripwire and intrusion detection combined with IP67 weather resistance make this camera suitable for exposed outdoor perimeters where unauthorised after-hours access to goods or equipment is a concern.
Car Parks and Shared Facilities: Vehicle classification through SMD 4.0 and the adjustable zoom range allow relevant events across parking bays and entry lanes to be captured accurately without excessive false alerts.
Locations with Variable Monitoring Distances: Where the focal point may change over time or was uncertain at installation, the 5x motorised zoom range allows the field of view to be refined remotely without reinstalling the camera.
Why Choose the DH-IPC-HDW3649H-ZAS-PV-ANZ
A fixed-lens turret camera records what happens, but the DH-IPC-HDW3649H-ZAS-PV-ANZ is built to intervene. The TiOC 2.0 platform integrates red and blue strobe deterrence, a built-in siren, full-colour dual illumination, and SMD 4.0 AI classification into a single weatherproof turret, removing the need for separate deterrence devices or external audio hardware. The motorised 2.7-13.5mm lens gives installers and end users long-term flexibility, with field of view changes made remotely rather than through physical camera adjustment. Dual microphones provide broader audio capture compared to a single-mic design, and 256GB MicroSD support means the camera can record locally even without an active NVR connection. Available through Security Wholesalers, the DH-IPC-HDW3649H-ZAS-PV-ANZ is suited to installers and site managers who need a single device to cover detection, deterrence, and communication without relying on multiple components.
Buyer Decision Tips
Buyer Tip: The motorised 2.7-13.5mm lens is most useful when the exact monitoring distance is uncertain at the time of installation, or when requirements are likely to change. If your site has a clearly defined, fixed field of view and you do not need remote zoom adjustment, a fixed-lens TiOC turret may offer a more cost-effective alternative for that specific position.
Buyer Tip: This camera requires either PoE (802.3af) from a compatible NVR or PoE switch, or a 12V DC power supply. Confirm which power method your installation will use before purchasing and ensure cabling is sized appropriately for the run length, as PoE voltage drop over long cable runs can affect camera performance.
Key Features & Technical Specifications
Image Sensor
1/2.7″ CMOS
Maximum Resolution
3200 x 1800 (6MP)
Frame Rate
25/30 fps at maximum resolution
Minimum Illumination
0.003 lux @ F1.0 (Colour), 0.0003 lux @ F1.0 (B/W), 0 lux with IR on
Up to 30 metres (both IR and warm white light illuminators)
Day/Night Mode
Auto (ICR), Colour, B/W
Shutter Speed
1/3 s – 1/100,000 s
Video Compression
H.265, H.264, Smart H.264+/H.265+, MJPEG, AI codec, ROI
Audio
Built-in dual microphones and built-in speaker; two-way audio supported
Alarm I/O
1 input, 1 output
Active Deterrence
Red and blue strobe lights, built-in siren
AI Detection
SMD 4.0 – human and vehicle classification, tripwire, intrusion detection
Local Storage
MicroSD card, up to 256GB
Power Supply
12V DC / PoE (802.3af)
Ingress Protection
IP67
Ideal Use Cases
Residential Driveways
The motorised zoom lens allows the camera to be precisely framed across long or angled driveways after installation. Full-colour night vision and automatic strobe activation on detection provide visible deterrence at the property boundary without requiring separate floodlights.
Retail Storefronts
Two-way audio via the built-in dual microphones and speaker allows monitoring staff to communicate through the camera during trading hours. After hours, the siren and strobe deterrence respond automatically to detected human activity, reducing the likelihood of theft and property damage.
Warehouse and Yard Perimeters
IP67 weather resistance keeps the camera operational in rain, dust, and temperature extremes typical of exposed industrial sites. Tripwire and intrusion detection rules define specific crossing zones around stored goods or equipment, generating alerts only for relevant activity.
Car Parks and Entry Lanes
SMD 4.0 vehicle classification limits alerts to actual vehicle movements through defined zones, while the motorised zoom range provides the flexibility to cover wide multi-bay areas or tighten down to a single lane entry point without repositioning the camera.
Construction Sites
Local MicroSD recording up to 256GB supports standalone operation where NVR connectivity is not yet established or is impractical. IP67 protection handles the dust, moisture, and temperature variation common on active construction sites throughout all seasons.
Choosing the Right Model
Choose this model if: Your site needs active deterrence with red and blue strobe and siren, full-colour night vision, two-way audio, and the ability to remotely adjust the field of view after installation across varying distances up to the 30-metre illumination range.
Choose a different model if: The monitoring distance is fixed and close-range, the field of view will never need adjustment, and active deterrence is not a requirement. A fixed-lens turret or dome camera will deliver comparable resolution at a lower cost for those specific conditions.
FAQs
What does TiOC 2.0 mean and how does it change how this camera responds to a detection event? TiOC stands for Three-in-One Camera. The TiOC 2.0 platform integrates full-colour dual illumination, active deterrence (red and blue strobe lights plus a built-in siren), and AI-powered SMD 4.0 detection into a single device. When the camera detects a human or vehicle, it can automatically activate the strobe and siren rather than simply recording the event, giving the system an active role in discouraging intrusion.
Can the motorised lens be adjusted after the camera is mounted on a wall or eave? Yes. The 2.7-13.5mm motorised varifocal lens can be zoomed and focused remotely through a connected NVR or the camera’s web interface. This covers a range from a 113-degree wide-angle view down to a 36-degree telephoto field of view, so framing can be corrected or updated without physically accessing the camera after installation.
Does the camera produce colour footage at night or does it switch to black and white? The DH-IPC-HDW3649H-ZAS-PV-ANZ uses a warm white light illuminator to produce full-colour footage at night when a detection event occurs. At other times, the infrared illuminator operates and the camera produces black and white imagery. Both illuminators reach up to 30 metres. The switch between modes is automatic based on detection activity.
Does the active deterrence activate on its own or does someone need to trigger it manually? Both options are available. The red and blue strobe lights and siren can be configured to activate automatically when SMD 4.0 detects a human or vehicle target within a defined zone. They can also be triggered manually by an operator through the connected NVR or monitoring platform, depending on how the system is configured.
Is this camera compatible with third-party PoE NVRs or does it require a Dahua recorder? The camera supports standard PoE (802.3af), so it will power and stream video over a compatible PoE NVR or PoE switch from any brand. For full integration of SMD 4.0 AI alerts, active deterrence triggering through the recorder interface, and two-way audio management, pairing with a Dahua NVR is recommended as third-party recorders may not support all TiOC 2.0 features.
What is the maximum local storage this camera supports and does it record if the NVR goes offline? The camera accepts a MicroSD card up to 256GB. When configured for local recording, it will continue to record directly to the card if the NVR connection is lost, making it a useful backup layer for critical monitoring positions. This also supports standalone deployments where an NVR is not part of the installation.
Where can I purchase the DH-IPC-HDW3649H-ZAS-PV-ANZ in Australia and are supporting documents available? This camera is available through Security Wholesalers, an Australian distributor stocking the full Dahua IP camera and NVR range. The product datasheet and quick start guide for the DH-IPC-HDW3649H-ZAS-PV-ANZ are available for download directly from the product page to support pre-installation planning and configuration.
Product Video Samples
NOTE: For best quality viewing, change YouTube settings to 2160p resolution using the gear icon.
Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 3.0
Less false alarm, longer detection distance
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec
Smart H.265+; Smart H.264+
AI Coding
AI H.265; AI H.264
Video Frame Rate
Main stream: 2592 × 1944@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Basic: 1.86 W (12 VDC); 4.18 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 6.5 W (12 VDC) 8.8 W (PoE)
Environment
Operating Conditions
–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions
–40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade
IP67
Structure
Casing
Metal
Dimensions
110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″)
Net Weight
745 g (163.1 lb)
Gross Weight
915 g (200.6 lb)
Dahua Warranty
3-Year Manufacturer Warranty
All Dahua IP cameras and recording devices (NVRs/DVRs) are covered by a
3-year back-to-base manufacturer warranty.
Note: Disk drives are limited to a 3-year warranty.
Our warranty is limited to the replacement of faulty items or parts
and does not include damage caused by incorrect fitting of parts or accessories.
(a) Australian Consumer Law (ACL)
Certain legislation, including the Australian Consumer Law (ACL) in the Competition and Consumer Act 2010 (Cth), and similar consumer protection
laws and regulations may confer you with rights, warranties, guarantees, and remedies
relating to the provision of goods or services to you by us via the Site which cannot
be excluded, restricted, or modified. Our liability is governed solely by the ACL and
these Terms.
(b) Goods
If you are a consumer as defined in the ACL, the following notice applies to you:
“Our goods come with warranties and guarantees that cannot be excluded under the
Australian Consumer Law (Consumer Guarantees). You are entitled to a replacement or
a refund for a major failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major
failure.”
(c) Our Warranties
To the extent permitted by law, we exclude all express and implied warranties,
and all material and work is provided to you without warranties of any kind,
either express or implied. We expressly disclaim all warranties including but
not limited to implied warranties of merchantability and fitness for a particular
purpose.
(d) Manufacturer Warranties
Certain products, including particular models of IP security cameras and DVR/NVR
equipment, may come with a manufacturer’s warranty. The manufacturer’s warranty is
in addition to but may overlap with any rights and remedies you may have under
applicable law, including any Consumer Guarantees. If you are not considered a
“consumer” within the meaning of the ACL, the manufacturer’s warranty may be your
sole remedy. Many manufacturers’ warranties do not apply in a business or commercial
setting. Please contact the manufacturer if you would like to make a claim under
the manufacturer’s warranty.
(e) Repair, Replacement, or a Refund
If you wish to seek repair, replacement, or a refund for a product, please
contact us and we will explain the requirements to you. This may include you
providing evidence of the faulty product to us.
(f) Refund
You are not entitled to a refund for change of mind. If you are entitled to a
refund, we will only provide it once evidence of the faulty product is received
by us, or once we have received the product at our warehouse and inspected it
to assess whether it is eligible for a refund under these Terms. Any refund we
make will be by the same payment method used to purchase the product.
(g) Installed Products
Subject to this clause, we will not accept for return any product that has been
used, connected, installed, attempted to be connected or installed, or if your
product is custom-made or is a special buy product.
(h) Packaging
You must adequately package any product you are returning for our collection
to ensure that it is not damaged during return delivery to our warehouse. You
are also responsible for arranging the return delivery and the costs involved.
(i) Duty of Care
You have a duty of care for the product while it is in your possession. If
you damage products and then subsequently return them, you may be liable to pay
to repair the product to its original condition. In these circumstances, where
a repair is not economically viable, no refund will be made.
Everything you need to choose the right Dahua TiOC camera for your needs.
1. What is Dahua TiOC?
Dahua’s TiOC (Three-in-One Camera) series combines full-colour imaging, active deterrence, and advanced AI analytics. This all-in-one solution delivers 24/7 colour monitoring, proactive security through strobe lights and sirens, and intelligent detection of humans and vehicles, significantly reducing false alarms.
2. Key Benefits of Dahua TiOC
Full-Colour Imaging: Captures vivid colour footage around the clock, even in low-light environments without relying solely on infrared.
Active Deterrence: Built-in strobe lights and sirens help deter intruders in real time.
AI-Powered Analytics: Detects and differentiates between people and vehicles, improving detection accuracy and reducing false alerts.
Integrated Design: Combines multiple capabilities into a single camera, making installation and monitoring more efficient.
3. Recommended Use Cases
Residential driveways and front doors
Retail shops and entryways
Warehouse loading docks
Commercial office corridors
Public parks, carparks and shared spaces
4. Types of Dahua TiOC Cameras
Turret: Compact and flexible; ideal for both indoor and outdoor settings.
Dome: Vandal-resistant and discreet; great for public-facing areas.
Bullet: Offers extended range for perimeter and driveway surveillance.
PTZ: Remote-controlled panning, tilting, and zooming for wide-area coverage.
Mini Cameras: Suitable for discreet indoor coverage in narrow spaces.
Also available: AcuSense, Live Guard, 4K resolution, dual-lens panoramic, and more.
5. Choose by Resolution
2MP (1080p): Suitable for basic surveillance and general observation.
4MP (2K): Enhanced clarity ideal for recognising faces and vehicles.
6MP: Balanced resolution for larger areas without excessive bandwidth usage.
8MP (4K): High-detail imaging for premium security coverage.
6. Choose by Smart Features
Built-in Microphone: Records audio alongside video for better context.
Built-in Speaker: Enables two-way communication and verbal warnings.
Strobe Light + Siren: Alerts intruders with both visual and audio deterrents.
Smart Motion Detection: Detects people and vehicles intelligently using AI.
AI / Deep Learning: Reduces false alarms and improves detection accuracy using advanced analytics.
7. Choosing by Environment
Location
Recommended Camera Type
Reason
Front Door
Turret with Mic
Compact with audio for clear visitor recording
Driveway
Bullet 4MP or 8MP
Long-range view for vehicles and movement
Retail Store
Dome 2MP or 4MP
Discreet and vandal-resistant in busy areas
Warehouse Loading Dock
Bullet with AI
Wide coverage with accurate motion detection
Office Corridor
Mini or Turret
Ideal for hallway visibility and minimal intrusion
8. Installation Tips
Use PoE (Power over Ethernet) to simplify wiring and minimise setup time.
Position cameras away from reflective surfaces to avoid glare or false triggers.
Mount at eye level or slightly above for optimal angle and image quality.
Adjust the camera’s field of view to ensure full coverage of entry points.
Engage a licensed installer to ensure proper setup and compliance with Australian regulations.
Your Shopping Cart will be saved and you'll be given a link. You, or anyone with the link, can use it to retrieve your Cart at any time.
Back
Save & Share Cart
Your Shopping Cart will be saved with Product pictures and information, and Cart Totals. Then send it to yourself, or a friend, with a link to retrieve it at any time.
Your cart email sent successfully :)
Dahua TIOC DH-IPC-HDW3649H-ZAS-PV-ANZ 6MP Motorised Zoom Blue / Red Light IP Turret Camera
