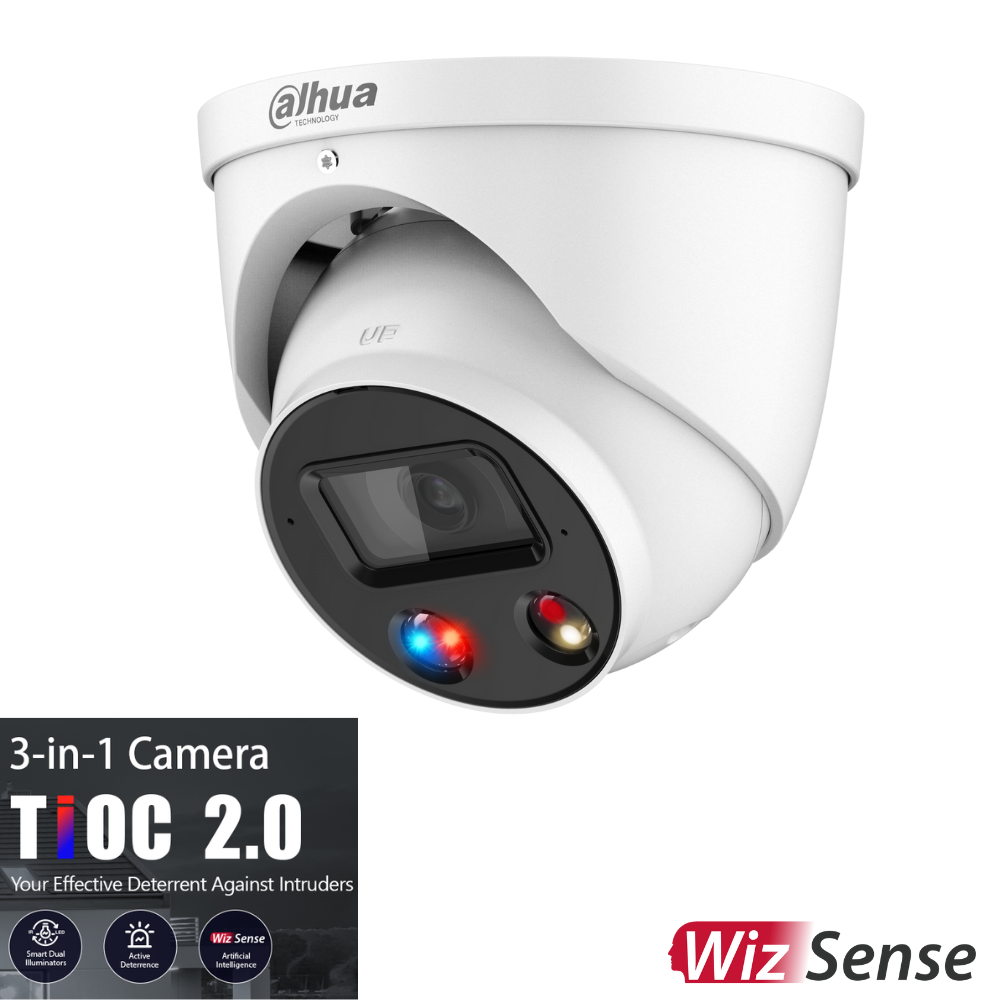

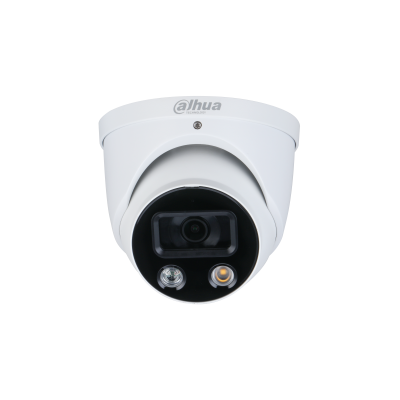

Dahua TIOC Advanced 2.0 DH-IPC-HDW3849HP-AS-PV-0280B-S3-BLK 8MP AI Active Deterrence Full color IP Turret Camera BLACK


8 Megapixel cameras | TiOC 2.0 Full Color | Built-in Mic & Speaker | 2.8mm fixed lens | Smart Motion Detection 3.0

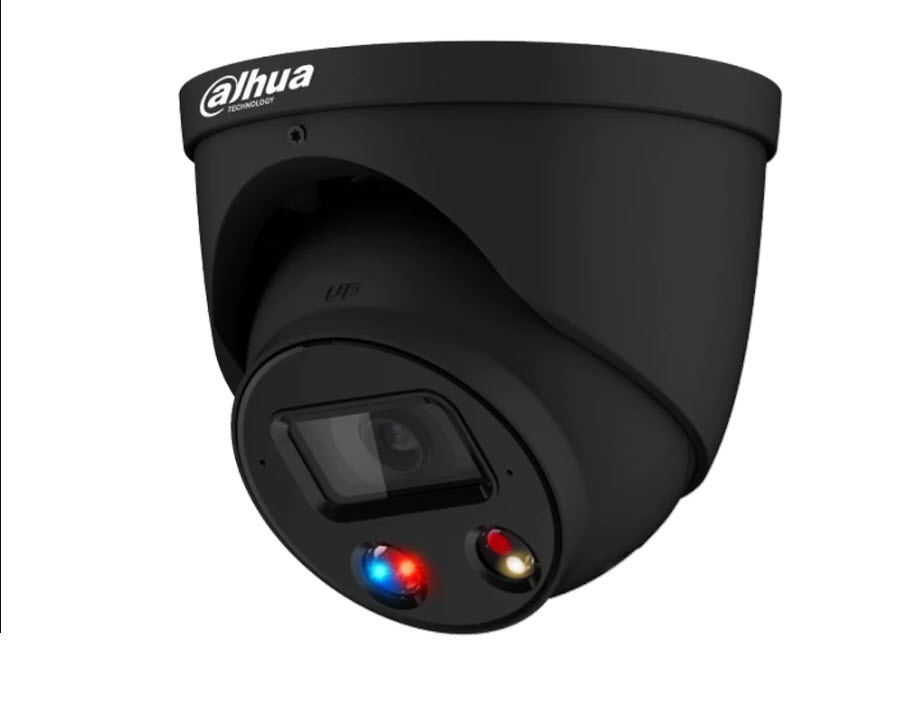

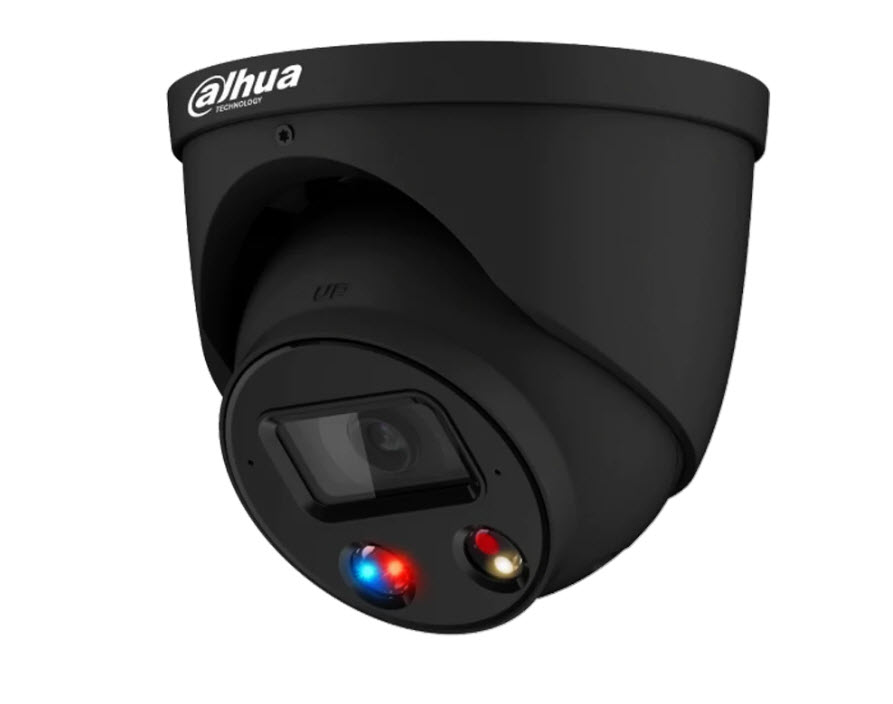

BLACK

Dahua Deterrence Full color Starlight IP Turret Fixed 2.8mm, 8MP, Built-in Mic & Speaker, WDR, Micro SD,IP67,POE



Localised camera footage storage capability: up to 256 GB MicroSD Card storage

High clarity Starlight Technology: Built-in warm light and IR LED: IR illumination distance is 30m and warm light distance is 30 m.– (3840×2160)@25/30 fps | PoE

Smart Motion Detection (SMD Plus) – detects humans and vehicles with high accuracy, reducing false alarms.

Intelligent Detection & Perimeter Protection – Intelligent monitoring includes Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).

Sound and light alarm with built in mic and speakers – flashes red and blue lights.

Now with smart Dual Illuminators. The TIOC 2.0 camera can monitor at night with infrared and when motion is detected activate its auxiliary illuminator light for full Colour recording. – This camera has BOTH ILLIMINATOR AND INFRA RED!















DH-IPC-HDW3849H-AS-PV-S3_datasheet

Camera Dimensions

Operational Manual

Dahua Eyeball Network Camera_QSG_V1.0.0

$299.00 $413.00 inc GST +3 Year Warranty & Support

TiOC, also known as three-in-one camera, integrates 24/7 full-color monitoring, active deterrence and AI into one smart and innovative solution.

• Smart Illumination Mode (Default): Switch between IR Mode and white light when target is detected.
• IR Mode (Optional): Only the IR illuminator is ON. It is suitable for scenes where supplementary white light is not required, significantly reducing light pollution.
• White Light Mode (Optional): Only the white light is ON. It is suitable for scenes that require color video footage

Three-in-One Camera (TiOC) integrates 24/7 full-colour, active deterrence and artificial intelligence into one smart and innovative solution, greatly saving time and financial costs. TiOC can accurately identify potential risks and effectively warn off intruders protecting life and property.

Product Features:

8 MP 1/2.8” CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max.
> IR illumination distance is 30m and warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 3.0.
> One press arming/disarming through alarm input.

DH-IPC-HDW3849H-AS-PV-S3_datasheet

Camera Dimensions

Operational Manual

Dahua Eyeball Network Camera_QSG_V1.0.0

Active Deterrence

Red and Blue Light
• Noticeable even in dense fog and heavy rain.
• More eye-catching than white light.
Enhanced Sound Alarm
• Speaker volume up to 110dB.
• Two-way talk (IPC supported).
• Optional wailing siren, recorded voice and customizable voices for different scenarios.

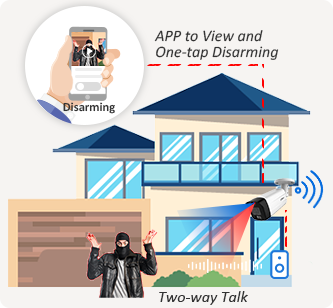

Real-time Notification
• Real-time alarm push notification to mobile APP.
• Visual alarm verification anytime, anywhere.
• One-tap arming and disarming, easy to operate.

Accurate Alarm

TiOC offers accurate alarm function by precisely targeting people and vehicles, while filtering out non-target objects such as animals, leaves and car headlights. While keeping false alarm rate under 2%, its powerful AI algorithms also delivers a quicker, more accurate and longer range motion detection. (In HDCVI system, all AI functions are realized by XVR).



Specifications

Camera
Image Sensor 1/2.8″ CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio ﹥ 56 dB
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR LED)
1 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Field of View 2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°
3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100°
Iris Type Fixed
Close Focus Distance 2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (6.23 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 91.0 m (298.56 ft) 36.4 m

( 119.42 ft)

18.2 m

(59.71 ft)

9.1 m

(29.86 ft)

3.6 mm 107.6 m (353.02 ft) 43.0 m

( 141.08 ft)

21.5 m

(70.54 ft)

10.8 m

(35.43 ft)

Professional, intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD 3.0 Less false alarm, longer detection distance
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 72 M)
Storage FTP; SFTP; Micro SD card (Support max. 256 G); NAS
Browser IE: IE8/9/11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone iOS; Android
Certification
Certification CE-LVD: EN 62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2.9 W (12 VDC); 5.0 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE)
Environment
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade IP67
Structure
Casing Metal
Dimensions 110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″)
Net Weight 745 g (163.1 lb)
Gross Weight 915 g (200.6 lb)
