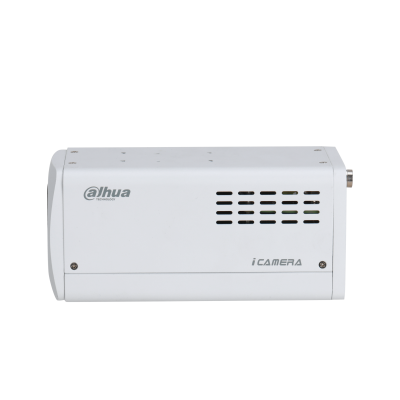

Dahua SDZ4032-HNR-ZB 4MP 32x Starlight Zoom Network Camera


32x optical zoom
> Starlight technology
> H.265 encoding
> Perimeter protection
> Face detection
> Smart capture
> Supports PoE

SDZ4032-HNR-ZB_datasheet_20220104

8-10 weeks lead time

$1,450.00 $1,452.00 inc GST +3 Year Warranty & Support

Camera

Image Sensor

1/2.8″ CMOS

Pixel

4 MP

Max. Resolution

2560 (H) x 1440 (V)

ROM

256 MB

RAM

1 GB

Electronic Shutter Speed

1/3 s–1/100,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.35
B/W: 0.0005 lux@F1.35
0 lux (IR light/laser on)

Lens

Focal Length

4.8 mm–154 mm

Max. Aperture

F1.5–F4.0

Field of View

H: 55.8°–2.3°; V: 31.9°–1.3°; D: 63.7°–2.7°

Optical Zoom

32x

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1 m–1.5 m (0.33 ft–4.92 ft)

Iris Control

Auto; semi-auto; manual

DORI Distance

Detect

Observe

Recognize

Identify

2700 m (8,858.27 ft)

1066 m (3,497.38 ft)

540 m (1,771.65 ft)

270 m (885.83 ft)

PTZ

Preset

300

Power-off Memory

Yes

Idle Motion

Preset; Tour; Pattern; Scan

PTZ Protocol

DH-SD

Pelco-P/D (auto recognition)

Intelligence

Smart Capture

Support human, motor vehicle and non-motor vehicle image capture.

IVS (Perimeter Protection)

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Detection

Yes

SMD

Yes

Video

Video Compression

H.265; Smart H.265+; Smart H.264+; H.264; MJPEG (Sub Stream1)

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)

Video Frame Rate

Main stream: 4M/1080p/720p (1-25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 720p (1–25/30 fps)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 2816 kbps–8192 kbps
H.265: 1024 kbps –7936 kbps

Day/Night

Auto (ICR); Color; B; W

BLC

Yes

WDR

Yes

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

EIS

Defog

Digital

Digital Zoom

16x

Image Rotation

180°

S/N Ratio

≥55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMP v1/v2c/v3 (MIB-2); RTCP; RTMP

Interoperability

ONVIF (Profle S&G&T); CGI

Streaming Method

Unicast; Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Imou cloud; FTP; Micro SD card (max. 512 GB); NAS

Browser

IE7 and later versions

Chrome 42 and earlier versions

Firefox 52 and earlier versions

Safari

Management Software

Smart PSS; DSS; IVSS; NVR; ConfigTool; Smart Player; Imou

Mobile Client

iOS; Android

Certification

Certifications

CE:EN55032/EN55024/EN50130-4
FCC:Part15 subpartB, ANSI C63.4-2014

Port

RS-485

Yes

Audio Input

1 channel (bare wire)

Audio Output

1 channel (bare wire)

Alarm I/O

2/1

Audio I/O

1/1

Alarm Linkage

Capture; preset; tour; pattern; SD card recording; triggering on-off value output; sending email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12 VDC, 1.5 A (±10%)
PoE (802.3af)

Power Consumption

6 W

Environment

Operating Temperature

–25 °C to +60 °C (–13 °F to +140 °F)

Operating Humidity

≤95% (RH)

Protection

TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

160.3 mm × 70.0 mm × 78.0 mm (6.31″ × 2.76″ × 3.07″) (L × W × H)

Net Weight

0.8 kg (1.76 lb)

PFH610N-IR-W-POE_datasheet_20221027

SKU: DH-SDZ4032-HNR-ZB Categories: , , , ,
