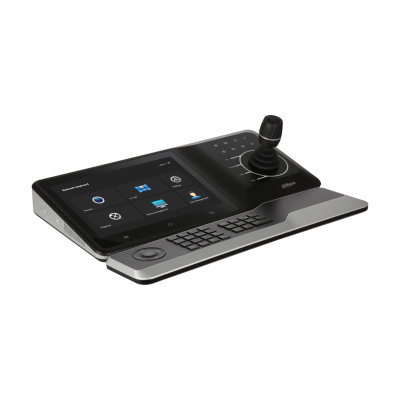

Dahua NKB5200, HD Network PTZ Controller Keyboard

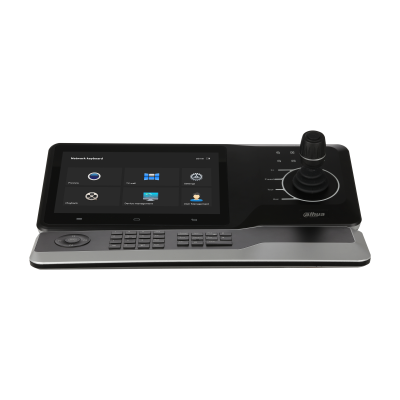

Dahua NKB5200, HD Network PTZ Controller Keyboard - Image 2

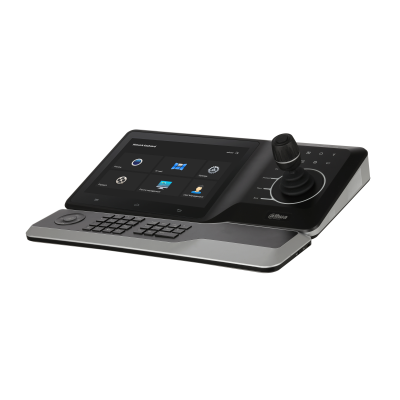

Dahua NKB5200, HD Network PTZ Controller Keyboard - Image 3
Dahua NKB5200, HD Network PTZ Controller Keyboard - Image 4
, ,

Dahua NKB5200, HD Network PTZ Controller Keyboard

Android Network Control Keyboard
> Touchscreen keyboard with the Android system.
> 10.1-inch capacitive touch screen, support local screen preview
> Four dimensional joystick control of PTZ functions
> Support H.265,H.264 codes decoding ,max 1ch 4K@30 or 4ch 1080P@30
> Compatible with Dahua cameras,storage devices,display control devices,and works with DSS Pro
> Support snapshot and recording to U-disk
> Support video-wall display control and schemes switches
> The buttons on the keyboard can be used to perform operations such as zoom, focus and tour, and can use the iris, wiper and presets.
> NKB5200-F model includes an extension keypad module (F1 cannot be called in platform TV wall mode)

NKB5200(-F)_datasheet

$1,495.00 $2,000.00 inc GST +3 Year Warranty & Support

Dahua NKB5200 HD Network PTZ Controller Keyboard

Take control of your surveillance systems with the Dahua NKB5200, a high-performance HD network PTZ controller designed for precision and ease of use. Tailored for professional security setups, this advanced keyboard provides seamless control of PTZ cameras and network recorders, ensuring efficient operation in demanding environments.

Key Features:

  • Ergonomic Design: User-friendly layout with responsive keys and a tactile joystick for smooth PTZ navigation.
  • Multi-Device Compatibility: Supports Dahua’s range of network cameras, NVRs, and other ONVIF-compliant devices.
  • High-Definition Display: Integrated LCD screen for real-time status updates and operation feedback.
  • Customizable Shortcuts: Programmable keys allow quick access to frequently used functions.
  • Advanced Control Functions: Intuitive operations for zoom, focus, preset settings, and patrol management.
  • Network Ready: Built-in Ethernet connectivity for seamless integration with IP-based systems.

Whether you’re managing a complex security system or a single PTZ camera, the Dahua NKB5200 offers precise control and dependable performance, making it an essential tool for surveillance professionals.

Model

Model

NKB5200(-F)

System

Main Processor

Embedded Processor

Operation System

ANDROID 7.1

Display

Video Output

1-ch VGA or 1-ch HDMI(extension decoding display 720P resolution)

Stream Type

H.265, H.264

Decoding Capability

1CH@4K(30fps)/4CH@1080P(30fps)/9CH@720P(30fps)

Joystick

4D joystick

Display split

1/4/9 splits ,MxN splits

Screen

10.1″ TFT LCD touch screen (1280*800)

Audio & Alarm

Audio controller

1 × volume button, 1 × mute button and touchscreen control

Loudspeaker

1 loudspeaker to play audio

Audio Input

1-ch 3.5 mm

Audio Output

1-ch 3.5 mm

Speaker

1 for audio play

General

Network Interface

1×RJ-45 port (10/100/1000M), WLAN

USB Interface

1 USB3.0, 2 USB2.0

RS485

1 for ptz control support PELCO

Maximum Number of Users

32 (including “admin”)

Max RS485 Addresses (Each User)

8

Max Number of PTZ (IPC) That Can Be Added over Network (Each User)

10000

Access Protocol

Dahua Private Protocol

Wifi

Wireless frequency range

2.4Ghz 5Ghz

Wireless transmission rate

150Mbps

Environmental

Power Supply

12 VAC 4A max adapter,POE

Power Consumption

< 48 W

Working Temperature

-10°C ~+55°C

Working Humidity

10%~95%

Dimension

Host: 425mmx194mmx59mm (W×D×H) (exclude joystick)

Mini Keypad: 421mmx105mmx26mm (W×D×H)

Gross weight

3.85kg(NKB5200 exclude package)

4.22kg(NKB5200-F exclude package)

Net weight

1.90kg(NKB5200 exclude package)

2.36kg(NKB5200-F exclude package)
SKU: DHI-NKB5200 Categories: , ,
