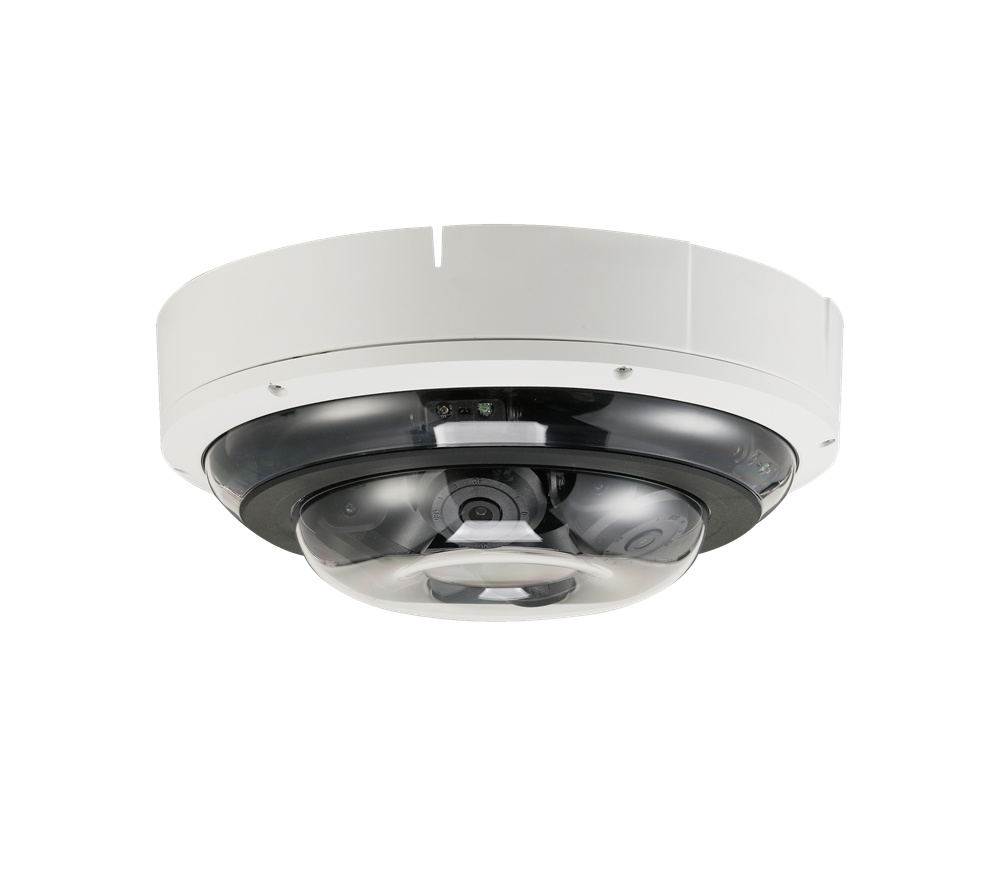

Dahua IPC-PDBW5831-B360-E4 4x2MP IR Dome Network Camera ICR,WDR, IR 30m,IP67,IK10,POE+


Four 1/2.8” 2Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 dual-stream encoding
> 25/30fps@2M(1920×1080)
> Smart Detection supported
> WDR(140dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7mm~12mm motorized lens
> Max. IR LEDs Length 30m
> Micro SD memory, IP67, IK10, PoE+

Datasheet for IPC-PDBW5831-B360-E4

User Manual for IPC-PDBW5831-B360-E4

Installation Document

$1,990.00 inc GST +3 Year Warranty & Support

Dahua IPC-PDBW5831-B360-E4 4x2MP IR Dome Network Camera ICR,WDR, IR 30m,IP67,IK10,POE+


Camera
Image Sensor Four 1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels 1920(H)x1080(V)
RAM/ROM 1024MB/128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination 0.005Lux/F1.8( Color,1/3s,30IRE)

0.06Lux/1.8( Color,1/30s,30IRE)

0Lux/F1.8(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 30m (98ft)
IR On/Off Control Auto/ Manual
IR LEDs 8
Lens
Lens Type Motorized
Mount Type Board-in
Focal Length 2.7~12mm motorized
Max. Aperture F1.8
Angle of View H: 105° ~44°, V:54° ~25°
Optical Zoom 4x
Focus Control Motorized
Close Focus Distance 0.2m(0.66ft)
DORI Distance Lens Detect Observe Recognize Identify
Wide 45m(148ft) 18m(59ft) 9m(29.5ft) 4.5m(14.8ft)
Tele 99m(325ft) 40m(131ft) 20m(66ft) 10m(33ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~80˚; Rotation:0˚~355˚
Intelligence
Event Trigger Motion detection, Video tampering, Scene changing,

Network disconnection, Ip address conflict, Illegal

access, Storage anomaly

IVS Tripwire, Intrusion
Video
Compression H.265/H.264/H.264B/H.264H/MJPEG(sub stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate Main Stream: 1080P(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 32~8192Kbps

H.265: 12~6144Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(140dB)
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR N/A
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (100/1000Base-T)
Protocol HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 256GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface 1/1 channel In/Out
RS485 1 port
Alarm 1 channel In: 5mA 5VDC

1 channel Out: 300mA 12V

Electrical
Power Supply AC24V, PoE+(802.3at)(Class 4)
Power Consumption AC 24V: 9.9W 31.2W(IR on)

PoE: 10.6W 23.8W(IR on)

Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Stroage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions 286.1mm×111.3mm
Net Weight 2.7kg (5.95lb)
Gross Weight 3.6kg (7.94lb)
