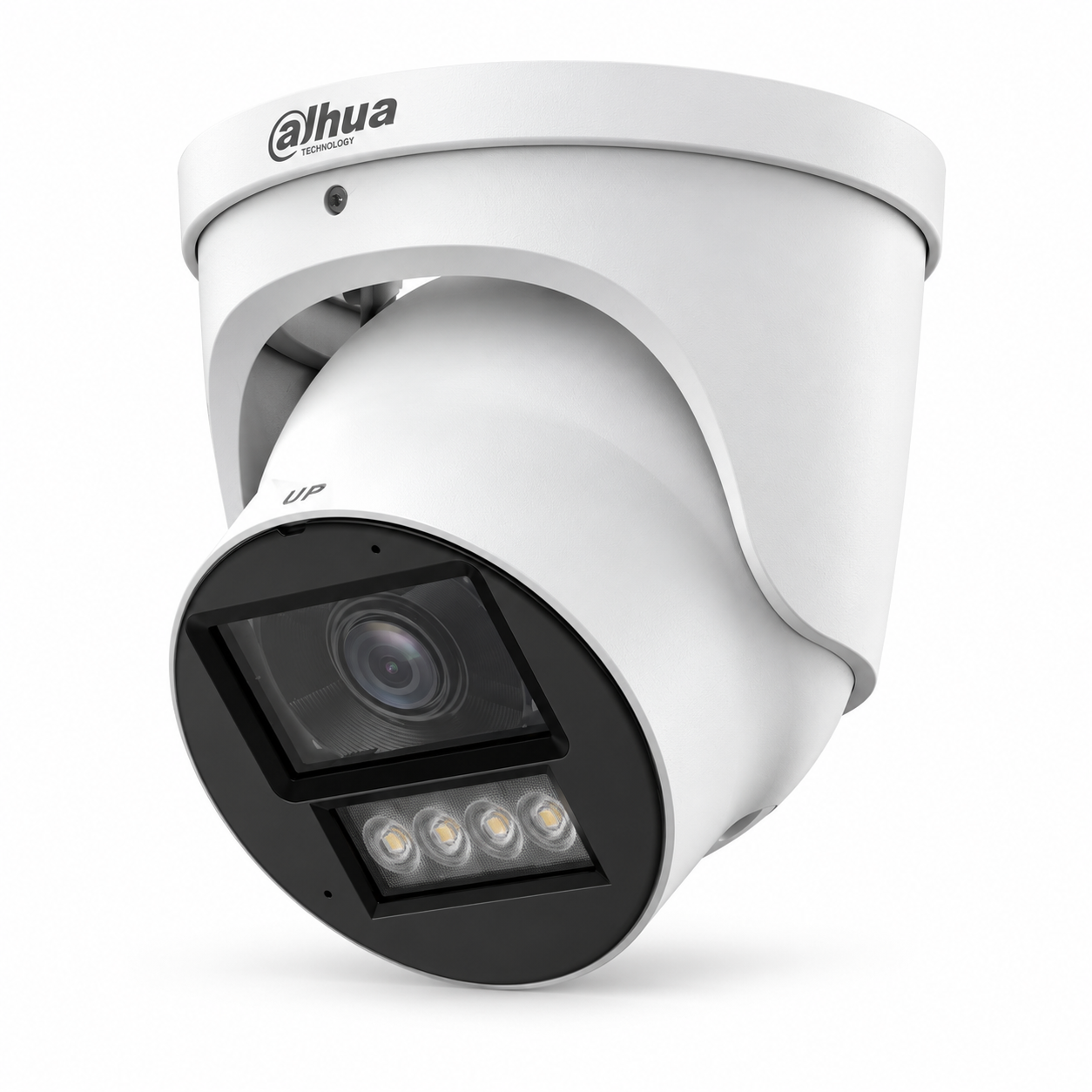

Dahua IPC-HDW5859H-ZE-PV-PRO 8MP WizMind WizColor Turret IP Camera, 2.7–12mm Motorised Lens, Active Deterrence & Two-Way Audio

Product SKU: DH-IPC-HDW5859H-ZE-PV-PRO

Product Overview

The Dahua IPC-HDW5859H-ZE-PV-PRO is an 8MP WizColor vari-focal Eyeball WizMind network camera designed for demanding commercial, industrial, retail, perimeter and high-security surveillance applications. Its large 1/1.8-inch CMOS sensor, F1.2 motorised 2.7–12 mm P-Iris lens and AI-ISP-based WizColor imaging support detailed colour capture in very low light, while built-in multi-core illumination provides up to 60 m IR and 50 m warm light. Advanced WizMind analytics include IVS perimeter protection, SMD 4.0, AcuPick, face detection, people counting, heat mapping and video metadata. Dual built-in microphones, a built-in speaker, active visual and audible deterrence, 1 TB microSD support, IP67 weather protection and IK10 impact resistance make it a highly capable professional surveillance camera.

Key Capabilities

Best For

• Commercial Perimeters: IVS analytics, strong night illumination and active deterrence suit entrances, boundaries and restricted areas.
• Retail & Shopping Centres: People counting, heat maps, face detection and metadata can support both security and operational analysis.
• Warehouses & Logistics: Vari-focal optics, AcuPick and rugged construction suit loading areas, stock zones and vehicle approaches.
• Schools & Campuses: IK10 impact resistance, two-way audio and intelligent target detection suit shared public and institutional spaces.
• Car Parks & Building Exteriors: 60 m IR, 50 m warm light and IP67 protection support dependable day/night outdoor surveillance.

Why Choose the IPC-HDW5859H-ZE-PV-PRO

The IPC-HDW5859H-ZE-PV-PRO combines premium low-light imaging, flexible motorised optics and a deep set of WizMind analytics in a compact vandal-resistant eyeball camera. Its large sensor and F1.2 lens are designed for difficult night scenes, while Smart Dual Light can shift between infrared and warm illumination depending on the surveillance requirement. AcuPick, SMD 4.0, metadata, face detection, people counting and AI Rule Assist provide considerably more intelligence than a basic IP camera. Available through Security Wholesalers, it is particularly suitable where image quality, fast target search, active deterrence and robust outdoor construction are all important.

Buyer Decision Tips

Key Features & Technical Specifications

Product Type	8MP WizColor vari-focal Eyeball WizMind network camera.
Model	IPC-HDW5859H-ZE-PV-PRO.
Image Sensor	1/1.8-inch CMOS.
Maximum Resolution	3840 × 2160.
Main Stream	Up to 8MP at 25/30 fps.
Streaming Capability	4 streams.
ROM	4 GB.
RAM	2 GB.
Lens Type	Motorised vari-focal P-Iris.
Focal Length	2.7–12 mm.
Maximum Aperture	F1.2.
Horizontal Field of View	112°–48°.
Vertical Field of View	58°–27°.
Diagonal Field of View	137°–55°.
Close Focus Distance	0.2 m.
DORI – Wide	Detect 60.4 m, Observe 24.2 m, Recognise 12.1 m, Identify 6.0 m.
DORI – Tele	Detect 128.7 m, Observe 51.5 m, Recognise 25.7 m, Identify 12.9 m.
Minimum Illumination	0.0006 lux at F1.2 colour, 0.0003 lux at F1.2 B/W, 0 lux with illuminator on.
IR Distance	Up to 60 m.
Warm Light Distance	Up to 50 m.
Illuminators	4 × multi-core IR + warm light illuminators.
Smart Dual Light	Supported.
Wide Dynamic Range	130 dB WDR.
Noise Reduction	3D NR.
Image Stabilisation	Electronic Image Stabilisation.
Defog	Supported.
Scene Self-Adaptation	Supported.
IVS Perimeter Protection	Intrusion, tripwire, fast moving, loitering, people gathering, parking and stay detection.
IVS Target Classification	Human, vehicle, animal and other target classification on supported rules.
AI Rule Assist	Supported using Xinghan Vision Models.
Self-Learning	Supported for enhanced target detection and false-alarm filtering.
SMD	SMD 4.0.
AcuPick	Supported with compatible back-end devices for people, animals and motor-vehicle search.
Face Detection	Supported with snapshot optimisation and face attribute extraction.
People Counting	Tripwire counting, area counting and queue management supported.
Heat Map	Supported.
Video Metadata	Motor vehicle, non-motor vehicle, face and human-body metadata.
Smart Search	Supported with compatible Smart NVR.
Video Compression	H.265, H.264, H.264H, H.264B and MJPEG on sub stream.
Smart Coding	Smart H.265+, Smart H.264+, AI H.265 and AI H.264.
Built-In Microphones	Dual built-in microphones.
Built-In Speaker	Yes.
Two-Way Talk	Supported.
Sound Warning	11 built-in alarm sounds plus up to 10 imported custom sounds.
Light Warning	Warm-light warning with flash or solid illumination.
Alarm Input / Output	1 input / 1 output.
Audio Input / Output	1 input / 1 output.
RS-485	1 port.
Auxiliary Power Output	12 VDC, maximum 165 mA continuous, 700 mA peak.
Network Port	1 × RJ45 10/100 Enhancement Base-T.
ONVIF	Profiles S, G, T and M.
Local Storage	microSD card up to 1 TB.
Other Storage	FTP, SFTP and NAS.
Power Supply	12 VDC ±30%, IEEE 802.3at PoE+ or ePoE.
Basic Power Consumption	4.1 W at 12 VDC or 4.8 W via PoE.
Maximum Power Consumption	21.6 W at 12 VDC or 24.2 W via PoE with IR, WDR, intelligence and active deterrence operating.
Operating Temperature	-40°C to +60°C.
Operating Humidity	≤95% RH, non-condensing.
Weather Protection	IP67.
Impact Resistance	IK10.
Housing Material	Metal.
Dimensions	127.6 mm × Ø122.0 mm.
Net Weight	0.92 kg.

Ideal Use Cases

Choosing the Right Model

• Choose the IPC-HDW5859H-ZE-PV-PRO if: You need 8MP WizColor imaging, a motorised 2.7–12 mm lens, advanced WizMind analytics, active deterrence and IK10 outdoor protection.
• Choose a fixed-lens model if: The viewing angle is already known and remote focal adjustment is unnecessary.
• Choose a dome model if: A fully enclosed dome form factor is preferred instead of Dahua’s official eyeball-style housing.
• Choose this model for active deterrence if: Audible warnings, warm-light alerts and two-way audio are important parts of the site’s response strategy.

FAQs

1. What image quality and low-light performance does the Dahua IPC-HDW5859H-ZE-PV-PRO provide?
   The Dahua IPC-HDW5859H-ZE-PV-PRO uses a 1/1.8-inch CMOS sensor and records up to 8 MP at 3840 × 2160 resolution at 25/30 fps. WizColor technology, the F1.2 aperture and AI-ISP imaging support very low-light colour capture, while the built-in multi-core illuminators provide up to 60 m IR and 50 m warm light. The camera also supports 130 dB WDR, 3D noise reduction, HLC, BLC, EIS, defog and Smart Dual Light.
2. What lens does the IPC-HDW5859H-ZE-PV-PRO use?
   The camera uses a motorised 2.7–12 mm vari-focal P-Iris lens with a maximum F1.2 aperture. Dahua specifies a horizontal field of view from approximately 112° at the wide end to 48° at the telephoto end. This gives installers flexibility to cover a broad scene or tighten the view onto entrances, driveways, loading areas and other priority zones without replacing the lens.
3. What AI analytics are supported by the IPC-HDW5859H-ZE-PV-PRO?
   The IPC-HDW5859H-ZE-PV-PRO supports advanced WizMind analytics including IVS perimeter protection, SMD 4.0, AcuPick, face detection, people counting, heat map and video metadata. Dahua also includes AI Rule Assist based on Xinghan Vision Models, plus self-learning functions that help improve target detection and reduce false alarms. Supported IVS rules include intrusion, tripwire, fast moving, loitering, people gathering, parking and stay detection.
4. Does the IPC-HDW5859H-ZE-PV-PRO support active deterrence and two-way audio?
   Yes. The camera has built-in dual microphones and a built-in speaker for two-way talk. It also supports warm-light warning and audible deterrence, with 11 built-in alarm sounds plus support for importing up to 10 custom sounds. The warning light can be configured for flashing or solid illumination, making the camera suitable for sites where a visible and audible response is required in addition to recording and analytics.
5. How much local storage does the IPC-HDW5859H-ZE-PV-PRO support?
   The IPC-HDW5859H-ZE-PV-PRO supports microSD cards up to 1 TB, together with FTP, SFTP and NAS storage options. It supports four video streams plus Smart H.264+/H.265+ and AI H.264/H.265 coding. For Security Wholesalers installations, final storage should be sized around resolution, frame rate, retention period, analytics use and whether recording is also being handled by a compatible NVR.
6. Is the IPC-HDW5859H-ZE-PV-PRO suitable for outdoor and vandal-resistant installations?
   Yes. The camera uses a metal housing with IP67 weather protection and IK10 impact resistance. Dahua specifies operation from -40°C to +60°C with up to 95% non-condensing humidity. It can be powered by 12 VDC, IEEE 802.3at PoE+ or ePoE, and it also provides alarm I/O, audio I/O, RS-485 and a 12 VDC auxiliary power output for supported installation requirements.

Additional Information

• Dahua DH-IPC-HDW5859H-ZE-PV-PRO_Datasheet
