Product SKU: DH-IPC-HDW5459H-ZE-PV-PRO-ANZ
Product Overview

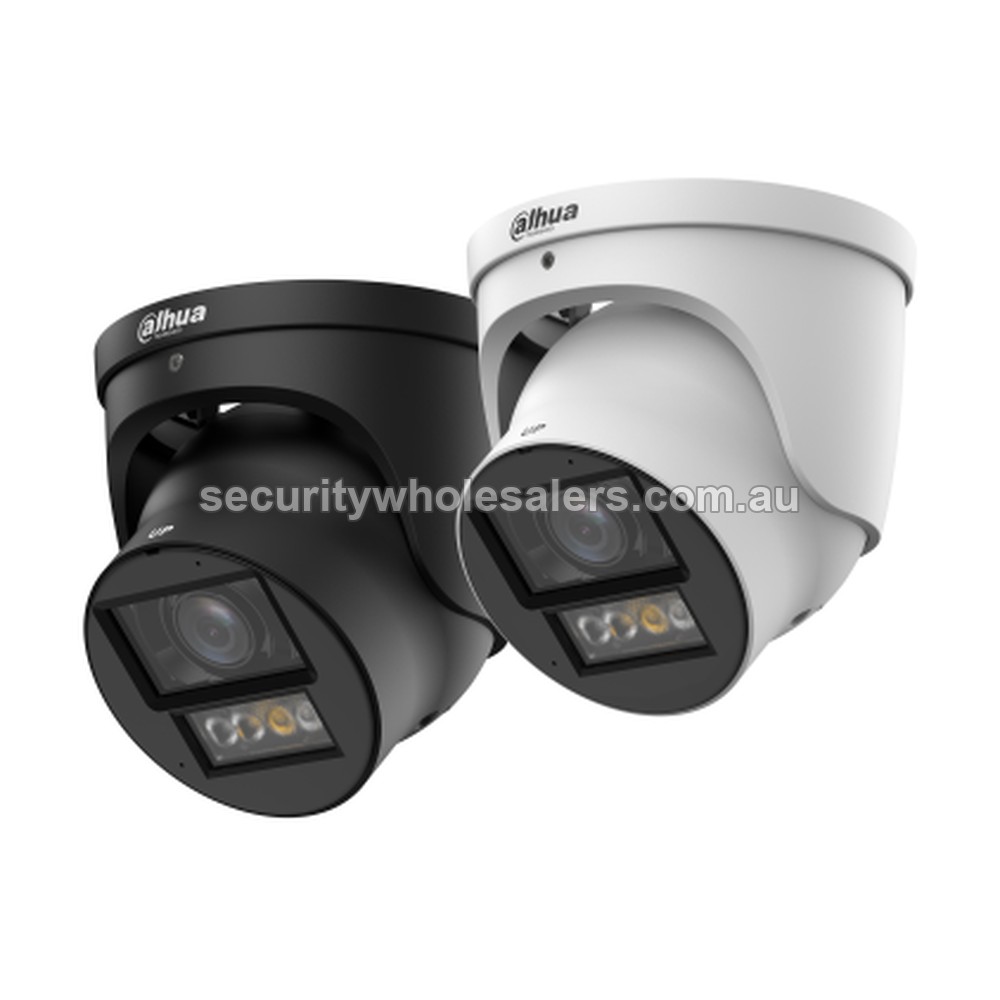

Built for locations where colour night footage and real-time deterrence both matter, the IPC-HDW5459H-ZE-PV-PRO is a WizColor eyeball network camera that goes well beyond standard low-light performance. Featuring a large 1/1.8-inch CMOS sensor paired with a motorised P-Iris F1.2 varifocal lens spanning 2.7 mm to 12 mm, installers can remotely adjust the field of view from a wide 114 degrees down to a 48-degree telephoto framing after the camera is mounted, making it particularly practical for eave, soffit, and wall positions that are difficult to access once fixed. Smart Dual Light technology delivers full-colour warm light coverage to 50 m, with IR extending to 60 m for longer-range capture. When an IVS or AI rule is triggered, the integrated warning light and audible siren activate immediately to discourage intrusions before they escalate. Deep learning analytics including AcuPick, face detection, people counting, and AI Rule Assist are built in. The camera is rated IP67 and IK10, and supports PoE+, ePoE, and 12 VDC power inputs.
Key Capabilities
WizColor Smart Dual Light
The 1/1.8-inch sensor and F1.2 P-Iris aperture combine with built-in warm white illuminators to produce full-colour footage at distances up to 50 m in near-darkness. IR extends coverage to 60 m when colour light is insufficient. Minimum illuminance of 0.0006 lux means usable colour detail is captured in extremely low ambient light conditions.
Integrated Active Deterrence
On detection of a configured event, the camera triggers its onboard warning light and audible siren without relying on any external device. Both deterrence outputs are housed within the camera body, which keeps installations clean and reduces the number of cabled components at the monitored point.
Motorised Varifocal Lens (2.7-12 mm)
The 4.4x motorised varifocal P-Iris lens can be adjusted remotely through a compatible NVR or VMS, allowing the framing to be refined from a 114-degree wide-angle view to a 48-degree telephoto angle after installation. This is especially useful on high eaves or soffits where physical access to the mounted unit is impractical.
AI Rule Assist and Deep Learning Analytics
AI Rule Assist uses Xinghan Vision Models to analyse the camera scene and automatically generate IVS detection rules, reducing manual configuration time. Additional deep learning capabilities include AcuPick for forensic search, face detection, people counting, and video metadata for commercial environments that need detailed scene intelligence beyond motion detection.
Two-Way Talk
A confirmed built-in dual microphone and built-in speaker allow real-time two-way voice communication directly through the camera body. Operators can speak with or issue warnings to individuals at the monitored location without a separate intercom device, provided the connected NVR or client software supports two-way talk.
140 dB WDR and Advanced Image Processing
A 140 dB wide dynamic range handles strongly backlit scenes such as entry doors with bright daylight behind subjects. Supporting processing includes 3D noise reduction, HLC, BLC, LDC, electronic image stabilisation, and defog, all contributing to consistent footage quality across varied lighting and mounting conditions.
Best For
- Shopfronts and Commercial Entry Points: The combination of active deterrence, full-colour night imaging at 50 m, and two-way talk makes this camera well suited to after-hours monitoring of entry doors and shopfront glazing where remote operator interaction may be needed.
- Car Parks and Outdoor Access Lanes: The motorised varifocal lens allows coverage of specific bays or vehicle lanes to be dialled in from a fixed wall or eave mount, with AI Rule Assist simplifying the setup of perimeter detection rules across complex scenes.
- Eave and Soffit Installations: The eyeball form factor lets the sensor be aimed independently of the housing after mounting, which suits positions where the bracket cannot be easily repositioned and remote lens adjustment via the motorised varifocal saves a return visit.
- High-Traffic Retail and Office Lobbies: Built-in face detection and people counting analytics support occupancy monitoring and access point analysis in environments where that data has operational value, without requiring additional hardware or software licences.
- Sites Requiring Local Storage Backup: With support for up to a 1 TB MicroSD card, the camera can retain footage locally when network recording is temporarily unavailable, providing continuity without depending entirely on centralised storage.
Why Choose the IPC-HDW5459H-ZE-PV-PRO
The IPC-HDW5459H-ZE-PV-PRO distinguishes itself from standard fixed-lens colour turret cameras through the combination of a large 1/1.8-inch sensor, a motorised 2.7-12 mm P-Iris F1.2 varifocal lens, and confirmed active deterrence with integrated warning light and siren, all within an IK10-rated eyeball housing. A fixed-lens camera without active deterrence cannot remotely adjust framing after installation, cannot trigger a light and siren alarm on detection, and typically lacks the sensor size to achieve 0.0006 lux minimum illuminance. This model also includes confirmed two-way talk via dual built-in microphone and built-in speaker, AI Rule Assist to reduce IVS configuration effort, and ePoE support for extended cabling distances on larger sites. The 140 dB WDR handles the contrast conditions common at commercial entries and vehicle access points. Available at Security Wholesalers as the ANZ-compliant variant, the IPC-HDW5459H-ZE-PV-PRO is suited to Australian and New Zealand commercial and high-security residential deployments.
Buyer Decision Tips
PoE+ Requirement: This camera requires PoE+ (802.3at), which delivers up to 30 W per port. Standard PoE (802.3af) ports are rated to 15.4 W and will not reliably power this camera given the draw from the motorised lens, dual-light system, and active deterrence components. Confirm that your NVR’s onboard PoE ports or your PoE switch are 802.3at compliant before purchasing. If PoE+ infrastructure is not available, 12 VDC or ePoE are the alternative power options.
Active Deterrence Placement: The warning light and audible siren are most effective when the camera is positioned so the light is visible and the speaker is audible from the area being monitored. Mounting the camera in a recessed enclosure, or pointing it away from the primary approach direction, will reduce the deterrence impact even if AI detection continues to function correctly. Factor this into bracket and mounting position decisions at install.
Key Features & Technical Specifications
| SKU |
DH-IPC-HDW5459H-ZE-PV-PRO-ANZ |
| Resolution |
4 MP (2688 x 1520) at 25/30 fps |
| Image Sensor |
1/1.8-inch CMOS |
| Lens |
Motorised varifocal 2.7-12 mm, P-Iris, F1.2 |
| Optical Zoom |
4.4x |
| Horizontal Field of View |
114° (2.7 mm) to 48° (12 mm) |
| IR Range |
Up to 60 m |
| Warm Light Range |
Up to 50 m |
| Minimum Illuminance |
0.0006 lux (colour, Smart IR); 0.0003 lux |
| Wide Dynamic Range |
140 dB |
| Active Deterrence |
Built-in warning light and audible siren alarm |
| Audio |
Built-in dual microphone, built-in speaker, 1-ch audio in/out, supports two-way talk. Compression: G.711a, G.711Mu, PCM, G.726, G.723 |
| AI Features |
AI Rule Assist, AcuPick, IVS, face detection, people counting, video metadata |
| Video Compression |
SMART H.265+, SMART H.264+, AI H.265, AI H.264; ROI, SVC, encoding after filter, flexible coding |
| Image Processing |
3D NR, HLC, BLC, WDR, LDC, EIS, defog, digital watermarking, privacy masking (4 mosaics or 8 colour blocks), rotation (0°/90°/180°/270°) |
| Local Storage |
MicroSD card, max. 1 TB |
| Alarm I/O |
1 in / 1 out |
| Power |
PoE+ (802.3at), ePoE, 12 VDC |
| Ingress Protection |
IP67 (weather), IK10 (vandal resistance) |
| Other Interfaces |
RS-485 |
Ideal Use Cases
Retail Shopfronts
Active deterrence via the built-in warning light and siren, combined with two-way talk through the integrated dual microphone and speaker, allows operators to respond to after-hours activity at a shopfront without requiring staff to be on site.
Commercial Car Parks
The motorised 2.7-12 mm varifocal lens allows coverage of specific bays or vehicle entry lanes to be refined remotely after installation. AI Rule Assist can automatically define appropriate perimeter detection zones based on actual scene data, reducing manual configuration on complex layouts.
Building Entry Points and Lobbies
The 140 dB WDR rating handles heavy backlight from windows and glass entry doors, while built-in face detection supports identification at monitored access points. Two-way talk adds the option for remote operator communication with individuals at the entry.
Warehouse Perimeters and Loading Areas
IP67 weather sealing and IK10 impact resistance suit exposed loading dock and warehouse yard environments. The 60 m IR range covers extended distances between structures or along fence lines where ambient lighting is inconsistent or absent.
High-Footfall Retail and Venue Spaces
People counting analytics are built directly into the camera, providing footfall data for queue management or occupancy tracking without a separate counting device. This suits retail stores, hospitality venues, and institutional spaces where that data supports operational decisions.
Residential Driveways and Gate Approaches
Full-colour warm light coverage at 50 m combined with the eyeball housing’s flexible post-install aiming makes this camera practical for driveway and gate monitoring where both colour detail at night and the option for two-way interaction with visitors are required.
Choosing the Right Model
- Choose this model if: You need full-colour night imaging, remote lens adjustment via motorised varifocal, active deterrence with light and siren, confirmed two-way talk, and deep learning analytics including AcuPick and people counting, all within a single IK10-rated eyeball housing.
- Choose a different model if: Your PoE switch or NVR only supports standard 802.3af PoE and cannot be replaced or supplemented with a PoE+ source. This camera requires 802.3at to operate fully, and a lower-power camera will be more appropriate in that infrastructure context.
- Choose a different model if: The installation only needs a fixed prime lens with a set field of view and remote zoom adjustment adds no value. A fixed-lens turret without a motorised varifocal carries a lower cost where framing flexibility after installation is not a requirement.
- Choose a different model if: The site requires motorised pan and tilt patrol across a wide area. This is a fixed-mount eyeball camera where the motorised lens provides framing adjustment only, not pan or tilt movement across the scene.
FAQs
- What does WizColor mean in the context of this camera’s night performance?
WizColor is Dahua’s full-colour low-light technology. In the IPC-HDW5459H-ZE-PV-PRO, it is enabled by the 1/1.8-inch CMOS sensor, the F1.2 P-Iris aperture, and the built-in warm white illuminators. The result is full-colour footage at distances up to 50 m in very low ambient light, down to a minimum illuminance of 0.0006 lux. When warm light coverage is insufficient, the IR system extends range to 60 m in monochrome.
- How does the active deterrence function work on this model?
When a configured IVS rule or AI detection event is triggered, the camera activates its built-in warning light and audible siren simultaneously. Both outputs are housed within the camera body itself, with no external strobe or speaker required. This keeps the installation compact and the deterrence response immediate from the point of detection.
- Can the lens zoom be adjusted after the camera is mounted?
Yes. The 2.7-12 mm motorised varifocal lens is remotely adjustable through a compatible Dahua NVR or VMS. The field of view can be changed from 114 degrees at the wide end to 48 degrees telephoto without physically accessing the mounted unit. This is particularly practical for eave or soffit positions where re-accessing the camera after installation is difficult.
- Does this camera support two-way audio out of the box?
Yes. The IPC-HDW5459H-ZE-PV-PRO has a confirmed built-in dual microphone and a confirmed built-in speaker, both integrated into the camera body. Two-way talk is supported natively without any additional microphone or speaker accessory, provided the connected NVR or client software also supports two-way audio functionality on its end.
- Why does this camera require PoE+ rather than standard PoE?
Standard PoE (802.3af) delivers a maximum of 15.4 W per port. PoE+ (802.3at) delivers up to 30 W. The IPC-HDW5459H-ZE-PV-PRO draws more power due to its motorised varifocal lens, dual-light system (warm white and IR), and active deterrence components running concurrently. Connecting the camera to a standard 802.3af port may result in the camera not powering on at all, or operating without full functionality. Confirm PoE+ support on your switch or NVR before installing. ePoE and 12 VDC are the alternative power inputs if PoE+ infrastructure is not available.
- What is AI Rule Assist and how does it benefit the installer?
AI Rule Assist uses Dahua’s Xinghan Vision Models to observe the live camera scene and automatically suggest or generate IVS detection rules based on what is present. Rather than manually drawing detection zones and configuring direction filters and sensitivity for each rule, the installer can allow the camera to propose rules derived from real scene data. This reduces configuration time on sites with multiple or complex detection requirements, such as multi-lane car parks or irregularly shaped perimeters.
- Is the IPC-HDW5459H-ZE-PV-PRO suitable for harsh outdoor environments?
Yes. The camera carries an IP67 ingress protection rating, meaning it is fully sealed against dust and protected against water immersion, making it appropriate for exposed outdoor positions including external eaves, loading dock soffits, and open wall mounts. The IK10 vandal resistance rating confirms the housing withstands direct mechanical impacts, which is relevant at publicly accessible or higher-risk locations. The ANZ-compliant variant is offered through Security Wholesalers for Australian and New Zealand installations.
