Product SKU: DH-PFM378-B100-WB/PFM372-L45-4S14P-2
Product Overview

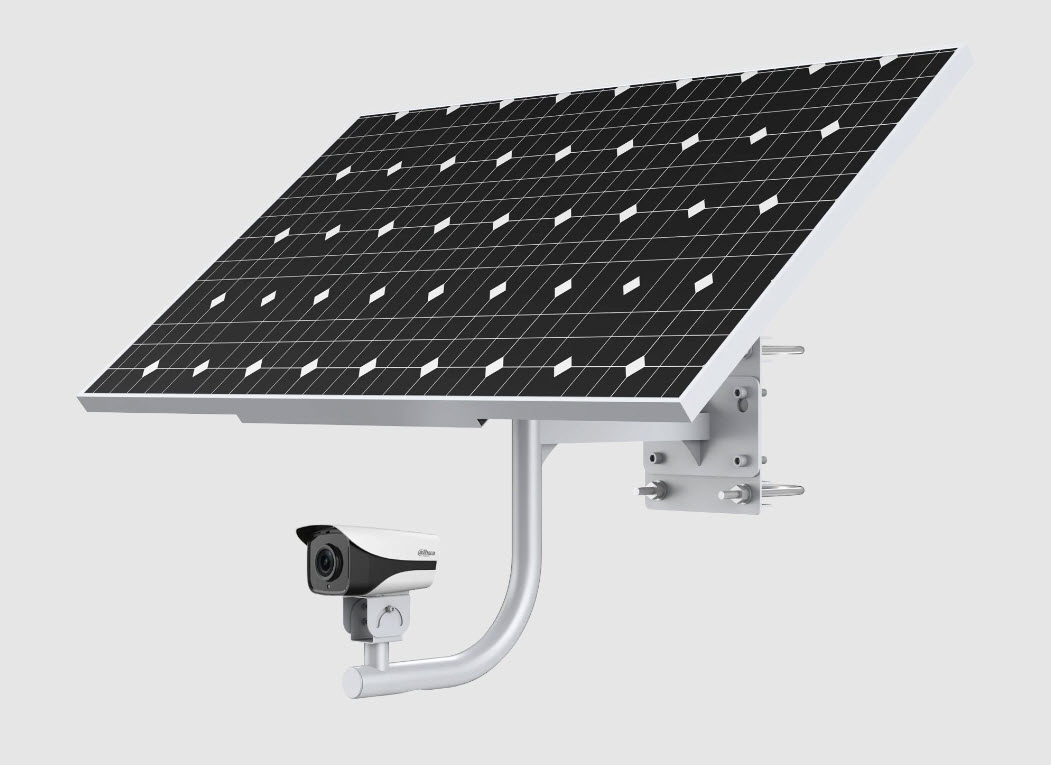

Built for locations where mains power and wired internet connections simply are not available, this Dahua Integrated Solar Monitoring Kit combines a 100W mono-crystalline solar panel, a lithium battery pack, and a 2MP 4G bullet camera into a single deployable system. The kit centres on the DH-IPC-HFW4230MP-4G-AS-I2 camera, which transmits live footage over a 4G network and records locally to a Micro SD card of up to 256GB, removing any dependency on a fixed network infrastructure. The 100W solar panel charges the integrated lithium battery to keep the system running through low-light periods, while the die-cast aluminium alloy frame provides the structural durability needed for exposed outdoor installation. With a 3.6mm fixed lens, 40m IR range, and IP67-rated weatherproofing on the camera, this kit suits remote fence lines, rural gateways, construction sites, and temporary monitoring positions where running cable is not practical.
Key Capabilities
100W Solar Power with Lithium Battery Backup
The 100W mono-crystalline solar panel continuously charges the lithium battery pack, allowing the system to maintain operation through overcast periods and overnight without any mains power connection. This makes the kit genuinely off-grid capable for extended deployments.
4G Wireless Connectivity
The camera transmits video over a 4G cellular network, eliminating the need for fixed broadband or LAN cabling at the installation site. Remote access is supported via Web viewer, DSS/PSS CMS, and the DMSS mobile app, allowing monitoring from anywhere with mobile coverage.
40m IR Night Vision
The built-in IR LEDs extend night-time coverage up to 40m, supported by Day/Night ICR switching. This delivers usable monochrome footage in low-light conditions, important for rural or perimeter sites where ambient lighting is minimal or absent.
Local SD Card Storage up to 256GB
With a Micro SD card slot supporting up to 256GB, the camera stores footage locally on-site. This provides a recording buffer independent of network availability, which is practical for sites where 4G connectivity may occasionally drop.
IP67-Rated Weatherproof Camera
The camera carries an IP67 ingress protection rating, meaning it is fully protected against dust and sustained water immersion. This suits year-round outdoor exposure across Australian conditions, including coastal, rural, and high-rainfall environments.
Best For
- Remote Perimeter and Boundary Monitoring: The combination of 4G transmission and solar power makes this kit deployable along fence lines, rural boundaries, and property entrances where no infrastructure exists.
- Construction and Temporary Sites: Sites that change location or lack permanent power benefit from the self-contained solar and battery system, with footage accessible remotely via DMSS without requiring on-site networking.
- Agricultural and Rural Properties: Paddock gates, pump stations, and outbuilding access points are well served by the IP67 camera and 40m IR range operating independently of mains infrastructure.
- Temporary Event or Asset Monitoring: The portable nature of the solar panel and battery pack allows the kit to be repositioned as monitoring priorities change, with local SD storage providing a fallback if the 4G signal is intermittent.
Why Choose the Dahua Integrated Solar Monitoring Kit
This kit addresses a specific installation challenge that a standard PoE or wired camera cannot solve: monitoring a location without mains power or fixed internet. The DH-IPC-HFW4230MP-4G-AS-I2 camera is paired with purpose-matched Dahua power components, the DH-PFM378-B100-WB 100W solar panel and the PFM372-L45-4S14P lithium battery, so the power budget and form factor are already matched rather than requiring custom engineering. The 256GB SD card capacity provides meaningful on-site storage depth, and the DMSS app gives end users straightforward mobile access without complex NVR configuration. For installers and site managers dealing with remote or off-grid monitoring requirements, this kit from Security Wholesalers removes the need to source and match components individually, reducing both procurement time and compatibility risk.
Package Inclusions
- 1 x DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120 (2MP 4G IP67 Bullet Camera, 3.6mm fixed lens, 40m IR)
- 1 x DH-PFM378-B100-WB (100W Mono-crystalline Solar Panel, die-cast aluminium alloy frame)
- 1 x PFM372-L45-4S14P (Lithium Battery Pack)
Buyer Decision Tips
4G SIM Card and Data Plan: The camera requires an active 4G SIM card with a data plan to transmit video remotely and receive alerts. The SIM is not included in this kit. Choose a carrier with strong coverage in your target area before purchasing, as video streaming at 1080p will consume data continuously if live viewing is frequent. Configure scheduled or event-triggered recording to the SD card to reduce data usage during unmonitored periods.
Solar Panel Placement and Orientation: The 100W panel must be positioned to receive maximum direct sunlight across the day. In Australia, north-facing orientation at an angle matching the local latitude will maximise charge efficiency. Heavily shaded positions or installations with significant dust accumulation on the panel surface will reduce battery charge rate and may affect overnight operation during extended overcast periods. Factor in seasonal sun angle variation for permanent installations.
Key Features & Technical Specifications
| Kit Components |
DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120 camera, DH-PFM378-B100-WB solar panel, PFM372-L45-4S14P lithium battery |
| Camera Resolution |
2MP (1920 x 1080) |
| Image Sensor |
1/2.9″ 2 Megapixel progressive CMOS |
| Lens |
3.6mm fixed |
| Frame Rate |
25/30fps @ 2MP (1920 x 1080) |
| Video Compression |
H.265 and H.264 dual-stream encoding |
| IR Range |
Up to 40m |
| Day/Night |
Auto (ICR), 3DNR, AWB, AGC, BLC |
| Connectivity |
4G (SIM card required, not included) |
| Remote Access |
Web viewer, CMS (DSS/PSS), DMSS mobile app |
| Local Storage |
Micro SD card slot, up to 256GB |
| Camera Weatherproofing |
IP67 |
| Solar Panel |
100W mono-crystalline |
| Panel Frame |
Die-cast aluminium alloy, integrated casing |
| Battery |
Lithium battery pack (PFM372-L45-4S14P) |
Ideal Use Cases
Rural Property Gate and Driveway Monitoring
Farm gates and long rural driveways often sit far from any mains supply. The solar and battery power system combined with 4G transmission allows monitoring of these access points without trenching cable or installing a local power source.
Construction Site Perimeter Surveillance
Construction sites frequently lack permanent power connections in the early stages of a build. This kit can be deployed on day one of a project and relocated as site layout evolves, with footage accessible via DMSS without requiring an on-site recorder.
Remote Asset and Equipment Monitoring
Generators, pumps, machinery, and stored materials at remote sites are monitored by the 2MP camera recording to SD card locally, with the 40m IR range covering access paths during after-hours periods when theft risk is highest.
Temporary Event Security Monitoring
Pop-up events, festivals, and temporary installations benefit from a camera system that requires no fixed infrastructure. The self-contained solar and battery arrangement means the kit is operational the same day it is positioned and requires no electrician involvement.
Council and Utility Reserve Monitoring
Parks, drainage reserves, water infrastructure, and unmanned substations can be monitored without council or utility approval for mains power connections. The IP67 camera and durable aluminium panel frame are suited to long-term outdoor installation in public environments.
Choosing the Right Model
- Choose this kit if: Your installation site has no mains power access, no fixed internet connection, and requires a self-contained system that can be deployed and monitored remotely via a 4G cellular network with local SD card recording as a fallback.
- Choose a different solution if: Your site has reliable mains power and a fixed network connection available, in which case a standard PoE IP camera with an NVR will provide higher sustained recording quality, greater storage capacity, and lower ongoing data costs compared to a 4G-dependent system.
- Consider camera resolution requirements: The included camera is a 2MP (1080p) model with a fixed 3.6mm lens. If your site requires higher resolution for detail capture at distance, or a varifocal lens to adjust coverage angle after installation, a mains-powered camera system would offer more flexibility in sensor and lens selection.
FAQs
- Does this kit include a SIM card or 4G data plan?
No. The camera requires a 4G SIM card with an active data plan inserted before it can transmit video or send remote alerts. You will need to source a SIM from a carrier with strong coverage in your intended installation area. Dahua’s DMSS app is then used to connect and view the camera remotely once the SIM is active.
- Will the solar panel keep the camera running continuously, including overnight?
The 100W solar panel charges the lithium battery pack during daylight hours, and the battery supplies power to the camera overnight or during low-light periods. Runtime on battery alone will depend on camera activity, recording mode, and how fully the battery was charged during the preceding day. Sites with extended overcast weather may experience reduced battery charge and shorter overnight operation.
- What is the maximum SD card size supported by the camera?
The DH-IPC-HFW4230MP-4G-AS-I2 supports a Micro SD card up to 256GB. This provides local on-site recording storage that operates independently of 4G connectivity. The SD card is not included in the kit and must be purchased separately.
- How is the solar panel mounted, and can the angle be adjusted?
The DH-PFM378-B100-WB features an integrated die-cast aluminium alloy frame designed for outdoor mounting. For optimal charging efficiency in Australia, the panel should face north and be angled to match the local latitude. Refer to the panel datasheet for mounting specifications and bracket details before installation.
- Can I view footage remotely without being on the same network as the camera?
Yes. Because the camera connects via 4G, it is accessible from anywhere with mobile or internet connectivity. Remote access is supported through Dahua’s DMSS mobile app, the web viewer interface, and CMS platforms including DSS and PSS. This is one of the primary advantages of a 4G-based system over a conventional LAN-connected camera.
- Where can I access the datasheets for the individual components in this kit?
Datasheets for the solar panel, lithium battery, and camera are listed in the Additional Information section below. These are available through Security Wholesalers and cover full electrical, mechanical, and environmental specifications for each component. Reviewing these before installation is recommended, particularly for the power system sizing and camera mounting dimensions.
Cabling Considerations
- Network Cabling: No network cable is required. The camera connects to the internet and remote monitoring platforms entirely via a 4G SIM card inserted directly into the camera unit.
- Power Cabling: The camera is powered by the included lithium battery pack charged by the 100W solar panel. No mains power cable run is required. Internal cabling between the solar panel, battery pack, and camera should follow the wiring guidance provided in the component datasheets.
- Wiring Tips: Ensure all external cable connections between the solar panel and battery enclosure are protected with weatherproof conduit or glands where they enter housings. Minimise cable exposure to direct UV light to prevent sheath degradation over time. Keep DC power cable runs between the battery and camera as short as practical to reduce voltage drop.
