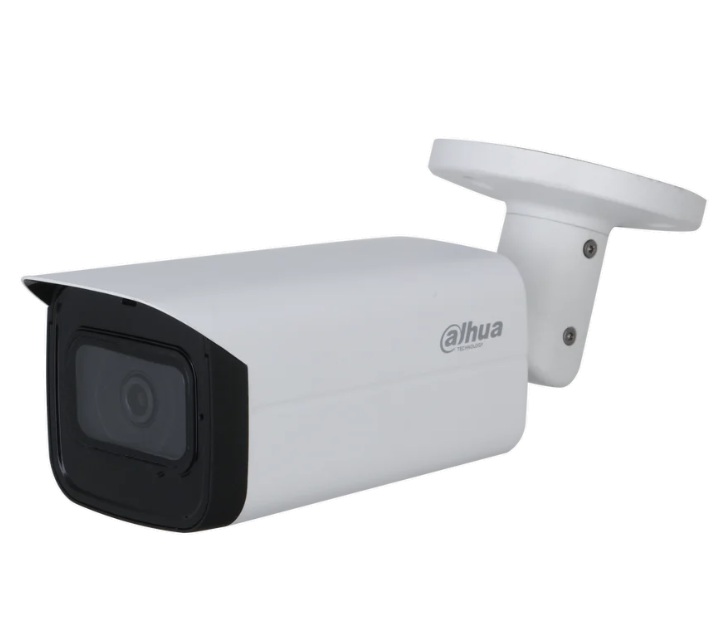

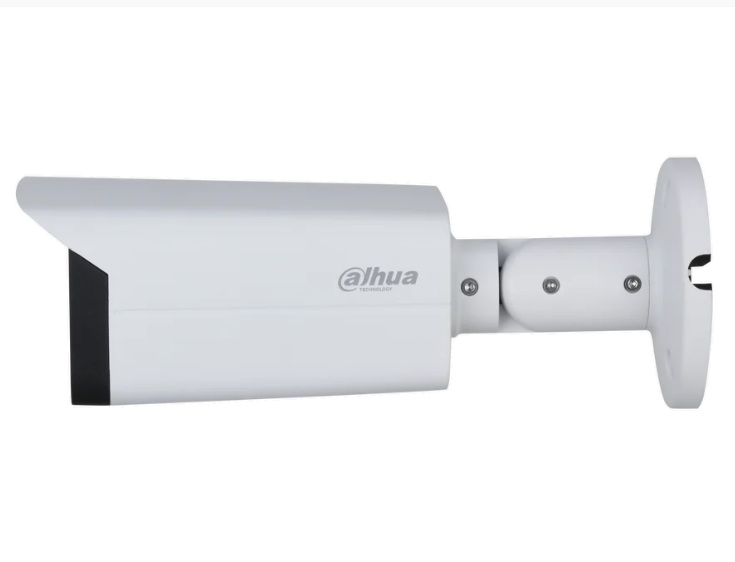

Dahua HAC-HFW2501TP-I8-A-0360B 5MP Starlight Pro HDCVI IR Bullet,WDR,ICR,3.6mm,IR 80m


> Starlight, 120dB true WDR, 3DNR
> Max. 20fps@5MP
> HD/SD output switchable
> Audio in interface, built-in mic
> 3.6mm fixed lens (6mm, 8mm optional)
> Max. IR length 80m, Smart IR
> IP67, DC12V±30%

$175.00 inc GST +3 Year Warranty & Support

Camera
Image Sensor 1/2.8″ CMOS
Effective Pixels 2592(H)×1944(V), 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s

Minimum Illumination 0.005Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 80m (262feet)
IR On/Off Control Auto / Manual
IR LEDs 4
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (6mm, 8mm Optional)
Max Aperture F1.6
Angle of View H: 79° (49.5°/38°)
Focus Control N/A
Close Focus Distance 1300mm (3000mm, 4400mm )

51.2” (118″, 173″)

Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video
Resolution 5MP (2592×1944)
Frame Rate 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P
Video Output 1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

Distance
Detect 25px/m (8px/ft) 3.6mm:72m(236ft)

6mm:120m(394ft)

8mm:160m(525ft)

Observe 63px/m (19px/ft) 3.6mm:29m(95ft)

6mm:48m(157ft)

8mm: 64m(210ft)

Recognize 125px/m (38px/ft) 3.6mm: 14m(46ft)

6mm: 24m(79ft)

8mm:32m(105ft)

Identify 250px/m (76px/ft) 3.6mm:7m(23ft)

6mm:12m(39ft)

8mm:16m(52ft)

Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface 1ch in & Built-in Mic
Eelectrical
Power Supply 12V DC ±30%
Power Consumption Max. 10W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP67
Construction
Casing Aluminium
Dimensions 244.1mm×90.4mm×90.4mm (9.61″×3.5″×23.5″)
Net Weight 0.75kg (1.65lb)
Gross Weight 0.92kg (2.02lb)
