Product SKU: DH-HAC-HDW2501TMQP-A
Product Overview

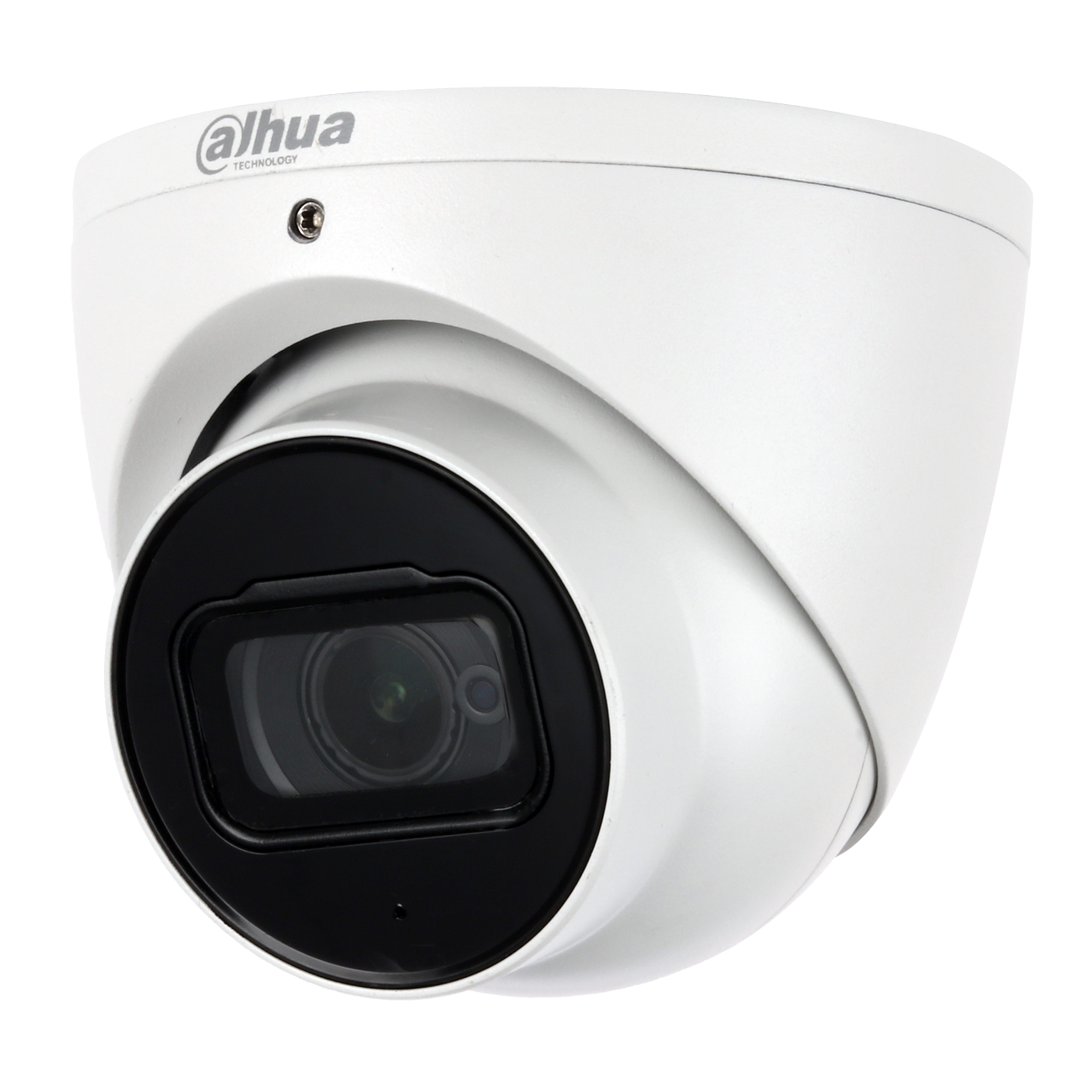

For installers working on analog or hybrid CCTV upgrades over existing coaxial cable, the DH-HAC-HDW2501TMQP-A delivers 5MP resolution with Starlight low-light performance in a compact eyeball housing. Designed for eave, soffit, and wall mounting at shopfronts, driveways, and entry points, this camera offers the directional flexibility that eyeball-style housings are known for, allowing the lens to be aimed after the base is fixed in place. Featuring 120dB true WDR and 3D noise reduction, it handles scenes with mixed lighting conditions such as doorways, lobbies, and car park entries. Equipped with Smart IR reaching up to 60m and a 2.8mm fixed lens, it suits medium-range coverage of open approaches. It also includes a built-in microphone for audio capture and supports CVI, CVBS, AHD, and TVI signal formats, making it compatible with a wide range of Dahua Pentabrid XVRs. IP67-rated for outdoor use.
Key Capabilities
5MP Starlight Imaging
Starlight technology allows the sensor to produce usable colour detail in near-dark conditions, making this camera practical for poorly lit driveways, side gates, or shopfronts where street lighting is minimal or inconsistent.
120dB True WDR
120dB true wide dynamic range controls exposure across scenes where bright sunlight and deep shadow appear simultaneously, such as entry doors opening to bright outdoor areas or car park access lanes.
Smart IR up to 60m
Smart IR adjusts infrared intensity based on subject distance, preventing overexposure on nearby objects while maintaining detail at range. Coverage extends up to 60m, suitable for longer driveways and open forecourts.
Pentabrid Signal Compatibility
CVI, CVBS, AHD, and TVI signal formats are all supported from a single camera, allowing integration with Dahua Pentabrid XVRs and compatibility with legacy recorder infrastructure without requiring additional adapters.
Built-in Microphone
An onboard microphone captures ambient audio alongside the video stream, useful for recording verbal interactions at entry points, reception areas, or counter-level installations where audio context adds value to recorded footage.
Best For
- Coaxial Infrastructure Upgrades: The HDCVI format runs over existing RG59 or RG6 coaxial cable, making this camera a practical upgrade path for sites moving from lower-resolution analog to 5MP without rewiring.
- Mixed Lighting Entry Points: True 120dB WDR makes this well suited to doorways, shopfront entries, and building lobbies where the camera must handle bright exterior light and shaded interiors simultaneously.
- Outdoor Eave and Soffit Mounting: The IP67-rated eyeball housing is built for outdoor installation, and the adjustable eyeball design allows precise aiming of the 2.8mm lens after the base is secured to the mounting surface.
- Dahua Pentabrid XVR Systems: Designed to pair with Dahua XVRs that support Pentabrid inputs, this camera slots into both new and existing Dahua analog recorder setups without compatibility issues when firmware requirements are met.
Why Choose the DH-HAC-HDW2501TMQP-A
The DH-HAC-HDW2501TMQP-A stands apart from lower-resolution HDCVI eyeballs by delivering 5MP at up to 25fps in a 16:9 widescreen format, providing noticeably more scene detail than 2MP or 4MP analog alternatives. Starlight imaging and 120dB true WDR work together to handle the challenging lighting conditions common at building entries and outdoor approaches, where cheaper sensors produce washed-out or underexposed images. The 60m Smart IR range covers longer outdoor areas that a standard 30m camera would not adequately illuminate at night. Pentabrid compatibility means this camera is not locked to a single recorder format, giving installers greater flexibility across mixed-brand or legacy XVR environments. The built-in microphone adds audio capture without requiring a separate device. Available at Security Wholesalers, the DH-HAC-HDW2501TMQP-A is a straightforward, installer-friendly option for HDCVI projects where resolution and low-light performance both matter.
Buyer Decision Tips
XVR Firmware Compatibility: To use the 5MP 16:9 output from this camera, the connected Dahua XVR must be running firmware version V4.001.0000001.0.R.200908 or later. Check the current firmware version on your recorder before installation. If the XVR firmware is not updated, the camera may default to a lower resolution output rather than the full 5MP stream.
Lens Coverage at 2.8mm: The fixed 2.8mm lens provides a wide field of view suited to covering open areas, entries, and approaches at short to medium distances. It is not designed for narrow corridor framing or long-distance subject identification. If your installation requires a tighter field of view for a specific approach angle, consider a model with a longer fixed focal length or a varifocal lens option.
Key Features & Technical Specifications
| Model |
DH-HAC-HDW2501TMQP-A |
| Resolution |
5MP |
| Frame Rate |
Max 25fps @ 5MP (16:9 video output) |
| Lens |
2.8mm fixed |
| Low-Light Technology |
Starlight |
| Wide Dynamic Range |
120dB True WDR |
| Noise Reduction |
3D NR |
| IR Distance |
Max 60m (Smart IR) |
| Signal Format |
CVI / CVBS / AHD / TVI switchable |
| Audio |
Built-in microphone |
| Housing Type |
Eyeball (quick-to-install) |
| Ingress Protection |
IP67 |
| Power Supply |
DC12V |
| Optional Accessories |
Junction box PFA130-E, Wall mount PFB204W |
Ideal Use Cases
Residential Driveways and Entries
The 2.8mm fixed lens captures a wide field of view across driveway approaches, and the 60m Smart IR keeps subjects visible at night without overexposure as they move closer to the camera.
Retail Shopfronts
True 120dB WDR manages the contrast between bright daylight outside and darker interior conditions at a shop entry, producing usable footage of people passing through the doorway throughout the day.
Small Business Eave Mounting
The IP67-rated eyeball housing withstands outdoor weather conditions, and the adjustable eyeball design allows the installer to aim the lens precisely at the target area after the base plate is fixed to the eave or soffit.
Analog System Upgrades
Pentabrid signal support means this camera runs over existing coaxial cable, allowing a site to upgrade from 1MP or 2MP analog cameras to 5MP without pulling new cable or replacing the entire recorder.
Entry Points Requiring Audio Capture
The built-in microphone records ambient sound alongside the video feed, making this suitable for reception areas, building entries, or counter-level positions where verbal interactions benefit from being captured.
Choosing the Right Model
- Choose this model if: You are installing over coaxial cable on a Dahua Pentabrid XVR system and need 5MP resolution with Starlight low-light performance, 60m Smart IR, and a wide 2.8mm field of view for outdoor entries or driveways.
- Choose a different model if: Your site uses IP network infrastructure rather than coaxial cable, as an IP-based turret camera would offer greater network integration, remote access flexibility, and access to AI analytics not available in HDCVI analog cameras.
- Choose a different model if: You need a tighter focal length for identifying subjects at longer distances. A fixed 3.6mm or 6mm lens option would provide a narrower field of view more suited to monitoring specific approach corridors or gates.
FAQs
- Does the DH-HAC-HDW2501TMQP-A support 5MP resolution on any Dahua XVR?
Not automatically. To receive the full 5MP 16:9 video output, the connected Dahua XVR must be running firmware version V4.001.0000001.0.R.200908 or later. If the firmware is outdated, the recorder may not process the 5MP signal correctly. Always verify and update your XVR firmware before commissioning this camera.
- Can this camera be used outdoors?
Yes. The DH-HAC-HDW2501TMQP-A carries an IP67 ingress protection rating, meaning it is fully protected against dust and against sustained water immersion up to 1 metre. It is rated for standard outdoor installation on eaves, soffits, and exterior walls exposed to rain and dust.
- What signal formats does this camera support?
This camera supports CVI, CVBS, AHD, and TVI signal formats, which can be switched depending on the recorder being used. This Pentabrid compatibility means it is not limited to Dahua-only recorders and can be integrated into hybrid analog systems using other brands of XVR that accept these formats.
- Does the built-in microphone support two-way audio?
No. The DH-HAC-HDW2501TMQP-A includes a built-in microphone for audio capture only. There is no built-in speaker, so this camera records ambient audio but does not support two-way communication. If two-way audio is required at an entry point, a separate intercom or audio device would be needed.
- How far does the IR illumination reach, and does it adjust automatically?
The maximum IR range is 60m. Smart IR technology is built in, which automatically adjusts the IR LED intensity based on how close or far the subject is from the camera. This prevents white-out overexposure on faces or objects that move close to the lens while still maintaining illumination at the outer range of the field of view.
- What accessories are available for wall or junction box mounting?
Dahua lists two compatible optional accessories for this camera: the PFA130-E junction box for in-wall cable entry and the PFB204W wall mount bracket. These are sold separately and are useful for installations where the cable must be concealed within the wall or where the mounting surface requires a dedicated bracket. Security Wholesalers can advise on accessory availability for this model.
