Product SKU: DH-PFB302S
Product Overview

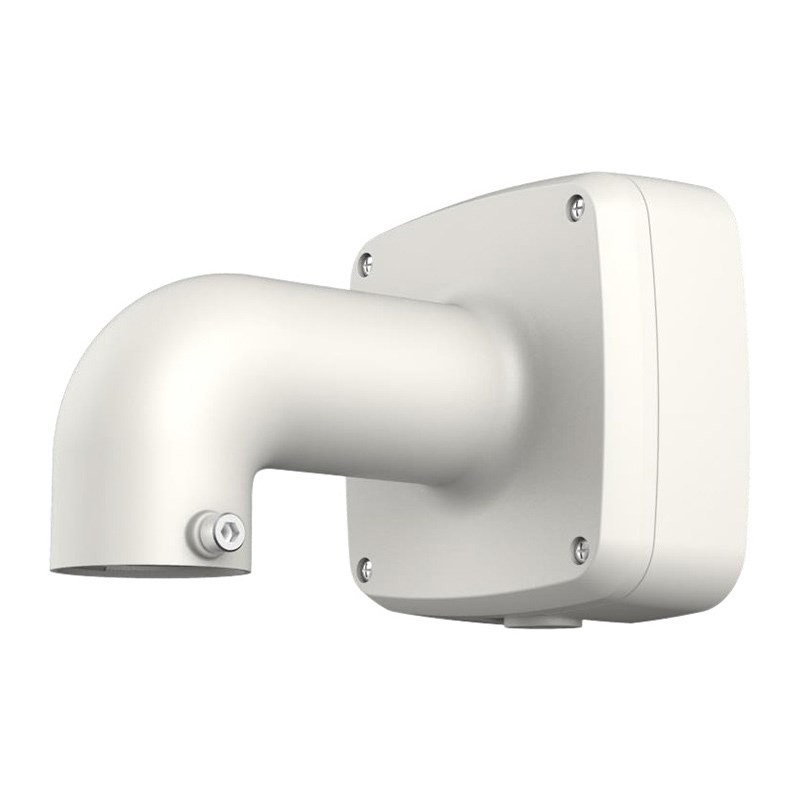

The Dahua DH-PFB302S is an IP66 aluminium wall mount bracket designed to support compatible surveillance cameras in indoor or outdoor installations. Its projecting arm positions the camera away from the mounting surface, while the embedded junction box provides a concealed area for routing and connecting cables behind the bracket. This helps produce a cleaner installation around building entrances, commercial premises, warehouses, car parks and external walls. The bracket supports a maximum load of 4kg and provides G1 1/2 and G3/4 threaded connections for approved camera and mounting arrangements. Its aluminium-alloy construction operates from -40°C to +60°C and has basic anti-corrosion protection for general environments. Compatibility should be verified against the exact camera model before purchase, as physical appearance alone does not confirm that the mounting interface, thread, cable entry and combined load are suitable.
Key Capabilities
Embedded Junction Box
The integrated junction-box space allows compatible camera cables and connectors to be concealed behind the bracket. This reduces exposed cable loops and supports a cleaner wall-mounted installation when suitable cable-entry and sealing methods are used.
4kg Load Capacity
The bracket supports a listed load of up to 4kg. This accommodates selected compatible cameras while allowing installers to check the complete mounted weight before fixing the assembly to the wall.
IP66 Environmental Protection
The IP66 rating supports exposed wall-mounted applications where resistance to dust and water is required. The completed installation still depends on correctly sealed cable entries, suitable fasteners and proper preparation of the mounting surface.
Aluminium-Alloy Construction
The aluminium-alloy body provides a practical balance of strength and manageable weight. Basic anti-corrosion protection suits general environments, although highly corrosive, coastal or chemical locations may require a more specialised mounting product.
Dual Thread Options
G1 1/2 and G3/4 thread types support approved camera, adapter and cable-entry arrangements. The exact accessory combination should be checked before installation rather than assuming that every Dahua camera uses the same mounting interface.
Best For
- Commercial Building Walls: Positions compatible cameras away from the wall while concealing cable connections behind the mount.
- Warehouse and Industrial Sites: Supports protected wall-mounted camera installations across loading areas, yards and building approaches.
- Car Parks and Entry Areas: Provides a neat mounting point for compatible cameras overlooking vehicle and pedestrian access.
- Outdoor Camera Installations: Uses an IP66-rated bracket where dust, rain and changing temperatures must be considered.
Why Choose the DH-PFB302S
The DH-PFB302S provides a cleaner and more integrated installation than a basic wall arm with exposed camera connectors. Its embedded junction box helps protect and organise cable terminations, while the 187.5mm projection provides clearance between the camera and mounting surface. The IP66 rating, aluminium-alloy construction and -40°C to +60°C operating range suit a wide variety of indoor and outdoor projects. Available through Security Wholesalers, this bracket should be selected only after checking the camera’s approved mounting accessories, connection thread and total installed weight. The 4kg load capacity is suitable for many cameras but must not be exceeded, and the basic anti-corrosion level may not be appropriate for coastal, chemical or other highly corrosive environments.
Buyer Decision Tips
Compatibility Tip: Check the exact camera model against its approved accessory list. A camera that appears to fit may still use a different mounting pattern, adapter, thread size or cable-entry arrangement.
Installation Tip: Confirm the wall material, fixing method, combined mounted weight and cable route before drilling. The supplied expansion bolts may not be appropriate for every masonry, timber, metal or cavity-wall installation.
Key Features & Technical Specifications
| Product Type |
Wall mount camera bracket with embedded junction box. |
| Model |
DH-PFB302S. |
| Installation Method |
Wall mounting. |
| Material |
Aluminium alloy. |
| Colour |
White. |
| Embedded Junction Box |
Conceals and connects compatible camera cabling behind the bracket. |
| Load Capacity |
Up to 4.0kg. |
| Thread Types |
G1 1/2 and G3/4. |
| Protection Rating |
IP66. |
| Anti-Corrosion Level |
Basic protection. |
| Operating Temperature |
-40°C to +60°C. |
| Operating Humidity |
Less than 90% relative humidity. |
| Storage Conditions |
-40°C to +60°C at 10%–90% relative humidity. |
| Product Dimensions |
187.5 × 134.0 × 133.4mm. |
| Net and Gross Weight |
0.71kg net and 0.85kg gross. |
| Packaging Dimensions |
252 × 137 × 137mm. |
| Included Hardware |
One bracket, four ST6x45 screws, four plastic expansion bolts and one S3.0 wrench. |
| Camera Compatibility |
Must be confirmed through the applicable camera-accessory selection information. |
Ideal Use Cases
Building Entrances
Mount a compatible camera away from the wall while keeping cable connections concealed.
Warehouse Exteriors
Provide a protected mounting point around loading bays, yards and external access routes.
Car Park Walls
Position compatible cameras for clearer coverage while routing cables through the embedded box.
Retail and Office Sites
Create a neat wall-mounted installation around shopfronts, reception areas and side entrances.
General Outdoor Installations
Use the IP66 bracket in non-specialised environments with properly sealed cabling and fixings.
Choosing the Right Model
- Choose this model if: The compatible camera requires wall mounting, concealed cable connections and a load capacity up to 4kg.
- Choose a different bracket if: The camera’s approved accessories specify another mounting interface or adapter.
- Choose a higher-capacity mount if: The combined camera and mounting assembly exceeds 4kg.
- Choose a higher anti-corrosion model if: The installation is coastal, chemical, industrially corrosive or otherwise requires specialised protection.
- Confirm the fixing method if: The supplied screws and expansion bolts are not appropriate for the wall material.
FAQs
- What is the DH-PFB302S wall mount bracket used for?
The DH-PFB302S is used to wall-mount a compatible Dahua camera while providing a concealed area for cable connections. Its arm projects the camera away from the wall, which can improve clearance around eaves, corners and uneven surfaces. Camera compatibility must be checked against the current accessory-selection information rather than assumed from appearance alone.
- Does the DH-PFB302S include an embedded junction box?
Yes. The bracket includes an embedded junction box designed to help conceal and connect camera cabling behind the mount. This can produce a cleaner installation and reduce exposed cable loops. The installer must still use suitable sealing methods, cable entries and compatible connectors so the completed camera assembly maintains the environmental protection required for the site.
- How much weight can the DH-PFB302S support?
The DH-PFB302S has a listed load-bearing capacity of 4.0kg. The selected camera and any attached mounting components must remain within this limit. Installers should also confirm that the wall, anchors and fixing method are suitable for the combined load and local conditions, particularly where vibration, movement or exposed outdoor mounting could place additional stress on the installation.
- Is the DH-PFB302S suitable for outdoor installation?
Yes. The bracket is rated IP66 and operates from -40°C to +60°C at less than 90% relative humidity. It has basic anti-corrosion protection for general environments. Coastal, chemical or highly corrosive locations may require a bracket with a higher anti-corrosion rating, and outdoor performance still depends on correct cable sealing, fasteners and wall preparation.
- Which mounting threads are provided on the DH-PFB302S?
The DH-PFB302S provides G1 1/2 and G3/4 thread types. These connection sizes are important when matching the bracket to the selected camera, adapter or cable-entry arrangement. A similar-looking camera is not automatically compatible, so the camera’s approved accessory list and mounting interface should be checked before the bracket is ordered or installed.
- What is included with the DH-PFB302S?
The package includes one wall mount bracket, four ST6x45 screws, four plastic expansion bolts and one S3.0 wrench. No camera, adapter, junction-box accessory or installation cable is listed as included. The supplied fixings may not suit every wall material, so the installer should select appropriate anchors and fasteners when the mounting surface requires a different fixing method.
- What are the dimensions and weight of the DH-PFB302S?
The bracket measures 187.5 x 134.0 x 133.4mm and has a net weight of 0.71kg. Its gross packaged weight is 0.85kg, with packaging dimensions of 252 x 137 x 137mm. The projection and backplate dimensions should be checked against the available wall space, cable route and nearby obstructions before drilling.
- What should I confirm before ordering the DH-PFB302S?
Confirm the exact camera model, approved mounting accessories, G1 1/2 or G3/4 interface, total mounted weight, wall construction, cable route and environmental exposure. The bracket supports up to 4kg and has basic anti-corrosion protection. Security Wholesalers can help check the proposed camera and mounting arrangement to identify likely compatibility or installation limitations before the bracket is fitted.
Additional Information
Dahua DH-PFB302S Datasheet
