Product SKU: DHI-VTO6521F
Product Overview

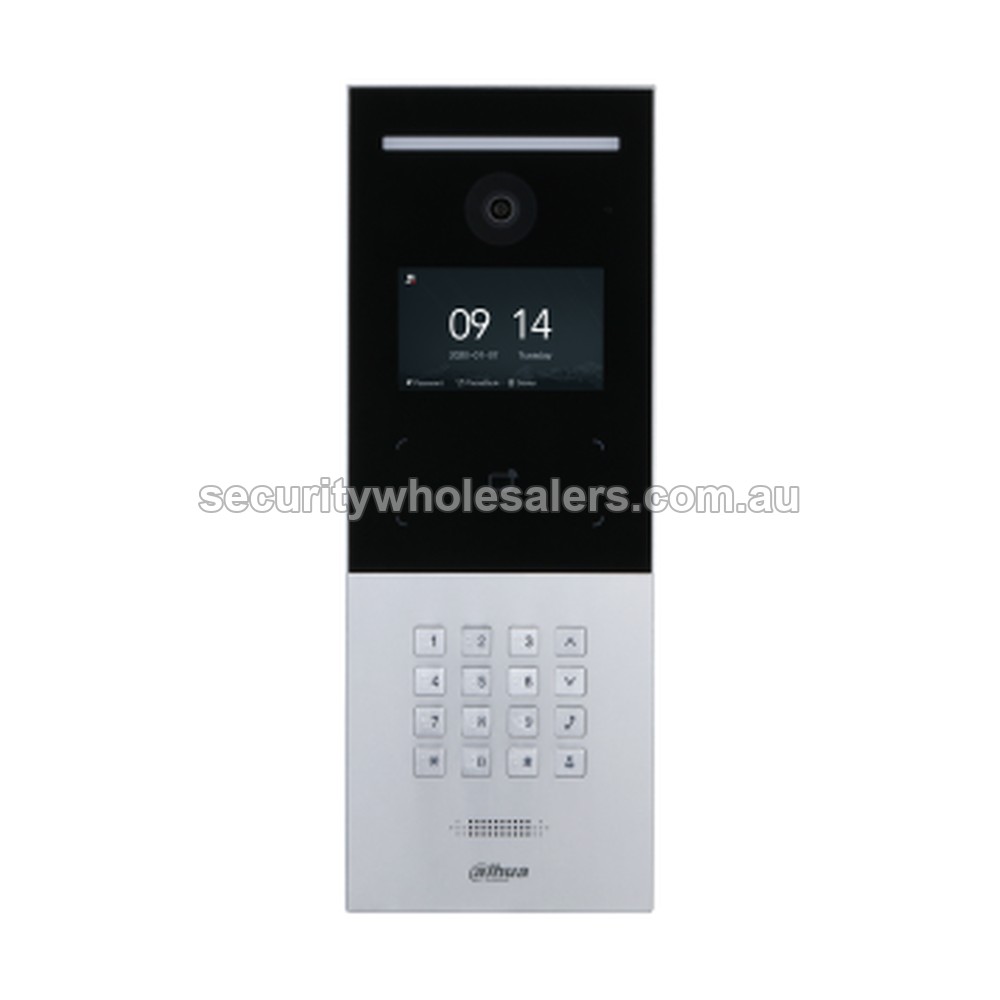

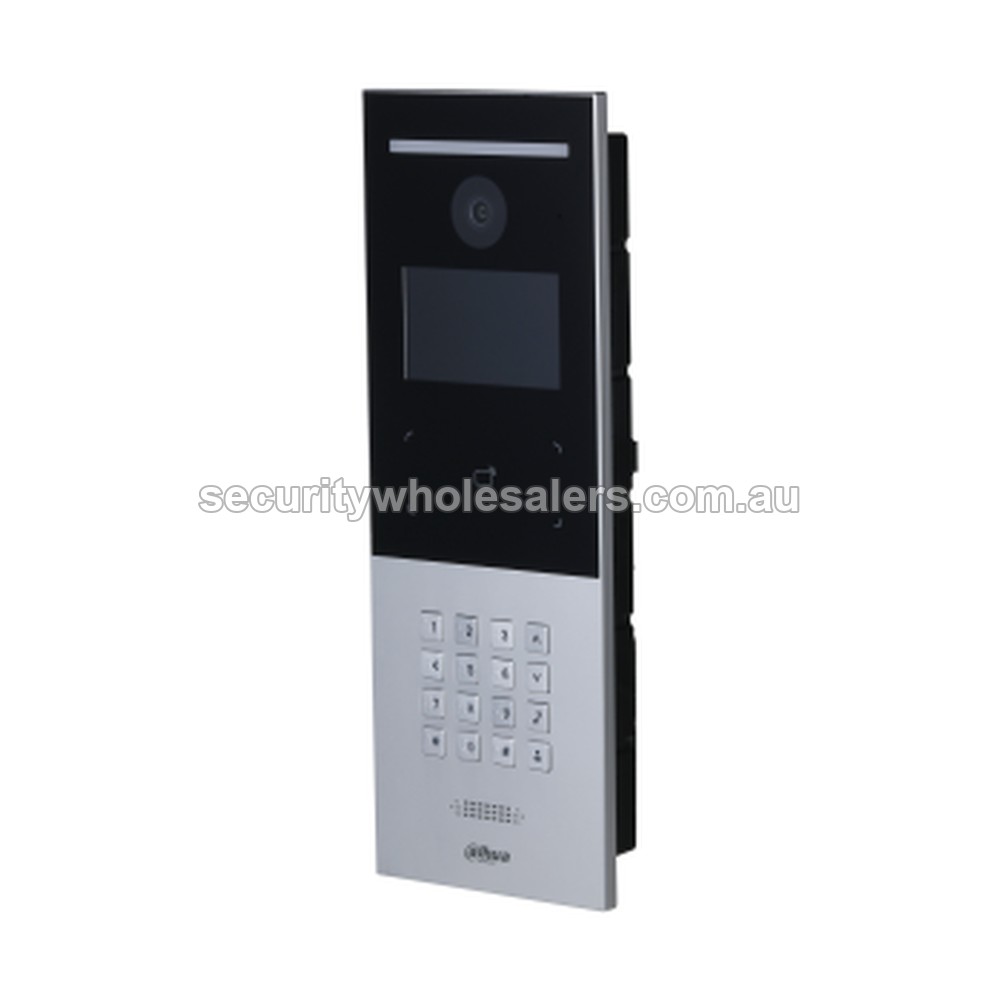

For multi-tenant apartment buildings and residential complexes that need a scalable, weather-rated entry point, the DHI-VTO6521F delivers a capable IP video door station built around practical access management. Featuring a 4.3-inch IPS display at 800×480 resolution, a 2.8mm wide-angle lens with a 113.79-degree horizontal field of view, and a 2MP CMOS sensor with True WDR, it produces a clear, usable picture of visitors at the door in variable lighting conditions. Equipped with full-duplex two-way audio using the G.711u codec, it supports real-time voice communication between the door station and indoor monitors. With support for up to 200 indoor monitors and a user database of 20,000 users and 10,000 IC cards, this unit is engineered for medium to large residential deployments. It integrates SIP protocol support for compatibility with third-party platforms and can be powered via PoE or 12VDC, giving installers flexibility when planning cable runs. The IP65 weather rating and IK07 impact resistance make it suited to exposed apartment foyer and entry column installations.
Key Capabilities
4.3-Inch IPS Touchless Display
The 4.3-inch IPS screen at 800×480 resolution provides a clear, readable interface at apartment building entries. The aluminum anode housing and mechanical metal button construction give it a robust, professional finish suited to high-traffic foyer installations where residents interact with the unit daily.
Multiple Unlock Credential Modes
Supports password unlock, IC card unlock, and remote unlock from an indoor monitor or mobile app. This gives residents and building managers flexible credential options without requiring additional hardware, and the 20,000-user and 10,000-card database capacity is sufficient for large residential blocks or multi-building sites.
SIP Protocol and 200-Monitor Scalability
Built-in SIP server support allows integration with third-party SIP-compatible platforms and VoIP infrastructure. The station can manage up to 200 indoor monitors simultaneously, making it a practical anchor unit for large apartment complexes that need a single door station to serve an entire building or wing.
IP65 Weather and IK07 Vandal Resistance
Rated IP65 for dust and water jet protection and IK07 for resistance to impact, the DHI-VTO6521F is built to hold up at exposed building entry points. Its operating range of -30°C to +60°C covers Australian climate extremes from alpine environments to northern Queensland installations.
PoE Power with 12VDC Backup Option
PoE power delivery simplifies installation by running power and data over a single Cat cable, avoiding the need for a separate power supply at the door. The 12VDC input option gives installers an alternative if PoE infrastructure is not available at the installation site.
Alarm I/O, RS485, and Wiegand Integration
With 2 alarm inputs, 2 alarm outputs, RS485, and Wiegand in/out interfaces, the unit integrates with door controllers, electromagnetic locks, exit buttons, and third-party access readers. Duress alarm, tamper alarm, and door sensor timeout alarm functions add layered event detection for building security teams.
Best For
- Multi-Tenant Apartment Buildings: The 200-monitor capacity and 20,000-user database make this station a practical fit for residential apartment blocks where a single entry point serves dozens or hundreds of individual units.
- IC Card and PIN-Based Access Deployments: Buildings running IC card or PIN credential systems can use the built-in unlock modes without the need for an additional access controller at every door.
- SIP-Integrated Building Communication Systems: Where the building management or security system already runs on a SIP platform, the DHI-VTO6521F connects directly without requiring a proprietary server appliance.
- Exposed or High-Traffic Entry Points: The IK07 rating and aluminum construction are suited to busy foyer columns, exposed stairwell entries, or locations where the station is accessible to residents and visitors at street level.
Why Choose the DHI-VTO6521F
The DHI-VTO6521F separates itself from basic residential door stations through its combination of scale and integration depth. While entry-level intercom units typically cap out at a handful of monitors and offer limited credential options, this unit supports up to 200 indoor monitors, 20,000 users, and 10,000 IC cards from a single surface or flush-mount station. The built-in SIP server means it can slot into existing VoIP or third-party access platforms rather than requiring a proprietary Dahua ecosystem. Full-duplex two-way audio, a 4.3-inch IPS display, and RS485/Wiegand I/O give installers and building managers a genuinely complete access point, not just a call button with a camera. The IP65 and IK07 ratings hold up at exposed outdoor entries without requiring a protective housing. Available through Security Wholesalers, the DHI-VTO6521F is stocked for professional apartment and commercial intercom installs where scalability and third-party compatibility are non-negotiable.
Buyer Decision Tips
System Compatibility: The DHI-VTO6521F is an outdoor door station only and requires compatible indoor monitors (VTH series or SIP-compatible devices) to complete a working intercom system. Before purchasing, confirm whether your indoor monitors or existing SIP server are compatible with this station, and plan your network architecture to include PoE switching or a 12VDC supply at the door station location. If your deployment involves multiple entry doors or a building with separate wings, check whether you need additional door stations or a dedicated SIP server appliance to manage call routing across all entry points.
Access Controller Integration: The RS485 and Wiegand in/out interfaces on this unit allow direct connection to electromagnetic locks, door strikes, and third-party access readers. If your site already uses a standalone access controller, verify that the lock release output voltage and relay contact rating on the VTO6521F match your existing lock hardware before cabling. The 2 alarm inputs and 2 alarm outputs also support connection to exit request buttons and door position sensors, which should be mapped during the design phase to ensure all alarm event types are covered.
Key Features & Technical Specifications
| Image Sensor |
1/2.7-inch 2MP CMOS |
| WDR |
True WDR |
| Lens |
2.8mm fixed |
| Angle of View |
H: 113.79°, V: 61.5°, D: 134.45° |
| Display |
4.3-inch IPS, 800×480 resolution |
| Audio |
Full-duplex two-way audio, G.711u codec |
| Unlock Modes |
Password, IC card, remote unlock |
| User Capacity |
20,000 users, 10,000 IC cards |
| Indoor Monitor Support |
Up to 200 indoor monitors |
| Alarm I/O |
2 alarm inputs, 2 alarm outputs |
| Interfaces |
RS485, Wiegand in/out |
| Network Protocols |
SIP, P2P, IPv4, FTP, UPnP, DNS, DDNS, RTSP, RTP, TCP, UDP |
| Power Supply |
PoE / 12VDC |
| IP Rating |
IP65 |
| IK Rating |
IK07 |
| Operating Temperature |
-30°C to +60°C |
| Memory |
1GB RAM, 4GB ROM |
| Operating System |
Embedded Linux |
| Construction |
Aluminum anode surface, mechanical metal button |
| Installation |
Surface mount or flush mount |
Ideal Use Cases
Multi-Storey Residential Apartments
The 200-monitor capacity allows a single DHI-VTO6521F to serve an entire multi-storey block, routing calls to individual units while managing a shared IC card and PIN credential system for the building entrance.
Gated Residential Complexes
At main pedestrian gates or boom gate entries to residential estates, the IP65 and IK07 ratings provide durability in exposed installations, while RS485 and Wiegand outputs integrate with boom gate controllers and electric strike releases already in place.
Commercial Office Buildings
SIP protocol support allows the VTO6521F to connect into an existing business telephony or unified communications platform, so visitor calls can ring through to a reception desk phone or softphone app rather than requiring a dedicated indoor monitor.
Student Accommodation and Build-to-Rent
With 20,000 user records and 10,000 card slots, the unit suits high-turnover accommodation facilities where card credentials are issued and revoked regularly, and where centralised management through a connected platform is essential for day-to-day operations.
Mixed-Use Buildings with Shared Lobby Access
In buildings combining retail, commercial, and residential tenancies, the multiple unlock modes and alarm I/O allow different credential types to be assigned per tenancy or floor, with door sensor timeout and tamper alarms providing event logging at the main lobby entry.
Choosing the Right Model
- Choose this model if: Your project is a medium to large apartment building or multi-tenant complex that needs a single outdoor door station capable of managing up to 200 indoor monitors, SIP platform integration, and IC card plus PIN credential access from a weather-rated, flush or surface-mounted enclosure.
- Choose a different model if: Your site is a small residential property with only 1 or 2 indoor monitors and no requirement for IC card access or SIP server integration – a simpler residential video intercom door station would be more cost-appropriate and easier to configure in that scenario.
- Choose a different model if: Your deployment requires a door station rated above IK07, such as a prison, correctional facility, or extremely high-vandal-risk environment where IK10-rated hardware is specified.
FAQs
- What indoor monitors does the DHI-VTO6521F work with?
The VTO6521F is designed to pair with Dahua VTH-series indoor monitors that support IP video intercom communication. It also supports SIP-compatible devices, which means it can route calls to SIP softphones or third-party SIP monitors depending on your platform configuration. Confirm monitor compatibility with your installer before specifying indoor units, as firmware versions may affect feature availability.
- Does it need a dedicated SIP server to operate?
The DHI-VTO6521F has a built-in SIP server function, so it can operate without a separate server appliance in smaller deployments. For larger or multi-building installations where centralised call management, user provisioning, and event logging are required, a dedicated SIP server or Dahua management platform will give greater control and scalability across the system.
- How many users and cards can be stored on the unit?
The station stores up to 20,000 user records and 10,000 IC card credentials directly on the device, which has 1GB RAM and 4GB ROM onboard. This capacity suits large apartment or commercial buildings without requiring constant online connectivity to a server to validate access attempts at the door.
- Is PoE power sufficient, or do I need a separate power supply?
PoE power delivery is the primary and most straightforward power method for this unit, allowing a single Cat5e or Cat6 cable to carry both network data and power to the door station. A 12VDC supply is also supported if PoE infrastructure is not available at the installation point, giving installers a fallback option without requiring any hardware changes to the unit itself.
- What alarm and access control interfaces does it support?
The DHI-VTO6521F includes 2 alarm inputs and 2 alarm outputs, plus RS485 and Wiegand in/out interfaces. These allow direct connection to electromagnetic locks, electric strikes, exit request buttons, door position sensors, and third-party access readers or controllers. Duress alarm, tamper alarm, and door sensor timeout alarm functions are also supported for event monitoring.
- Is the VTO6521F suitable for outdoor Australian installations, including hot climates?
Yes. The operating temperature range of -30°C to +60°C covers Australian conditions from alpine areas to tropical and arid regions. The IP65 rating protects against dust ingress and water jets, making it appropriate for exposed building facade, foyer column, and pedestrian gate installations that are subject to rain, sun, and wind without a protective canopy.
- Can residents or managers unlock the door remotely using a mobile app?
Yes. Remote unlock via a connected management platform or mobile app is one of the supported unlock modes alongside password and IC card access. Voice calls through the app are also supported, allowing building managers or residents to speak with visitors and grant access without being physically present at an indoor monitor. The DHI-VTO6521F is part of the Security Wholesalers range and is stocked for professional intercom and access control installations.
Cabling Considerations
- Cable Type: Cat5e or Cat6 unshielded twisted pair (UTP) is recommended for both network data and PoE power delivery to the door station. In outdoor runs exposed to electrical interference or long conduit paths, shielded Cat6 (FTP/STP) is preferred to reduce noise on the line.
- Maximum PoE Cable Run: Standard PoE delivery is rated to 100 metres over Cat5e or Cat6 between the PoE switch and the door station. Runs approaching or exceeding 90 metres should be tested for voltage drop, particularly if multiple PoE devices are powered from the same switch port bank.
- Lock and Access Control Wiring: The alarm output relay contacts and RS485/Wiegand interfaces require separate low-voltage cabling runs to door locks, exit buttons, and readers. Use shielded 2-core or multi-core cable for RS485 runs to minimise interference, and confirm the cable gauge is appropriate for the current draw of any connected electromagnetic lock or electric strike.
- Wiring Tips: Where the door station is flush-mounted into a wall or intercom column, ensure sufficient back-box depth is allocated for cable terminations, particularly when RS485, Wiegand, alarm I/O, and network cabling all terminate at the same point. Label and sleeve all cables at the termination point during installation to simplify future servicing. For multi-storey apartment buildings, run all cabling through fire-rated conduit where required by the National Construction Code.
Additional Information
