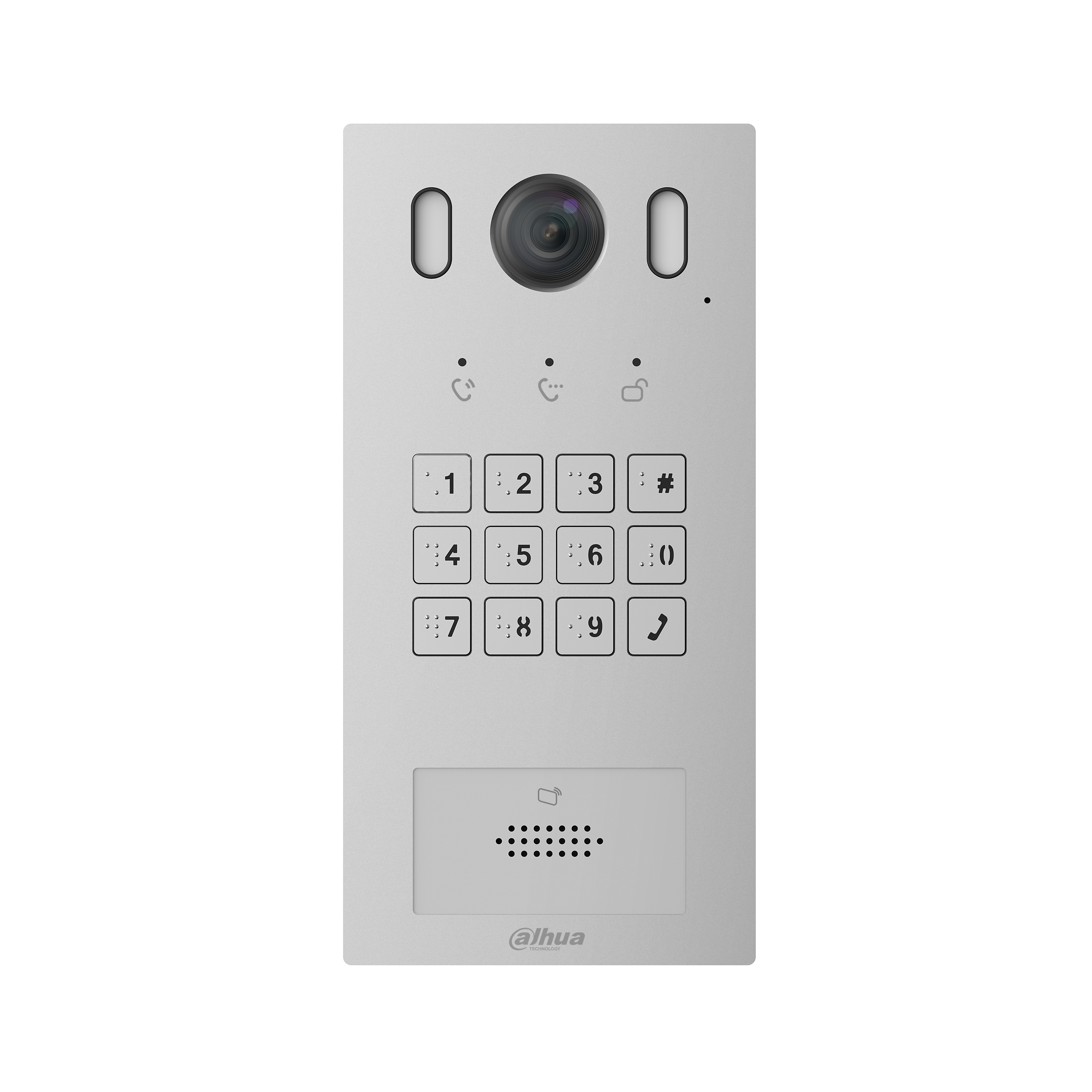

- Highly durable and elegant, it is made of aluminum panel,and has
a mechanical keypad. - 2MP HD camera.
- Supports 5,000 users and 10,000 cards.
- Supports multiple unlock methods including password, IC card, and
unlocks remotely. - Connects card readers and controllers through Wiegand.
- Provides 12 VDC, 600 mA power.
- IP65 rated (silicone sealant is required for the shell, see the quick
start guide). - IK08 rated.
- Standard PoE power supply (if the VTO device with 12 V power
output needs to charge the load, it should be connected to a PSE
switch that complies with the 802.3.at standard)
| Technical Specification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Model | DHI-VTO3222E-P / VTO3221E-P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Embedded Micro Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operation System | Embedded LINUX OS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.9” 2MP CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Auto Gain Control | White Light | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | 2mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Angle of View | H:140° V:82° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Color Image | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | G.711 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | Omnidirectional Mic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | Built-in Speaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bidirectional Talk | Support Dual-way Bidirectional talk | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Display | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Screen | 2.3” OLED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operation Mode | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Keypad | Mechanical Button with Braille | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Reader | Mifare Card (13.56MHz) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm In/Out | 1/1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Door Control | 1 Relay Out
1 RS485 1 Feedback 1 Exit Button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wiegand In | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet | 10M/100Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Protocol | TCP/IP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ingress Protection | IK08, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tamper Switch | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Surface & Flush | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material | Aluminum | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | DC 12V, 2A, PoE(802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Standby ≤2W, Work ≤7W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Temperature | ﹣40°C~+60°C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Relative Humidity | 20%~95%RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 200mm×98mm×32mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 1.5Kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
vtm116-01-dimension (flush bracket)
