Product SKU: DHI-VTO1000JM
Product Overview

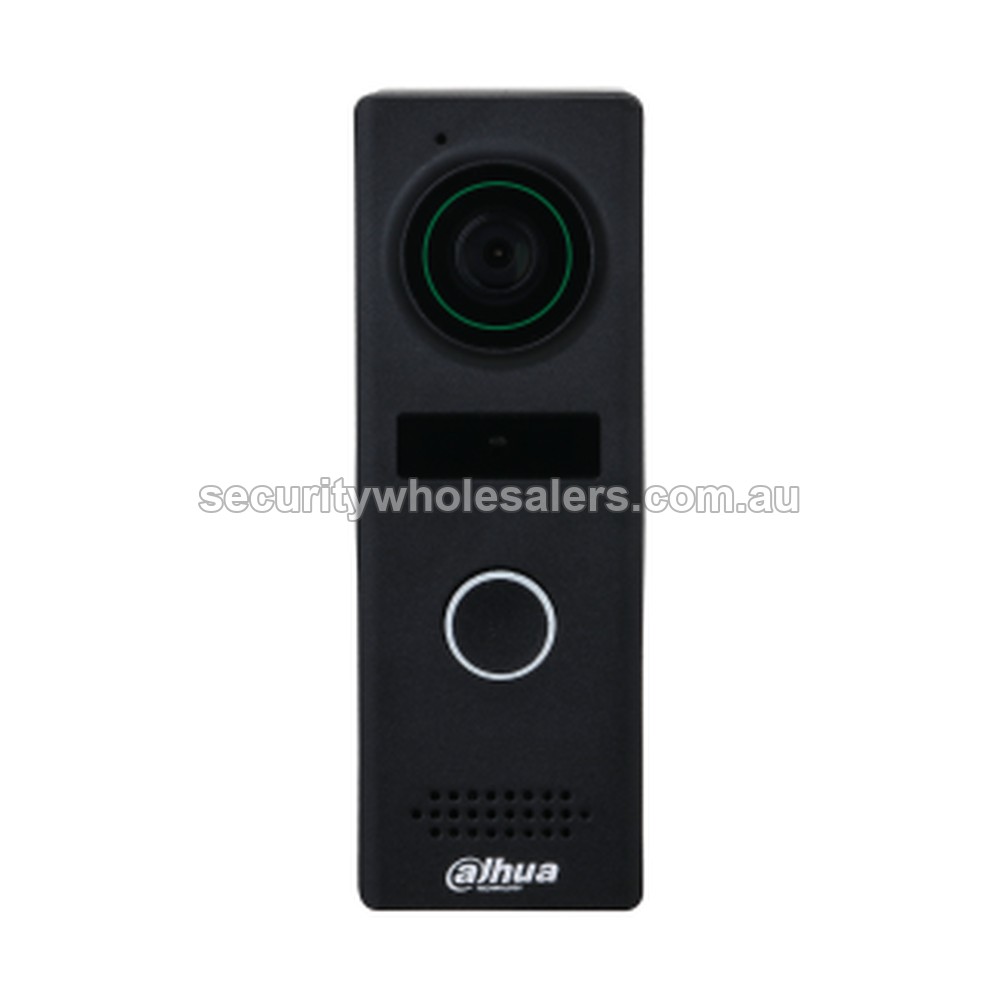

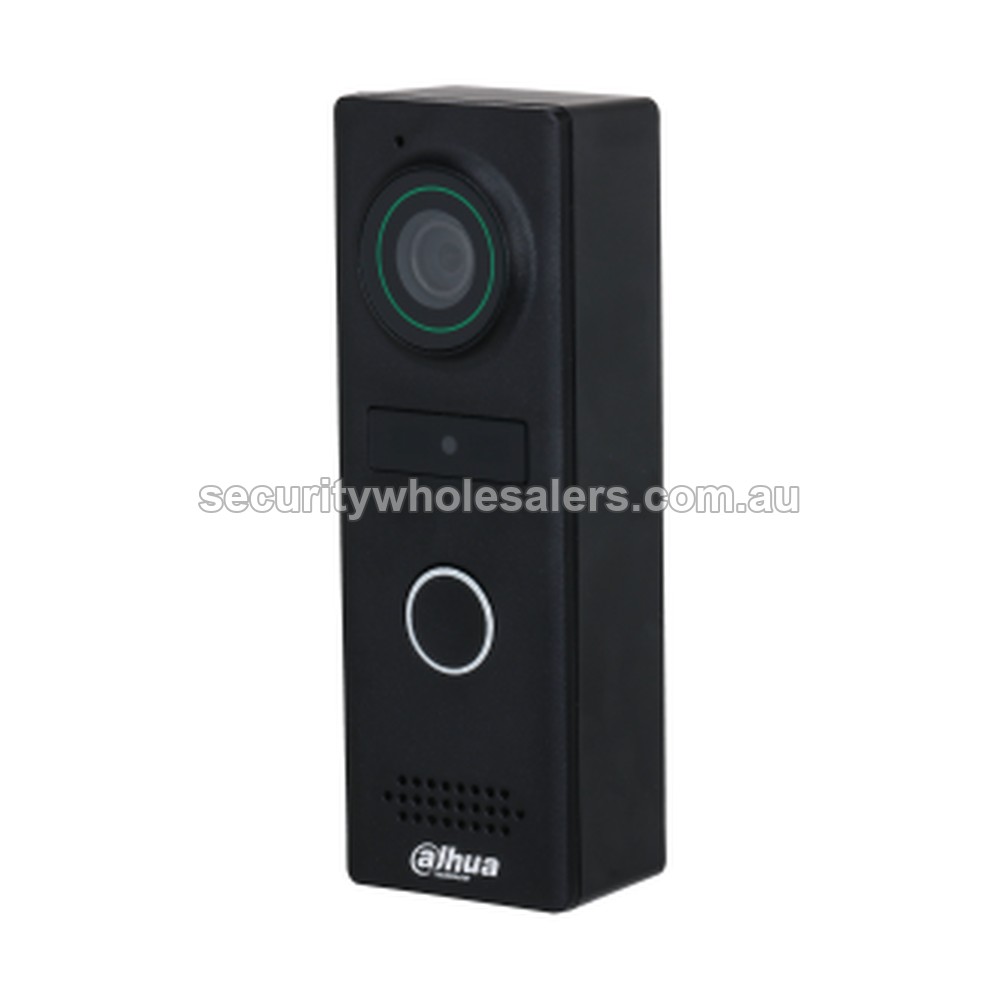

Surface-mounted at a front door or gate entry point, the Dahua DHI-VTO1000JM brings video intercom capability to analog systems in a compact, weather-resistant form. Built with a 1/4″ 1.3MP CMOS sensor and auto IR illumination with ICR day/night switching, it delivers clear video at the door even in low-light conditions. Featuring IP66 weatherproofing and IK07 impact resistance, the unit is suited to exposed outdoor entry positions where durability matters. The mechanical button, built-in microphone with a 0.5m pickup range, and built-in speaker enable two-way voice communication and remote door unlock from a paired indoor monitor. The DHI-VTO1000JM is powered directly by the indoor monitor, removing the need for a separate power supply. A rain cover is included in the box. With a 70-degree horizontal field of view, black metallic ADC12 casing, and an operating temperature range of -30 degrees C to +60 degrees C, it is well suited to residential and small commercial entry installations across Australian conditions.
Key Capabilities
1.3MP CMOS with Auto IR Night Vision
The 1/4″ 1.3MP CMOS sensor with ICR auto day/night switching and IR illumination maintains usable video at the entry point after dark, so visitors are clearly visible regardless of ambient lighting conditions at the door.
IP66 and IK07 Outdoor Protection
IP66 weatherproofing blocks rain and dust ingress, while IK07 impact resistance protects the unit against knocks and attempts to dislodge it. Both ratings make the DHI-VTO1000JM appropriate for exposed surface-mount positions at building entrances.
Two-Way Audio Communication
A built-in microphone with a 0.5m pickup distance and a built-in speaker enable real-time two-way voice communication between the door and the indoor monitor, allowing occupants to speak with visitors and confirm identity before granting access.
Remote Unlock via Indoor Monitor
The single unlock button and door status detection input allow the occupant to release the connected door lock remotely from the paired indoor monitor. This removes the need to physically go to the door to grant entry to a known visitor.
Monitor-Powered Analog Architecture
The DHI-VTO1000JM draws power directly from the indoor monitor, consuming no more than 3W in operation. This simplifies installation by eliminating a separate power supply at the door station and keeps cable runs straightforward for analog intercom setups.
Best For
- Residential Front Door Entry: The compact 131.45mm x 46mm surface-mount form factor and black metallic finish suit single-dwelling front doors where a neat, unobtrusive entry station is preferred.
- Small Commercial Premises: Businesses requiring a straightforward analog video intercom at a single entry point benefit from the IP66/IK07 rated housing and remote unlock function without the complexity of an IP-based system.
- Replacement or Upgrade in Analog Intercom Systems: Sites already running analog indoor monitors can add or replace a door station using the DHI-VTO1000JM without changing their existing wiring infrastructure or indoor units.
- Exposed Entry Points in Harsh Climates: With an operating range of -30 degrees C to +60 degrees C and an included rain cover, the unit handles demanding outdoor environments across Australian conditions year-round.
Why Choose the DHI-VTO1000JM
The DHI-VTO1000JM fills a specific gap for installers and homeowners who need a dependable outdoor door station for an analog intercom system without overengineering the installation. Unlike IP-based door stations that require network configuration and PoE switching, this unit connects directly to a compatible indoor monitor and draws power from it, keeping the setup lean and the cable run simple. The IK07 rating is a meaningful step up in impact resistance compared to many basic door stations at this price point, and the IP66 rating means it handles the full range of outdoor weather exposure. DWDR processing helps retain detail in high-contrast lighting at entry points, such as a bright exterior wall behind a shaded visitor. The black ADC12 metallic housing gives it a professional finish suited to modern residential and commercial facades. Available at Security Wholesalers, the DHI-VTO1000JM is a practical, well-specified analog door station for entry-level to mid-tier intercom installations.
Buyer Decision Tips
Analog Compatibility: The DHI-VTO1000JM uses analog communication and must be paired with a compatible analog indoor monitor – it will not connect directly to an IP intercom system or network video recorder. Before purchasing, confirm your indoor monitor supports this analog door station interface. Dahua’s analog indoor monitors from the matching VTH series are the intended pairing.
Single Entry Point Design: This door station supports 1 unlock button and 1 door status detection input, making it suitable for a single door or gate. Installations requiring multiple entry points or apartment building door access control across many units will need a different system architecture with an IP-based door station and management platform.
Key Features & Technical Specifications
| Model |
DHI-VTO1000JM |
| Image Sensor |
1/4″ 1.3MP CMOS |
| Field of View |
Horizontal 70 degrees, Vertical 40 degrees |
| Day/Night |
ICR auto switch |
| Illuminator |
Auto IR |
| Wide Dynamic Range |
DWDR (Digital Wide Dynamic Range) |
| Communication Method |
Analog |
| Audio Input |
1 channel, built-in microphone, pickup distance 0.5m |
| Audio Output |
1 channel, built-in speaker |
| Unlock Mode |
Remote unlock |
| Unlock Button |
1 mechanical button |
| Door Status Detection |
1 |
| Power Supply |
Powered by indoor monitor |
| Power Consumption |
Less than or equal to 1W (standby), less than or equal to 3W (working) |
| Weatherproofing / Vandal Rating |
IP66, IK07 |
| Operating Temperature |
-30 degrees C to +60 degrees C |
| Operating Humidity |
10%RH to 95%RH |
| Casing Material |
ADC12 metallic |
| Colour |
Black |
| Installation |
Surface mount |
| Dimensions |
131.45mm x 46.00mm x 33.80mm |
| Net Weight |
0.18 kg |
| Certifications |
CE, FCC |
| Accessories Included |
Rain cover |
Ideal Use Cases
Residential Front Door
The compact surface-mount profile and black metallic ADC12 housing fit neatly beside a residential front door. IR night vision and DWDR ensure clear identification of visitors whether arriving in daylight or after dark.
Gated Property Entry
The remote unlock output and door status detection input allow this unit to be integrated with an electric gate or door release. The 70-degree horizontal field of view captures approaching visitors before they reach the button.
Small Office or Shopfront Entry
Small commercial premises with a single controlled entry point benefit from the IK07 impact-rated housing and IP66 seal, providing a durable intercom station that withstands public contact and outdoor exposure without regular maintenance.
Analog Intercom Retrofit
Where an existing analog indoor monitor is already in place, the DHI-VTO1000JM can replace an ageing or failed door station using the same cable run. It draws power from the monitor, so no additional wiring or power supply is needed at the door.
Choosing the Right Model
- Choose this model if: You need a surface-mount analog video door station for a single entry point, want monitor-powered simplicity with no separate PSU, and require IP66/IK07 protection for an exposed outdoor position.
- Choose a different model if: Your installation requires IP-based intercom communication, network integration, app-based remote access from a smartphone, or management of multiple entry points across a larger building – in those cases an IP door station with VDP platform support is more appropriate.
- Choose a different model if: You need a flush-mount or recessed installation – the DHI-VTO1000JM is designed for surface mounting only and does not include a flush-mount backbox.
FAQs
- Does the DHI-VTO1000JM work with IP intercom systems or network recorders?
No. The DHI-VTO1000JM uses analog communication and is designed to pair with a compatible analog indoor monitor. It does not connect to IP-based intercom platforms, VDP app systems, or network video recorders. If your installation requires network-connected intercom capability, you will need an IP door station instead.
- Does this door station need its own power supply at the door?
No. The DHI-VTO1000JM is powered entirely by the paired indoor monitor, consuming no more than 3W during operation and less than 1W on standby. This means you do not need to run a separate power cable or install a power adaptor at the door, which simplifies installation considerably.
- What is the video field of view and does the unit record footage?
The built-in camera provides a 70-degree horizontal and 40-degree vertical field of view, which is suitable for capturing a person standing at the door. The DHI-VTO1000JM itself does not record video – recording capability depends entirely on whether the paired indoor monitor or connected system supports it.
- Is two-way audio supported out of the box?
Yes. The unit has a built-in microphone with a 0.5m pickup distance and a built-in speaker, enabling real-time two-way voice communication between the visitor at the door and the occupant at the indoor monitor. No additional microphone or speaker accessories are required.
- How is the DHI-VTO1000JM mounted and is any weatherproofing hardware included?
The unit is designed for surface mounting and comes with a rain cover included in the box. It carries an IP66 weather resistance rating, making it suitable for direct outdoor exposure. There is no flush-mount option for this model – the surface-mount installation method is fixed by design.
- What happens to the video feed at night or in low-light conditions at the door?
The DHI-VTO1000JM uses an auto IR illuminator combined with ICR day/night switching to maintain a visible image in low-light or dark conditions. The sensor automatically switches between colour and monochrome modes depending on ambient light. DWDR processing also helps manage contrast in challenging lighting, such as a brightly lit exterior background behind a visitor in shade. The DHI-VTO1000JM is part of the Security Wholesalers range of Dahua intercom products.
Cabling Considerations
- Cable Type: Standard 4-core or 2-core intercom cable is typically used for analog door station installations of this type. Use shielded cable in environments with potential electrical interference to maintain signal quality.
- Power Delivery: The DHI-VTO1000JM is powered through the cable connection to the indoor monitor – no separate power supply is needed at the door. Keep cable runs as short as practically possible to maintain signal integrity over the analog connection.
- Door Lock Wiring: If connecting an electric door strike or magnetic lock to the unlock output, ensure the lock’s voltage and current draw are within the relay specification of the indoor monitor, as the door station itself does not directly drive high-current lock hardware.
- Wiring Tips: Run intercom cable separately from 240V mains wiring to avoid interference. Route cable through the wall or door frame where possible to protect it from physical damage at the entry point. The rain cover included with the unit helps protect the rear cable entry from water ingress during surface mounting.
