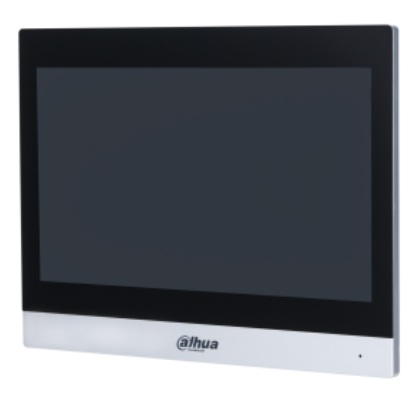

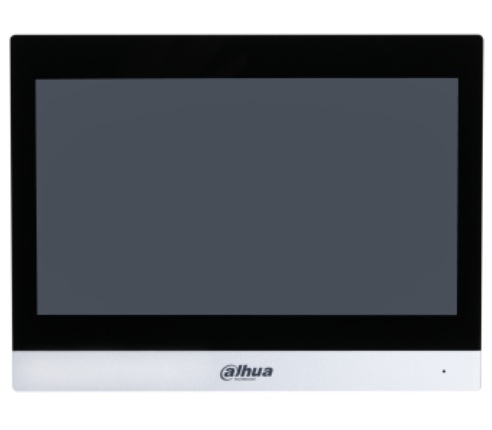

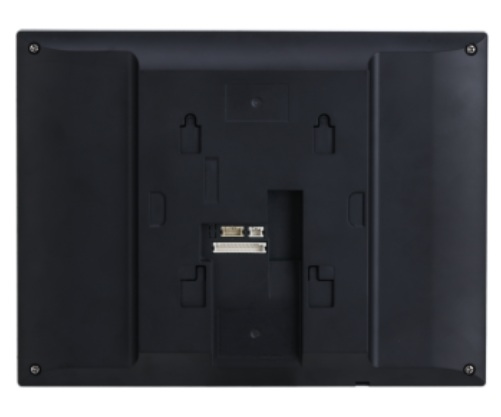

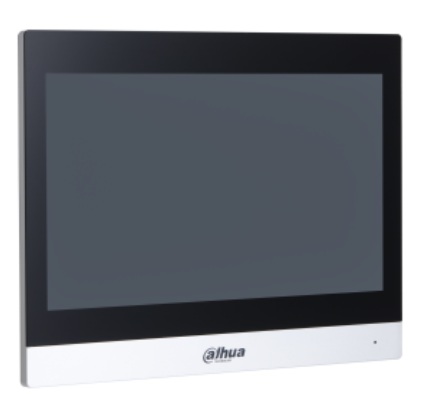

Dahua DHI-VTH8A41KMS-W 10-Inch Android IP Wi-Fi Video Intercom Monitor with Touchscreen & PoE

Product SKU: DHI-VTH8A41KMS-W

Product Overview

The Dahua DHI-VTH8A41KMS-W is a 10-inch Android IP and Wi-Fi indoor monitor designed for compatible residential, apartment and managed video intercom systems. Its full-colour capacitive touchscreen provides a clear interface for intercom calls, house-to-house communication, SOS operation and information released by a connected management centre. The built-in omnidirectional microphone and speaker support two-way voice calls, while wired Ethernet and Wi-Fi provide flexible network options. Six alarm inputs and one alarm output allow the monitor to participate in a compatible alarm and intercom design. The unit runs Android 8.1, supports configurable do-not-disturb periods and can be powered through standard PoE or a 12–24V DC supply. It is an indoor surface-mount system component rather than a standalone door station, so compatibility with the intended door station, master station, platform and extension layout should be confirmed before installation.

Key Capabilities

Best For

• Large Homes and Villas: Provides a large indoor interface with support for house-to-house communication and multiple extension monitors.
• Apartment Intercom Systems: Works with compatible door stations, master stations and management platforms in full-digital installations.
• Commercial Reception Areas: Supports intercom communication, information display, SOS operation and wired alarm integration.
• Multi-Level Properties: Allows compatible main and extension monitors to be positioned at practical answering points throughout the building.
• PoE Intercom Installations: Uses standard PoE where a single network cable is preferred for both power and IP connectivity.

Why Choose the DHI-VTH8A41KMS-W

The DHI-VTH8A41KMS-W is better suited to buyers who want a larger indoor intercom display than a compact seven-inch station. Its 10-inch touchscreen provides more space for everyday calling and system controls, while Wi-Fi, wired Ethernet, PoE and 12–24V DC offer several installation options. The built-in microphone and speaker remove the need for separate audio hardware, and the six alarm inputs provide more integration flexibility than a basic call-only monitor. Available through Security Wholesalers, this model should be selected as part of a confirmed Dahua intercom design rather than treated as a universal replacement monitor. Buyers should also consider its 1024 × 600 display, embedded Android 8.1 platform and the fact that a power adapter is not supplied as standard.

Buyer Decision Tips

Key Features & Technical Specifications

Product Type	Android IP and Wi-Fi indoor video intercom monitor.
Display	10-inch full-colour TFT capacitive touchscreen.
Screen Resolution	1024 × 600.
Operating System	Embedded Android 8.1 operating system.
Main Processor	Embedded processor.
Communication Mode	Full-digital intercom communication.
Network Connectivity	Wi-Fi and RJ-45 wired Ethernet.
Network Protocols	IPv4, TCP, SIP, UDP and RTSP.
Audio Input	One built-in omnidirectional microphone.
Audio Output	Built-in speaker with two-way voice calling.
Audio Formats	G.711a, G.711u and PCM at 16kHz and 16-bit.
Intercom Functions	House-to-house communication, management-centre information and configurable do-not-disturb periods.
Extension Capacity	Villa: nine extensions; apartment: four extensions.
Wi-Fi Intercom Layout	One main monitor with two extension monitors.
Alarm and SOS	Six alarm inputs, one alarm output and SOS support.
Storage	Optional microSD card below 64GB, identified as reserved for software.
Power Supply	12–24V DC at 1A or standard PoE.
Power Adapter	Not supplied as standard.
Power Consumption	Up to 1W in standby and up to 6W while operating.
Construction and Colour	Silver aluminium and ABS housing.
Installation	Indoor surface mounting.
Operating Conditions	-10°C to +55°C at 10%–90% non-condensing relative humidity.
Dimensions and Weight	190 × 250 × 23.5mm with a gross weight of 0.69kg.

Ideal Use Cases

Choosing the Right Model

• Choose this model if: The project needs a large 10-inch touchscreen, Wi-Fi, wired Ethernet, PoE and alarm integration.
• Choose a smaller monitor if: Wall space is limited and a large display is not necessary.
• Use wired Ethernet if: The installation can provide network cabling and consistent connection performance is the priority.
• Confirm compatibility first if: The monitor is replacing an existing indoor station or joining a mixed intercom system.
• Confirm the power arrangement if: A suitable PoE source or 12–24V DC power adapter has not already been specified.

FAQs

1. What is the DHI-VTH8A41KMS-W used for?
   The DHI-VTH8A41KMS-W is an indoor video intercom monitor for use with compatible Dahua door stations, master stations and management platforms. Its 10-inch touchscreen provides the user interface for full-digital intercom communication, two-way voice calls, house-to-house communication, SOS operation and viewing information released by the management centre. It is a system component rather than a standalone door station and requires compatible intercom equipment and network configuration.
2. Does the DHI-VTH8A41KMS-W have a touchscreen?
   Yes. The monitor has a 10-inch full-colour TFT capacitive touchscreen with a resolution of 1024 × 600. The large all-screen design provides more viewing and control space than a smaller indoor station, but the display is not Full HD. Buyers planning detailed camera viewing should consider the screen resolution as well as the resolution of the connected door station or camera.
3. Can the indoor monitor connect through Wi-Fi and Ethernet?
   Yes. The DHI-VTH8A41KMS-W supports Wi-Fi and also provides an RJ-45 network port for wired IP connectivity. Wired Ethernet is generally the more predictable option where a network cable is available, while Wi-Fi can simplify placement where compatible wireless coverage is reliable. Wi-Fi connectivity does not remove the power requirement; the monitor still needs standard PoE or a suitable 12–24V DC supply.
4. Does the DHI-VTH8A41KMS-W support two-way audio?
   Yes. The monitor includes one omnidirectional microphone and a built-in speaker, with two-way voice calling supported through the intercom system. Audio compression includes G.711a, G.711u and PCM. Call quality still depends on the compatible door station, network performance, system configuration and surrounding noise at both ends of the conversation.
5. How many extension monitors can be used?
   The datasheet lists up to nine extensions for a villa configuration and four extensions for an apartment configuration. For a Wi-Fi intercom arrangement, it lists one main monitor with two extension monitors. The practical system layout depends on the selected door station, network design, project mode and compatible intercom configuration, so the required number of indoor stations should be confirmed before installation.
6. What alarm connections are available on the indoor monitor?
   The DHI-VTH8A41KMS-W provides six alarm inputs and one alarm output, together with SOS support. This allows the indoor monitor to participate in a compatible intercom and alarm design using appropriately wired devices and configured event actions. The supplied accessories include an alarm ribbon cable and an RS-485 and power-output ribbon cable, but external sensors, alarm devices and installation cabling are not stated as included.
7. Does the monitor support a microSD card for recording?
   The monitor supports a microSD card below 64GB, but the supplied specification identifies the card slot as reserved for software. Buyers should therefore not assume it provides general-purpose surveillance recording or expandable media storage. The card itself is optional and is not listed as included. Recording requirements should instead be confirmed against the compatible intercom platform, recorder or wider system design.
8. What should I confirm before ordering the DHI-VTH8A41KMS-W?
   Confirm the compatible door station or master station, project mode, required number of extensions, wired or Wi-Fi network design, PoE availability, alarm wiring and mounting position. The unit is an indoor surface-mount monitor running Android 8.1, and a power adapter is not supplied as standard. Security Wholesalers can review the proposed intercom components to identify likely compatibility, power or extension-limit issues before installation.

Additional Information

Dahua VTH8A41KMS-W Datasheet
