Product SKU: DHI-SCP3022B-CBZ-S
Product Overview

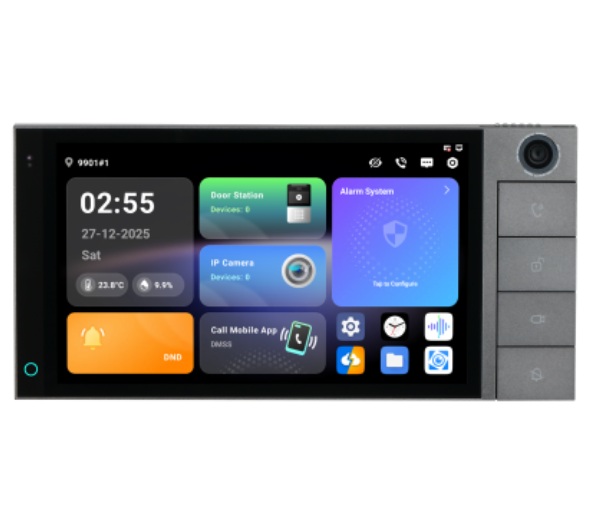

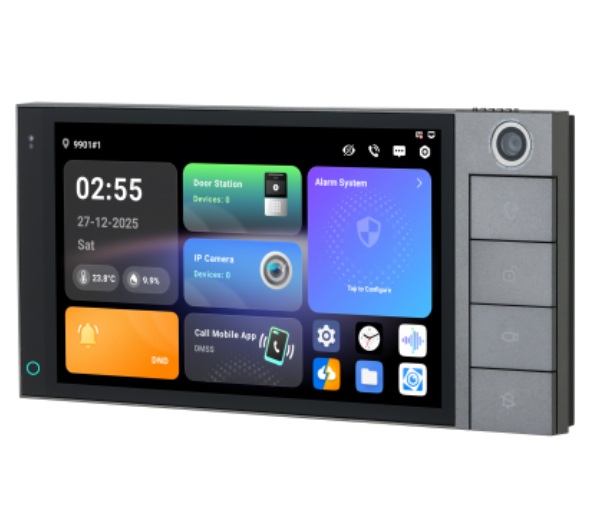

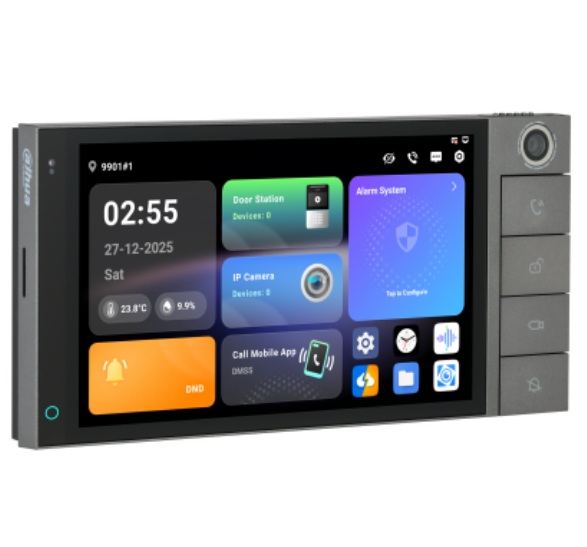

The Dahua DHI-SCP3022B-CBZ-S is a 7-inch two-wire IP smart control panel designed as an indoor interface for compatible video intercom, information-display, alarm and building-control functions. Android 14, 4GB RAM and 16GB internal storage provide a capable platform for everyday operation, while the 1024 × 600 IPS capacitive touchscreen supports multi-touch input in a slim wall-mounted format. The panel can communicate through full-digital IP, digital two-wire, Ethernet or 2.4GHz Wi-Fi and can be powered by standard PoE or a suitable 48V DC supply. Automatic proximity wake-up, adaptive screen brightness, temperature and humidity detection, customisable mechanical buttons and multi-colour status indicators improve usability in homes, apartments, offices and reception areas. Eight alarm inputs, RS-485, Bluetooth, reserved Zigbee support, Sub-1G communication and microSD storage up to 512GB provide additional flexibility for correctly designed compatible systems.
Key Capabilities
Android 14 Smart Interface
Android 14, 4GB RAM and 16GB internal storage support a responsive indoor control experience. The platform is suited to compatible intercom, information-display and building-control functions without relying on a basic single-purpose monitor interface.
Flexible IP and Two-Wire Deployment
Full-digital IP, digital two-wire, Ethernet and 2.4GHz Wi-Fi give installers several connection options. This is useful for new network installations and selected upgrades where compatible two-core cabling is already available.
Automatic Screen Awareness
The panel can wake when a person approaches, while the built-in light sensor adjusts screen brightness. These functions make the touchscreen easier to use in hallways, living areas and reception points throughout changing indoor light conditions.
Environmental Status at a Glance
Built-in temperature and humidity detectors allow indoor conditions to be viewed from the home screen. This adds practical room information to the intercom interface without requiring a separate basic temperature and humidity display.
Alarm and Building-Control Interfaces
Eight alarm inputs, one alarm output, RS-485, a doorbell input option and elevator-call support allow the panel to participate in a wider compatible system. Final operation depends on the connected equipment and system programming.
Wireless and Storage Expansion
Bluetooth, Sub-1G communication, reserved Zigbee 3.0 third-party access and microSD storage up to 512GB provide room for compatible sensors, accessories and visitor-message storage within a properly designed ecosystem.
Best For
- Modern Homes and Townhouses: Provides a central indoor touchscreen for compatible video intercom, status and control functions.
- Two-Wire Upgrade Projects: Supports compatible digital two-wire communication where replacing existing cabling may be difficult.
- Apartments and Villas: Supports a main indoor station with compatible extension panels according to the selected configuration.
- Offices and Reception Areas: Gives staff a wall-mounted point for intercom communication, information display and alarm status.
- Integrated Indoor Control Points: Combines environmental sensing, alarm connections and selected wireless functions in one device.
Why Choose the DHI-SCP3022B-CBZ-S
The DHI-SCP3022B-CBZ-S is a better fit than a basic indoor intercom monitor when the project needs broader control, status and integration functions from one wall-mounted panel. Its Android 14 platform, generous memory, proximity wake-up and adaptive brightness create a more responsive everyday interface, while Ethernet, Wi-Fi and digital two-wire communication give installers several deployment options. Environmental sensing, information release, elevator calling, alarm inputs and wireless interfaces extend the panel beyond simple visitor answering. Available through Security Wholesalers, this model suits projects where the complete Dahua intercom and control architecture has been planned in advance and where future expansion, local storage or connected sensors are important considerations.
Buyer Decision Tips
Two-Wire Compatibility Tip: Digital two-wire support does not make the panel a universal replacement for every older intercom. Confirm the cable condition, compatible transmission equipment, power method and connected door stations before ordering.
Wireless Integration Tip: Bluetooth, Zigbee and Sub-1G hardware do not guarantee compatibility with every third-party sensor or automation product. Check the intended accessories and software support before making wireless integration essential to the project.
Key Features & Technical Specifications
| Product Type |
7-inch indoor two-wire IP smart control panel. |
| Operating System |
Android 14 with an embedded processor. |
| Memory |
4GB RAM and 16GB internal storage. |
| Display |
7-inch IPS capacitive touchscreen with multi-touch operation. |
| Screen Resolution |
1024 × 600. |
| Smart Screen and Buttons |
Proximity wake-up, automatic brightness adjustment and removable mechanical buttons with customisable functions. |
| Audio |
Two-way audio, two audio-input channels, built-in speaker, echo suppression and G.711a, G.711u or PCM compression. |
| Video Support |
H.264 with main and sub streams up to 1080p at 25fps PAL or 30fps NTSC. |
| Communication Modes |
Full-digital IP and digital two-wire. |
| Ethernet and Wi-Fi |
1 × 10/100Mbps Ethernet port and IEEE 802.11b/g/n Wi-Fi on 2.4GHz. |
| Wireless Interfaces |
Bluetooth BR/EDR/BLE, IEEE 802.15.4 with reserved Zigbee 3.0 access, and Sub-1G at 868–868.6MHz. |
| Local Storage |
Supports a microSD card up to 512GB. |
| Extensions |
Villa: 1 main indoor station plus 9 extensions; apartment: 1 main station plus 4 extensions. |
| Alarm and Control Ports |
8 alarm inputs, 1 alarm output, 1 RS-485 port, 1 USB port and 1 × 12V, 200mA power output. |
| Additional Functions |
Information release, elevator calling, video messages, do-not-disturb scheduling and doorbell support through an alarm input. |
| Power |
Standard PoE or 48V DC, 0.5A; up to 8W standby and 13W operating; power adapter optional. |
| Installation |
Indoor surface mounting. |
| Operating Conditions |
-10°C to +55°C at 10%–95% relative humidity, non-condensing. |
| Dimensions and Weight |
210.2 × 103.1 × 18.6mm; gross weight 0.88kg. |
| Included Accessories |

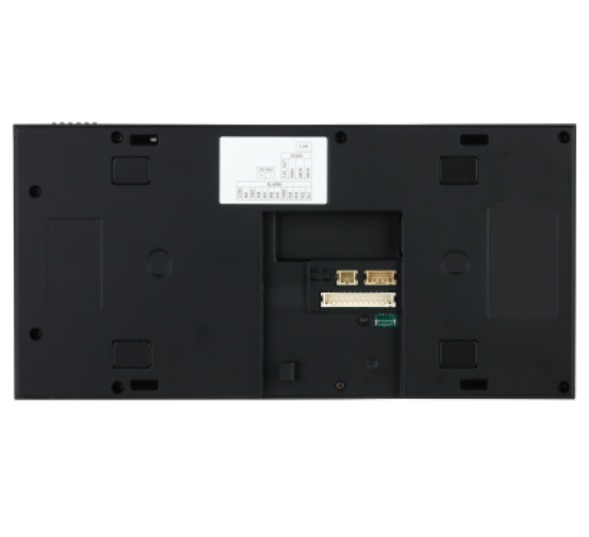

RS-485 and power-output cable, mounting bracket and alarm cable. |
Ideal Use Cases
Home Entry Control
Use as the main indoor interface for compatible entrance communication, information and control functions.
Two-Wire Renovations
Suitable for compatible digital two-wire projects where installing new Ethernet cabling would be disruptive.
Reception Areas
Provides staff with a visible touchscreen point for intercom, information and alarm-related functions.
Apartment and Villa Extensions
Can form part of a compatible multi-monitor installation where additional indoor control points are required.
Indoor Environmental Monitoring
Displays temperature, humidity and status information in hallways, living areas or internal management points.
Choosing the Right Model
- Choose this model if: You need Android 14, a 7-inch touchscreen, PoE, Wi-Fi, digital two-wire support and extensive alarm interfaces.
- Choose a simpler indoor monitor if: Basic intercom communication is required without environmental sensing, expandable storage or broader wireless functions.
- Confirm the wiring platform if: The site uses existing two-core cabling and the panel is being considered as an upgrade.
- Confirm the power design if: The installation does not already include a suitable standard PoE source or 48V DC supply.
- Confirm the complete ecosystem if: Zigbee, Bluetooth, Sub-1G devices, extra indoor stations or third-party integration are essential requirements.
FAQs
- What is the DHI-SCP3022B-CBZ-S designed to do?
The DHI-SCP3022B-CBZ-S is an indoor smart control panel for compatible Dahua video intercom and building-control systems. It combines a 7-inch touchscreen, two-way audio, information display, elevator-call support, alarm interfaces and environmental sensing in one wall-mounted device. It is best suited to projects that need more functionality than a basic indoor intercom monitor and where the complete system has been designed around compatible Dahua equipment.
- Can the DHI-SCP3022B-CBZ-S use both IP and two-wire communication?
Yes. The panel supports full-digital IP and digital two-wire communication, together with one 10/100Mbps Ethernet port and 2.4GHz Wi-Fi. This gives installers flexibility for new network deployments and selected two-wire upgrades. Existing two-core cabling does not guarantee direct compatibility, so the cable condition, transmission equipment, power method and connected door stations should all be checked before the panel is specified as a replacement.
- What operating system, memory and display does the panel use?
The DHI-SCP3022B-CBZ-S runs Android 14 with 4GB RAM and 16GB internal storage. Its 7-inch IPS capacitive touchscreen has a 1024 × 600 resolution and supports multi-touch operation. The screen can wake automatically as a person approaches, while the built-in light sensor adjusts brightness for more comfortable viewing. These features make the panel suitable for frequently used indoor intercom and control locations.
- How is the DHI-SCP3022B-CBZ-S powered?
The panel supports standard PoE or a 48V DC, 0.5A supply. Rated consumption is up to 8W in standby and up to 13W while operating. A power adapter is listed as optional, so the intended PoE switch, injector or 48V DC supply should be selected as part of the installation. This matters particularly in two-wire projects where power and data distribution may require compatible supporting equipment.
- Does the panel support video messages and local storage?
Yes. The DHI-SCP3022B-CBZ-S supports microSD storage up to 512GB and can support video messages when an SD card is installed in the indoor monitor or connected door station. Available recording and message functions depend on the wider intercom configuration and compatible devices. Buyers should allow for a suitable microSD card separately when local visitor-message storage is required, as storage capacity is not included in the model specification.
- How many additional indoor stations can be added?
The listed extension capacity is one main indoor station with up to nine extensions in a villa configuration, or one main indoor station with up to four extensions in an apartment configuration. Expansion also depends on compatible devices, network capacity, power availability and system programming. When planning a multi-monitor layout through Security Wholesalers, confirm the total number of stations and the selected IP or two-wire architecture before installation begins.
- What alarm and wireless interfaces are available?
The panel provides eight alarm inputs, one alarm output, one RS-485 port, one USB port and one 12V, 200mA power output. It also includes Bluetooth BR/EDR/BLE, IEEE 802.15.4 hardware with reserved Zigbee 3.0 third-party access, and Sub-1G communication from 868 to 868.6MHz. These interfaces offer integration potential, but compatibility with individual detectors, accessories and automation products must be confirmed before purchase.
- Where should the DHI-SCP3022B-CBZ-S be installed?
The DHI-SCP3022B-CBZ-S is designed for indoor surface mounting. Its slim 210.2 × 103.1 × 18.6mm body suits hallways, living areas, reception points and internal security desks where users can comfortably reach the touchscreen. The supported operating range is -10°C to +55°C at 10%–95% relative humidity without condensation. Install it where the selected Ethernet, PoE, Wi-Fi or two-wire connection can operate reliably.
Additional Information
Dahua DHI-SCP3022B-CBZ-S Datasheet
