What is the Dahua PFM372-L45-4S14P used for?

The PFM372-L45-4S14P is an integrated 45Ah solar lithium battery designed for specified Dahua off-grid surveillance power systems. It supplies 12.8V DC storage for compatible solar installations and is housed in a die-cast aluminium IP66 enclosure. It is a power-storage component only and does not replace the solar panel, charge controller, mounting structure, camera or other parts required for a complete solar surveillance system.

Which Dahua solar systems are compatible with this battery?

Dahua lists the PFM372-L45-4S14P for use with the DH-PFM364L-D1, DH-PFM363L-D1 and DH-PFM363L-SD1 integrated solar systems. Compatibility with other controllers, solar frames or battery enclosures is not confirmed by the supplied datasheet. The connector, charging voltage, current limits, mounting space and controller settings should all be checked before using the battery with any system that is not specifically listed.

What are the main electrical ratings of the PFM372-L45-4S14P?

The battery has a nominal capacity of 45Ah and a rated voltage of 12.8V DC. Dahua lists standard charging and discharging currents of 9A, maximum charging and discharging currents of 10A, a maximum charging voltage of 14.6V DC and internal resistance of no more than 80 milliohms. The connected solar controller and load must remain within these ratings.

Is the PFM372-L45-4S14P suitable for outdoor installation?

Yes. The integrated enclosure is rated IP66 and is made from die-cast aluminium, providing protection against dust and powerful water jets when correctly installed. The battery operates from -20°C to +60°C at less than 95% relative humidity. Cable connections, mounting hardware and the wider solar-power assembly must also be installed correctly, because the battery rating does not automatically weatherproof unrelated system components.

What connector does the battery use?

The PFM372-L45-4S14P uses an M15 female connector for connection to a compatible Dahua integrated solar power system. The connector type alone does not confirm electrical compatibility with another product. Before connection, verify the controller output, polarity, charging voltage, charge and discharge current limits and the intended system model. The datasheet does not identify a separate adaptor cable, solar controller or panel as included with the battery.

What are the operating and storage temperature limits?

Dahua specifies an operating temperature from -20°C to +60°C with relative humidity below 95%. The listed storage range is narrower at 0°C to +40°C, also below 95% relative humidity. These limits should be considered during transport, warehousing and site design. Battery performance and service life can be affected by prolonged heat, cold or unsuitable storage even when the enclosure remains within its IP66 protection rating.

Does the datasheet specify the cell chemistry, cycle life or internal protection functions?

The supplied datasheet identifies the product as an integrated solar lithium battery but does not state the detailed cell chemistry, cycle-life rating or specific internal battery-management protections. These points should not be assumed from the model number alone. Where a project requires a documented cycle count, discharge-depth limit, low-temperature charging protection or detailed BMS behaviour, obtain written confirmation for the exact supplied product revision before specification.

What should I confirm before ordering this 45Ah solar battery?

Confirm that the solar system is one of the listed compatible Dahua models, and check the required 12.8V battery voltage, 14.6V maximum charging voltage, current limits, M15 connection and available enclosure space. Also review the site temperature, expected camera load and required autonomy. Security Wholesalers can check the intended solar-system model and power requirements before the battery is deployed as a replacement or project component.

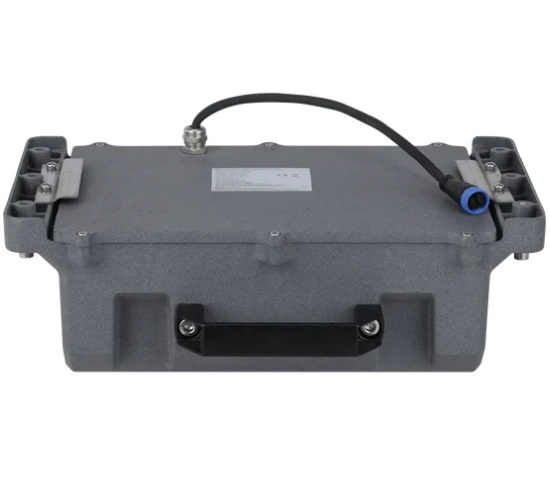

Dahua DHI-PFM372-L45-4S14P 45Ah Integrated Solar Lithium Battery with IP66 Weatherproof Housing

$1,098.00

FREE DELIVERYWARRANTY GUARANTEED

SW ADVANTAGE✓ Trade-Price Verified✓ Priority Tech Support✓ Dedicated After-Sales Support✓ Easy Returns & Warranty

Dahua 45Ah Integrated Solar Lithium Battery | DHI-PFM372-L45-4S14P | Solar Power Accessory | IP66 Weatherproof Housing | Outdoor CCTV Power Support

The Dahua DHI-PFM372-L45-4S14P delivers a 45Ah integrated solar lithium battery designed for compatible Dahua solar-powered surveillance and remote security installations. Featuring an integrated lithium battery design and IP66 weatherproof housing, it provides practical outdoor power support for suitable off-grid or difficult-to-cable CCTV environments.

It also helps support solar camera operation, making this battery available at Security Wholesalers useful for farms, construction sites, remote entrances, temporary locations and perimeter surveillance projects. Its outdoor-rated housing suits installations where reliable battery storage, weather resistance and flexible power deployment are important for maintaining security coverage.

Key Features

45Ah Lithium Battery: Provides integrated battery storage for compatible Dahua solar surveillance installations.
Solar Power Support: Suits suitable off-grid CCTV setups where conventional power cabling may be limited.
Integrated Design: Combines battery storage in a purpose-built format for compatible outdoor security applications.
IP66 Weatherproof Housing: Helps protect the battery assembly in suitable outdoor installation environments.
Remote Site Use: Fits farms, temporary worksites, gates, perimeters and other difficult-to-cable areas.
Security System Accessory: Supports compatible Dahua solar camera and remote surveillance deployments.

Additional Information

Dahua DHI_PFM372-L45-4S14P Datasheet

$1,098.00 inc GST +3 Year Warranty & Support

Description

Product SKU: DHI-PFM372-L45-4S14P

Product Overview

The Dahua DHI-PFM372-L45-4S14P, officially specified as model PFM372-L45-4S14P, is a 45Ah integrated solar lithium battery designed for selected Dahua off-grid surveillance power systems. It provides a rated 12.8V DC output with listed 9A charging and discharging currents, supporting compatible remote CCTV installations where mains power is unavailable or impractical. The battery is housed in a grey die-cast aluminium enclosure rated IP66 for correctly installed outdoor use and connects through an M15 female connector. Dahua lists compatibility with the DH-PFM364L-D1, DH-PFM363L-D1 and DH-PFM363L-SD1 integrated solar systems. The unit operates from -20°C to +60°C and weighs 8.5kg. It is a battery assembly only and does not replace the solar panel, charge controller, mounting frame, camera or other components required for a complete solar surveillance system.

Key Capabilities

45Ah Solar Energy Storage

The integrated battery provides a nominal capacity of 45Ah at a rated 12.8V DC. It is intended to store energy generated by a compatible Dahua solar system and supply supported surveillance equipment when sunlight is unavailable.

Defined Charge and Discharge Limits

Dahua lists 9A charging and discharging currents, with maximum charging and discharging currents of 10A. The maximum charging voltage is 14.6V DC, allowing the battery to be matched with the specified solar controllers.

IP66 Die-Cast Aluminium Housing

The grey die-cast aluminium enclosure is rated IP66 for protection against dust and powerful water jets. Correct connector engagement, mounting and installation of the complete solar assembly remain necessary for reliable outdoor operation.

M15 Female System Connection

An M15 female connector provides the electrical interface to the compatible integrated solar system. Connector shape alone does not confirm suitability with an unrelated controller, and voltage, polarity and current limits must also match.

Purpose-Matched Dahua Compatibility

The battery is specifically listed for the DH-PFM364L-D1, DH-PFM363L-D1 and DH-PFM363L-SD1 systems. This supports more predictable charging and physical integration than substituting an unverified generic battery.

Best For

Remote CCTV Installations: Stores solar-generated energy for compatible surveillance systems where mains power is unavailable.
Farms and Rural Properties: Supports selected Dahua solar systems protecting gates, sheds, yards and equipment areas.
Construction and Temporary Sites: Provides battery storage for compatible off-grid camera systems used during changing project stages.
Replacement Battery Requirements: Suits existing listed Dahua solar systems requiring the same voltage, connector and physical battery format.

Why Choose the PFM372-L45-4S14P

The PFM372-L45-4S14P provides a purpose-built battery solution for selected Dahua integrated solar systems rather than relying on a generic enclosure and separately adapted battery connection. Its 45Ah capacity, 12.8V rating, M15 interface and documented charging limits help installers match the storage component to the intended controller. The IP66 die-cast aluminium housing also simplifies outdoor deployment by combining the battery and protective enclosure in one assembly. Available through Security Wholesalers, this model should be selected only after confirming the exact solar-system model, expected camera load, required autonomy and site temperature. The supplied specification does not state detailed cell chemistry, cycle life or battery-management functions, so projects requiring those documented values should obtain confirmation for the exact supplied revision.

Buyer Decision Tips

Compatibility Tip: Use the battery only with a confirmed compatible solar controller and system. The official specification lists the DH-PFM364L-D1, DH-PFM363L-D1 and DH-PFM363L-SD1; compatibility with other platforms should not be assumed from the M15 connector alone.

Electrical and Storage Tip: Keep charging and discharging within the listed ratings and observe the narrower 0°C to +40°C storage-temperature range. Confirm polarity and controller settings before connection, and avoid storing the battery in prolonged heat, freezing conditions or uncontrolled humidity.

Key Features & Technical Specifications

Product Type	Integrated solar lithium battery in a weather-resistant outdoor enclosure.
Model	PFM372-L45-4S14P.
Nominal Capacity	45Ah.
Rated Voltage	12.8V DC.
Charging and Discharging Current	9A charging and 9A discharging.
Maximum Current	10A maximum charging and 10A maximum discharging.
Maximum Charging Voltage	14.6V DC.
Internal Resistance	No more than 80mΩ.
Connection	M15 female connector.
Applicable Systems	DH-PFM364L-D1, DH-PFM363L-D1 and DH-PFM363L-SD1.
Housing	Grey die-cast aluminium.
Protection Rating	IP66.
Operating Conditions	-20°C to +60°C at less than 95% relative humidity.
Storage Conditions	0°C to +40°C at less than 95% relative humidity.
Product Dimensions	Outer: 359.8 × 268.7 × 116mm; inner: 282 × 209 × 98.5mm.
Weight	Net weight 8.5kg; gross weight 9.8kg.
Packaging	459 × 349 × 209mm; one unit per carton.
Included Hardware	One S5.0L wrench and six M6 × 30 screws.
Certifications	CE to EN 61000-6-3 and EN IEC 61000-6-1; FCC Part 15 Subpart B.

Ideal Use Cases

Farm Surveillance Systems

Store solar energy for compatible cameras monitoring remote gates, sheds and equipment compounds.

Construction-Site CCTV

Support selected off-grid monitoring systems where temporary mains power is unavailable.

Remote Infrastructure

Provide compatible battery storage for surveillance near roads, utilities, waterways and isolated assets.

Existing Solar-System Replacement

Replace a matching battery assembly after confirming the controller, connector, enclosure and system model.

Choosing the Right Model

Choose this model if: The solar system is a listed compatible Dahua model requiring a 12.8V, 45Ah battery with an M15 female connection.
Choose a different capacity if: The calculated camera load and required overnight or low-sun autonomy exceed the available storage.
Choose another battery assembly if: The controller requires a different charging voltage, current limit, connector or enclosure size.
Confirm project documentation if: A guaranteed cycle-life rating, precise cell chemistry or detailed battery-management specification is required.
Check the entire solar system if: The panel size, controller, camera consumption or daily sunlight conditions have changed since the original installation.

FAQs

What is the Dahua PFM372-L45-4S14P used for?
The PFM372-L45-4S14P is an integrated 45Ah solar lithium battery designed for specified Dahua off-grid surveillance power systems. It supplies 12.8V DC storage for compatible solar installations and is housed in a die-cast aluminium IP66 enclosure. It is a power-storage component only and does not replace the solar panel, charge controller, mounting structure, camera or other parts required for a complete solar surveillance system.
Which Dahua solar systems are compatible with this battery?
Dahua lists the PFM372-L45-4S14P for use with the DH-PFM364L-D1, DH-PFM363L-D1 and DH-PFM363L-SD1 integrated solar systems. Compatibility with other controllers, solar frames or battery enclosures is not confirmed by the supplied datasheet. The connector, charging voltage, current limits, mounting space and controller settings should all be checked before using the battery with any system that is not specifically listed.
What are the main electrical ratings of the PFM372-L45-4S14P?
The battery has a nominal capacity of 45Ah and a rated voltage of 12.8V DC. Dahua lists standard charging and discharging currents of 9A, maximum charging and discharging currents of 10A, a maximum charging voltage of 14.6V DC and internal resistance of no more than 80 milliohms. The connected solar controller and load must remain within these ratings.
Is the PFM372-L45-4S14P suitable for outdoor installation?
Yes. The integrated enclosure is rated IP66 and is made from die-cast aluminium, providing protection against dust and powerful water jets when correctly installed. The battery operates from -20°C to +60°C at less than 95% relative humidity. Cable connections, mounting hardware and the wider solar-power assembly must also be installed correctly, because the battery rating does not automatically weatherproof unrelated system components.
What connector does the battery use?
The PFM372-L45-4S14P uses an M15 female connector for connection to a compatible Dahua integrated solar power system. The connector type alone does not confirm electrical compatibility with another product. Before connection, verify the controller output, polarity, charging voltage, charge and discharge current limits and the intended system model. The datasheet does not identify a separate adaptor cable, solar controller or panel as included with the battery.
What are the operating and storage temperature limits?
Dahua specifies an operating temperature from -20°C to +60°C with relative humidity below 95%. The listed storage range is narrower at 0°C to +40°C, also below 95% relative humidity. These limits should be considered during transport, warehousing and site design. Battery performance and service life can be affected by prolonged heat, cold or unsuitable storage even when the enclosure remains within its IP66 protection rating.
Does the datasheet specify the cell chemistry, cycle life or internal protection functions?
The supplied datasheet identifies the product as an integrated solar lithium battery but does not state the detailed cell chemistry, cycle-life rating or specific internal battery-management protections. These points should not be assumed from the model number alone. Where a project requires a documented cycle count, discharge-depth limit, low-temperature charging protection or detailed BMS behaviour, obtain written confirmation for the exact supplied product revision before specification.
What should I confirm before ordering this 45Ah solar battery?
Confirm that the solar system is one of the listed compatible Dahua models, and check the required 12.8V battery voltage, 14.6V maximum charging voltage, current limits, M15 connection and available enclosure space. Also review the site temperature, expected camera load and required autonomy. Security Wholesalers can check the intended solar-system model and power requirements before the battery is deployed as a replacement or project component.

Additional Information

Dahua DHI_PFM372-L45-4S14P Datasheet
