Overview

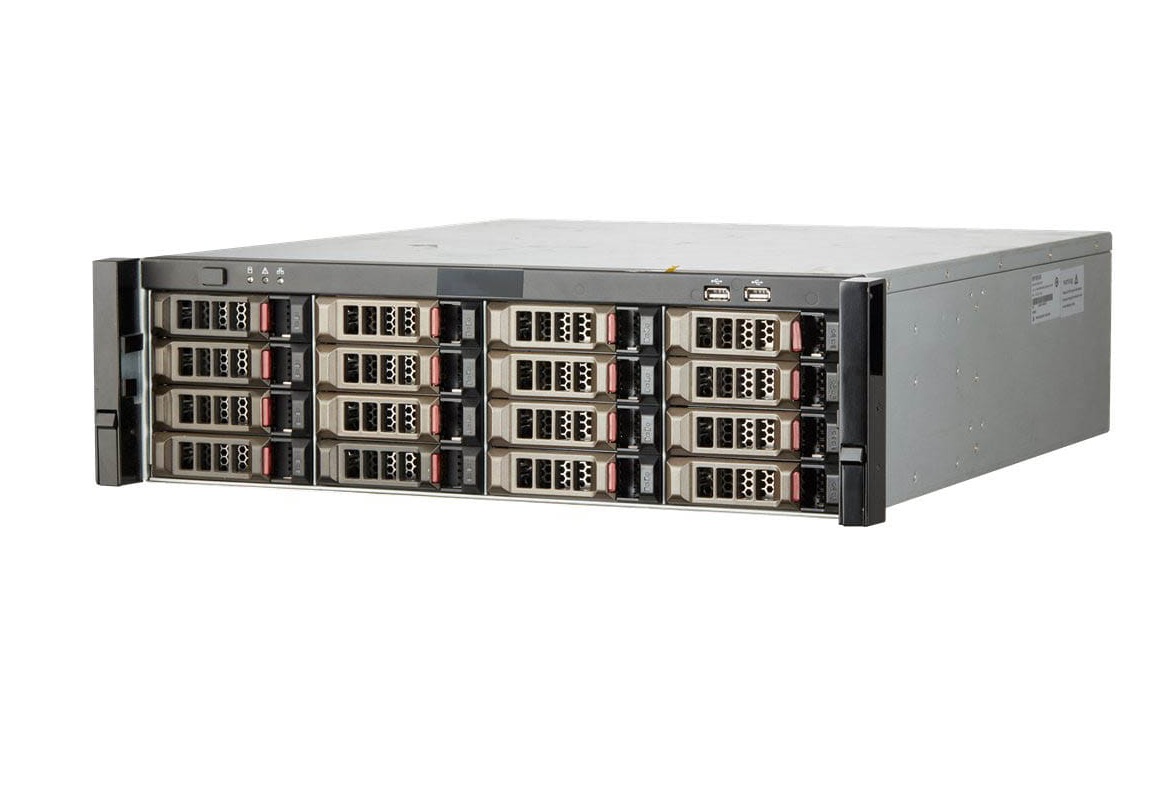

The DHI-IVSS7016-4M is part of Dahua’s next-generation Intelligent Video Surveillance Server (IVSS) series, engineered for large and complex surveillance environments. It merges high-performance hardware with AI capabilities, enabling intelligent video analysis, efficient data storage, and responsive incident detection across vast sites.
Key Specifications
-
Video Input:
-
Up to 256 IP channels
-
Incoming bandwidth: 512 Mbps
-
Video compression: H.265+/H.265/H.264+/H.264
-
-
AI Capabilities:
-
Face recognition: Up to 48 channels (standard), up to 160 channels (face detection)
-
Up to 500,000 face images across 50 face databases
-
Perimeter protection: Up to 48 channels
-
Video metadata: Human body, face, motor vehicle, and non-motor vehicle attributes
-
People counting, heat mapping, and ANPR support
-
-
Storage:
-
16 x SATA/SAS bays (up to 16TB per drive)
-
RAID 0/1/5/6/10/50/60 support
-
Hot-swap and hot-spare supported
-
-
Video Output:
-
3 x HDMI, 1 x VGA
-
Max resolution: 3840×2160 (4K)
-
Multi-screen display with independent output
-
-
Decoding:
-
16-channel 1080p real-time decoding
-
Multi-stream support for optimized bandwidth
-
-
Network:
-
4 x 10/100/1000 Mbps RJ-45 ports
-
2 x 10 Gbps optical ports
-
Supports IPv6, HTTP/HTTPS, TCP/IP, FTP, RTSP, ONVIF, and more
-
-
Interfaces:
-
8 x USB ports (front and rear)
-
4 x RS-232, 2 x RS-485
-
Alarm I/O: 16 in / 8 out
-
-
Power & Build:
-
Redundant power supply support
-
3U rack-mount chassis
-
Operating temperature: 0°C ~ +50°C
-
Engaging Use Cases
Smart Cities
Deploy this unit across traffic intersections and public spaces. Use face recognition for suspect tracking, ANPR for real-time license plate detection, and video metadata for urban planning insights (e.g., crowd flow and vehicle classification).
✈️ Airports & Transportation Hubs
Ensure airport perimeters and terminals are secure. Facial recognition can speed up identity verification at gates, while people counting and heat mapping improve passenger flow and reduce bottlenecks.
Corporate Campuses & Data Centers
Use perimeter protection with smart alarms to prevent intrusion. Monitor employee and visitor traffic using face access logs and maintain full audit trails with advanced metadata tagging.
Retail & Commercial Centres
Understand customer behavior with people counting and heat mapping. Recognize VIP customers using facial recognition and analyze demographic trends for marketing strategy.
Education Sector
Universities and schools benefit from intelligent tracking of entry/exit activity, face-based attendance logging, and real-time alerts for boundary breaches or unusual movements.
Critical Infrastructure
Ideal for utilities and factories. Combine high channel capacity with AI detection to identify unauthorized entry, monitor machinery zones, and support compliance with security protocols.
