-24%

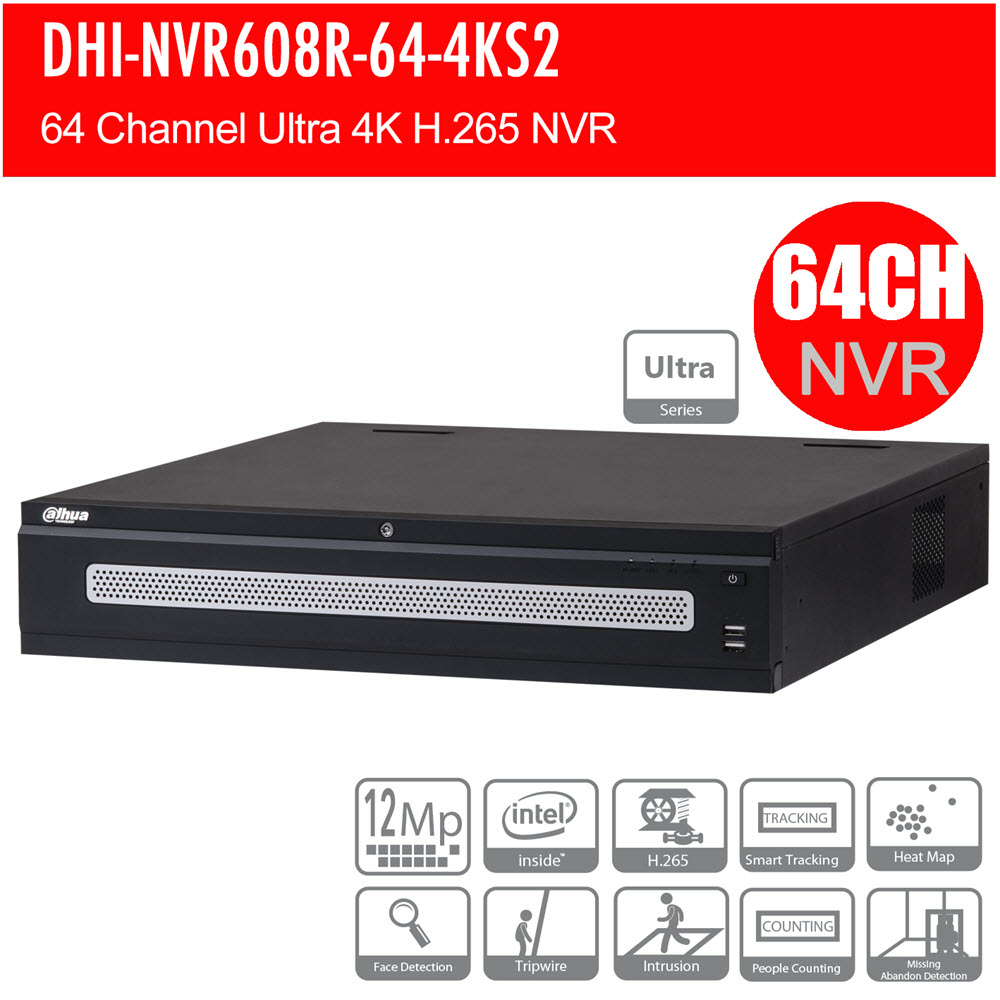

Dahua DHI-NVR608R-64-4KS2 Dahua 64ch H.265+ Ultra Series Network Video Recorder

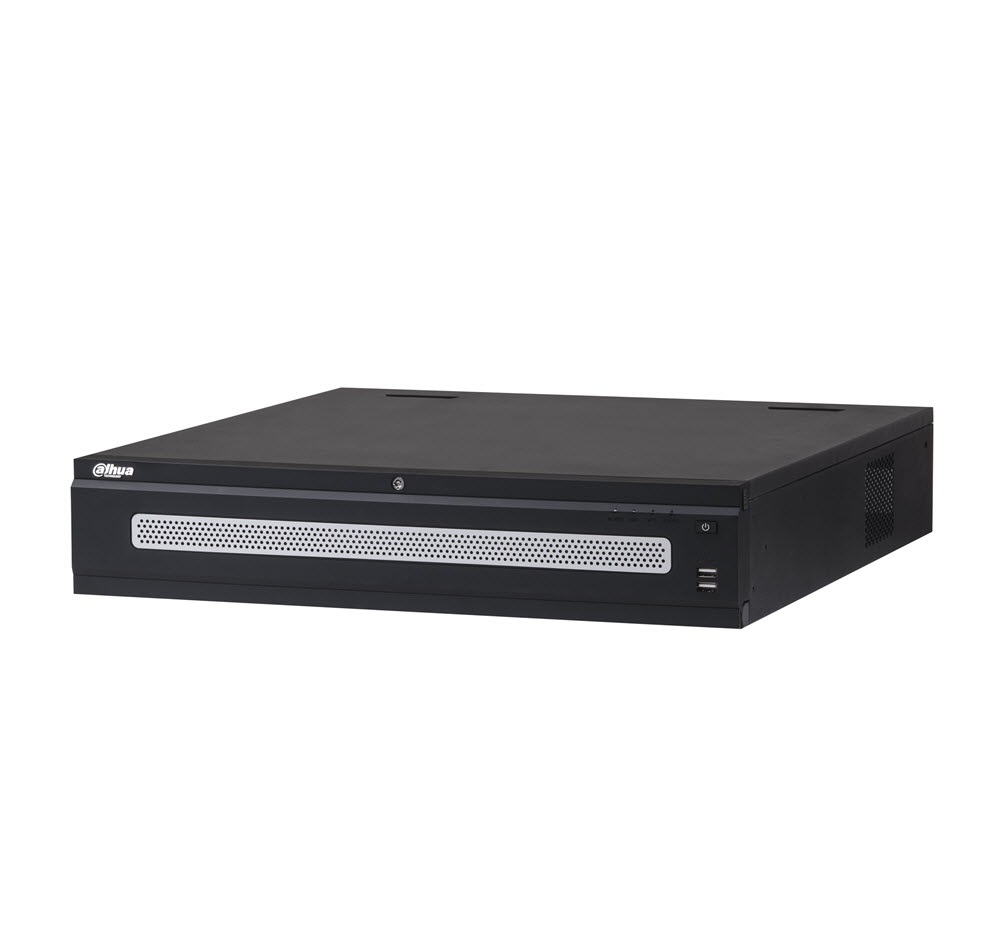

Dahua DHI-NVR608R-64-4KS2 Dahua 64ch H.265+ Ultra Series Network Video Recorder - Image 2
, , ,

Dahua DHI-NVR608R-64-4KS2 Dahua 64ch H.265+ Ultra Series Network Video Recorder

Availability:

Out of stock

Dahua 64ch H.265+ Ultra Series NVR Record Up to 12MP, 384Mbps input, Supports RAID 0/1/5/10, Smart Tracking and Intelligent Video, 8 x HDD space up to 10TB each HDD, 2x HDMI(4K) Different Source, 1xVGA , 2 x Ethernet Ports, 1x eSATA Port, Support Hot-swap,Smart 2.0, Fisheye Dewarp, Face Detection, POS, ANPR, Thermal, Redundant Power

Intel Processor
> Max 64/128 IP Camera Inputs
> Max 384Mbps Incoming Bandwidth
> Up to 12MP Resolution for Preview and Playback
> Supports RAID 0/1/5/10
> Smart Tracking and Intelligent Video
> Redundant Power

REPLACED BY:

Dahua DHI-NVR5864-I/L 64 Channel Network Video Recorder: 16MP(4K) AI

$2,139.64 $2,826.00 inc GST +3 Year Warranty & Support

Out of stock

Dahua 64ch H.265+ Ultra Series NVR Record Up to 12MP, 384Mbps input, Supports RAID 0/1/5/10, Smart Tracking and Intelligent Video, 8 x HDD space up to 10TB each HDD, 2x HDMI(4K) Different Source, 1xVGA , 2 x Ethernet Ports, 1x eSATA Port, Support Hot-swap,Smart 2.0, Fisheye Dewarp, Face Detection, POS, ANPR, Thermal, Redundant Power

ImageNamePriceBuy
4TB HDD - Surveillance HDD for DVRs & NVRs
4TB HDD - Surveillance HDD for DVRs & NVRs$156.00 $286.00 inc GST +3 Year Warranty & Support

2TB HDD - WD Purple / Seagate Surveillance HDD for DVRs & NVRs
2TB HDD - WD Purple / Seagate Surveillance HDD for DVRs & NVRs$130.00 $165.00 inc GST +3 Year Warranty & Support

3TB HDD - Surveillance HDD for DVRs & NVRs
3TB HDD - Surveillance HDD for DVRs & NVRs$156.00 $209.00 inc GST +3 Year Warranty & Support
6TB HDD - WD Purple / Seagate Skyhawk Surveillance Hard Drive for DVRs & NVR
6TB HDD - WD Purple / Seagate Skyhawk Surveillance Hard Drive for DVRs & NVR$300.00 $418.00 inc GST +3 Year Warranty & Support
8TB HDD - Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR
8TB HDD - Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR$430.00 $616.00 inc GST +3 Year Warranty & Support

System
Main Processor Intel Quad-core Processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 64/128 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 2 HDMI (up to 3840 x 2160 , Different Source),

1 VGA
Resolution 3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768
Multi-screen Display 1st Screen: 1/4/8/9/16/25/36

2nd Screen: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.265/H.264/MJPEG
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc.
Record Rate 384Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 8 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc.
Playback and Backup
Playback 128 Mbps in Raid 5 Mode;

64 Mbps in single HDD Mode
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network/eSATA Device
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Network
Interface 2 RJ-45 Ports (10/100/1000Mbps)
Ethernet Port 2 Ethernet Ports Joint Working or 2 Independent 1000Mbps Ethernet Ports
PoE N/A
Network Function HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Optical Fiber Interface N/A
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Storage
Internal HDD 8 SATA III Ports, Up to 8 TB capacity for each HDD
HDD Mode Single, Raid 0/1/5/10(Enterprise-level HDDs are recommended), Support Global HDD Hot-spare
eSATA 1 eSATA Port (Please contact technical engineer to confirm the compatible device)
SAS N/A
Auxiliary Interface
Front Cover Support Hot-swap
USB 4 USB Ports (2 USB 2.0 , 2 USB 3.0 )
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
Electrical
Power Supply AC100V ~ 240V, 50 ~ 60 Hz, Redundant
Power Consumption <20W (Without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions 2U, 444mm x 475mm x 95mm (17.5″ x 18.7″ x 3.7″)
Net Weight 9.7kg (21.4 lb) (without HDD)
Gross Weight 12.2kg (26.9 lb)
Installation Rack-mounted
Certifications
CE EN55022, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL 60950-1 and CAN/CSA C22.2 No.60950-1
SKU: DHI-NVR608R-64-4KS2 Categories: , , ,
