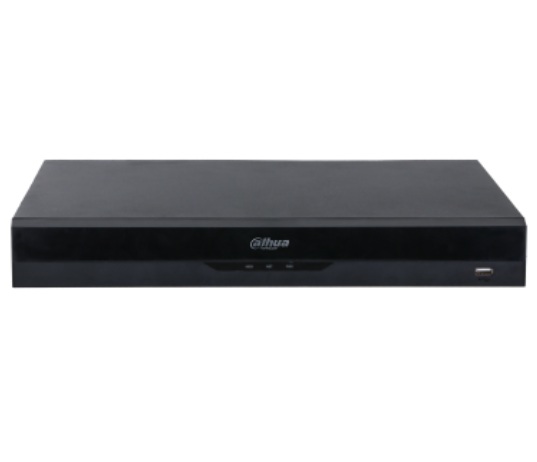

Dahua DHI-NVR5208-8P-AI/ANZ 8 Channel 8PoE Pro Network Video Recorder with Acupick

Product SKU: DHI-NVR5208-8P-AI/ANZ

Product Overview

The Dahua DHI-NVR5208-8P-AI/ANZ is an 8-channel WizSense network video recorder designed for homes, retail premises, offices, warehouses and other sites requiring powerful AI-assisted surveillance with straightforward PoE camera installation. Eight integrated PoE ports supply compatible network cameras directly, while a total PoE budget of 130W accommodates higher-power cameras when the individual and combined loads remain within the recorder’s limits. The NVR accepts camera resolutions up to 32MP, provides up to 384Mbps of incoming, recording and outgoing bandwidth when AI is disabled, and supports AcuPick searches across as many as eight channels. Recorder-side intelligence includes face detection and recognition, perimeter protection and SMD Plus human and vehicle filtering. Two SATA bays support substantial recording capacity, while 4K HDMI output, mobile access, alarm connections, ePoE, N+M clustering and iSCSI support provide flexibility for professional installations.

Add a Hard Drive

Image	Name	Price	Buy	hf:att:pa_ai-technology	hf:att:pa_audio-features	hf:att:pa_camera-count	hf:att:pa_camera-style	hf:att:pa_detection-features	hf:att:pa_deterrence-features	hf:att:pa_environmental-features	hf:att:pa_focal-length	hf:att:pa_hdd-bays	hf:att:pa_hdd-included	hf:att:pa_ik-rating	hf:att:pa_included-storage	hf:att:pa_installation-level	hf:att:pa_ip-rating	hf:att:pa_kit-camera-style	hf:att:pa_lens-type	hf:att:pa_low-light-technology	hf:att:pa_max-recording-resolution	hf:att:pa_mounting-position	hf:att:pa_night-vision-range	hf:att:pa_night-vision-type	hf:att:pa_optical-zoom	hf:att:pa_poe-ports	hf:att:pa_power-connectivity	hf:att:pa_protocol-compatibility	hf:att:pa_recorder-channels	hf:att:pa_remote-viewing	hf:att:pa_resolution	hf:att:pa_specialist-features	hf:att:pa_system-format	hf:att:pa_white-light-range	hf:att:pa_zoom-type
	4TB HDD - WD Purple / Seagate Surveillance Hard Drive for DVRs & NVRs	$380.00 inc GST +3 Year Warranty & Support	Choose one if you need to Choose one if you need to WD Purple Seagate Skyhawk 4TB HDD - WD Purple / Seagate Surveillance Hard Drive for DVRs & NVRs quantity Add to cart
	6TB HDD - WD Purple / Seagate Skyhawk Surveillance Hard Drive for DVRs & NVR	$570.00 inc GST +3 Year Warranty & Support	6TB HDD - WD Purple / Seagate Skyhawk Surveillance Hard Drive for DVRs & NVR quantity Add to cart
	2TB HDD - WD Purple / Seagate Surveillance Hard Drive for DVRs & NVRs	$290.00 $320.00 inc GST +3 Year Warranty & Support	2TB HDD - WD Purple / Seagate Surveillance Hard Drive for DVRs & NVRs quantity Add to cart
	3TB HDD - Surveillance HDD Hard Drive for DVRs & NVRs	$360.00 inc GST +3 Year Warranty & Support	3TB HDD - Surveillance HDD Hard Drive for DVRs & NVRs quantity Add to cart
	8TB HDD - WD Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR	$800.00 inc GST +3 Year Warranty & Support	8TB HDD - WD Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR quantity Add to cart

Key Capabilities

Best For

• Larger Homes: Supports up to eight PoE cameras with two HDD bays, mobile access and intelligent human or vehicle event review.
• Retail and Small Business Sites: AcuPick, SMD Plus and perimeter protection help operators locate relevant activity around entrances, sales areas and storage zones.
• Warehouses and Workshops: The 130W PoE budget and high network bandwidth suit mixed fixed cameras, deterrence cameras and selected higher-power devices.
• Schools and Offices: Face, perimeter and metadata functions from compatible cameras support more structured event review across shared areas and entrances.
• Professional Eight-Camera Systems: Alarm connections, audio I/O, ePoE, iSCSI and cluster support provide more integration options than a basic plug-and-play recorder.

Why Choose the DHI-NVR5208-8P-AI/ANZ

The DHI-NVR5208-8P-AI/ANZ offers considerably more processing, storage and integration flexibility than a basic eight-channel NVR. Its 384Mbps bandwidth, support for cameras up to 32MP and high decoding capacity allow demanding camera combinations to be planned without immediately reaching the recorder’s limits. AcuPick provides a faster way to locate people and vehicles in footage, while onboard SMD Plus, perimeter protection and face functions add useful intelligence when camera-side analytics are unavailable or need to be supplemented. The eight PoE ports include a strong 130W total budget, and two HDD bays provide greater retention flexibility than a single-bay recorder. Offered through Security Wholesalers, it suits buyers who need a feature-rich eight-camera platform without moving to a larger sixteen-channel system.

Buyer Decision Tips

Key Features & Technical Specifications

Recorder Type	8-channel, 8-PoE, two-HDD WizSense network video recorder.
Camera Channels	8 IP camera channels.
Maximum Camera Resolution	Supports IP cameras with resolutions up to 32MP.
AcuPick	Up to 8 channels using combined camera-side and recorder-side intelligence, with 1 combined event per channel per second.
AI by Recorder	Face detection, face recognition, perimeter protection and SMD Plus.
AI by Camera	Supports compatible camera-side face functions, metadata, perimeter protection, SMD Plus, ANPR, stereo analysis, heat maps and people counting.
Recorder Perimeter Protection	Up to 4 channels with 10 IVS rules per channel.
Recorder SMD Plus	Up to 8 channels with secondary human and motor-vehicle filtering.
Recorder Face Detection	Up to 2 channels at as many as 12 face images per second on each channel.
Face Database	Up to 20 databases containing a combined maximum of 20,000 face images.
Network Bandwidth	AI disabled: up to 384Mbps incoming, 384Mbps recording and 384Mbps outgoing; AI enabled: up to 200Mbps for each.
Decoding Capacity	AI disabled: up to 2 × 32MP at 25fps or 8 × 8MP at 30fps; AI enabled: up to 1 × 32MP at 25fps or 6 × 8MP at 30fps.
Video Compression	Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG.
PoE Ports	8 × 10/100Mbps IEEE 802.3af/at ports, with ports 1–8 supporting ePoE.
PoE Power Budget	130W total with up to 25.5W available from one port.
HDD Storage	2 SATA bays supporting up to 20TB per compatible disk, subject to operating conditions.
Video Outputs	1 HDMI output up to 3840 × 2160 and 1 VGA output up to 1920 × 1080, with heterogeneous source output.
Playback	Up to 8-channel simultaneous playback with general, event, tag and smart playback modes.
Audio Connections	1 RCA audio input and 1 RCA audio output.
Alarm Connections	4 alarm inputs and 2 alarm outputs.
Network Interface	1 × 10/100/1000Mbps RJ-45 Gigabit Ethernet port.
Interoperability	ONVIF Profiles S, G and T, CGI and SDK support.
Additional Interfaces	1 RS-232, 1 RS-485, 1 front USB 2.0 and 1 rear USB 3.0 port.
Storage and System Functions	Disk groups, iSCSI and N+M cluster support.
Remote Access	Browser access, P2P and mobile support for iOS and Android.
Power Supply	100–240V AC, 47–63Hz.
Power Consumption	Up to 10W without HDDs, excluding the available 130W PoE output budget.
Operating Conditions	-10°C to +55°C at 10%–93% relative humidity, non-condensing.
Dimensions and Weight	375.0 × 329.4 × 53.0mm; net weight approximately 2.57kg.

Ideal Use Cases

Choosing the Right Model

• Choose this model if: You need up to eight PoE cameras, two HDD bays, AcuPick, high bandwidth and advanced recorder-side analytics.
• Choose a sixteen-channel NVR if: The property may need more than eight cameras during the expected life of the system.
• Choose a four-bay recorder if: Longer retention, greater storage expansion or additional disk-management options are required.
• Choose a WizMind recorder if: The project requires more intensive AI processing, broader intelligent channel counts or specialised analytics beyond this WizSense platform.
• Check camera power requirements if: The system includes several PTZ, thermal, deterrence or high-power cameras that may approach the 130W PoE budget.

FAQs

1. What does AcuPick do on the DHI-NVR5208-8P-AI/ANZ?
   The DHI-NVR5208-8P-AI/ANZ supports AcuPick on up to eight channels when used with suitable camera-side intelligence. AcuPick helps an operator locate relevant human or vehicle targets from recorded footage without manually reviewing long periods of video. Dahua specifies a maximum of one combined event per channel per second, and the final search performance depends on compatible cameras, correct AI configuration and usable target visibility.
2. How many cameras can connect to this Dahua NVR?
   The recorder supports eight IP camera channels and includes eight built-in PoE ports. Each PoE port provides a direct network and power connection for one compatible camera, subject to the recorder’s total power budget and the individual camera load. This is an eight-channel recorder rather than an expandable sixteen-channel model, so choose a larger NVR when more than eight cameras may be required.
3. What is the PoE power budget of the NVR5208-8P-AI/ANZ?
   The eight 10/100 Mbps camera ports support IEEE 802.3af and IEEE 802.3at PoE, with a total PoE output budget of 130W and up to 25.5W available from a single port. Ports 1–8 also support ePoE. Add the maximum power requirements of all connected cameras, including infrared, white light, heaters or PTZ movement, to confirm that the complete installation remains within the available budget.
4. What AI functions can the recorder run without relying on camera-side AI?
   AI by Recorder supports face detection and recognition on up to two channels, perimeter protection on up to four channels and SMD Plus on up to eight channels. SMD Plus performs secondary filtering for people and motor vehicles to reduce alarms caused by rain, leaves and lighting changes. AI modes share processing resources, so the required combination and channel limits should be confirmed during system design.
5. What camera resolution and decoding load does this NVR support?
   The NVR accepts IP cameras with resolutions up to 32MP. With AI disabled, its maximum listed decoding capability includes two 32MP channels at 25fps or eight 8MP channels at 30fps. With AI enabled, the available decoding load is lower, including one 32MP channel at 25fps or six 8MP channels at 30fps. Display requirements, substreams and simultaneous playback should be planned around the selected camera mix.
6. Does the DHI-NVR5208-8P-AI/ANZ include hard drives?
   The recorder provides two SATA bays, with each compatible disk supporting up to 20TB under the stated operating conditions. Hard-drive inclusion has not been confirmed in the supplied product information, so storage should be selected separately unless the sales listing states otherwise. Buyers ordering through Security Wholesalers should confirm the installed capacity and calculate retention from the camera count, resolutions, frame rates, bitrates and recording schedule.
7. Can third-party IP cameras be connected?
   Yes. The recorder supports ONVIF Profiles S, G and T and lists third-party access for brands including Panasonic, Sony, Axis, Arecont, Pelco, Canon and Hanwha. Basic live view and recording may be available through ONVIF, but intelligent analytics, audio, alarm interfaces, configuration controls and firmware-specific functions can vary. Confirm the exact camera model and required features before relying on full cross-brand integration.
8. Is this NVR suitable for homes and commercial sites?
   Yes. The DHI-NVR5208-8P-AI/ANZ suits larger homes, shops, offices, warehouses, schools and other sites needing up to eight PoE cameras, two HDD bays and AI-assisted event review. Its 130W PoE budget and 384Mbps bandwidth provide considerable headroom for an eight-camera system. Choose a larger-channel or four-bay recorder when future expansion, longer retention, RAID or more than eight cameras is required.

Additional Information

Dahua DHI-NVR5208-8P-AIANZ Datasheet
