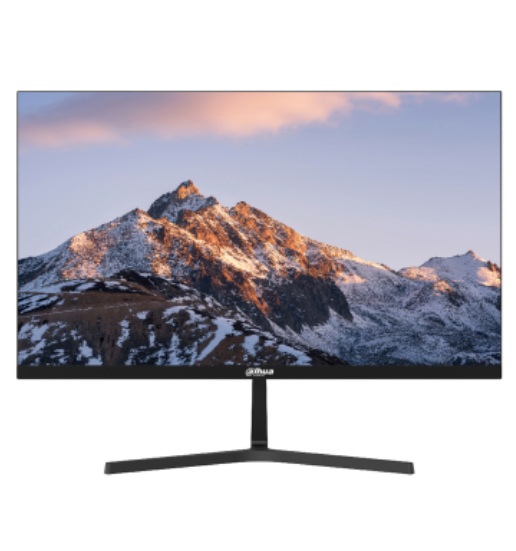

Dahua DHI-LM27-B200S 27 Inch FHD 1920×1080 VA Monitor with 100Hz HDMI VGA 2x1W Speakers 5ms Response

Product SKU: DHI-LM27-B200S

Product Overview

The Dahua DHI-LM27-B200S is a 27-inch Full HD monitor built around a VA panel with 1920 × 1080 resolution and a maximum refresh rate of 100 Hz. It is well suited to CCTV monitoring, office workstations, reception areas and general commercial display use where a larger desktop screen and straightforward HDMI or VGA connectivity are required. The 3000:1 contrast ratio, 178° horizontal and vertical viewing angles and 5 ms response time provide a practical balance between image visibility, motion handling and everyday usability. Integrated 1 W × 2 speakers reduce the need for separate basic audio hardware, while the ultra-narrow bezel, metal base and anti-blue-light design make the monitor a tidy option for longer monitoring sessions. It also supports a 75 × 75 mm wall-mount pattern for installations where desktop placement is not preferred.

Key Capabilities

Best For

• CCTV Monitoring: Suitable for viewing live and recorded surveillance footage from compatible HDMI or VGA-equipped recorders.
• Reception and Front Desk Use: The 27-inch screen, integrated speakers and wide viewing angles suit counters and shared commercial workstations.
• Office Workstations: Full HD resolution and a 100 Hz maximum refresh rate provide a practical everyday desktop display for office applications and general computing.
• Wall-Mounted Displays: A 75 × 75 mm mounting pattern allows the monitor to be installed off the desk when compatible wall-mount hardware is used.

Why Choose the DHI-LM27-B200S

The DHI-LM27-B200S is a practical choice for buyers who want a larger Full HD display without moving into a more complex or higher-resolution monitor than the installation requires. Its VA panel, 3000:1 contrast ratio, 178° viewing angles and 100 Hz maximum refresh rate give it a useful combination of screen size, visibility and smooth motion for everyday CCTV and commercial display use. Built-in speakers, HDMI and VGA inputs, an ultra-narrow bezel and a supplied metal base also reduce the amount of additional desktop equipment required. Available through Security Wholesalers, the monitor is particularly suitable where a straightforward 27-inch screen is needed for recorder monitoring, office applications or front-desk use, with the added option of 75 × 75 mm wall mounting.

Buyer Decision Tips

Key Features & Technical Specifications

Product Type	27-inch Full HD monitor.
Model	DHI-LM27-B200S.
Screen Size	27 inches.
Panel Type	VA.
Aspect Ratio	16:9.
Resolution	1920 × 1080 Full HD.
Backlight	LED.
Brightness	250 cd/m² maximum.
Contrast Ratio	3000:1.
Display Colour	16.7 million colours, 8-bit.
Viewing Angle	178° horizontal / 178° vertical.
Response Time	5 ms.
Refresh Rate	Up to 100 Hz.

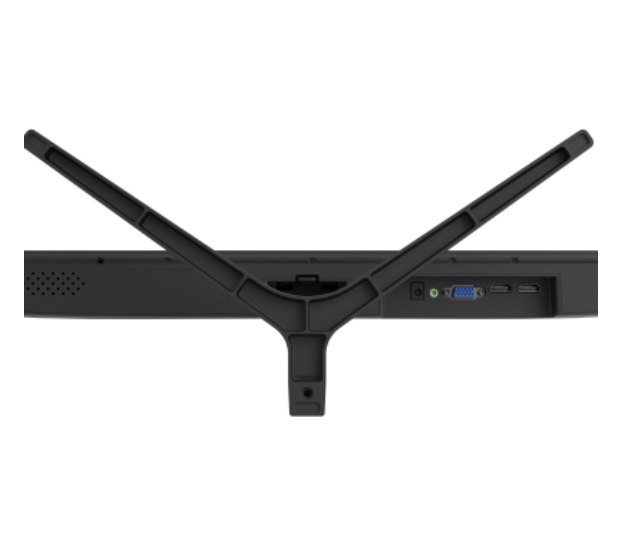

Video Inputs	1 × HDMI and 1 × VGA.
Video Output	None.
Speakers	2 × 1 W built-in speakers.
Anti-Blue-Light Design	Supported.
Controls	Physical button control.
Housing	Plastic housing with metal base.
Bezel Width	4.0 mm top/right/left and 16.1 mm bottom.

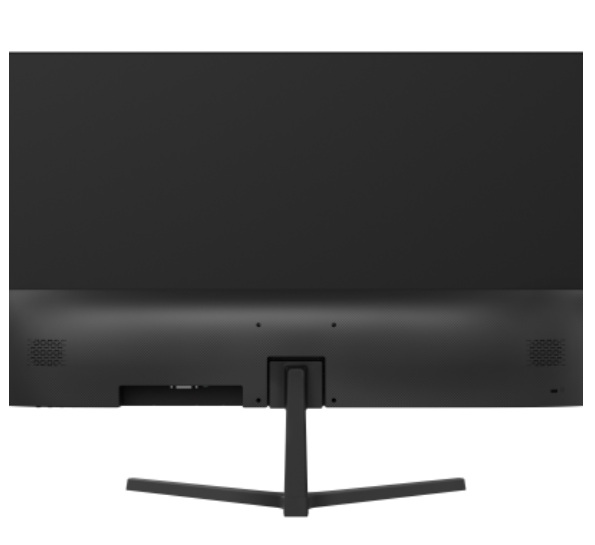

Wall Mount	75 × 75 mm mounting pattern.
Power Supply	12 VDC.
Standard Power Consumption	36 W.
Standby Consumption	≤0.5 W.
Net Weight	3.84 kg.
Operating Temperature	0 °C to 40 °C.
Operating Humidity	10%–85%.
Standard Accessories	HDMI cable, power adapter and base.
Certifications	CE and FCC.

Ideal Use Cases

Choosing the Right Model

• Choose this model if: You want a 27-inch 1920 × 1080 monitor with HDMI and VGA inputs, built-in speakers, a maximum 100 Hz refresh rate and a 75 × 75 mm wall-mount option.
• Choose a different model if: Your workstation specifically requires a native 4K resolution, a larger screen size, additional input types or another feature not confirmed for the DHI-LM27-B200S.

FAQs

1. What resolution and refresh rate does the Dahua DHI-LM27-B200S support?
   The Dahua DHI-LM27-B200S uses a 27-inch VA panel with a native 1920 × 1080 Full HD resolution and a maximum refresh rate of 100 Hz. This combination is useful for everyday CCTV monitoring, office work and general display use where smoother motion than a conventional 60 Hz screen is desirable. The connected source and selected input also need to support the required output resolution and refresh rate.
2. Is the Dahua DHI-LM27-B200S suitable for CCTV monitoring?
   Yes. The DHI-LM27-B200S is well suited to CCTV monitoring where a 27-inch Full HD display, wide viewing angles and HDMI or VGA connectivity are appropriate. Its VA panel provides a 3000:1 contrast ratio, while the 178° horizontal and vertical viewing angles help maintain visibility when the screen is viewed from different positions. Confirm that your recorder provides a compatible HDMI or VGA output before installation.
3. Does the DHI-LM27-B200S have built-in speakers?
   Yes. The DHI-LM27-B200S includes two built-in 1 W speakers, giving a total speaker configuration of 1 W × 2. This can be useful for basic audio playback without adding separate desktop speakers. The built-in speakers are best considered a convenient integrated audio option for monitoring and general use rather than a substitute for a dedicated higher-output sound system.
4. What video inputs are available on the DHI-LM27-B200S?
   The DHI-LM27-B200S provides one HDMI input and one VGA input. This allows connection to modern HDMI-equipped devices as well as compatible equipment that still uses analogue VGA video output. The monitor does not list a video output in the verified specification. For most current CCTV recorder or computer installations, HDMI will generally be the more straightforward connection when the source equipment provides it.
5. What are the viewing angle and response time of the DHI-LM27-B200S?
   The DHI-LM27-B200S has a specified viewing angle of 178° horizontally and 178° vertically, together with a 5 ms response time. The wide viewing angle is useful when several people may need to see the screen from different positions, while the 5 ms response specification supports responsive everyday video and monitoring use. These figures are useful when comparing it with smaller or more basic office displays.
6. Can the Dahua DHI-LM27-B200S be wall mounted?
   Yes. The DHI-LM27-B200S supports a 75 × 75 mm wall-mount pattern. This gives buyers the option of using the supplied base for desktop placement or planning a compatible wall-mount installation. The mounting bracket itself is not listed as a standard supplied accessory, so buyers who need wall mounting should select suitable mounting hardware separately and confirm that it matches the 75 × 75 mm mounting pattern.
7. What is included as standard with the DHI-LM27-B200S?
   The verified datasheet lists an HDMI cable, power adapter and base as standard accessories with the DHI-LM27-B200S. This covers the basic items needed for a conventional desktop HDMI setup, subject to the connected source device and installation requirements. When purchasing through Security Wholesalers, check whether your intended setup will use the supplied base or require separate 75 × 75 mm wall-mount hardware.
8. Does the DHI-LM27-B200S include an anti-blue-light feature?
   Yes. Dahua lists an anti-blue-light design among the DHI-LM27-B200S features. This is intended to provide a more eye-conscious viewing option for extended screen use. The monitor also uses physical button controls for its settings. Buyers choosing a display for long monitoring sessions should still consider suitable screen positioning, ambient lighting and viewing distance as part of the overall workstation setup.
