Dahua DHI-KTP01L(S) IP Video Intercom Kit with 2MP Door Station, 7-Inch Monitor & PoE Switch

Product SKU: DHI-KTP01L(S)

Product Overview

The Dahua DHI-KTP01L(S)-AUS is a complete IP video intercom kit for homes, small offices, clinics and other premises that need visual visitor identification, two-way communication and remote door release at a primary entrance. The kit combines a 2MP outdoor villa door station, a 7-inch indoor touchscreen monitor and a four-port PoE switch, allowing the main devices to communicate and receive power over compatible network cabling. The door station provides a very wide 168.6° horizontal field of view, auto infrared illumination, 120dB WDR and IP65 weather protection, while the indoor monitor provides a 1024 × 600 capacitive touchscreen for answering calls and viewing connected devices. Mobile app access, lock control, visitor-message support and provision for additional indoor monitors make the kit suitable for straightforward installations that may need future expansion.

System Capabilities

Best For

• Homes and Townhouses: Provides visual visitor identification, two-way conversation and remote entrance release at a primary doorway or gate.
• Small Offices and Clinics: Allows reception staff or occupants to screen visitors before granting access.
• Renovations and New Builds: PoE connectivity supports a structured network-cabling approach without requiring a separate power adapter at each main device.
• Covered Outdoor Entrances: The IP65 and IK07 door station suits surface-mounted entry points when it is installed and sealed correctly.
• Expandable Villa Intercom Systems: The indoor monitor supports additional extensions where a larger compatible layout is planned.

Why Choose This Kit

The DHI-KTP01L(S)-AUS brings the key components of an IP entrance intercom into one coordinated package, reducing the need to source the outdoor station, touchscreen monitor and PoE switch separately. Its wide-angle 2MP camera is well suited to visitors standing close to the doorway, while the 7-inch monitor provides a simple indoor answering point for calls, live viewing and door release. Mobile access adds flexibility when occupants are away from the monitor, and the available lock, exit-button, door-contact and alarm interfaces support a more complete entrance-control arrangement. Supplied through Security Wholesalers, this kit is a practical starting point for a single entrance where reliable video communication and future monitor expansion are more important than apartment-scale management functions.

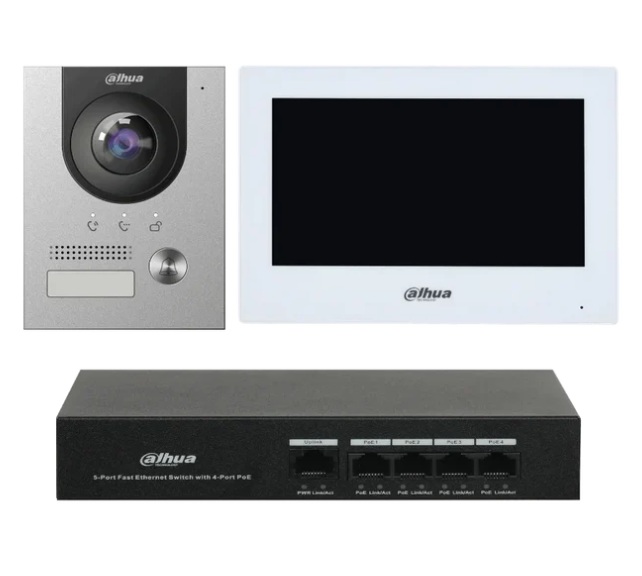

Package Inclusions

• 1 x 2MP IP Villa Door Station – Wide-angle camera, two-way audio, lock control, IP65 and IK07
• 1 x 7-Inch IP Indoor Monitor – 1024 × 600 capacitive touchscreen with two-way audio
• 1 x 4-Port PoE Switch – 4 × 10/100Mbps PoE ports and 2 × 10/100Mbps uplink ports
• 1 x Surface-Mount Box for the Door Station
• 1 x Indoor Monitor Bracket and Alarm Ribbon Cable

Buyer Decision Tips

Key Features & Technical Specifications

Kit Type	IP video intercom kit with outdoor door station, indoor monitor and PoE switch.
Door Station Camera	1/2.9-inch 2MP CMOS sensor.
Door Station Field of View	168.6° horizontal, 87.1° vertical and 176.7° diagonal.
Image Enhancement	120dB WDR, 3D noise reduction, auto infrared and automatic day or night switching.
Video Compression	H.265 and H.264.
Video Frame Rate	Up to 25fps.
Audio	Two-way audio with built-in speakers, echo suppression and digital noise reduction.
Remote Access	Mobile app communication and remote door release when correctly networked and configured.
Door Control Interfaces	1 lock control, 1 exit-button input and 1 door-status detection input.
Door Station Alarm and Power	1 alarm output and 1 × 12V, 600mA power output.
Door Station Storage	Supports a microSD card up to 256GB.
Door Station Protection	IP65 and IK07; silicone sealing is required for the shell.
Door Station Installation	Surface mount with included surface-mount box.
Door Station Operating Range	-30°C to +60°C.
Indoor Monitor	7-inch TFT capacitive touchscreen.
Monitor Resolution	1024 × 600.
Monitor Alarm Connections	6 alarm inputs and 1 alarm output.
Monitor Extensions	Supports up to 9 extensions in a villa configuration or 4 in an apartment configuration.
PoE Switch Ports	4 × 10/100Mbps PoE ports and 2 × 10/100Mbps uplink ports.
PoE Switch Power	Built-in 100–240V AC power supply; 0.5W idle and up to 36W at full load.
Door Station Dimensions	130 × 96 × 28.5mm.
Indoor Monitor Dimensions	189.6 × 134.6 × 26.0mm.
PoE Switch Dimensions	194.0 × 108.1 × 35.0mm.

Recommended Use

Choosing the Right Kit

• Choose this kit if: You need one outdoor entrance, one 7-inch indoor monitor, PoE connectivity, two-way audio and remote unlocking.
• Choose a multi-button or apartment system if: Several independent residences or tenants need separate call destinations.
• Choose a larger PoE switch if: Additional monitors, IP cameras or network devices will exceed the four available PoE ports.
• Add microSD storage if: Visitor video messages or local event storage are required at the door station.
• Confirm the lock design if: The entrance uses high-current, fail-safe, fail-secure or other specialised electric-lock hardware.

FAQs

1. Is the DHI-KTP01L(S)-AUS suitable for a single home or small office entrance?
   Yes. The DHI-KTP01L(S)-AUS is designed as a compact IP video intercom kit for a primary entrance where visitors need to call an indoor station and speak with an occupant before access is granted. Its 2MP outdoor door station, 7-inch touchscreen monitor and included PoE switch suit homes, small offices, clinics and similar premises with a straightforward entrance-control requirement.
2. What can the 2MP door station show?
   The outdoor door station uses a 1/2.9-inch 2MP CMOS sensor with a 168.6° horizontal, 87.1° vertical and 176.7° diagonal field of view. This very wide view is useful for seeing visitors standing close to the entrance. Auto infrared, day and night switching, 120dB WDR and 3D noise reduction help the station handle changing light around covered entryways.
3. Does the kit support two-way audio and remote unlocking?
   Yes. Both the door station and indoor monitor support two-way audio with built-in speakers, echo suppression and digital noise reduction. The system supports remote unlocking, and the door station can be used through the mobile app to speak with a visitor or release the connected door remotely. Actual unlocking requires compatible lock hardware, correct wiring, network access and authorised configuration.
4. Can the door station be installed outdoors?
   Yes. The villa door station is rated IP65 and IK07 and operates from -30°C to +60°C. It is intended for surface mounting and includes a surface-mount box. The IP65 rating requires silicone sealant around the shell as directed in the installation guide, so correct weather sealing and cable-entry treatment are important for exposed Australian entrances.
5. What does the included PoE switch provide?
   The included network device provides four 10/100Mbps PoE ports and two 10/100Mbps uplink ports. It has a built-in 100–240V AC power supply and is rated for up to 36W at full load. The switch can power the compatible door station and indoor monitor over network cabling, reducing the need for separate local power adapters at those locations.
6. Can the system record visitor messages or events?
   The door station supports a microSD card up to 256GB, and the kit supports leaving video messages when suitable storage is installed and configured. Storage is not built into the indoor monitor. Recording behaviour depends on the selected storage arrangement, system configuration and available capacity, so a compatible microSD card should be planned when visitor-message storage is required.
7. Can additional indoor monitors be added later?
   The indoor monitor specification supports extensions, with up to nine in a villa configuration and four in an apartment configuration. Expansion still depends on compatible Dahua devices, network design, PoE capacity and correct programming. Buyers purchasing through Security Wholesalers should confirm the intended number of monitors and the required switch capacity before finalising a larger intercom layout.
8. What should be allowed for beyond the listed kit components?
   Allow for suitable Cat5e or better network cabling, compatible electric-lock hardware, exit-button or door-contact hardware where required, and normal installation consumables. The door station provides lock control, one exit-button input, one door-status input, one alarm output and a 12V, 600mA power output, but the final access-control arrangement must be designed around the selected lock and site requirements.

Additional Information

Dahua_DHI-KTP01L-S_Datasheet
