The Dahua DHI-ARM310-W2 Wireless Input Expander is a device designed to integrate wired sensors into a wireless alarm system. It supports multiple alarm types including intrusion, medical, fire, gas, and tamper alarms. The expander offers a wide communication range of up to 1,000 meters in open spaces, ensuring stable transmission using two-way communication and frequency hopping technologies. It is equipped with features like signal strength detection, low battery alarms, and temperature monitoring. The expander operates on a CR123A battery, offering a battery life of up to four years depending on the setup, and it is configured through the DMSS app for iOS and Android​.

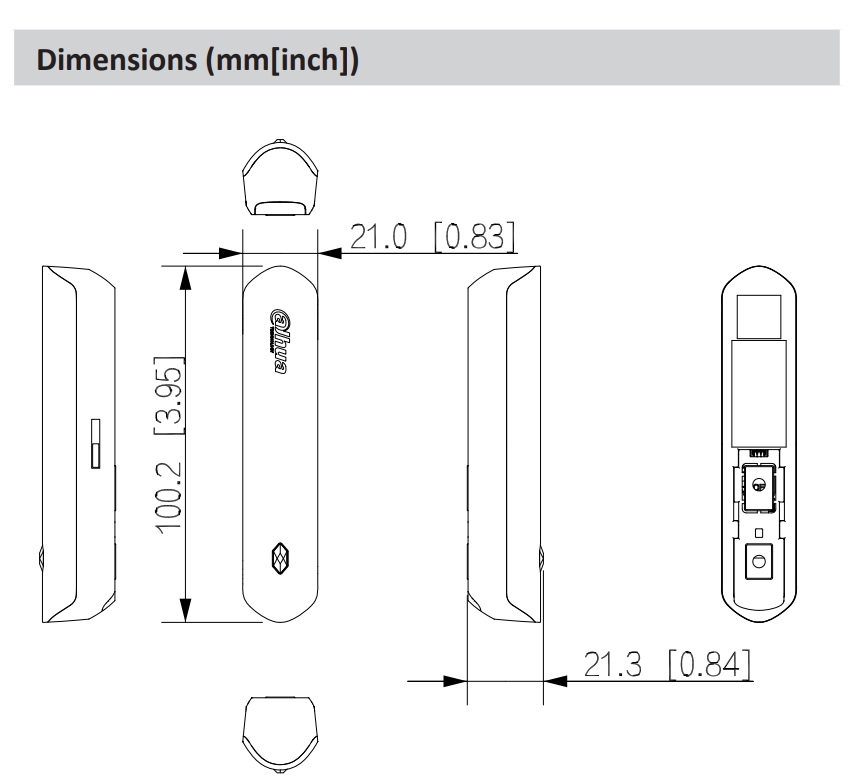

Dimension

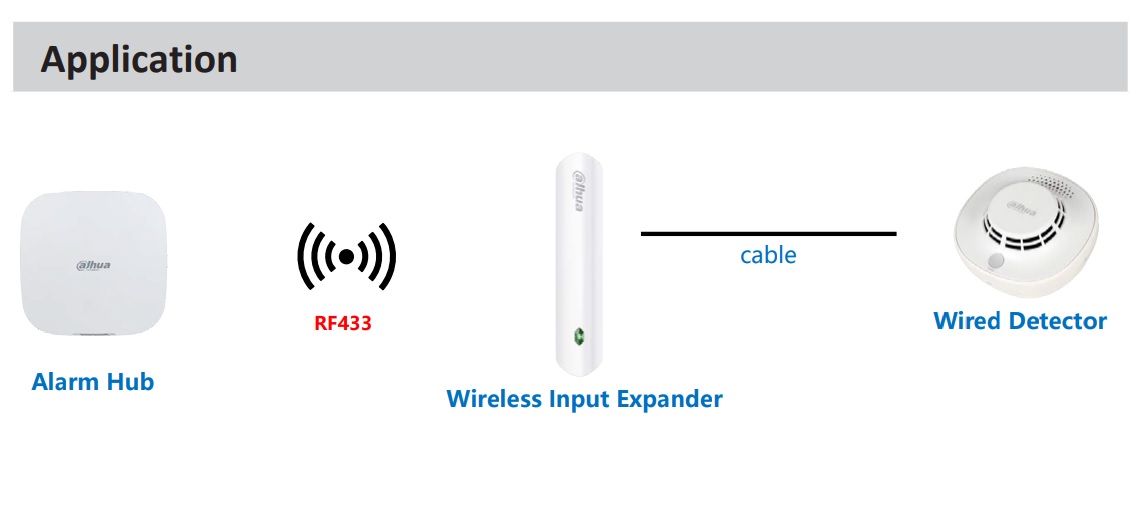

Application

Technical Specifications
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Indicator Light | 1 × green alarm indicator | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Button | 1 × power button | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection Zone | 1-channel dry contact input | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tampering Alarm | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remote Upgrade | Cloud update | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Low Battery Alarm | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Test Mode | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Search | Signal strength detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wireless | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Carrier Frequency | 433.1 MHz–434.6 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Distance | Up to 1,000 m (3,280.84 ft) in an open space | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Mechanism | Two-way | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency Hopping | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Encryption Mode | AES128 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply Mode | CR123A battery | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Max. 70 mW | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 10%–90% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 100.2mm × 20.8mm × 20.3mm (3.94″ × 0.82″ ×0.80″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package Dimensions | 135.0 mm × 98.5 mm × 27.8mm (5.31″ × 3.88″ × 1.09″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation Mode | Bracket mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 70 g (0.15 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 115 g (0.25 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | CE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Battery Life | 4 years (The external input type is NO) 2 years (The external input type is NC or Pulse) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing Material | PC + ABS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Measurement Range | –15 °C to +65 °C (+5 °F to +149 °F) (indoor) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Measurement Precision | ±1 °C (±1.8 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 1 °C (33.8 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
