Dahua 8MP+4MP Panoramic & PTZ Camera | 10× Starlight | Active Deterrence | AI Perimeter Protection | IP66 Weatherproof

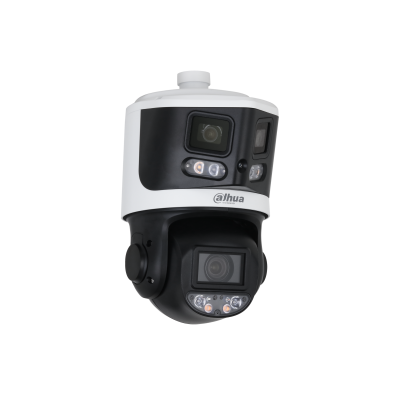

The Dahua DH-SDT3E410-8P-MB-A-PV1 is a high-performance dual-lens panoramic and PTZ network camera combining an 8MP wide-angle lens with a 4MP 10× optical zoom PTZ lens for comprehensive coverage and detailed close-up capture in a single unit. Built-in active deterrence features — including a siren and flashing red/blue warning lights — respond to intrusions in real time, while AI-powered perimeter protection filters false alarms to keep alerts meaningful. Starlight night vision ensures full-colour low-light performance around the clock, and PoE support simplifies installation to a single cable. Available through Security Wholesalers, this camera suits residential, commercial, and industrial applications.
Key Features
Dual-Lens Design: 8MP fixed wide-angle lens combined with a 4MP PTZ lens delivers panoramic overview and zoomed detail simultaneously.
10× Optical Zoom: Inspect distant targets without sacrificing image clarity, ideal for large open areas and perimeter monitoring.
Smart Auto-Tracking: Automatically follows moving subjects with precision, reducing the need for manual PTZ control.
Active Deterrence: Integrated siren and flashing red/blue warning lights trigger on detection to deter intruders in real time.
AI Perimeter Protection: Detects human and vehicle movement while filtering irrelevant motion to minimise false alarms.
Starlight Night Vision: Enhanced low-light sensor delivers colour footage in near-darkness for reliable 24/7 surveillance.
The Dahua DH-SDT3E410-8P-MB-A-PV1 is a professional-grade dual-lens PTZ network camera that combines an 8MP panoramic overview lens with a 4MP 30× optical zoom detail camera in a single robust housing. Engineered for high-security outdoor environments, this camera delivers AI-powered perimeter protection with human and vehicle classification, smart auto-tracking, and active deterrence via built-in red and blue warning lights and a siren. Starlight technology ensures vivid colour imaging in low-light conditions, while infrared night vision extends visibility up to 150 metres. With IP67 weatherproofing, IK10 vandal resistance, PoE+ connectivity, and full compatibility with Dahua NVRs and ONVIF systems, this camera is suited to industrial sites, commercial properties, gated communities, and public venues where intelligent, proactive security is essential.
Key Capabilities
Dual-Lens 8MP + 4MP System
Combines a fixed 8MP panoramic lens for wide-area coverage with a 4MP PTZ lens offering 30× optical zoom, allowing operators to simultaneously monitor broad scenes and inspect fine detail without switching cameras.
30× Optical Zoom with Smart Auto-Tracking
The 30× optical zoom paired with intelligent auto-tracking keeps moving subjects in frame automatically, reducing the need for manual PTZ control and ensuring critical events are captured clearly across large distances.
Active Deterrence
Built-in red and blue flashing warning lights combined with a loud siren activate upon intrusion detection, providing an immediate on-site deterrent that can stop unwanted activity before it escalates to an incident.
AI Perimeter Protection
Advanced AI analytics classify humans and vehicles separately, significantly reducing false alarms triggered by animals or environmental movement, so monitoring teams receive accurate, actionable alerts focused on genuine threats.
Starlight Night Vision up to 150m IR
Starlight technology delivers full-colour imaging in extremely low-light conditions, while the infrared illuminator extends night vision up to 150 metres, ensuring continuous 24/7 surveillance even in complete darkness.
IP67 & IK10 Rugged Build with PoE+
Rated IP67 for full weatherproofing and IK10 for vandal resistance, this camera is built for demanding outdoor deployments. PoE+ support simplifies installation by delivering power and data over a single Ethernet cable.
Best For
Industrial & Warehouse Sites: The dual-lens system monitors wide facility grounds while the 30× zoom pinpoints activity at perimeter fences, loading docks, or access points with precision.
Gated Communities & Estates: AI perimeter protection and active deterrence respond to intrusions proactively, providing residents with a visible and audible security presence around large grounds.
Commercial Car Parks & Retail Centres: Auto-tracking follows vehicles and pedestrians across open areas while the built-in siren discourages loitering, theft, or anti-social behaviour in real time.
Public Venues & Civic Infrastructure: Long-range DORI performance with a detect distance of up to 1520 metres makes this camera suitable for monitoring open spaces, plazas, and transport hubs.
High-Value Asset Protection: On-site deterrence combined with two-way audio and local MicroSD storage up to 512GB ensures evidence capture even if network connectivity is interrupted.
Why Choose the DH-SDT3E410-8P-MB-A-PV1
Standard PTZ cameras offer zoom and pan capabilities, but they cannot simultaneously deliver a wide-area overview and focused detail in a single unit. The DH-SDT3E410-8P-MB-A-PV1 solves this by pairing an 8MP panoramic lens with a 4MP 30× optical zoom PTZ lens — meaning no scene context is lost while the PTZ tracks a subject. Add to that the active deterrence system, which goes beyond passive recording to physically discourage intruders with flashing lights and a siren, and this camera delivers a level of proactive security that basic CCTV simply cannot match. The Starlight sensor and 150m IR capability ensure reliable night performance across large areas, while AI classification keeps alert fatigue to a minimum by filtering genuine threats from environmental noise. Available through Security Wholesalers, this model is a strong investment for anyone requiring intelligent, all-in-one surveillance with minimal infrastructure.
Buyer Decision Tips
Buyer Tip: This camera requires PoE+ (802.3at) rather than standard PoE (802.3af). Confirm that your network switch or injector supports PoE+ before purchasing to avoid power delivery issues during installation.
Buyer Tip: To get the most from the AI auto-tracking and active deterrence features, professional installation and configuration is strongly recommended. Correctly setting detection zones and sensitivity thresholds will minimise false triggers and ensure the siren and warning lights activate only when appropriate.
Key Features & Technical Specifications
Overview Camera Resolution
8MP — 3840 × 2160
Detail Camera Resolution
4MP — 2560 × 1440
Overview Image Sensor
1/1.8″ Progressive Scan CMOS
Detail Image Sensor
1/2.8″ CMOS
Optical Zoom
30×
Digital Zoom
16×
Focal Length (Detail Lens)
4.5–135mm
Pan Range
360° endless pan
Tilt Range
-15° to 90°
IR Range
Up to 150 metres
Low-Light Technology
Starlight colour imaging + warm light
DORI — Detect / Recognise / Identify
1520m / 608m / 304m (zoom lens)
Active Deterrence
Red/blue flashing warning lights + built-in siren
Audio
Two-way — built-in microphone and loudspeaker
Video Compression
H.265, H.264
Alarm I/O
2 input, 1 output
Local Storage
MicroSD slot, up to 512GB
Network Protocols
Ethernet, ONVIF, HTTP, HTTPS, FTP, RTSP
Power
PoE+ (802.3at) / DC 24V
Ingress Protection
IP67 weatherproof, IK10 vandal-resistant
Ideal Use Cases
Industrial Facilities & Warehouses
The dual-lens design simultaneously oversees entire warehouse floors or yard areas while the 30× zoom PTZ tracks specific incidents, making it ideal for large industrial properties with multiple zones to monitor.
Gated Estates & Residential Communities
Active deterrence with flashing lights and a siren provides a visible security presence at entry points and perimeter boundaries, offering residents proactive protection rather than passive recording alone.
Commercial Car Parks
Auto-tracking follows vehicles and pedestrians across open parking areas while the AI classification system distinguishes genuine threats from ordinary traffic, reducing unnecessary alerts for security personnel.
Public Spaces & Transport Hubs
With a detection range of up to 1520 metres on the zoom lens, this camera is well suited to monitoring open plazas, parks, station forecourts, and other large public areas requiring long-range situational awareness.
Retail Centres & Shopping Precincts
AI perimeter protection triggers real-time deterrents when suspicious behaviour is detected, helping loss prevention teams respond faster while the 8MP overview lens maintains continuous coverage of the entire retail environment.
Choosing the Right Model
Choose this model if: You need a single camera that delivers both wide-area panoramic overview and long-range PTZ detail, combined with active deterrence, AI perimeter protection, and Starlight night vision for a high-security outdoor application.
Choose a different model if: Your site only requires fixed wide-angle coverage without the need for optical zoom, auto-tracking, or active deterrence — in which case a standard fixed IP camera would be more cost-effective.
FAQs
What is the difference between the 8MP and 4MP lenses on this camera? The 8MP lens is a fixed wide-angle panoramic camera that continuously monitors the full scene. The 4MP lens is the PTZ component with 30× optical zoom, used for tracking subjects or inspecting distant detail. Both operate simultaneously within the same housing, giving you context and close-up detail at the same time.
How far can the IR night vision reach on this camera? The infrared illuminator on the DH-SDT3E410-8P-MB-A-PV1 provides night vision up to 150 metres. In addition, Starlight technology allows the sensor to capture usable colour footage in very low ambient light conditions before the IR activates, meaning night footage is often more detailed than standard IR-only cameras produce.
Does the active deterrence system activate automatically? Yes. When the AI perimeter protection detects a human or vehicle entering a defined zone, the camera can automatically trigger the red and blue flashing warning lights and the built-in siren. The sensitivity and detection zones are configurable during setup, which is why professional installation is recommended to ensure the deterrence activates correctly.
What power supply does this camera require? The DH-SDT3E410-8P-MB-A-PV1 supports PoE+ (802.3at) or DC 24V power. It is important to confirm your network switch or PoE injector supports the PoE+ standard, as standard PoE (802.3af) may not supply sufficient power for all features to operate correctly.
Can this camera record locally without an NVR? Yes. The camera includes a MicroSD card slot supporting cards up to 512GB, allowing local on-camera recording independent of a network video recorder. This provides a useful backup if network connectivity is lost, ensuring footage is still captured during an event.
Is this camera compatible with third-party NVRs? The DH-SDT3E410-8P-MB-A-PV1 supports ONVIF, making it compatible with many third-party NVR systems. However, advanced AI features such as auto-tracking, active deterrence triggers, and perimeter protection analytics are best accessed through Dahua-compatible recorders or management software such as Smart PSS or DSS Express.
Where can I purchase the DH-SDT3E410-8P-MB-A-PV1 in Australia? This camera is available through Security Wholesalers, an Australian supplier of professional CCTV and security equipment. The datasheet is also available for download to assist with pre-installation planning and system design.
What is the DORI performance of this camera? Using the 30× zoom detail lens, the DH-SDT3E410-8P-MB-A-PV1 achieves a detect distance of up to 1520 metres, a recognise distance of 608 metres, and an identify distance of 304 metres. These figures make it suitable for long-range perimeter surveillance at large sites such as airports, industrial parks, and public venues.
All Dahua IP cameras and recording devices (NVRs/DVRs) are covered by a
3-year back-to-base manufacturer warranty.
Note: Disk drives are limited to a 3-year warranty.
Our warranty is limited to the replacement of faulty items or parts
and does not include damage caused by incorrect fitting of parts or accessories.
(a) Australian Consumer Law (ACL)
Certain legislation, including the Australian Consumer Law (ACL) in the Competition and Consumer Act 2010 (Cth), and similar consumer protection
laws and regulations may confer you with rights, warranties, guarantees, and remedies
relating to the provision of goods or services to you by us via the Site which cannot
be excluded, restricted, or modified. Our liability is governed solely by the ACL and
these Terms.
(b) Goods
If you are a consumer as defined in the ACL, the following notice applies to you:
“Our goods come with warranties and guarantees that cannot be excluded under the
Australian Consumer Law (Consumer Guarantees). You are entitled to a replacement or
a refund for a major failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major
failure.”
(c) Our Warranties
To the extent permitted by law, we exclude all express and implied warranties,
and all material and work is provided to you without warranties of any kind,
either express or implied. We expressly disclaim all warranties including but
not limited to implied warranties of merchantability and fitness for a particular
purpose.
(d) Manufacturer Warranties
Certain products, including particular models of IP security cameras and DVR/NVR
equipment, may come with a manufacturer’s warranty. The manufacturer’s warranty is
in addition to but may overlap with any rights and remedies you may have under
applicable law, including any Consumer Guarantees. If you are not considered a
“consumer” within the meaning of the ACL, the manufacturer’s warranty may be your
sole remedy. Many manufacturers’ warranties do not apply in a business or commercial
setting. Please contact the manufacturer if you would like to make a claim under
the manufacturer’s warranty.
(e) Repair, Replacement, or a Refund
If you wish to seek repair, replacement, or a refund for a product, please
contact us and we will explain the requirements to you. This may include you
providing evidence of the faulty product to us.
(f) Refund
You are not entitled to a refund for change of mind. If you are entitled to a
refund, we will only provide it once evidence of the faulty product is received
by us, or once we have received the product at our warehouse and inspected it
to assess whether it is eligible for a refund under these Terms. Any refund we
make will be by the same payment method used to purchase the product.
(g) Installed Products
Subject to this clause, we will not accept for return any product that has been
used, connected, installed, attempted to be connected or installed, or if your
product is custom-made or is a special buy product.
(h) Packaging
You must adequately package any product you are returning for our collection
to ensure that it is not damaged during return delivery to our warehouse. You
are also responsible for arranging the return delivery and the costs involved.
(i) Duty of Care
You have a duty of care for the product while it is in your possession. If
you damage products and then subsequently return them, you may be liable to pay
to repair the product to its original condition. In these circumstances, where
a repair is not economically viable, no refund will be made.
Everything you need to choose the right Dahua TiOC camera for your needs.
1. What is Dahua TiOC?
Dahua’s TiOC (Three-in-One Camera) series combines full-colour imaging, active deterrence, and advanced AI analytics. This all-in-one solution delivers 24/7 colour monitoring, proactive security through strobe lights and sirens, and intelligent detection of humans and vehicles, significantly reducing false alarms.
2. Key Benefits of Dahua TiOC
Full-Colour Imaging: Captures vivid colour footage around the clock, even in low-light environments without relying solely on infrared.
Active Deterrence: Built-in strobe lights and sirens help deter intruders in real time.
AI-Powered Analytics: Detects and differentiates between people and vehicles, improving detection accuracy and reducing false alerts.
Integrated Design: Combines multiple capabilities into a single camera, making installation and monitoring more efficient.
3. Recommended Use Cases
Residential driveways and front doors
Retail shops and entryways
Warehouse loading docks
Commercial office corridors
Public parks, carparks and shared spaces
4. Types of Dahua TiOC Cameras
Turret: Compact and flexible; ideal for both indoor and outdoor settings.
Dome: Vandal-resistant and discreet; great for public-facing areas.
Bullet: Offers extended range for perimeter and driveway surveillance.
PTZ: Remote-controlled panning, tilting, and zooming for wide-area coverage.
Mini Cameras: Suitable for discreet indoor coverage in narrow spaces.
Also available: AcuSense, Live Guard, 4K resolution, dual-lens panoramic, and more.
5. Choose by Resolution
2MP (1080p): Suitable for basic surveillance and general observation.
4MP (2K): Enhanced clarity ideal for recognising faces and vehicles.
6MP: Balanced resolution for larger areas without excessive bandwidth usage.
8MP (4K): High-detail imaging for premium security coverage.
6. Choose by Smart Features
Built-in Microphone: Records audio alongside video for better context.
Built-in Speaker: Enables two-way communication and verbal warnings.
Strobe Light + Siren: Alerts intruders with both visual and audio deterrents.
Smart Motion Detection: Detects people and vehicles intelligently using AI.
AI / Deep Learning: Reduces false alarms and improves detection accuracy using advanced analytics.
7. Choosing by Environment
Location
Recommended Camera Type
Reason
Front Door
Turret with Mic
Compact with audio for clear visitor recording
Driveway
Bullet 4MP or 8MP
Long-range view for vehicles and movement
Retail Store
Dome 2MP or 4MP
Discreet and vandal-resistant in busy areas
Warehouse Loading Dock
Bullet with AI
Wide coverage with accurate motion detection
Office Corridor
Mini or Turret
Ideal for hallway visibility and minimal intrusion
8. Installation Tips
Use PoE (Power over Ethernet) to simplify wiring and minimise setup time.
Position cameras away from reflective surfaces to avoid glare or false triggers.
Mount at eye level or slightly above for optimal angle and image quality.
Adjust the camera’s field of view to ensure full coverage of entry points.
Engage a licensed installer to ensure proper setup and compliance with Australian regulations.
