Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way. Together with infrared illumination and Starlight technology, the camera is the perfect solution for dark, low light applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day and True WDR for applications with direct sunlight or glare.

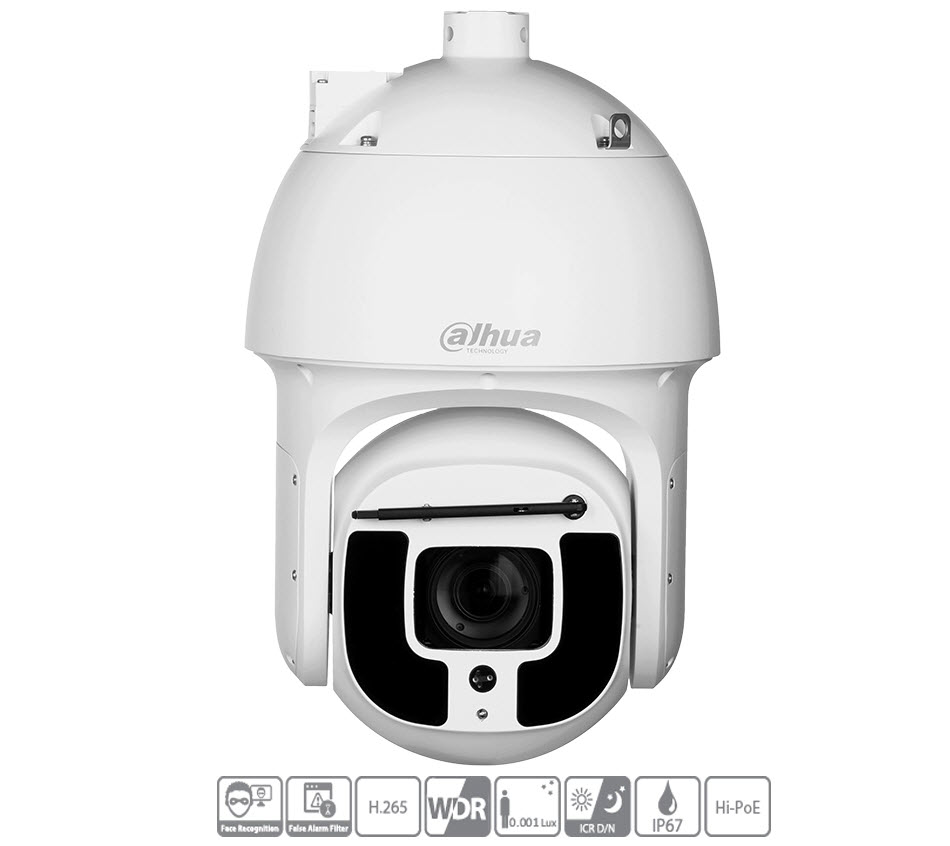

The complete line up of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and more devices. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way. This camera possesses a wide monitor range, PFA algorithm that can always present a clear, focused image while zooming, and smart wiper technology that supported by RainSensor. Dahua PTZ AI network camera adopts advanced CNN deep learning algorithms to support face recognition with high accuracy.
- 1/1.8” 8Megapixel STARVIS™ CMOS
- Powerful 40x optical zoom
- Starlight technology
- IR distance up to 500m
- Support face recognition
- Deep-learning-based auto tracking and perimeter protection
- Support metadata
- Support Hi-PoE
- Smart wiper
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.001 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Once facial features are extracted from captured faces, they are stored in a database where they can be easily searched and compared against other images. Once a successful match is found, the system outputs the result. The Dahua Face Recognition camera supports a built-in database that stores up to 10,000 facial images, helping the camera achieve real-time face capture and comparison.
Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables the system to act secondary recognition for the targets. Improving alarm accuracy
Metadata is feature attribute information extracted from a target object which can be used for data retrieval. There are four kinds of metadata supported by Dahua PTZ AI camera: the human face, human body, motor vehicle, and non-motor vehicle metadata. Facial information includes gender, age, glasses, masks, beards, etc. Human body information includes a hat, top, top color, bottom, bottom color, bag, etc. Motor vehicle information includes plate color, type, vehicle color, sun-shield, ornament, calling, seatbelt, smoking, annual inspection sticker, etc. Non-motor vehicle information includes type, color, top type, top color, people number, etc.
PFA technology has innovatively introduced new methods of judgment to ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms. PFA ensures clarity of the image throughout the process of zooming and shortens focus time. The realization of PFA technology substantially improves user experience and increases product value.
Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with 95% humidity. Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.
The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 8KV lightning rating provides effective protection for both the camera and its structure against lightning.
The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.
|Image Sensor||1/1.8” STARVIS™ CMOS|
|Effective Pixels||3840(H) x 2160(V), 8 Megapixels|
|Electronic Shutter Speed||1/1s~1/30,000s|
|Minimum Illumination||Color: 0.002Lux@F1.4; B/W: 0.0002Lux@F1.4;
0Lux@F1.4 (IR on)
|IR Distance||Distance up to 500m|
|IR On/Off Control||Auto/Manual|
|Max. Aperture||F1.4~ F4.8|
|Angle of View||H: 63.9° ~ 2.0°; V: 37.2° ~ 1.2° ; D: 71.2° ~ 2.4°|
|Close Focus Distance||100mm~ 1000mm|
|Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.|
|Pan/Tilt Range||Pan: 0° ~ 360° endless; Tilt: -30° ~ 90°,auto flip 180°|
|Manual Control Speed||Pan: 0.1° ~240° /s; Tilt: 0.1° ~100° /s|
|Preset Speed||Pan: 240° /s; Tilt: 120° /s|
|PTZ Mode||5 Pattern, 8 Tour(up to 32 preset per tour), Auto Pan, 5 Auto Scan|
|Speed Setup||Human-oriented focal Length/ speed adaptation|
|Power up Action||Auto restore to previous PTZ and lens status after power failure|
|Idle Motion||Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period|
|Protocol||DH-SD, Pelco-P/D (Auto-recognition)|
|Perimeter Protection||Tripwire, Intrusion.
Support alarm triggering by target types(human and vehicle)
Filtering out false alarms caused by animals, rustling leaves, bright lights, etc
|Metadata||Support the human body, human face, motor vehicle, and non-motor vehicle image capture and attributes extraction|
|Event Trigger||Motion detection, Video tampering, Scene
changing, Network disconnection, IP address
conflict, Illegal Access, Storage anomaly
|General Intelligence||Object Abandoned/Missing|
|Streaming Capability||3 Streams|
|Frame Rate||Mainstream: 4K(1~25/30fps), 1080P/1.3M/720P (1~25/30fps)|
|Sub stream1: D1/CIF(1 ~ 25/30fps)|
|Sub stream2: 1080P/1.3M/720P(1 ~ 25/30fps)|
|Bit Rate Control||CBR/VBR|
|Bit Rate||H.265/H.264: 512K ~ 8192Kbps|
|Day/Night||Auto(ICR) / Color / B/W|
|Backlight Compensation||BLC / HLC / WDR(120dB)|
|White Balance||Auto, ATW, Indoor, Outdoor, Manual|
|Gain Control||Auto / Manual|
|Noise Reduction||Ultra DNR (2D/3D)|
|Region of Interest||Support|
|Electronic Image Stabilization (EIS)||Support|
|Privacy Masking||Up to 24 areas|
|Protocol||IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
|Interoperability||ONVIF Profile S&G, API|
|Streaming Method||Unicast / Multicast|
|Max. User Access||20 users|
|Edge Storage||NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 256GB|
|Web Viewer||IE, Chrome, Firefox, Safari|
|Management Software||Smart PSS, DSS, DMSS|
|Smart Phone||IOS, Android|
FCC: Part15 Subpart B,ANSI C63.4- 2014
|Video Interface||1 port(BNC, 1.0V[p-p], 75Ω)|
|Power Supply||AC24V/3A(±25%), Hi-PoE|
|Power Consumption||26W, 42W (Heater on, IR on)|
|Operating Conditions||-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH|
