Product Overview

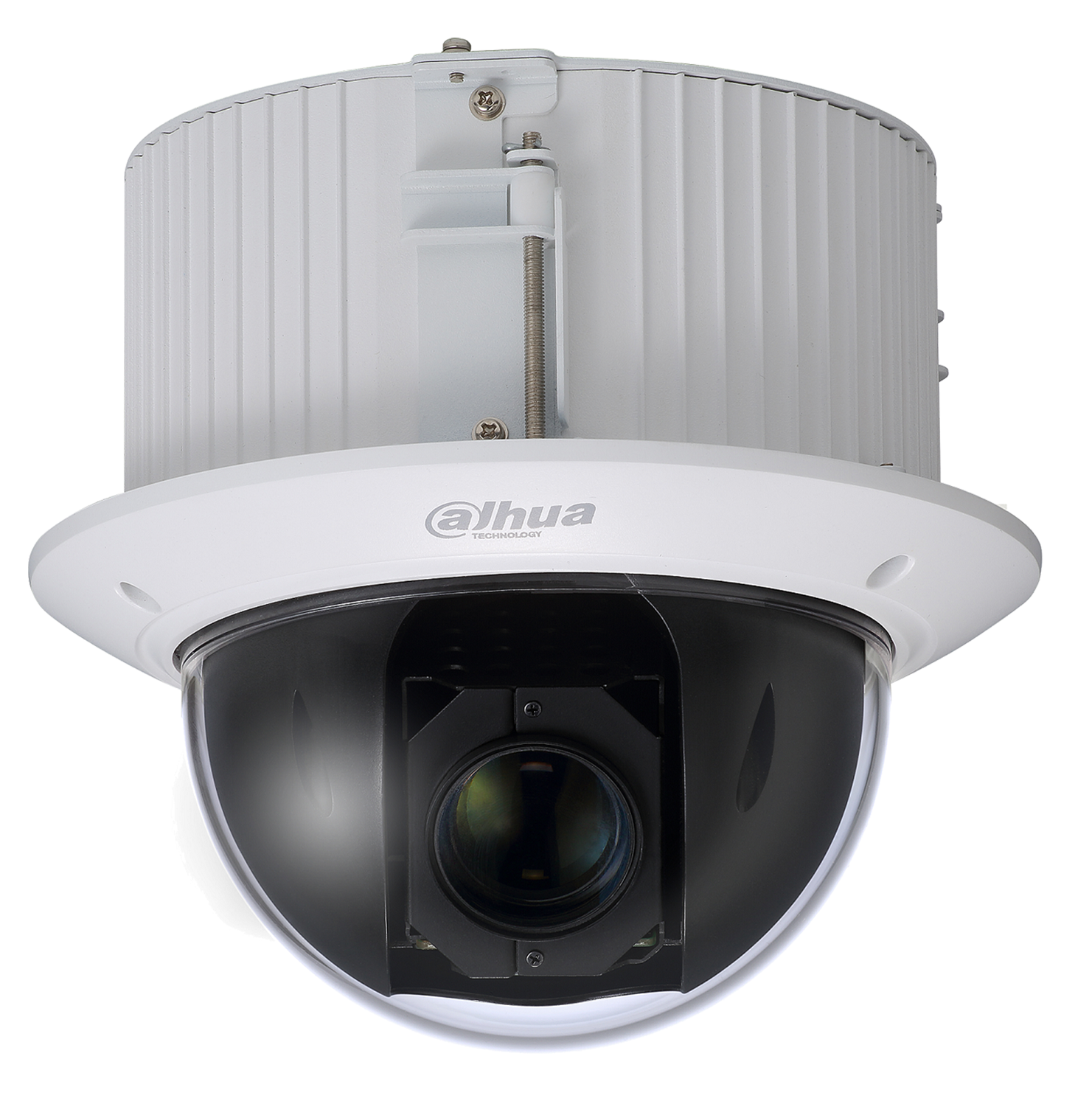

Wide-area monitoring across large outdoor sites becomes far more manageable with a capable PTZ camera, and the Dahua DH-SD52C225U-HNI delivers exactly that in a compact speed dome housing. Built around a 1/2.8″ 2MP STARVIS CMOS sensor and a 25x optical zoom lens spanning 4.8mm to 120mm, this camera can shift from a broad scene overview to fine detail across a single field of view without any loss of positioning control. Starlight technology allows the sensor to produce usable colour-rich footage in very low ambient light conditions without relying on IR illumination, making it well suited to environments with existing background lighting such as car parks, sports fields, and industrial yards. Auto-tracking and built-in IVS analytics allow the camera to respond to movement automatically, reducing the need for constant operator intervention. PoE+ support simplifies cabling, and an IK10 vandal-resistant rating adds a layer of durability for exposed mounting positions.
Key Capabilities
25x Optical Zoom
A focal length range of 4.8mm to 120mm lets operators zoom from a wide site overview down to fine identifying detail across a large monitoring area, all within a single camera position. This reduces the number of cameras needed to cover extensive outdoor zones.
Starlight Low-Light Performance
The 1/2.8″ STARVIS CMOS sensor combined with Starlight technology allows the DH-SD52C225U-HNI to capture usable colour footage in very low ambient light. This suits sites with some existing ground-level or overhead lighting where IR illumination is not present.
Auto-Tracking and IVS Analytics
Built-in Intelligent Video Surveillance analytics and auto-tracking allow the camera to follow moving subjects automatically and trigger rule-based alerts. This reduces the need for continuous manual monitoring in live surveillance control rooms or remote viewing setups.
1080P at 50/60fps
Full HD 1080P recording at up to 60 frames per second ensures smooth, fluid motion capture. This is particularly useful when tracking fast-moving subjects across open areas such as loading yards, car parks, or sports facilities where motion blur can compromise detail.
PoE+ Power Delivery
PoE+ support means a single Cat5e or Cat6 cable carries both data and power to the camera. This simplifies installation in locations where running a separate power supply would be difficult, particularly on pole mounts, rooftops, or exposed perimeter positions.
IK10 Vandal-Resistant Housing
An IK10 impact rating means the camera housing withstands significant physical force, making it appropriate for exposed public-facing mounting positions such as car park columns, stadium exteriors, or perimeter poles where incidental or deliberate contact is a risk.
Best For
- Large Outdoor Site Coverage: The 25x optical zoom and pan/tilt/zoom control allow a single camera to cover areas that would otherwise need multiple fixed units, making it cost-effective for expansive car parks, schoolyards, or industrial yards.
- Low-Light Environments with Existing Lighting: Starlight technology makes this camera effective in dimly lit but not completely dark locations such as street-lit car parks, illuminated loading docks, or sports facilities with overhead lights.
- Operator-Monitored Sites with Auto-Tracking Needs: IVS analytics and auto-tracking reduce the workload for live monitoring operators, making this suited to security control rooms, gatehouse setups, or remote monitoring centres.
- Locations Requiring Impact-Resistant Mounting: The IK10 housing rating makes this appropriate for exposed positions such as perimeter poles, stadium exteriors, and high-traffic public spaces where physical contact or tampering is a realistic concern.
Why Choose the DH-SD52C225U-HNI
The DH-SD52C225U-HNI combines a 25x optical zoom range, Starlight low-light performance, and auto-tracking IVS in a single PoE+-powered speed dome that a standard fixed bullet or turret camera simply cannot replicate. Where a fixed camera locks in one angle permanently, this PTZ can sweep, zoom, and automatically follow subjects across a wide zone. The STARVIS CMOS sensor and Starlight processing deliver usable footage in very low ambient light without depending on IR illuminators, which is a practical advantage in sites where IR washout or IR-reflective surfaces are a concern. H.265 encoding reduces storage and bandwidth requirements compared to older H.264 streams at the same resolution. The IK10-rated housing adds durability for outdoor and semi-exposed positions. Available through Security Wholesalers, the DH-SD52C225U-HNI suits commercial and industrial installations that require flexible wide-area coverage from a single well-positioned camera point.
Buyer Decision Tips
No IR Illumination: The DH-SD52C225U-HNI does not include built-in IR illuminators. It relies on Starlight technology to perform in low ambient light conditions. If you are monitoring a site with very little or no existing lighting at night, consider whether supplementary external lighting will be installed alongside the camera, as completely dark environments will not produce usable footage from this model.
PoE+ Requirement: This camera requires PoE+ (802.3at), not standard PoE (802.3af). Check that your NVR, switch, or PoE injector supports 802.3at before deployment. A standard PoE switch will not supply sufficient power and the camera will not operate correctly. The camera draws up to 13W, which is within the PoE+ specification.
Key Features & Technical Specifications
| Model |
DH-SD52C225U-HNI |
| Image Sensor |
1/2.8″ 2MP STARVIS CMOS |
| Resolution |
2MP (1080P Full HD) |
| Optical Zoom |
25x |
| Focal Length |
4.8mm – 120mm |
| Frame Rate |
Max. 50fps (PAL) / 60fps (NTSC) at 1080P |
| Video Compression |
H.265 |
| Low-Light Technology |
Starlight |
| IR Illumination |
None |
| Wide Dynamic Range |
Yes, greater than 120dB |
| Analytics |
IVS (Intelligent Video Surveillance), Auto-Tracking |
| Power Supply |
PoE+ (802.3at) |
| Power Consumption |
Max. 13W |
| Vandal Resistance |
IK10 |
| Zoom Type |
Motorised optical |
Ideal Use Cases
Commercial Car Parks
The 25x optical zoom allows a single DH-SD52C225U-HNI mounted at a central elevated position to read licence plates, identify individuals, and sweep the full extent of a multi-bay car park without requiring a dense network of fixed cameras.
Industrial Yards and Loading Docks
Auto-tracking and IVS analytics allow this camera to follow personnel or vehicles moving across loading docks or large yard areas automatically, reducing the need for a live operator to manually control camera movement during every event.
School Grounds and Campuses
Wide outdoor school grounds benefit from a PTZ that can cover both general perimeter oversight and zoom in on specific areas such as gates, playgrounds, or car parks. The IK10 housing adds resilience for positions accessible to students.
Sports Facilities and Stadiums
1080P at up to 60fps delivers smooth footage of fast-moving activity. The 25x zoom allows operators to isolate specific zones of a field or court from an elevated fixed mounting point, making this suited to sports monitoring or crowd management applications.
Perimeter and Fence Line Monitoring
IVS tripwire and intrusion detection rules allow the DH-SD52C225U-HNI to generate alerts when subjects cross defined virtual boundaries along a fence line or perimeter, making it effective for after-hours security across extended outdoor boundaries.
Choosing the Right Model
- Choose this model if: You need wide-area outdoor coverage from a single camera position with 25x optical zoom, auto-tracking, Starlight low-light performance, and PoE+ convenience. It suits commercial, industrial, and campus sites where the camera will be actively monitored or set up with IVS rules.
- Choose a different model if: Your site has no ambient lighting at night and you need IR illumination to produce usable footage in complete darkness. This camera has no built-in IR, so a PTZ with integrated IR illumination would be required for fully dark outdoor environments.
- Choose a different model if: You only need to cover a single fixed angle with no requirement for pan, tilt, or zoom. A fixed turret or bullet camera will deliver that outcome at a lower cost and with simpler long-term maintenance.
FAQs
- Does the DH-SD52C225U-HNI have built-in IR night vision?
No. This camera does not include IR illuminators. It uses Starlight technology, which is designed to capture usable colour footage in very low ambient light conditions. It is not suited to environments that are completely dark at night unless external lighting is installed at the site.
- What type of power supply does this camera require?
The DH-SD52C225U-HNI requires PoE+ (IEEE 802.3at) with a maximum draw of 13W. Standard PoE (802.3af) switches are rated to a lower wattage and will not power this camera. Confirm your switch or NVR supports 802.3at before installation.
- What does the 25x optical zoom actually mean in a real installation?
A 25x optical zoom spans a focal length of 4.8mm to 120mm. At the wide end, the camera captures a broad scene overview. At full zoom, it can resolve fine detail across a considerable distance. In a typical car park or yard setting, this allows a single centrally mounted camera to cover a large area and zoom to specific zones without repositioning.
- What analytics does this camera support?
The DH-SD52C225U-HNI includes built-in IVS (Intelligent Video Surveillance) and auto-tracking. IVS supports rule-based detection such as tripwire crossing and intrusion zone alerts. Auto-tracking enables the camera to follow a moving subject automatically after it is detected within the frame.
- Is this camera suitable for outdoor installation?
Yes. The IK10-rated housing provides resistance to physical impact, making it appropriate for exposed outdoor positions. Always verify the specific IP weather rating against your installation environment requirements. The IK10 rating addresses impact resistance specifically rather than ingress protection.
- Does H.265 encoding make a practical difference for storage?
Yes. H.265 encoding reduces the file size of recorded footage by approximately 50% compared to H.264 at equivalent resolution and quality. For a continuously recording 1080P PTZ camera, this can meaningfully reduce NVR storage consumption over a 24-hour period, lowering HDD costs or extending the available recording history on the same storage capacity.
- Where can I find the datasheet and operation manual for this camera?
The manufacturer datasheet and the operation manual are both linked in the Additional Information section below this description. Security Wholesalers provides both documents to assist with pre-purchase specification checks and post-installation configuration. The operation manual covers web interface setup, PTZ configuration, and IVS rule programming.
