Product SKU: DH-S3006-4ET-60
Product Overview

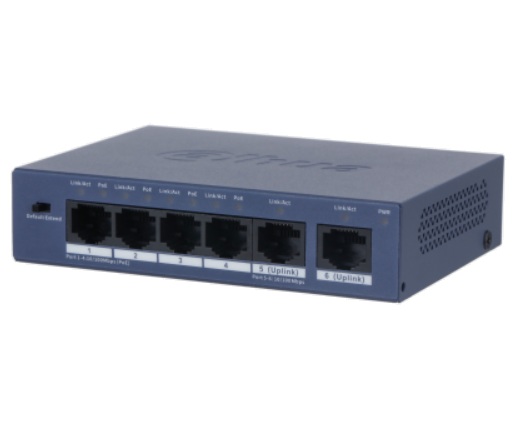

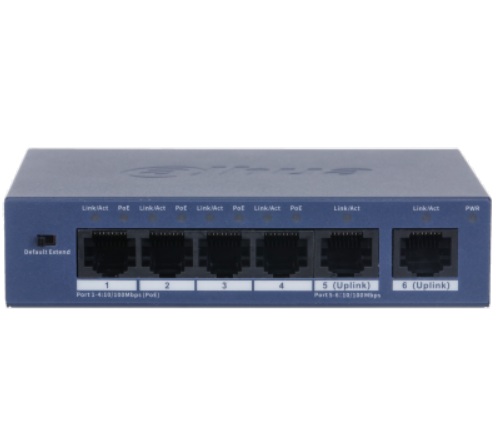

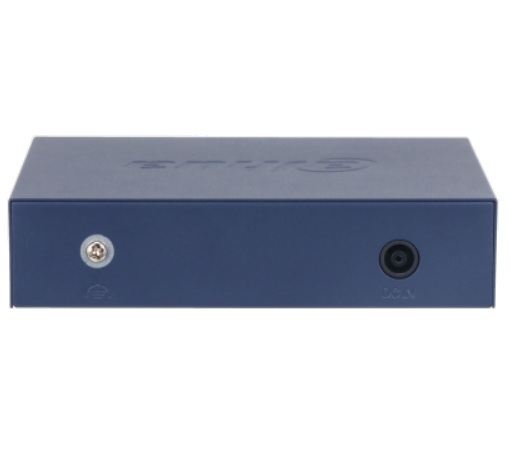

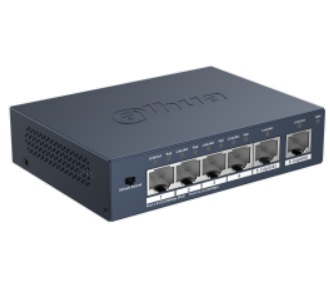

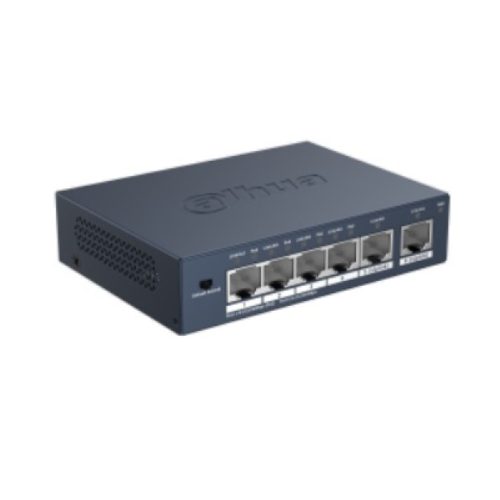

The Dahua DH-S3006-4ET-60 is a compact six-port unmanaged desktop PoE switch designed for small IP surveillance networks. It provides four 10/100 Mbps PoE ports for compatible cameras or network devices, plus two separate 10/100 Mbps uplink ports for connection to an NVR, router or wider network. The switch has a total 60 W PoE budget, with port 1 supporting Hi-PoE output up to 60 W for a compatible higher-power device. Extend mode supports PoE transmission up to 250 metres at 10 Mbps, which is useful where selected cameras are positioned beyond normal Ethernet distances. PoE Watchdog can restart an unresponsive powered device, helping reduce avoidable maintenance visits. Its fanless metal enclosure, wall-mounting support and compact dimensions suit homes, shops, offices, cafés and other small installations where simple plug-and-play connectivity is preferred over managed network configuration.
Key Capabilities
Four PoE Device Connections
Four Fast Ethernet PoE ports can carry power and network data to compatible cameras or other powered devices. This reduces the need for separate local power supplies and keeps small surveillance installations easier to cable.
60 W Shared PoE Budget
The switch provides a total PoE budget of 60 W across its four powered ports. This suits small camera systems where the combined power demand has been checked before installation.
Hi-PoE on Port 1
Port 1 supports Hi-PoE output up to 60 W for a compatible high-power device. The total switch budget remains 60 W, so connecting a higher-power device reduces the capacity available to the other PoE ports.
250 Metre Extend Mode
Long-distance mode supports PoE transmission up to 250 metres at 10 Mbps. This can be useful for remote cameras around long corridors, boundaries, sheds or detached buildings where standard Ethernet distance is insufficient.
PoE Watchdog Recovery
PoE Watchdog can identify an unresponsive powered device and restart the associated port. This may resolve temporary camera or network-device faults without requiring the power cable to be disconnected manually.
Simple Unmanaged Operation
The switch does not require managed network configuration for normal use. It is well suited to straightforward installations where devices need reliable PoE connectivity without VLAN setup, web management or advanced switching controls.
Best For
- Small CCTV Systems: Suitable for installations requiring up to four directly powered IP cameras or compatible PoE devices.
- Retail Stores: A practical option for cameras covering entrances, counters, stockrooms and surrounding areas.
- Homes and Small Offices: Provides simple PoE distribution without requiring managed switch configuration.
- Long Camera Runs: Extend mode helps support selected camera connections beyond standard Ethernet distances.
- High-Power PoE Devices: Port 1 can support one compatible Hi-PoE device requiring up to 60 W.
Why Choose the DH-S3006-4ET-60
The DH-S3006-4ET-60 is designed for buyers who need a simple, compact PoE switch for a small surveillance network rather than a larger managed switching platform. Its four PoE ports, two uplinks and 60 W power budget cover many basic camera installations, while Hi-PoE on port 1 provides added flexibility for a compatible higher-power device. Extend mode is another useful feature where one or more cameras are installed beyond normal Ethernet distances. PoE Watchdog also improves serviceability by restarting a device that stops responding. Available through Security Wholesalers, this model is best suited to systems where Fast Ethernet bandwidth is sufficient and no more than four powered connections are required. Buyers needing Gigabit throughput, VLAN management or additional PoE capacity should select a different switch.
Buyer Decision Tips
Buyer Tip: Add together the maximum wattage of all connected devices before installation. The switch has four PoE ports, but their combined load must remain within the shared 60 W PoE budget.
Buyer Tip: All six network ports operate at 10/100 Mbps rather than Gigabit speed. Confirm that the combined camera bitrate and uplink requirements are suitable before using this switch for higher-resolution or bandwidth-heavy systems.
Key Features & Technical Specifications
| Product Type |
Six-port unmanaged desktop PoE switch. |
| PoE Ports |
4 × RJ45 10/100 Mbps PoE ports. |
| Uplink Ports |
2 × RJ45 10/100 Mbps uplink ports. |
| PoE Standards |
IEEE 802.3af, IEEE 802.3at and Hi-PoE. |
| Total PoE Budget |
60 W. |
| Port 1 PoE Output |
Supports Hi-PoE output up to 60 W. |
| Ports 2–4 PoE Output |
Up to 30 W per port, subject to the total 60 W budget. |
| Long-Distance Mode |
Up to 250 metres at 10 Mbps. |
| PoE Watchdog |
Supports automatic restart of an unresponsive powered device. |
| Switching Capacity |
1.8 Gbps. |
| Packet Forwarding Rate |
0.89 Mpps. |
| Packet Buffer |
1 Mbit. |
| MAC Address Table |
2K entries. |
| Network Standards |
IEEE 802.3, IEEE 802.3u and IEEE 802.3x. |
| Port Adaptation |
Supports MDI/MDIX self-adaptation. |
| Power Supply |
53 VDC. |
| Idle Power Consumption |
Approximately 1.5 W. |
| Full-Load Power Consumption |
60 W. |
| Operating Temperature |
-10°C to 55°C. |
| Operating Humidity |
5% to 95%. |
| Storage Temperature |
-20°C to 70°C. |
| Enclosure |
Metal housing with fanless heat dissipation. |
| Mounting |
Desktop or wall mounting. |
| Dimensions |
130 mm × 85 mm × 26 mm. |
| Net Weight |
Approximately 0.3 kg. |
Ideal Use Cases
Small Retail Stores
Powers cameras covering shopfronts, counters, aisles, stockrooms and entry areas.
Home CCTV Systems
Supports up to four compatible PoE cameras around entrances, driveways and side access areas.
Small Offices
Provides simple camera power and connectivity without requiring managed network configuration.
Long Corridors
Extend mode can support selected cameras installed up to 250 metres from the switch.
Detached Buildings
Suitable for remote sheds or site areas where a compatible camera needs long-distance PoE connectivity.
High-Power Camera Points
Port 1 supports a compatible Hi-PoE device requiring up to 60 W.
Choosing the Right Model
- Choose this model if: The system requires up to four Fast Ethernet PoE connections, a 60 W budget and optional 250 metre transmission.
- Choose a Gigabit switch if: Higher uplink throughput or full Gigabit camera connectivity is required.
- Choose a larger switch if: More than four powered devices or more than 60 W of combined PoE capacity is needed.
- Choose a managed switch if: The network requires VLANs, port configuration, traffic monitoring or remote switch administration.
FAQs
- How many PoE devices can the Dahua DH-S3006-4ET-60 connect?
The DH-S3006-4ET-60 provides four 10/100 Mbps PoE ports, so it can directly connect and power up to four compatible PoE devices. Ports 5 and 6 are separate 10/100 Mbps uplink ports. The total PoE budget is 60 W, so the combined power requirement of all connected devices must remain within that limit.
- Does the DH-S3006-4ET-60 support 250 metre PoE transmission?
Yes. Extend mode supports PoE transmission up to 250 metres at 10 Mbps. This is useful for cameras positioned beyond standard Ethernet distances, but actual performance depends on cable quality, cable resistance and the power demand of the connected device. Use suitable CAT5e or CAT6 cabling and test the complete run before commissioning.
- Can one port supply up to 60 W?
Yes. Port 1 supports Hi-PoE output up to 60 W, while ports 2 to 4 support standard PoE and PoE+ device loads. The switch still has a total PoE budget of 60 W, so using a high-power device on port 1 reduces the power available to the remaining PoE ports.
- What is the purpose of PoE Watchdog on the DH-S3006-4ET-60?
PoE Watchdog monitors connected powered devices and can restart a port when a device stops responding. This can reduce unnecessary site visits caused by a temporary camera or network-device fault. It does not replace correct installation, cable testing or device troubleshooting, but it can improve serviceability in small surveillance networks.
- Is the DH-S3006-4ET-60 a Gigabit switch?
No. The DH-S3006-4ET-60 uses 10/100 Mbps Fast Ethernet connections on all six RJ45 ports. This is adequate for many small camera networks, but buyers needing Gigabit camera and uplink performance should choose a Gigabit PoE switch instead. Check the combined camera bitrate and recorder connection before selecting this model.
- Can the DH-S3006-4ET-60 be wall mounted?
Yes. The DH-S3006-4ET-60 supports wall mounting and also includes a mechanical anti-theft provision. Its compact metal enclosure suits small communications areas, retail counters and equipment cupboards. Use appropriate fixings for the mounting surface and allow adequate clearance for ventilation, power and network cabling.
- What should be checked before buying the DH-S3006-4ET-60?
Confirm the number of PoE devices, their combined wattage, whether any device requires Hi-PoE, the required cable distance and whether Fast Ethernet bandwidth is sufficient. The DH-S3006-4ET-60 is available through Security Wholesalers for compatible small surveillance networks, but it should not be selected where Gigabit throughput or more than four powered ports are required.
Additional Information
Dahua DH-S3006-4ET-60_Datasheet
