Product SKU: DH-PFC200D-6U4D
Product Overview

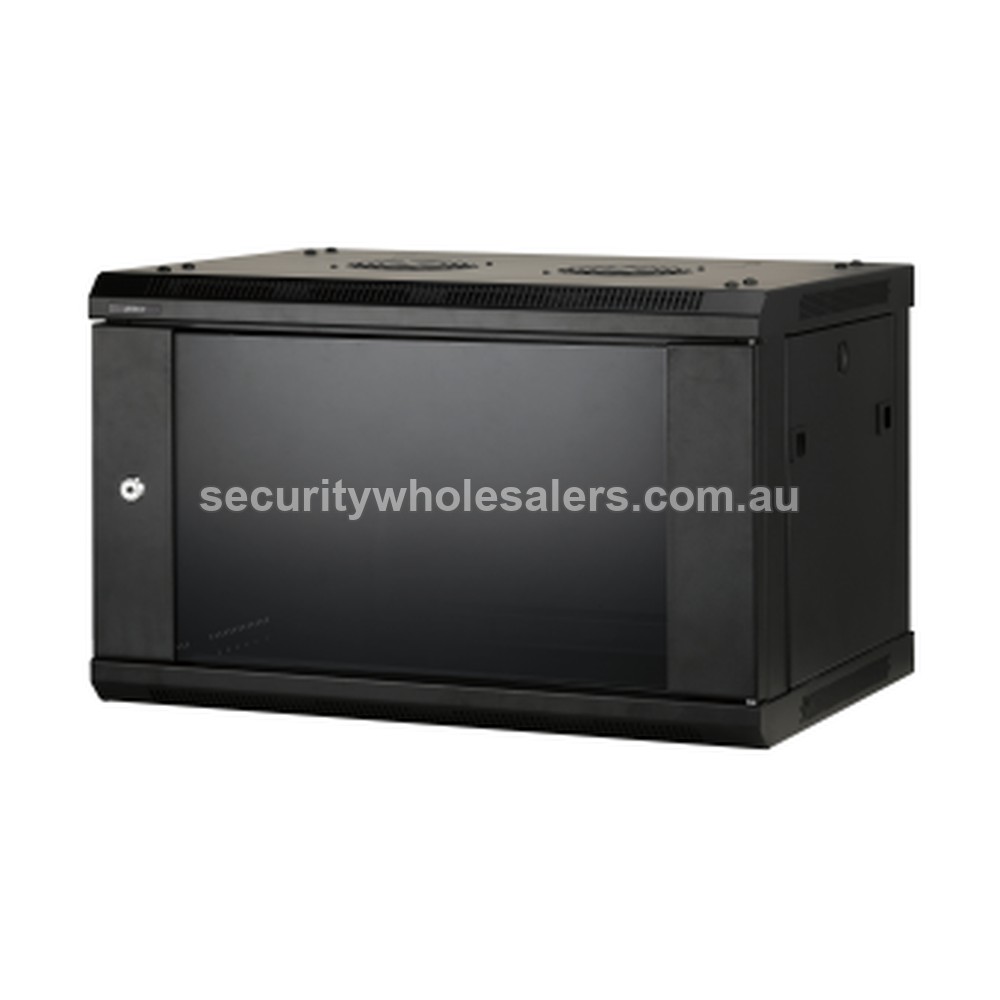

For installers fitting NVRs, network switches, or patch panels in compact equipment rooms, the Dahua DH-PFC200D-6U4D offers a purpose-built 19-inch 6U wall-mount rack cabinet in a space-efficient steel enclosure measuring 600 x 450 x 372mm. Constructed from SPCC steel and finished in black, it supports up to 40 kg of rack-mounted equipment while keeping the overall cabinet weight to a manageable 13 kg for wall installation. The lockable front glass cover protects installed hardware and allows visual status checks without opening the cabinet, while removable side panels simplify internal cable dressing and equipment installation. Cable entry points on both the top cover and bottom panel keep wiring routes clean and flexible. The wide operating temperature range of -40°C to +60°C means this cabinet handles demanding environments beyond a typical climate-controlled comms room, making it a practical choice for small surveillance or network equipment installations where floor space is limited.
Key Capabilities
Wall-Mount Space Saving
Designed for wall or plane mounting, this cabinet keeps NVRs, switches, and patch panels off the floor and out of the way in small equipment rooms, retail back-of-house areas, or comms closets where floor space is at a premium.
40 kg Load Capacity
With a rated load bearing of 40 kg, the cabinet accommodates a full 6U of rack-mounted equipment including NVRs with hard drives installed, PoE switches, and associated cabling hardware without structural concern.
Lockable Glass Front Door
The lockable glass front cover secures installed equipment against unauthorised access or accidental interference while still allowing LED status indicators to be visually checked from outside the cabinet without unlocking.
Removable Side Panels
Side panels remove fully to give unobstructed access during installation and maintenance. This is particularly useful when mounting the cabinet in tighter wall positions where front-only access would otherwise complicate cable routing behind installed equipment.
Best For
- Small Surveillance System Installs: Suits wall-mounted NVR deployments where a 6U enclosure covers a recorder, PoE switch, and patch panel in a single tidy cabinet.
- Compact Network Equipment Rooms: Ideal for small business or retail comms closets where floor space is restricted and all active equipment needs to be wall-mounted and secured.
- Environments with Temperature Extremes: The confirmed operating range of -40°C to +60°C makes it suitable for unheated plant rooms, storage areas, or lightly conditioned spaces where standard cabinets may not be rated.
Why Choose the DH-PFC200D-6U4D
The DH-PFC200D-6U4D is a practical choice when a full-height floor-standing rack cabinet is unnecessary and wall mounting is the only viable option. At 600 x 450 x 372mm, the cabinet is compact enough for small equipment rooms while still accepting standard 19-inch rack gear across all 6U of usable depth. The 40 kg load rating means a well-populated NVR with multiple hard drives and an accompanying PoE switch can be housed together without overloading the structure. The SPCC steel construction and wide temperature tolerance set it apart from lower-rated plastic-trim alternatives, and the lockable glass front adds a layer of physical access control absent from open-frame racks. Available at Security Wholesalers, the DH-PFC200D-6U4D suits installers who need a reliable, manufacturer-backed enclosure rather than a generic rack cabinet with unverified load ratings.
Buyer Decision Tips
Buyer Tip: At 6U, this cabinet suits a single NVR plus a small PoE switch and patch panel. If your installation requires additional UPS, larger recorders, or multiple network devices, assess your total rack unit count before purchasing. The external depth of 372mm also requires sufficient wall clearance, particularly if cable entry is needed through both the top and bottom panels simultaneously.
Key Features & Technical Specifications
| Product Type |
19-inch 6U Wall Mount Rack Cabinet |
| Model |
DH-PFC200D-6U4D |
| Material |
SPCC Steel |
| Colour |
Black |
| Rack Standard |
19-inch standard |
| Rack Units |
6U |
| Width |
600mm (23.62″) |
| Height |
450mm (17.72″) |
| Depth |
372mm (14.57″) |
| Cabinet Weight |
13 kg (28.66 lb) |
| Load Bearing Capacity |
40 kg (88.18 lb) |
| Mount Type |
Wall mount / plane mount |
| Front Door |
Lockable glass cover |
| Side Panels |
Removable |
| Cable Entry |
Top cover and bottom panel |
| Operating Temperature |
-40°C to +60°C (-40°F to +140°F) |
| Operating Humidity |
Less than 90% RH |
Ideal Use Cases
Surveillance Equipment Rooms
Houses a wall-mounted NVR alongside a PoE switch within a single lockable enclosure, keeping surveillance infrastructure organised and protected in a dedicated equipment space.
Retail Back-of-House
Wall mounting keeps the 6U cabinet clear of stock and foot traffic in small storerooms or back-office areas where floor space is used for other purposes, and the lockable glass door restricts staff access to installed hardware.
Plant Rooms and Unheated Spaces
The confirmed operating temperature range of -40°C to +60°C means the cabinet can be installed in plant rooms, unheated garages, or utility areas where temperature fluctuations would affect lesser-rated enclosures.
Small Business Network Installs
Suits comms closet installations where a wall-mount cabinet needs to accommodate a PoE switch, patch panel, and router within the 6U footprint without the bulk of a full-height floor-standing rack.
Choosing the Right Model
- Choose this model if: Your installation requires wall mounting, you have 6U or fewer rack units of equipment, and you need a lockable steel enclosure rated for a wide operating temperature range.
- Choose a different model if: Your equipment count exceeds 6U, as a larger rack cabinet or a floor-standing rack would be more appropriate to avoid overloading the available rack space and compromising airflow around installed equipment.
- Choose a different model if: You require a floor-standing cabinet with greater depth to accommodate UPS units, multiple recorders, or larger network hardware that cannot be accommodated within 372mm of usable depth.
FAQs
- What rack equipment fits inside the DH-PFC200D-6U4D?
The cabinet accepts standard 19-inch rack-mounted gear across 6U of usable height. Typical combinations include a 1U or 2U NVR, a 1U PoE switch, and a 1U patch panel, leaving 2 to 3U spare depending on the exact equipment chosen. The 372mm internal depth must also be checked against the depth of any NVR or UPS being installed.
- Can this cabinet be used in a non-climate-controlled room?
Yes. The DH-PFC200D-6U4D is rated for operating temperatures from -40°C to +60°C, which covers unheated plant rooms, garages, and storage areas that experience significant seasonal temperature variation. The humidity tolerance is rated at less than 90% RH, so highly condensing environments should still be assessed carefully.
- How is the cabinet mounted to the wall?
The DH-PFC200D-6U4D is designed for wall mount and plane mount installation. Wall fixings are made through the cabinet body to a suitable structural surface. The cabinet weighs 13 kg empty, and with the 40 kg load capacity, fixings must be appropriate for the combined weight of the cabinet and all installed equipment.
- Does the front door lock come with a key?
The front glass cover is described as lockable in the confirmed product data. Specific key details are not documented in the available specification sheet. Contact Security Wholesalers to confirm what is supplied with the cabinet prior to purchase if key configuration is important to your installation.
- Where do cables enter the cabinet?
Cable entry points are provided on both the top cover and the bottom panel of the DH-PFC200D-6U4D. This dual entry design allows cabling from above or below depending on how conduit and trunking is routed to the cabinet location, keeping the installation tidy without forcing awkward cable bends.
Additional Information
Dahua DH-PFC200D-6U4D Datasheet
