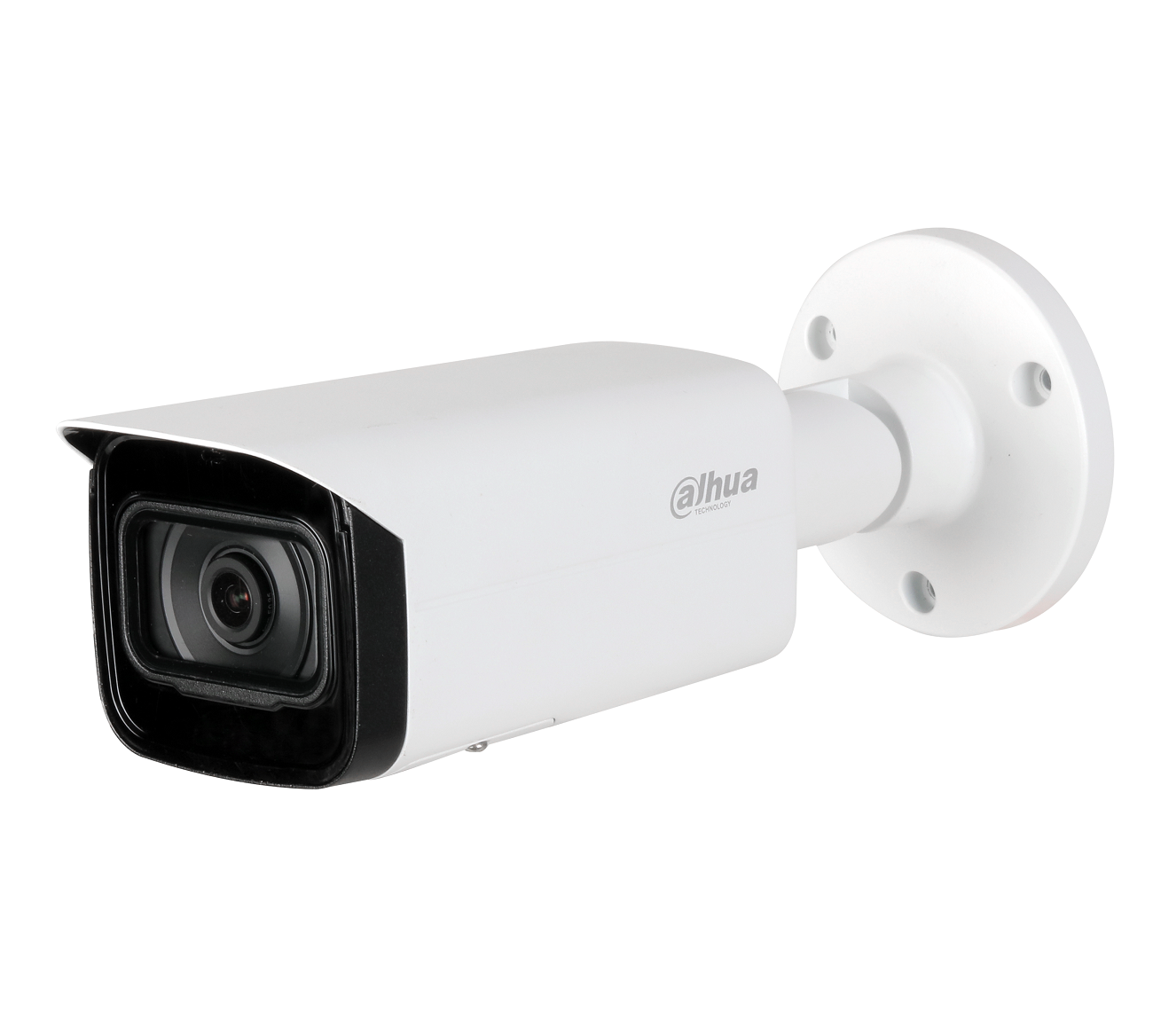

Dahua DH-IPC-HFW5442T-ASE Dahua AI 4MP Starlight+ IP Bullet Fixed IR 50m POE

> 1/1.8” 4Megapixel progressive scan CMOS
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> 25/30 fps@2688×1520, 50/60 fps@1080P (1920×1080)
> WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
> 2.8 mm fixed lens
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 50 m
> Micro SD memory, IP67,IK10

$439.00 inc GST +3 Year Warranty & Support

Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition,ANPR, Metadata, People Counting, traffic data statistics, etc.
The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.



Pro AI series contains Face Capture, Perimeter Protection and People Counting functions.Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Meanwhile, the series features starlight and smart IR technology. This series fully protected from dust and water, certified to IP67 standard.
Dahua AI 4MP Starlight+ H.265 IP Bullet Fixed 2.8mm, Day/Night ICR,True WDR(140dB), 30fps@4MP/ 60fps@2MP, Face Capture, Perimeter Protection, People Counting, IR 50m, Micro SD,IP67, DC12V, <8.4W, POE (Optional: Junction box PFA130-E, Pole Mount: PFA152-E)
Camera
Image Sensor 1/1.8” 4Megapixel progressive scan CMOS
Effective Pixels 2688 (H) × 1520 (V)
RAM/ROM 512 MB/128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s
Minimum Illumination 0.001 Lux@F1.6
IR Distance Distance up to 50 m (164 ft)
IR On/Off Control Auto/Manual
IR LEDs 4
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm, 3.6 mm, 6.0 mm
Max. Aperture F1.6
Angle of View H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31°
Optical Zoom N/A
Aperture Type Fixed
Close Focus Distance 1.3 m (4.27 ft)/1.9 m (6.23 ft)/3.8 m (12.47 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 58m(190ft) 23m(75ft) 12m(39ft) 6m(20ft)
3.6mm 72m(236ft) 29m(95ft) 14m(46ft) 7m(23ft)
6mm 113m(371ft) 45m(148ft) 23m(75ft) 11m(36ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan: 0˚–360˚; Tilt: 0˚–90˚; Rotation: 0˚–360˚
Artificial Intelligence
Face Capture Support face image capture
Perimeter Protection Tripwire, Intrusion (Human & Vehicle classification)
People Counting Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection
General Intelligence
Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly
General Intelligence Object Abandoned/Missing
Video
Compression H.265+, H.265, H.264+, H.264, H.264B, H.264H,

MJPEG (sub stream)
Streaming Capability 3 Streams
Resolution 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
Frame Rate Main Stream: 2688 × 1520 (1 fps–25/30 fps)

2560 × 1440 (1 fps–25/30 fps)

1920 × 1080 (1 fps–50/60 fps)
Sub Stream: D1 (1 fps–25/30 fps)

D1 (1 fps–50/60 fps)
Third Stream: 1080P (1 fps–16 fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 32 Kbps–8192 Kbps

H.265: 19 Kbps–8192 Kbps
Day/Night Auto (ICR)/Color/B/W
BLC Mode BLC/HLC/WDR (140 dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off/On (4 Zone, Rectangle)
Region of Interest Off/On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog Support
Digital Zoom N/A
Flip 0°/90°/180°/270°
Mirror Off/On
Privacy Masking Off/On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP,

FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS,

UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x
Interoperability ONVIF (Profile S/Profile G), CGI, Milstone, Genetec, P2P
Streaming Method Unicast/Multicast
Max. User Access 20 Users
Edge Storage NAS

FTP

Micro SD card 256 GB
Web Viewer IE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)
Management Software Smart PSS, DSS, P2P
Smart Phone iOS, Android
Certifications
Certifications CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC 12V (±30%), PoE (802.3af) (Class 0)
Power Consumption <8.4W
Environmental
Operating Conditions -30° C to +60° C (-22° F to +140° F)/10%RH–95%RH
Strorage Conditions -30° C to +60° C (-22° F to +140° F)
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal
Dimensions 244.1 mm × 79.0 mm × 75.9 mm (9.61” × 3.11” × 2.99”)
Net Weight 0.815 kg (1.80 lb)
Gross Weight 1.08 kg (2.38 lb)
SKU: DH-IPC-HFW5442TP-ASE-0280B Categories: , , , , , ,
