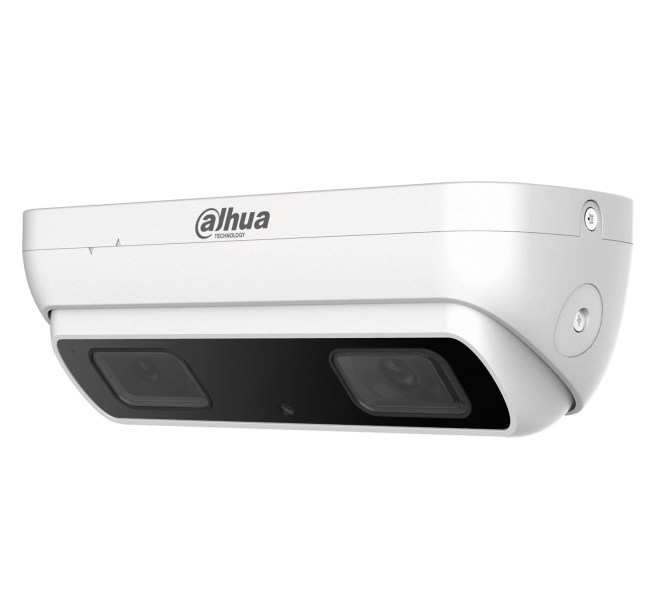

Dahua DH-IPC-HDW8341X-3D Dahua 3MP AI Starlight 3D Dual Lens People Counting IP Network Fixed 2.8mm


3MP Dual-Lens People Counting AI Network Camera IPC-HDW8341X-3D

> Two 1/2.8” 3Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 triple-stream encoding
> 25fps@3MP(2048×1536)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (3.6mm optional)
> Max. IR LEDs Length 10m
> Micro SD memory, IP67, PoE
> People Counting: Support line crossing people counting, region people counting

$824.38 $1,754.00 inc GST +3 Year Warranty & Support

Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition,ANPR, Metadata, People Counting, traffic data statistics, etc.
The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.
Pro AI series contains Face Capture, Perimeter Protection and People Counting functions.Powered by deep-learning Artificial Intelligence algorithms, significantly improved accuracy. Meanwhile, the series features starlight and smart IR technology. This series fully protected from dust and water, certified to IP67 standard.
Dahua 3MP AI Starlight 3D Dual Lens People Counting IP Network Fixed 2.8mm,WDR,IR 10m, Micro SD,IP67,POE


Camera
Image Sensor Two 1/2.8”3Megapixel progressive scan CMOS
Effective Pixels 2048(H)x1536(V)
RAM/ROM 512MB/4096MB
Scanning System Progressive
Minimum Illumination 0.009Lux/F1.8 (Color,1/3s,30IRE)

0.08Lux/F1.8 (Color,1/30s,30IRE)

0Lux/F1.8(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 10m(33ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (3.6mm)
Max. Aperture F1.8
Angle of View H: 106° (80°), V:80° (58°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance 0.6m (0.9m)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 45m(147ft) 18m(59ft) 9m(29ft) 4m(13ft)
3.6 mm 57m(187ft) 23m(75ft) 11m(36ft) 6m(19ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Tilt:-10˚~70˚;
Artificial Intelligence
People Counting line crossing people counting, region people counting, Height filter, loitering filter
General Intelligence
Event Trigger Motion detection, Video tampering, Scene changing,

Network disconnection, Ip address conflict, Illegal

access, Storage anomaly

General Intelligence Heatmap
Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 3 Streams
Resolution 3MP(2048×1536)/ 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480) / VGA(640×480)/ CIF(352×288/342×240)
Frame Rate Main Stream: 3MP (1~25fps)
Sub Stream 1: D1 (1 ~ 25/30fps)
Sub Stream 2: 6MP (1~7fps, For Debugging Only)
Bit Rate Control CBR/VBR
Bit Rate H.264: 192~ 10240Kbps

H.265: 80~ 6144Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip N/A
Mirror N/A
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (100/1000Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface 1 port (For Adjustment Only)
Audio Interface 2/1 channel In/Out (RCA), Built-in Mic
RS485 N/A
Alarm 2 channel In: 5mA 5VDC

2 channel Out: 300mA 12VDC

Electrical
Power Supply DC12V, PoE (IEEE 802.3af)(Class 0)
Power Consumption < 12W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal
Dimensions 204mmx78mmx62mm (8.03″x3.07″x2.44″)
Net Weight 0.8kg (1.76lb)
Gross Weight 1.09kg (2.40lb)
