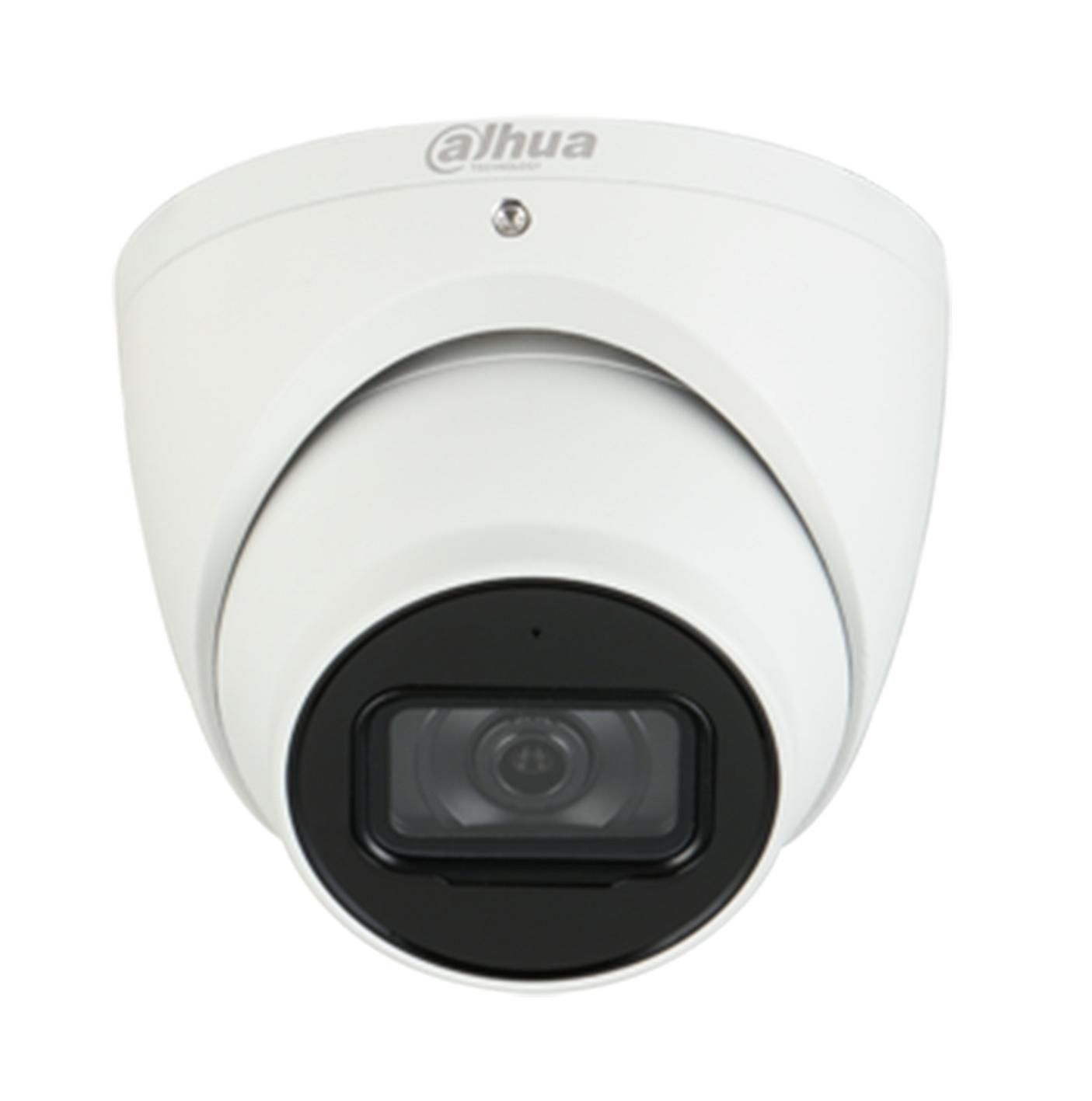

Product SKU: DH-IPC-HDW5541TM-ASE
Product Overview
For installers and integrators who need genuine AI analytics alongside solid low-light performance, the IPC-HDW5541TM-ASE delivers well beyond what a standard 5MP turret offers. This WizMind eyeball camera uses a 1/2.7-inch CMOS sensor to capture 5MP (2960 x 1668) footage at up to 30fps, with Starlight sensitivity and 50m IR illumination handling scenes where ambient light is limited or absent. The 2.8mm fixed lens covers a wide 111-degree horizontal field of view, making it well suited to ceiling and wall mounting at entry points, lobbies, retail floors, and outdoor building perimeters. Featuring deep-learning analytics including people counting, face attribute extraction, heat map generation, perimeter protection, and sound abnormality detection, it provides actionable data rather than simple motion alerts. Built to IP67 and rated for -40 degrees C to +60 degrees C operation, it handles Australian outdoor conditions without compromise. PoE, ePoE, and 12V DC power options keep installation flexible.
Key Capabilities
5MP Starlight Imaging
The 1/2.7-inch CMOS sensor records at 2960 x 1668 resolution at up to 30fps, with Starlight sensitivity that maintains colour and detail in very low ambient light before the IR kicks in. WDR, HLC, BLC, 3D NR, and defog processing further sharpen footage in challenging lighting conditions.
50m IR Night Vision
Built-in IR LEDs reach 50 metres with smart illumination that automatically adjusts intensity to prevent overexposure as subjects move closer. This covers typical outdoor approaches, car park bays, and corridor lengths without needing supplementary lighting.
Deep-Learning AI Analytics Suite
WizMind intelligence classifies video metadata across vehicles, non-vehicles, faces, and human bodies. Perimeter protection modes cover intrusion, tripwire, loitering, and parking violations, while sound abnormality detection triggers on sudden audio events independently of visual motion.
People Counting and Heat Mapping
Tripwire and area-based people counting with report generation makes this model useful for occupancy management and traffic flow analysis. Heat map data identifies high-dwell zones across a scene, giving retailers and facility managers layout and staffing insights over time.
Face Attribute Extraction
Beyond basic face detection, the camera extracts attributes including gender, estimated age, expression, and mask status. This supports visitor logs, access review, and compliance monitoring at controlled entry points without requiring a separate dedicated face capture camera.
Flexible Storage and Network Integration
On-board micro SD supports up to 1TB for local edge recording. NAS and FTP/SFTP upload handle event-based offsite backup. ONVIF Profiles S/G/T/M and open SDK/API allow integration with third-party VMS and NVR platforms beyond the Dahua ecosystem.
Best For
- Retail and Queue Analytics: People counting with tripwire and area modes generates occupancy reports useful for managing peak-hour traffic and checkout queue depths across shop floors and entrances.
- Building Lobby and Entry Monitoring: The 2.8mm wide-angle lens covers full entry widths from ceiling mount, while face attribute extraction supports visitor record-keeping at apartment, office, and facility reception points.
- Outdoor Perimeter Coverage: IP67 and a -40 degrees C to +60 degrees C operating range allow eave, soffit, and wall mounting across exposed Australian outdoor environments, with AI perimeter rules replacing broad motion detection zones.
- Multi-VMS and Third-Party NVR Environments: ONVIF Profile S/G/T/M and open SDK/API support mean this camera integrates into existing platform setups without locking the installation to Dahua recorders only.
Why Choose the IPC-HDW5541TM-ASE
Where a standard 5MP fixed turret handles video capture, the IPC-HDW5541TM-ASE is engineered to generate structured intelligence from that footage. The WizMind analytics engine runs people counting, face attribute extraction, heat map generation, perimeter protection rules, and sound abnormality detection concurrently on the camera itself, reducing the processing load on the recorder. Smart H.265+ and AI coding modes cut bandwidth and storage consumption compared to standard H.265 at equivalent resolution, which matters across multi-camera installations where storage costs accumulate. The ePoE support extends PoE transmission beyond the standard 100m limit, useful in larger commercial or industrial sites where cable runs are longer. The eyeball housing allows full 360-degree pan, 78-degree tilt, and 360-degree rotation adjustment after mounting, so the coverage angle can be refined without relocating the bracket. Available through Security Wholesalers, the IPC-HDW5541TM-ASE is suited to professional installers specifying AI-capable cameras for commercial, retail, or multi-tenancy projects.
Buyer Decision Tips
Lens and Field of View: This listing is the 2.8mm fixed-focal variant with a 111-degree horizontal field of view. That wide angle suits ceiling mounting in lobbies, retail aisles, and entry halls where coverage width is the priority. If the scene requires a narrower, longer reach such as a corridor end or fence line at distance, a 3.6mm or 6mm variant will provide a tighter field with better subject size at range. The lens cannot be changed post-purchase, so confirm the mounting distance and required coverage width before ordering.
AI Analytics and Recorder Compatibility: People counting reports, heat maps, and face attribute data are generated on the camera but must be received and stored by a compatible NVR or VMS. Dahua WizMind-compatible recorders access the full analytics feature set natively. Third-party platforms via ONVIF or SDK may receive video and basic metadata but may not display all AI report types. Verify your recorder or software supports the specific analytics functions you intend to use before deploying at scale.
Key Features & Technical Specifications
| Model |
IPC-HDW5541TM-ASE (DH-IPC-HDW5541TMP-ASE) |
| Image Sensor |
1/2.7-inch CMOS |
| Resolution |
5MP (2960 x 1668) |
| Frame Rate |
Up to 25fps (PAL) / 30fps (NTSC) |
| Lens (this variant) |
2.8mm fixed focal, 111 degrees horizontal, 58 degrees vertical |
| IR Illumination Range |
Up to 50m with smart illumination control |
| Video Compression |
Smart H.265+, Smart H.264+, AI H.265, AI H.264, H.265, H.264 |
| Image Enhancement |
WDR, 3D NR, BLC, HLC, defog, smart illumination |
| AI Analytics |
Video metadata (vehicles, non-vehicles, faces, human bodies), face attribute extraction (gender, age, expression, mask status), people counting (tripwire and area modes with reports), heat map, sound abnormality detection, perimeter protection (intrusion, tripwire, loitering, parking) |
| Storage |
Micro SD up to 1TB, NAS, FTP/SFTP |
| Network Protocols |
IPv4/IPv6, HTTP, RTSP, ONVIF Profile S/G/T/M |
| Power Input |
PoE (802.3af), ePoE, 12V DC |
| Operating Temperature |
-40 degrees C to +60 degrees C |
| Humidity |
95% or less (non-condensing) |
| Ingress Protection |
IP67 |
| Mounting Adjustment |
Pan 0-360 degrees, tilt 0-78 degrees, rotation 0-360 degrees |
| Body Construction |
Metal body with plastic trim |
| Dimensions / Weight |
99.1mm x 121.9mm (diameter), approx. 500g |
Ideal Use Cases
Retail Floor and Entrance Monitoring
The 2.8mm wide-angle lens covers broad floor areas from ceiling mount, while people counting with report generation tracks foot traffic patterns across the day. Heat map data highlights which display areas and aisles receive the most dwell time.
Office and Apartment Building Lobbies
Face attribute extraction at lobby entry points captures gender, age estimate, expression, and mask status for visitor records. The wide field of view and ceiling mounting angle suit single-camera lobby coverage without visible blind spots.
Building Perimeters and Car Parks
IP67 and a -40 degrees C to +60 degrees C operating range handle exposed outdoor mounting on eaves, soffits, and building walls. AI perimeter rules detect intrusion and loitering events at parking bays and property boundaries with fewer nuisance alerts than motion-based zones.
Warehouses and Industrial Interiors
Sound abnormality detection triggers on sudden noise events such as impacts or alarms independently of visual motion, adding a safety monitoring layer in large warehouse spaces. Vehicle and non-vehicle metadata classification helps differentiate forklift movement from pedestrian activity.
Transport Hubs and Public Infrastructure
People counting and crowd density data from multiple IPC-HDW5541TM-ASE units supports occupancy management at stations, terminals, and public venues. The 5MP resolution and AI metadata tagging improve post-incident review accuracy when identifying specific individuals or vehicle types.
Choosing the Right Model
- Choose this model if: You need a 5MP eyeball camera with a full WizMind AI analytics suite including people counting, heat mapping, face attribute extraction, and perimeter protection deployed from ceiling or wall in indoor or IP67-rated outdoor locations, and the 2.8mm wide-angle field of view suits your mounting distance and coverage requirement.
- Choose a different model if: The scene requires optical zoom or a motorised varifocal lens to frame a specific distant target, as this camera uses a fixed 2.8mm focal length only. If AI analytics are not required and the budget is the primary driver, a standard fixed turret without deep-learning processing will cover basic recording needs at lower cost. If vandal resistance with an IK rating is essential for a ground-level or publicly accessible mounting position, a rated vandal dome housing would be more appropriate.
FAQs
- What AI analytics does the IPC-HDW5541TM-ASE actually run on-camera?
The camera processes deep-learning analytics locally, including video metadata classification across vehicles, non-vehicles, faces, and human bodies; face attribute extraction (gender, estimated age, expression, mask status); people counting in tripwire and area modes with report generation; heat map generation; sound abnormality detection; and perimeter protection covering intrusion, tripwire, loitering, and parking violations.
- Does people counting produce reports, or is it just a live count?
The people counting function supports both tripwire and area-based counting modes and generates historical reports over defined time periods. These reports are accessible through a compatible Dahua NVR or VMS and can be used to analyse foot traffic trends, peak periods, and occupancy patterns rather than providing only a real-time figure.
- What does ePoE mean and when would I use it?
ePoE extends the PoE transmission distance beyond the standard IEEE 802.3af limit of 100 metres, allowing the camera to be powered and connected over longer cable runs. This is useful in larger commercial sites, warehouses, or campus environments where the distance between the camera location and the network switch or recorder exceeds the standard Ethernet limit.
- Is this camera suitable for outdoor installation in Australia?
Yes. The IP67 rating protects against dust ingress and sustained water exposure, and the operating temperature range of -40 degrees C to +60 degrees C covers the full range of Australian climate conditions from alpine to tropical environments. The camera can be wall or eave mounted outdoors without additional weatherproofing enclosures.
- How much local storage can the camera hold, and does it record continuously?
The camera accepts a micro SD card up to 1TB for on-board edge recording. Continuous, scheduled, and event-triggered recording modes are supported. For larger storage requirements or centralised recording across multiple cameras, NAS and FTP/SFTP upload options supplement or replace local card storage.
- Will this camera work with non-Dahua NVRs and VMS platforms?
The IPC-HDW5541TM-ASE supports ONVIF Profiles S, G, T, and M, as well as open SDK and API integration. This allows connection to most third-party NVR and VMS platforms. Basic video streaming and standard motion detection events will typically work across platforms. Full access to WizMind AI analytics such as people counting reports and heat maps may require a Dahua-compatible recorder or software. Confirm with your VMS vendor which analytics metadata types are supported before specifying for AI-driven deployments. This model is part of the Security Wholesalers range and technical support is available through them for compatibility queries.
- Can the eyeball housing be adjusted after installation?
Yes. The eyeball design allows pan adjustment from 0 to 360 degrees, tilt from 0 to 78 degrees, and rotation from 0 to 360 degrees. This means the coverage angle can be refined after the bracket is fixed to the ceiling or wall, which is useful when fine-tuning the frame to avoid obstructions or capture a specific scene area without relocating the mount point.
