Product SKU: IPC-HDW5442EMP-ASE-S3
Product Overview

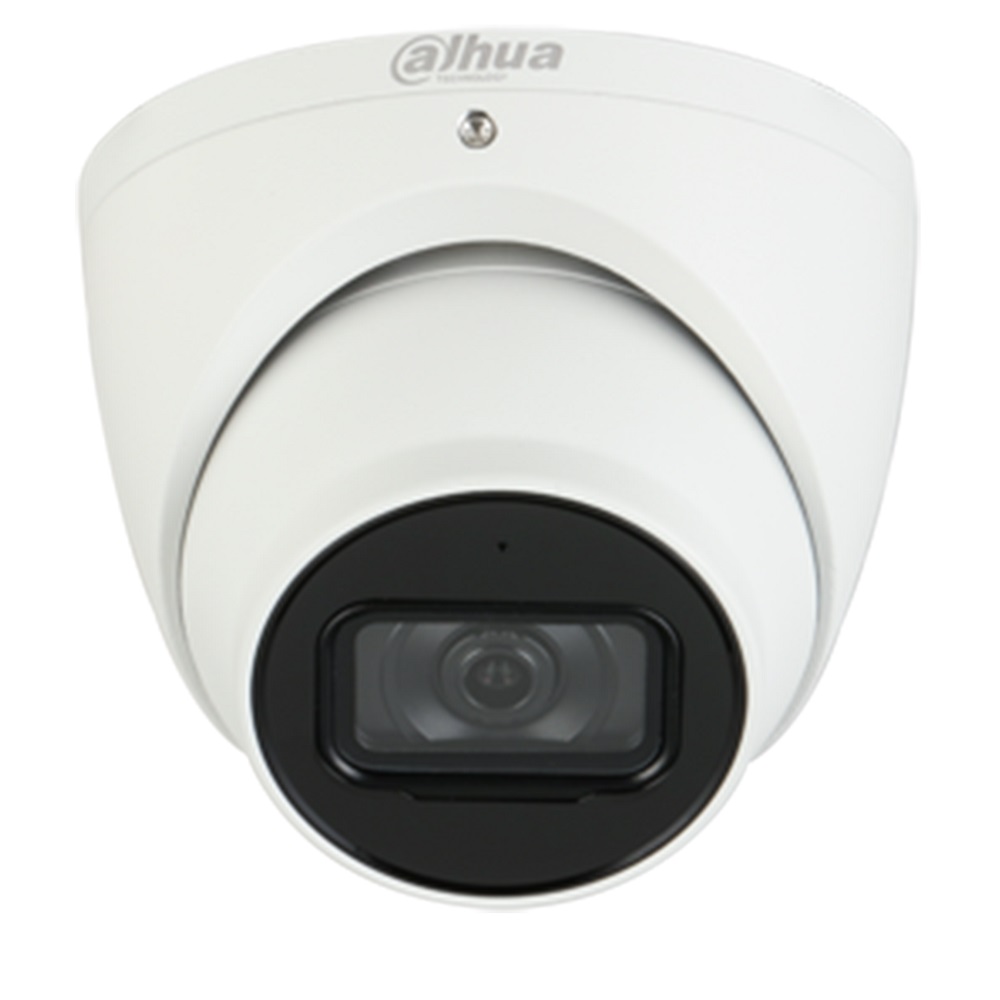

For installers and integrators who need deep AI analytics alongside strong low-light performance in a compact turret body, the IPC-HDW5442EMP-ASE-S3 is a purpose-built WizMind camera that goes well beyond basic recording. Featuring a large 1/1.8″ Starlight+ CMOS sensor, this eyeball-style turret delivers 4MP resolution at up to 30fps with 140dB wide dynamic range, keeping detail intact across high-contrast entry points, shopfronts, and building perimeters. Built-in IR LEDs provide up to 50 metres of night illumination, while the IP67-rated housing allows year-round outdoor mounting on eaves, soffits, and wall brackets. Equipped with Dahua WizMind deep learning functions including face detection, IVS perimeter rules, people counting, video metadata, and smart sound detection, this model is suited to commercial environments where AI-driven event filtering is a priority. ePoE support, onboard alarm and audio I/O, a built-in microphone, and Micro SD storage up to 1TB round out a specification set that few fixed-focal turrets at this form factor can match.
Key Capabilities
1/1.8″ Starlight+ Sensor
The large-format 1/1.8″ progressive scan CMOS sensor collects significantly more light than standard 1/2.8″ sensors, enabling usable colour detail in near-dark conditions at building entries, car parks, and covered walkways before IR even activates.
WizMind Deep Learning AI
Onboard deep learning supports face detection and snapshot, IVS line crossing and intrusion detection, people counting (line and area), video metadata generation for human and vehicle attributes, and smart sound detection, all processed at the camera edge without extra server load.
SMD 3.0 Motion Detection
SMD 3.0 uses deep learning to separate human and vehicle targets from environmental movement, dramatically reducing nuisance alerts caused by trees, shadows, and insects common on outdoor eave-mounted cameras.
ePoE Extended Network Reach
ePoE allows the camera to operate over a single Cat5e or Cat6 cable at extended distances beyond the standard 100m PoE limit, making it practical for large commercial sites, warehouses, and campuses where switching infrastructure cannot reach every camera position.
140dB Wide Dynamic Range
A 140dB WDR rating handles difficult backlit scenes such as entry doors with bright outdoor daylight behind subjects, roller door openings, and reception areas where windows create contrast extremes that overwhelm standard cameras.
Onboard Audio, Alarm I/O and Local Storage
The built-in microphone, 1-in/1-out alarm terminals, 1-in/1-out audio ports, and Micro SD support up to 1TB provide standalone event capture and two-way audio capability without relying solely on NVR connectivity.
Best For
- Commercial Entry Points: Face detection and 140dB WDR make this camera well suited to main entrance monitoring where subjects arrive against bright outdoor backgrounds.
- Retail and Supermarket Analytics: People counting (line and area mode) and video metadata support customer flow analysis and zone occupancy tracking across sales floors and checkouts.
- Education and Campus Perimeters: IVS line crossing and intrusion detection on eave or wall mounts covers walkways, building perimeters, and after-hours zones with deep learning filtering to reduce false event notifications.
- Large-Site Installations Requiring ePoE: Sites where camera positions exceed standard 100m PoE cable runs benefit from ePoE support, reducing the need for additional network switching or cabling infrastructure.
- Locations Needing Local Redundancy: Alarm I/O terminals, onboard audio I/O, built-in mic, and Micro SD storage up to 1TB allow standalone recording and local alerting independent of network connectivity.
Why Choose the IPC-HDW5442EMP-ASE-S3
What separates the IPC-HDW5442EMP-ASE-S3 from standard 4MP turret cameras is the combination of a 1/1.8″ Starlight+ sensor, WizMind deep learning analytics, and the practical hardware that supports real-world commercial deployment. Where a basic IP turret records video and triggers motion zones, this model identifies faces, counts people across configurable lines, generates human and vehicle metadata, detects unusual sound events, and filters SMD 3.0 alerts to confirmed human and vehicle targets. The 140dB WDR handles the kind of backlit entry scenes that cause cheaper sensors to blow out. ePoE removes the 100m cable run constraint that forces additional switching on large sites. Alarm and audio I/O plus a built-in microphone add integration options that most fixed-focal cameras at this price tier simply do not offer. Available through Security Wholesalers, this model is suited to integrators and commercial security projects where AI event accuracy and hardware flexibility matter.
Buyer Decision Tips
Fixed Focal Lens Placement: The IPC-HDW5442EMP-ASE-S3 ships with a fixed focal length lens. Before mounting, confirm the lens specification suits the coverage width and working distance at your intended position. For doorway face detection, a narrower field of view at closer range will yield better facial detail than a wide-angle lens at the same distance. Position the camera at head height where possible to maximise face detection capture angle.
WizMind Analytics and NVR Compatibility: To take full advantage of face detection, people counting, and IVS events at the management level, pair this camera with a Dahua WizMind-compatible NVR or DSS platform. While the camera processes AI analytics onboard, search, reporting, and face database management functions require compatible back-end software. Verify your NVR firmware supports the IPC-HDW5442EMP-ASE-S3 before deployment if these features are a project requirement.
Key Features & Technical Specifications
| Model |
IPC-HDW5442EMP-ASE-S3 |
| Image Sensor |
1/1.8″ progressive scan CMOS (Starlight+) |
| Resolution |
4MP (2688 x 1520) |
| Frame Rate |
Up to 25fps (PAL) / 30fps (NTSC) |
| IR Illumination |
Built-in IR LEDs, max. 50m |
| Wide Dynamic Range |
140dB WDR |
| AI / Analytics |
WizMind: face detection and snapshot, IVS (line crossing, intrusion detection), people counting, video metadata (human and vehicle), smart object detection, smart sound detection |
| Smart Motion Detection |
SMD 3.0 |
| Video Compression |
Smart H.265+, H.265, Smart H.264+, H.264, AI H.264, AI H.265 |
| Image Enhancement |
3D NR, HLC, BLC, ROI, SVC, digital watermarking, rotation mode |
| Audio |
1 x audio input, 1 x audio output, built-in microphone |
| Alarm I/O |
1 x alarm input, 1 x alarm output |
| Local Storage |
Micro SD, up to 1TB |
| Power Supply |
12VDC, PoE (802.3af), ePoE |
| Weather Rating |
IP67 |
| Housing Type |
Eyeball turret, fixed focal |
Ideal Use Cases
Retail Entry and Checkout Zones
Face detection snapshots at store entries and people counting across checkout aisles give retail operators actionable data for staffing and loss prevention. SMD 3.0 keeps event logs focused on confirmed human activity rather than environmental triggers.
Commercial Building Entrances
The 140dB WDR handles backlit lobby glass and bright daylight through entry doors. IVS intrusion rules and face detection support after-hours security across access points where subjects arrive against high-contrast backgrounds.
School and Campus Perimeters
Eave and soffit mounting on building exteriors with IVS line crossing and intrusion detection covers after-hours perimeter zones. The IP67 rating supports year-round outdoor exposure across open campuses in varying Australian weather conditions.
Warehouse and Logistics Facilities
50m IR illumination covers loading dock approaches and internal warehouse lanes in low-light overnight conditions. Video metadata tracks human and vehicle movement in monitored zones, and alarm I/O supports integration with access control or barrier systems.
Large Sites with Extended Cable Runs
ePoE allows deployment at cable distances beyond the standard 100m PoE limit, making this turret practical for large industrial sites, open car parks, and campuses where pulling additional network switches to every camera position is not feasible.
Choosing the Right Model
- Choose this model if: Your project requires WizMind AI analytics including face detection, people counting, IVS perimeter rules, and video metadata from a compact IP67-rated turret with a large 1/1.8″ Starlight+ sensor, ePoE support, and onboard alarm and audio I/O.
- Choose a different model if: Your coverage area requires a motorised varifocal or wide zoom range for post-installation framing adjustments – a fixed focal turret at this form factor does not offer optical zoom adjustment. If vandal resistance is a hard requirement at the mounting point, confirm IK-rated housing options separately, as IP67 does not confirm IK10 for this model.
FAQs
- What AI analytics does the IPC-HDW5442EMP-ASE-S3 support?
This camera supports the Dahua WizMind analytics suite processed onboard via deep learning. Confirmed functions include face detection and snapshot, IVS line crossing and intrusion detection, people counting (line and area), smart object detection, video metadata generation for human and vehicle attributes, and smart sound detection. SMD 3.0 further refines motion alerts by distinguishing confirmed human and vehicle targets from background movement.
- Can this camera be mounted outdoors on an eave or soffit?
Yes. The IP67-rated housing is rated for outdoor exposure to dust and water jets, making eave, soffit, and external wall mounting suitable across Australian climate conditions. The ball-and-socket turret design allows the lens to be aimed precisely after the housing is fixed to the mounting surface, which is particularly useful when the ideal mounting point is not directly in line with the target scene.
- What does ePoE mean and how does it benefit my installation?
ePoE extends the operational cable distance for PoE-powered cameras beyond the standard 100m IEEE 802.3af limit. This means the IPC-HDW5442EMP-ASE-S3 can operate over a single Cat5e or Cat6 cable across longer runs, which is useful on large commercial sites, campuses, and industrial properties where a switch cannot practically be located within 100m of every camera position. ePoE requires a compatible Dahua ePoE NVR or switch at the other end of the cable run.
- Does this camera have a built-in microphone and audio output?
Yes. The IPC-HDW5442EMP-ASE-S3 includes a built-in microphone as well as a dedicated 1-in/1-out audio interface. This allows external microphones or speakers to be connected for two-way audio applications. The built-in mic captures ambient sound at the camera location, which also feeds the smart sound detection AI function for detecting unusual audio events.
- How much local storage can this camera support?
The camera accepts a Micro SD card up to 1TB capacity. This allows extended on-camera storage of recorded footage independent of a connected NVR, which is useful as a redundancy measure or in standalone deployments where continuous network recording is not available.
- What NVR or software is needed to use the WizMind AI features?
The AI analytics run onboard the camera itself, so basic event triggering functions without additional back-end processing. However, to access face detection search, people counting reports, metadata-based video search, and face database management, you will need a Dahua WizMind-compatible NVR or DSS/IVSS platform with firmware that supports the IPC-HDW5442EMP-ASE-S3. Confirm NVR compatibility before specifying the system. This camera and compatible Dahua recorders are available through Security Wholesalers.
- Is the IPC-HDW5442EMP-ASE-S3 vandal resistant?
The camera carries an IP67 weather protection rating, which covers dust ingress and water jet exposure. The product data does not confirm an IK impact resistance rating for this model. If the mounting point is at a height or location where physical impact is a genuine risk, an IK10-rated housing should be specified separately for that position.
