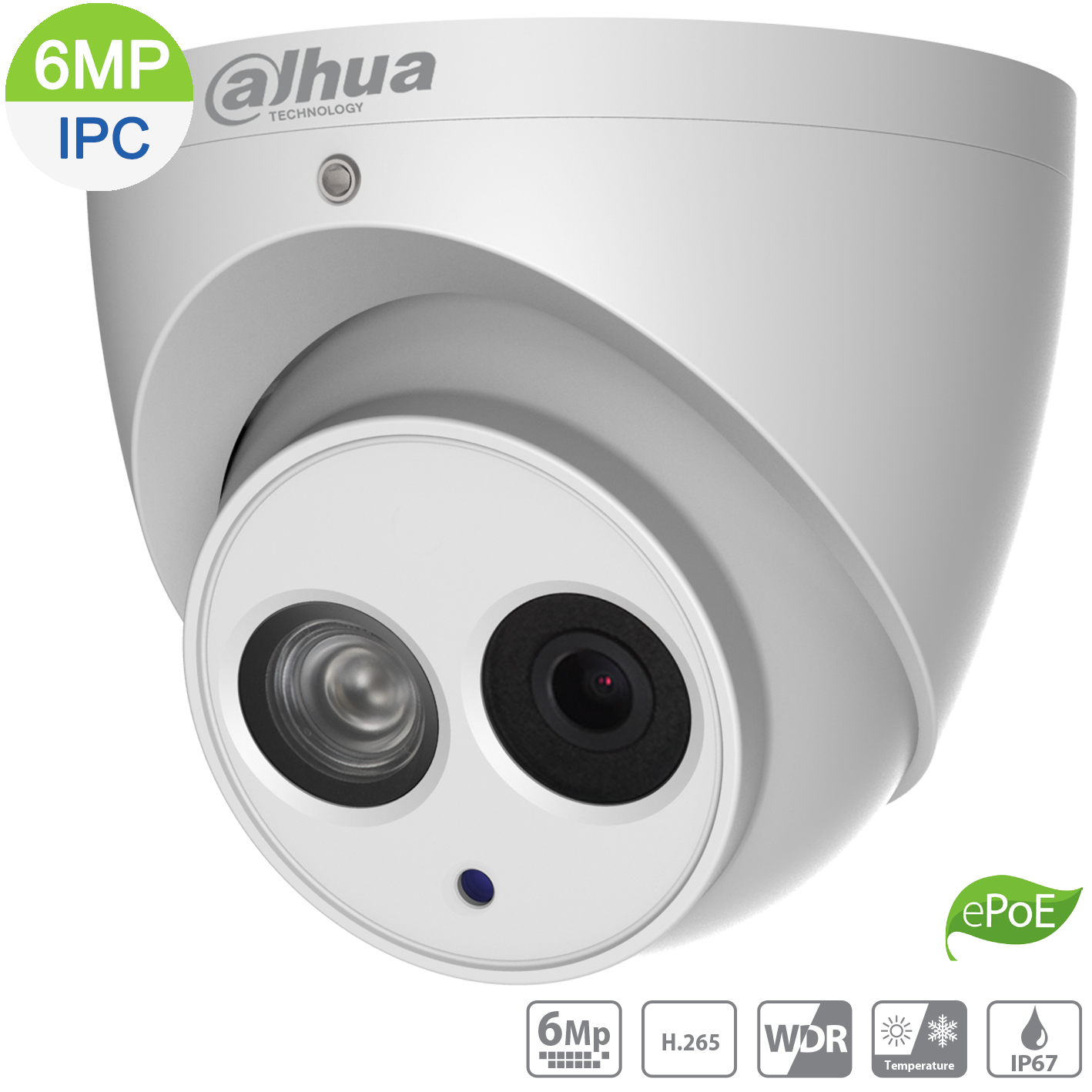

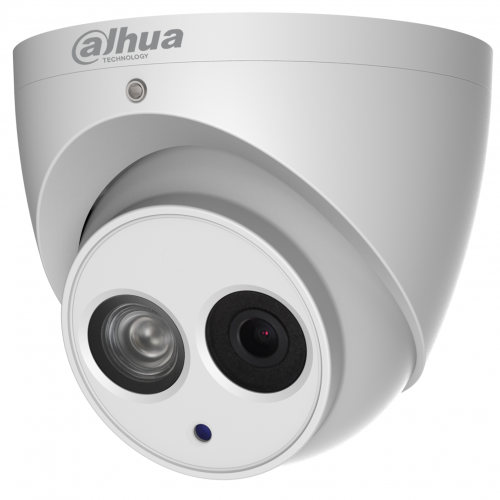

Dahua DH-IPC-HDW4631EMP-0280B 6MP Eyeball Network Camera 50m IR 2.8mm

$194.00$231.00
SAVE $37.00FREE DELIVERYWARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team   ✔ Fast & Responsive Tech Support
Availability:

Out of stock


Dahua 6MP Eyeball Network Camera | 2.8mm Fixed Lens | 50m IR | Built-in Mic | IP67

The Dahua 6MP Eyeball Network Camera (DH-IPC-HDW4631EMP) delivers crisp STARVIS H.265+ video with a fixed 2.8mm lens, making it well suited to indoor and outdoor installations requiring wide-angle coverage. It features Day/Night ICR with true 120dB WDR, IVS analytics, and 50m infrared night vision for reliable around-the-clock performance. Available at Security Wholesalers, this camera supports PoE for simplified cabling and includes a built-in microphone for on-site audio capture.

NOTE – This camera has been superseded. Looking for a similar camera with Smart Motion Detection? Click here

Key Features

  • 6MP STARVIS Sensor: High-resolution imaging with excellent low-light performance.
  • H.265+ Compression: Reduces storage and bandwidth requirements without sacrificing quality.
  • 50m IR Night Vision: Infrared illumination for clear footage in complete darkness.
  • True WDR (120dB): Handles challenging high-contrast lighting scenes with ease.
  • Built-in Microphone: Captures on-site audio without requiring external devices.
  • IP67 Weatherproof: Fully rated for outdoor use in harsh environmental conditions.
6MP
50m Night Vision
Weatherproof
Built-in Microphone
H.265+
Mobile Viewing



Additional Information

Spec sheet – DH-IPC-HDW4631EMP-0280B
NOTE – This camera has been superseded. Looking for a similar camera with Smart Motion Detection? Click here

$194.00 $231.00 inc GST +3 Year Warranty & Support

Out of stock

Product SKU: DH-IPC-HDW4631EMP

Product Overview

The Dahua 6MP eyeball network camera delivers sharp, detailed surveillance footage suitable for a wide range of residential and commercial installations. Featuring a 1/2.9″ STARVIS CMOS sensor with a fixed 2.8mm lens, this camera captures crisp 6-megapixel images in a compact, low-profile turret housing. With up to 50 metres of infrared night vision, True WDR at 120dB, and a built-in microphone, it handles challenging lighting environments with confidence. H.265+ compression keeps storage and bandwidth demands low without sacrificing image quality. PoE support simplifies installation by combining power and data over a single cable, and the IP67-rated housing ensures reliable operation outdoors. Smart detection and IVS analytics add an intelligent layer of monitoring, making this camera a practical choice for property owners and installers looking for proven performance at an accessible price point.

Key Capabilities

6MP STARVIS Image Sensor

The 1/2.9″ STARVIS CMOS sensor captures high-resolution 6-megapixel footage at up to 20fps, delivering crisp detail that makes it easier to identify faces, licence plates, and other key visual information in both day and night conditions.

H.265+ Efficient Compression

H.265+ encoding significantly reduces file sizes and bandwidth consumption compared to older H.264 formats, allowing you to store more footage on the same hard drive and reduce the strain on your network without compromising image quality.

50m Infrared Night Vision

Built-in IR LEDs illuminate scenes up to 50 metres in complete darkness, with Day/Night ICR filter switching ensuring accurate colour reproduction during the day and clear monochrome detail at night, providing round-the-clock surveillance coverage.

True WDR 120dB

True Wide Dynamic Range at 120dB balances bright and dark areas within the same frame, ensuring detail is retained in high-contrast environments such as entrances with bright sunlight behind subjects or areas with mixed indoor and outdoor lighting.

Built-in Microphone

The integrated microphone captures audio alongside video, adding an extra dimension to your recordings. This is particularly useful for monitoring reception areas, retail floors, or access points where verbal interactions may be relevant to an incident.

IVS Smart Detection

Intelligent Video Surveillance analytics support features such as tripwire and intrusion detection, enabling the camera to trigger alerts based on specific behaviours rather than simple motion, reducing false alarms and improving the reliability of your security response.

Best For

  • Residential Perimeter Monitoring: The 50m IR range and IP67 weatherproofing make this camera well suited to driveways, front yards, and building exteriors where reliable outdoor performance is essential.
  • Small Business Surveillance: Retail stores, warehouses, and small offices benefit from 6MP detail and IVS analytics, enabling accurate identification of individuals and detection of suspicious activity.
  • PoE-Based IP Systems: Installers building or expanding PoE network camera systems will appreciate the straightforward single-cable installation and compatibility with standard PoE switches and NVRs.
  • Environments with Mixed Lighting: Entrances, car parks, and loading docks with strong contrast between bright and shaded areas are well handled by the 120dB True WDR capability.
  • Audio-Required Installations: Locations where capturing spoken interaction is important, such as reception areas or access control points, benefit from the integrated microphone without needing an external audio device.

Why Choose the DH-IPC-HDW4631EMP

Where basic 2MP or 4MP cameras may leave you squinting at grainy thumbnails when reviewing footage, this Dahua 6MP eyeball camera delivers noticeably sharper images that make a real difference when identifying faces or vehicle plates. The combination of STARVIS low-light performance, True WDR, and 50m infrared means this camera adapts to a wide variety of real-world lighting scenarios rather than struggling in the conditions that matter most. H.265+ compression keeps your storage costs down as your system grows, and the built-in microphone removes the need for a separate audio solution. IVS analytics move beyond basic motion detection to offer smarter, more targeted alerts. Available through Security Wholesalers, this camera represents a strong value proposition for installers and property owners who want genuine performance without overspending on features they may not need.

Buyer Decision Tips

Buyer Tip: This model does not include alarm inputs/outputs, an SD card slot, or ePOE (extended PoE up to 800m). If any of these features are important to your installation — for example, if you need local on-camera storage or long cable runs — consider the ASE variant of this camera instead, which supports all three of those features.

Buyer Tip: Note that this model has been superseded by the Dahua DH-IPC-HDW3641EM-AS-0280B-AUS, which adds SMD (Smart Motion Detection) and WizSense AI capabilities. If you are starting a new installation rather than expanding an existing system, reviewing the newer model first is worthwhile to ensure you get the latest feature set.

Key Features & Technical Specifications

Image Sensor 1/2.9″ 6-megapixel progressive scan STARVIS CMOS
Resolution 6MP (3072×2048)
Frame Rate 20fps @ 6MP; 25/30fps @ 4MP (2688×1520)
Lens 2.8mm fixed focal length
Video Compression H.265+ / H.265 / H.264+ / H.264 triple-stream encoding
Wide Dynamic Range True WDR, 120dB
Day/Night Auto (ICR), Colour, B/W
IR Distance Up to 50 metres
Image Enhancement 3DNR, AWB, AGC, BLC
Built-in Microphone Yes
Smart Detection / IVS Supported (tripwire, intrusion detection)
Network Monitoring Web viewer, CMS (DSS/PSS), DMSS
Power Supply DC12V; PoE (IEEE 802.3af)
Power Consumption Less than 6W
Ingress Protection IP67
SD Card Slot Not included on this model
Alarm I/O Not included on this model
ePOE Not included on this model
Optional Accessories Junction Box PFA130-E; Wall Mount Bracket PFB204W

Ideal Use Cases

Home Driveways & Entrances

The weatherproof housing and 50m IR range make this camera a dependable choice for monitoring home access points, capturing clear footage of approaching vehicles and visitors day or night.

Retail Store Interiors

High-resolution 6MP footage combined with IVS analytics supports loss prevention in retail environments, allowing staff and managers to review detailed recordings and receive alerts for defined zone intrusions.

Office Reception Areas

The built-in microphone captures both video and audio at reception desks or entry lobbies, providing a complete record of visitor interactions without additional hardware investment.

Car Parks & Loading Docks

True WDR at 120dB handles the stark contrast between sunlit areas and shaded zones, ensuring number plates and faces remain legible in car park environments where lighting is unpredictable.

Warehouse & Industrial Facilities

Wide-angle 2.8mm coverage and IP67-rated durability suit the open floor plans and variable conditions found in warehouses and light industrial sites, providing broad scene coverage from a single camera.

Choosing the Right Model

  • Choose this model if: You need a reliable 6MP PoE eyeball camera with built-in audio and IVS analytics for a straightforward indoor or outdoor installation, and do not require an SD card slot, alarm I/O, or extended PoE cable runs.
  • Choose a different model if: You need local on-camera storage (SD card), alarm input/output terminals, or extended PoE cable runs beyond standard distances — in which case the ASE variant or the newer DH-IPC-HDW3641EM-AS-0280B-AUS with WizSense and SMD would be more appropriate.

FAQs

  1. Does this camera work with standard PoE switches and NVRs?
    Yes, the camera supports PoE (IEEE 802.3af), meaning it can be powered and connected via a standard PoE switch or PoE-capable NVR using a single Cat5e or Cat6 cable. This eliminates the need for a separate power supply at each camera location, simplifying installation considerably.
  2. Can this camera record audio as well as video?
    Yes, this camera includes a built-in microphone that captures audio alongside video footage. To record audio, your NVR must support audio input from IP cameras. Always ensure your audio recording practices comply with relevant Australian state and territory privacy legislation.
  3. What is the difference between this model and the ASE variant?
    This model (DH-IPC-HDW4631EMP) does not include an SD card slot, alarm inputs/outputs, or ePOE (extended PoE up to 800m). The ASE variant adds all three of these features. If your installation requires any of them, the ASE model is the better choice.
  4. Is this camera suitable for outdoor use?
    Yes. The IP67 ingress protection rating means the camera is fully protected against dust and against water jets from any direction, making it suitable for outdoor mounting on walls, soffits, and building exteriors in Australian weather conditions.
  5. What does True WDR 120dB mean in practice?
    Wide Dynamic Range allows the camera to capture usable detail in both very bright and very dark areas of the same frame simultaneously. At 120dB, this Dahua camera handles challenging scenes such as a shaded entrance facing a bright outdoor area, where a standard camera would produce a silhouetted or washed-out image.
  6. Does this camera require any special software to view remotely?
    Remote viewing is supported via web browser, Dahua’s CMS platforms (DSS/PSS), and the DMSS mobile app. This gives you flexible options for live viewing and playback on computers, tablets, and smartphones without requiring additional paid software.
  7. Has this camera been superseded by a newer model?
    Yes. Dahua has released the DH-IPC-HDW3641EM-AS-0280B-AUS, which adds WizSense AI and Smart Motion Detection (SMD) capabilities. If you are planning a new installation, Security Wholesalers recommends reviewing the newer model to ensure you have access to the latest intelligent detection features before purchasing.
  8. What optional accessories are available for this camera?
    Dahua offers two compatible accessories: the PFA130-E waterproof junction box, which conceals cabling at the mounting point for a cleaner installation finish, and the PFB204W waterproof wall mount bracket for installations where a surface-mount arm is required rather than a flush ceiling or wall fit.

Product Video Samples

Additional Information

Specifications

Camera
Image Sensor 1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels 3072(H) x 2048(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination 0.04Lux/F1.6( Color,1/3s,30IRE)

0.4Lux/F1.6( Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 50m (164ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (3.6mm optional)
Max. Aperture F1.6(F1.6)
Angle of View H: 98° (69°), V: 67° (48°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance 0.9m (1.7m)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 69m(226ft) 28m(92ft) 14m(46ft) 7m(23ft)
3.6 mm 89m(292ft) 36m(118ft) 18m(59ft) 9m(30ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution (3072×2048)/(3072×1728)/(2592×1944)/(2688×1520)/(2560×1440)/(2304×1296)/1080P(1920×1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24K ~ 10240Kbps

H.265: 14K ~ 9984Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface Built-in Mic
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <6W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal
Dimensions Φ106mm×93.7mm (4.17”×3.69”)
Net Weight 0.47Kg (1.04lb)
Gross Weight 0.65Kg (1.43lb)
