Product Overview

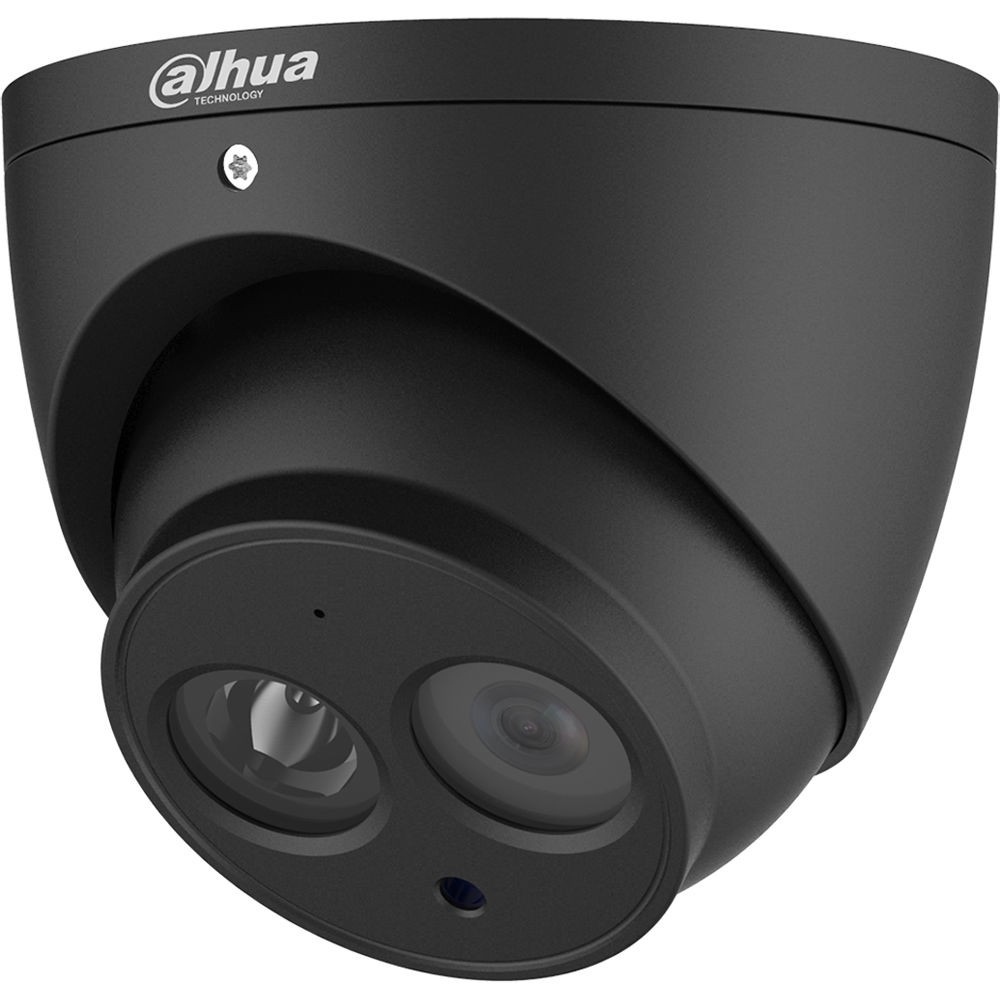

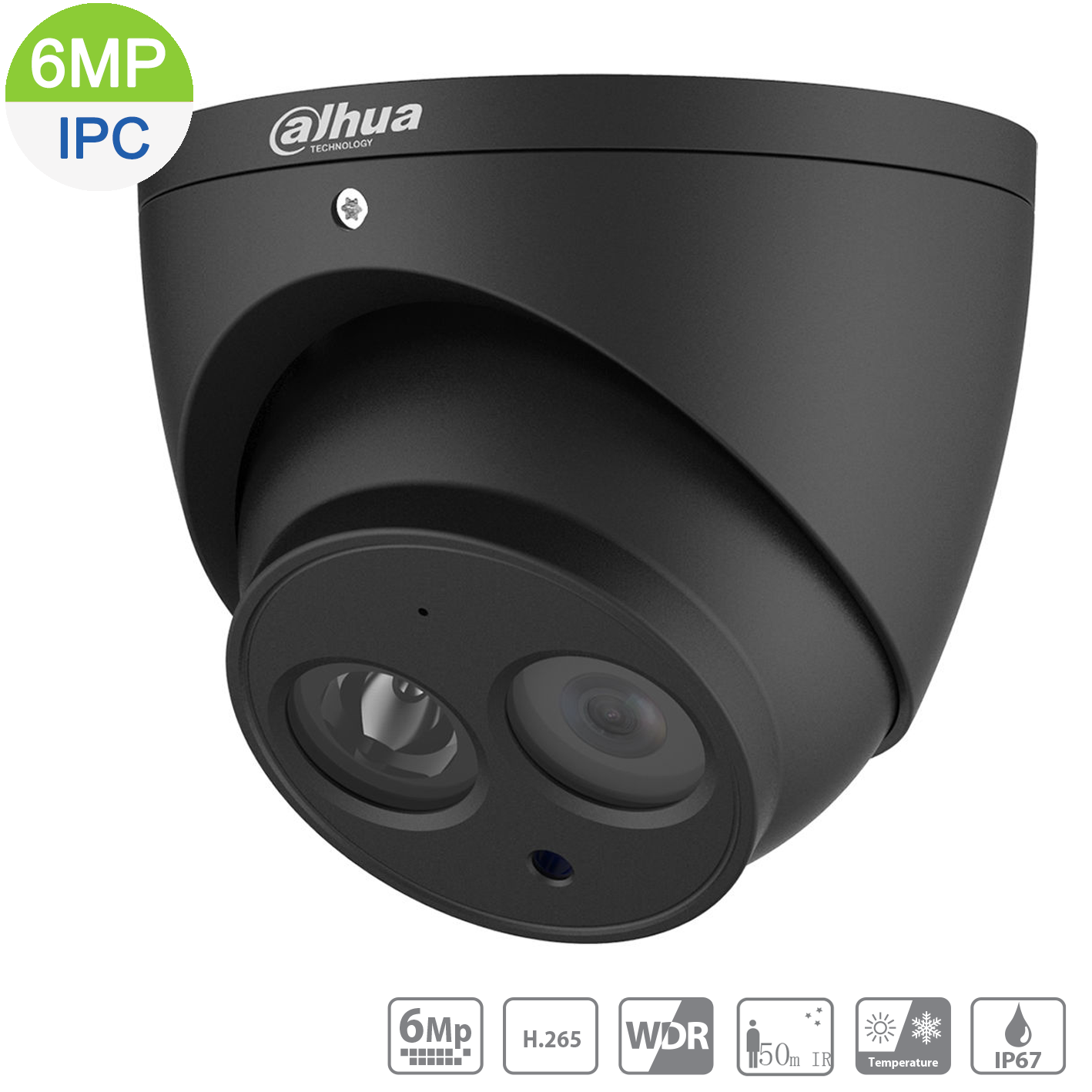

The Dahua DH-IPC-HDW1631EM-0280B-BLK is a 6MP Lite series IR eyeball network camera finished in black, designed for straightforward indoor and outdoor IP surveillance installations. Featuring a 1/2.9″ STARVIS CMOS sensor and a 2.8mm fixed lens delivering a 97-degree horizontal field of view, this camera captures detailed footage at up to 6 megapixels. H.265 and H.264 triple-stream encoding reduces bandwidth consumption and storage requirements without sacrificing image clarity. Built-in smart IR technology extends night vision coverage up to 50 metres, while the integrated microphone adds audio capture capability. WDR (120dB), 3DNR, and Day/Night ICR ensure reliable performance across varying lighting conditions. Rated IP67, the camera withstands dust and water ingress, making it suitable for exposed mounting locations. PoE support simplifies cabling. This model is available in black and suits residential and small commercial installations requiring a reliable, cost-effective 6MP eyeball camera.
Key Capabilities
6MP STARVIS CMOS Sensor
The 1/2.9″ 6-megapixel STARVIS CMOS sensor delivers high-resolution imagery at 3072×2048, capturing fine detail across a wide scene. This makes it easier to identify faces, vehicles, and other key features even when reviewing footage after an incident.
H.265 Efficient Encoding
H.265 triple-stream encoding significantly reduces file sizes compared to older codecs, cutting storage and bandwidth costs. This is particularly valuable in multi-camera installations where NVR storage capacity and network throughput are real constraints.
50m Smart IR Night Vision
Built-in smart IR LEDs provide up to 50 metres of night vision coverage. Smart IR technology automatically adjusts IR intensity to prevent image overexposure at close range, maintaining clear detail whether subjects are near or at the edge of the IR range.
120dB Wide Dynamic Range
With 120dB WDR, the camera handles high-contrast scenes — such as entranceways with bright outdoor light and darker interiors — far more effectively than cameras without WDR. Both bright highlights and shadow detail are preserved in a single image.
Built-in Microphone
The integrated microphone captures audio alongside video, eliminating the need for a separate audio input device. This is useful for monitoring areas where verbal interactions or ambient sounds provide important context alongside the visual recording.
IP67 Rating & PoE Support
IP67 certification ensures the camera is fully protected against dust ingress and temporary water immersion, making it suitable for outdoor mounting. PoE (Power over Ethernet) simplifies installation by delivering both data and power through a single cable run.
Best For
- Residential Surveillance: Ideal for homeowners wanting high-resolution 6MP coverage of driveways, entries, and backyard areas without complex installation requirements.
- Small Commercial Premises: Suitable for small offices, retail shops, and warehouses that need reliable IP cameras with efficient H.265 storage at an accessible price point.
- Low-Light & Night Monitoring: The 50m smart IR range and STARVIS sensor make this camera well suited to areas that require clear footage after dark, such as car parks, laneways, and rear access points.
- Audio-Inclusive Installations: Where audio recording is required alongside video, the built-in microphone removes the need for additional cabling or hardware.
- Weatherproof Outdoor Mounting: IP67 protection means this camera can be mounted on exposed exterior walls or under eaves where it will be exposed to rain, dust, and humidity.
Why Choose the DH-IPC-HDW1631EM-0280B-BLK
Compared to entry-level 2MP or 4MP eyeball cameras, the DH-IPC-HDW1631EM-0280B-BLK delivers a significant jump in image resolution, capturing scenes at 6 megapixels. This means more usable detail when zooming into recorded footage — whether to read a number plate, identify a face, or examine an item of interest. The 120dB WDR rating handles challenging lighting far better than basic cameras, reducing washed-out or silhouetted images at doorways and entries. H.265 encoding keeps storage costs down, making the upgrade from a lower-resolution camera even more cost-effective over time. The built-in microphone adds audio capability without added expense, and PoE support keeps cabling straightforward. Available through Security Wholesalers, this black-finish model suits installations where a discreet, dark-coloured camera blends more naturally into the mounting surface than a white unit would.
Package Inclusions
- This is a single camera product. No additional kit items are included.
Buyer Decision Tips
Buyer Tip: This camera records at 20fps at full 6MP resolution, or up to 25/30fps at 4MP. If smooth motion playback is a priority in high-traffic areas, consider whether you need full 6MP at 20fps or whether the 4MP mode at higher frame rates better suits your requirements.
Buyer Tip: Note that this model has been replaced by the Dahua DH-IPC-HDW3641TMP-AS-0280B-AUS, which includes SMD (Smart Motion Detection). If your installation requires more advanced detection capabilities, the replacement model may be a better fit for your needs.
Key Features & Technical Specifications
| Model | DH-IPC-HDW1631EM-0280B-BLK |
| Colour | Black |
| Image Sensor | 1/2.9″ 6-megapixel progressive scan STARVIS CMOS |
| Resolution | 6MP (3072×2048) |
| Frame Rate | 20fps @ 6MP (3072×2048); 25/30fps @ 4MP (2688×1520) |
| Lens | 2.8mm fixed lens |
| Horizontal Field of View | 97 degrees |
| Video Encoding | H.265 & H.264 triple-stream encoding |
| IR Night Vision Range | Up to 50m (smart IR) |
| Wide Dynamic Range | 120dB WDR |
| Day/Night | Auto (ICR) |
| Image Processing | 3DNR, AWB, AGC, BLC |
| Audio | Built-in microphone |
| Smart Detection | Smart detection supported |
| Network Monitoring | Web viewer, CMS (DSS/PSS) & DMSS |
| Power | PoE (Power over Ethernet) |
| Ingress Protection | IP67 |
| Camera Type | Eyeball / Dome |
Ideal Use Cases
Home Entry & Driveway Monitoring
The 97-degree wide-angle lens and 6MP resolution make this camera well suited to covering front doors, gates, and driveways where identifying visitors and capturing vehicle details is important.
Retail Shop Interiors
Mounted in a corner or above a counter, the eyeball form factor allows precise angle adjustment. The high resolution assists in identifying individuals and capturing transaction detail in small retail environments.
Car Parks & Outdoor Areas
IP67 weatherproofing and 50m smart IR make this camera a practical choice for outdoor car parks, loading docks, and external access points where night-time visibility and weather resistance are essential.
Office Corridors & Reception Areas
The compact eyeball design and wide field of view suit corridor and reception installations. The built-in microphone can capture audio in areas where verbal exchanges may be relevant to security incidents.
Perimeter Fence Lines
Mounted on fence posts or exterior walls, the IP67-rated camera can monitor perimeter boundaries in all weather conditions, with smart IR ensuring clear footage throughout the night.
Choosing the Right Model
- Choose this model if: You need a cost-effective 6MP eyeball camera in black with 50m IR, a built-in microphone, H.265 encoding, and IP67 weatherproofing for a straightforward residential or small commercial IP surveillance installation.
- Choose a different model if: You require Smart Motion Detection (SMD) or more advanced IVS features — the Dahua DH-IPC-HDW3641TMP-AS-0280B-AUS is the confirmed replacement for this model and includes SMD capability.
FAQs
- What resolution does the DH-IPC-HDW1631EM-0280B-BLK record at?
This camera records at 6MP (3072×2048) at up to 20fps, or at 4MP (2688×1520) at up to 25/30fps. The 6MP mode provides excellent image detail for identifying people and vehicles, while the 4MP mode offers a higher frame rate option for areas with faster-moving subjects. - Does this camera work in low-light conditions?
Yes. The STARVIS CMOS sensor is designed for enhanced low-light performance, and the built-in smart IR LEDs provide up to 50 metres of infrared illumination. Smart IR automatically adjusts intensity to avoid overexposure when subjects are close to the camera, maintaining usable image detail throughout the night. - Is this camera suitable for outdoor installation?
Yes. The DH-IPC-HDW1631EM-0280B-BLK carries an IP67 ingress protection rating, meaning it is fully dust-tight and protected against temporary water immersion. This makes it suitable for exposed outdoor mounting locations including eaves, exterior walls, and fence lines. - Does this camera require a separate power supply?
No. This camera supports PoE (Power over Ethernet), which delivers both power and network data through a single Ethernet cable. A PoE-capable NVR or PoE switch is required, eliminating the need for a separate power adaptor at the camera location. - Does the DH-IPC-HDW1631EM-0280B-BLK have a built-in microphone?
Yes, a built-in microphone is included. This allows audio to be recorded alongside video without the need for an external microphone or additional wiring, which is useful in areas where ambient sound provides relevant security context. - Has this camera been replaced by a newer model?
Yes. This model has been replaced by the Dahua DH-IPC-HDW3641TMP-AS-0280B-AUS, which includes Smart Motion Detection (SMD). If you are purchasing through Security Wholesalers and require the latest available model with enhanced detection capabilities, the replacement model is the recommended choice. - What is the difference between the Lite and Eco Savvy versions of this camera?
The key difference noted in the product data is that the Lite series does not include face detection, which is available in the Eco Savvy (HDW4631) version. For most standard surveillance applications, the Lite series provides all the core features required at a more accessible price point. - Is the 2.8mm lens angle suitable for monitoring a standard room or driveway?
The 2.8mm fixed lens provides a 97-degree horizontal field of view, which is well suited to covering wide areas such as driveways, open rooms, corridors, and shopfronts. It is not a zoom lens and cannot be adjusted, so camera placement should be planned to suit the coverage area required.
