Product SKU: DH-IPC-HDBW5442EP-ZE-2712
Product Overview

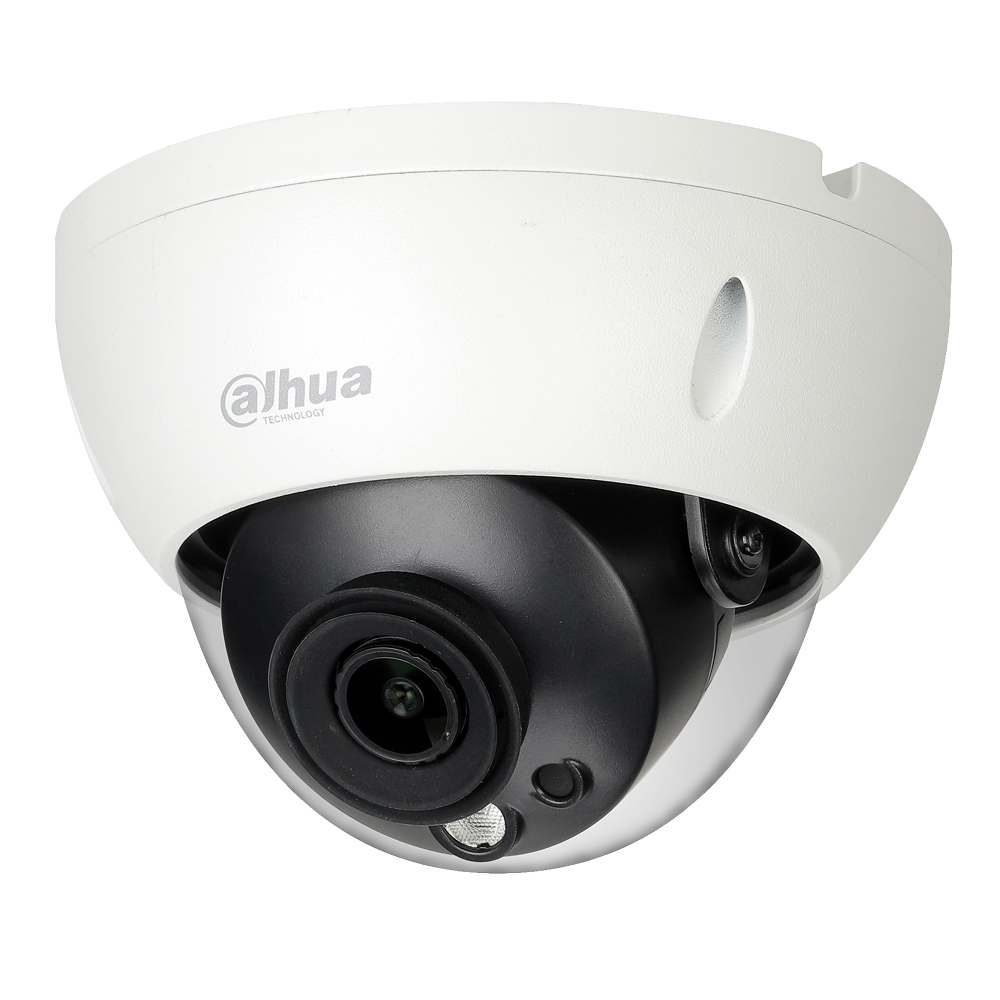

Built for ceiling-mounted installations where deep-learning AI and flexible framing are both required, the DH-IPC-HDBW5442EP-ZE-2712 is a 4MP Starlight+ vandal dome camera from Dahua’s Pro AI WizMind series. The motorised 2.7mm-12mm varifocal lens allows installers to adjust the field of view remotely after mounting, making it practical for lobbies, corridors, retail floors, and covered external areas where the ideal framing angle is not always obvious before installation. Featuring a large 1/1.8″ CMOS sensor with a minimum illumination of 0.003 Lux at F1.8, the camera delivers detailed imagery in near-darkness without switching to a degraded night mode. It also includes deep-learning perimeter protection, face capture with attribute extraction, people counting, and heat mapping. IK10 vandal resistance and IP67 weatherproofing protect the metal dome housing in demanding or semi-public environments. With 40m smart IR, 140dB WDR, electronic image stabilisation, and onboard Micro SD storage up to 256GB, this is a capable single-camera deployment solution.
Key Capabilities
Motorised Varifocal Lens (2.7mm-12mm)
The motorised varifocal lens lets installers dial in the exact field of view from the NVR or web interface after the dome is fixed to the ceiling, eliminating the need to re-mount the camera to adjust framing in difficult-access locations.
Starlight+ Low-Light Sensitivity
The 1/1.8″ CMOS sensor achieves 0.003 Lux at F1.8, allowing the camera to produce usable colour detail in corridors, stairwells, and dimly lit covered areas where most standard sensors would deliver washed-out or heavily noisy images.
Deep-Learning Perimeter Protection
AI-driven tripwire, intrusion, loitering, fast-moving, parking detection, and people-gathering rules distinguish people and vehicles from other movement, reducing nuisance alerts triggered by lighting changes, insects, or environmental motion.
Face Capture and Attribute Extraction
The camera captures face images and extracts 6 attribute categories including age, gender, expression, glasses, mouth mask, and facial hair. This supports access logging and post-incident review without requiring a separate dedicated face-capture device.
People Counting and Heat Mapping
Line-crossing, regional, and queueing people counting with up to 4 independent detection areas supports occupancy management and queue analysis. Heat map data provides long-term foot traffic patterns useful for retail layout planning.
IK10 Vandal Resistance and IP67 Weatherproofing
The metal dome casing is rated IK10 against impact and IP67 against dust and water ingress. This combination suits ceiling-mounted positions in semi-public spaces, covered walkways, and external building facades where tampering or exposure to the elements is a consideration.
Best For
- Retail and Commercial Interiors: People counting with 4 independent detection zones and heat mapping give retail managers foot traffic data and queue length insights directly from the camera without additional analytics hardware.
- Lobbies, Reception Areas, and Building Entrances: Face capture with attribute extraction and the motorised varifocal lens make this dome well suited to entry points where framing needs to be refined post-installation and identification detail matters.
- Covered External Areas and Car Park Entries: IP67 and IK10 ratings protect the dome housing in exposed ceiling positions, while deep-learning perimeter protection filters vehicle and pedestrian alerts from environmental false triggers.
- Corridors, Stairwells, and Low-Light Internal Spaces: Starlight+ sensitivity at 0.003 Lux and 40m smart IR with 3 LEDs ensure this dome maintains image quality in poorly lit internal spaces without relying solely on supplemental lighting.
- Sites Requiring Onboard Edge Storage: Micro SD card support up to 256GB enables local recording independent of an NVR, suitable for remote installations or as a redundancy layer alongside network storage.
Why Choose the DH-IPC-HDBW5442EP-ZE-2712
Where a standard fixed-lens dome provides basic motion detection, the DH-IPC-HDBW5442EP-ZE-2712 operates at a different tier. The motorised 2.7mm-12mm lens removes the guesswork from installation framing, while the 1/1.8″ sensor size gives the Starlight+ designation real low-light substance at 0.003 Lux. The Pro AI WizMind classification reflects confirmed deep-learning capabilities including perimeter protection with vehicle and person classification, face capture, 6-attribute face analysis, people counting across 4 independent zones, and heat mapping. These are analytics that would otherwise require a separate server or a higher-cost dedicated device. The 140dB WDR rating handles challenging contrast conditions at entrances and window-facing angles, and the IK10 metal housing resists tampering in semi-public ceiling positions. With 1-in/1-out audio, 1-in/1-out alarm terminals, and PoE 802.3af powering, cabling remains straightforward. Available at Security Wholesalers, this model suits commercial installers who need confirmed AI analytics built into the dome itself rather than layered on afterwards.
Buyer Decision Tips
Motorised Lens and PoE Class Compatibility: The DH-IPC-HDBW5442EP-ZE-2712 draws up to 12.4W and is classified as PoE 802.3af Class 0. Confirm your switch or NVR port can deliver this wattage before ordering. If your existing PoE infrastructure is limited to lower-draw devices, check port budgets across the full install before committing. The motorised lens requires the camera to be connected to a network or managed locally to complete remote focus and zoom adjustment after physical mounting.
AI Features Require Compatible Management Software: Face capture, people counting, perimeter protection, and heat map functions produce the most actionable results when paired with compatible VMS or NVR software such as Dahua Smart PSS or DSS. Basic ONVIF-only integration with third-party platforms may not expose all AI event streams. Confirm your recording or management platform supports the WizMind AI event types before deployment.
Key Features & Technical Specifications
| Image Sensor |
1/1.8″ 4MP progressive scan CMOS |
| Effective Resolution |
2688 x 1520 (4MP) |
| Minimum Illumination |
0.003 Lux at F1.8 |
| Lens Type |
Motorised varifocal, 2.7mm-12.0mm |
| Max Aperture |
F1.8 |
| Horizontal Angle of View |
114 degrees (wide) to 47 degrees (tele) |
| IR Range |
Up to 40m, 3 x Smart IR LEDs |
| WDR |
140dB |
| Video Compression |
H.265, H.264, H.264B, H.264H, MJPEG (sub stream) |
| Frame Rate |
25/30fps at 2688×1520; 50/60fps at 1080P |
| AI Features |
Face capture, face attribute extraction, perimeter protection (tripwire, intrusion, loitering, fast moving, parking, people gathering), people counting, heat map, object abandoned/missing |
| Edge Storage |
Micro SD up to 256GB; NAS, FTP, SFTP |
| Audio |
1 channel in / 1 channel out |
| Alarm I/O |
1 channel in / 1 channel out |
| Power Supply |
DC 12V, AC 24V, PoE 802.3af (Class 0) |
| Power Consumption |
Less than 12.4W |
| Ingress Protection |
IP67 |
| Vandal Resistance |
IK10 |
| Operating Temperature |
-30 degrees C to +60 degrees C |
| Dimensions / Weight |
Phi 159.0mm x 117.9mm / 0.95kg |
Ideal Use Cases
Retail Stores and Shopping Centres
People counting with 4 independent detection zones and heat mapping gives retail operators occupancy data and foot traffic pattern analysis. The motorised lens allows framing to be adjusted toward entry gates, checkout queues, or specific product zones after the dome is fixed to the ceiling grid.
Building Lobbies and Reception Desks
Face capture and 6-attribute extraction support visitor logging at entry points. The 140dB WDR is particularly relevant at lobbies where bright daylight from glass facades creates high contrast against the interior, which would otherwise cause overexposed or silhouetted face images.
Covered Car Park Entries and Boom Gate Areas
Deep-learning perimeter protection detects vehicles and people crossing defined zones, while IK10 and IP67 ratings protect the dome in exposed or semi-covered ceiling positions subject to weather, dust, and deliberate interference.
School Corridors and Common Areas
Loitering detection and people-gathering alerts support duty-of-care monitoring in corridors and shared spaces. The Starlight+ sensor at 0.003 Lux maintains image quality in poorly lit corridors and stairwells during early morning or evening hours without relying on supplemental lighting.
Office Buildings with Access Control Integration
The camera supports 1-in/1-out alarm terminals and audio I/O alongside ONVIF Profile S/G/T and CGI compatibility, allowing integration with access control panels or VMS platforms used in multi-tenancy office environments.
Remote Sites Requiring Edge Storage Redundancy
Onboard Micro SD support up to 256GB enables the camera to record locally if network connectivity is interrupted. This suits remote or temporary sites where NVR connectivity cannot always be guaranteed but continuous recording is required.
Choosing the Right Model
- Choose this model if: You need confirmed deep-learning AI including face capture, perimeter protection with people and vehicle classification, people counting across multiple zones, and heat mapping built into a single vandal dome with IK10 protection and a motorised varifocal lens for post-installation framing adjustment.
- Choose a different model if: Your site only requires basic motion-triggered recording without AI analytics. A standard fixed-lens dome without WizMind features will cost less and meet the brief without delivering capabilities that go unused. Alternatively, if the camera must cover a long outdoor perimeter approach rather than a ceiling-mounted indoor or semi-covered position, a bullet-form camera with longer IR range would be a more appropriate housing choice.
FAQs
- What does the motorised varifocal lens allow that a fixed-lens dome does not?
The 2.7mm-12mm motorised lens on this model can be adjusted remotely via the camera’s web interface or a connected NVR after the dome is physically mounted. This means the installer does not need to remove the dome from the ceiling to reframe the shot. For ceiling installations in corridors, lobbies, or retail floors where access for re-mounting is inconvenient, this is a practical advantage over fixed-lens alternatives.
- Is this camera suitable for outdoor installation?
Yes. The metal dome housing carries an IP67 dust and water ingress rating and an IK10 impact resistance rating. It operates across a temperature range of -30 degrees C to +60 degrees C. This makes it suitable for covered external areas, building facades, and carport ceilings, provided it is ceiling or wall mounted in a position where the dome bubble is not subject to direct prolonged rain without any overhang protection.
- What face-related features are confirmed on this camera?
The DH-IPC-HDBW5442EP-ZE-2712 supports face image capture and extraction of 6 face attribute categories: age, gender, expression (7 states), glasses, mouth mask, and moustache and beard. This is face capture and attribute metadata, not face recognition or identity matching against a database. Confirm your VMS or NVR platform supports WizMind face capture events to make use of this data.
- How does perimeter protection differ from standard motion detection on this model?
Standard motion detection triggers on any pixel change within a defined zone, including shadows, lighting shifts, and insects. The perimeter protection on this camera uses a deep-learning algorithm trained to classify targets as people or vehicles before triggering an event. Rules include tripwire crossing, zone intrusion, loitering, fast-moving detection, parking detection, and people gathering. This classification layer significantly reduces the rate of nuisance alerts on busy or complex scenes.
- What are the people counting capabilities and how many zones can be monitored?
The camera supports line-crossing, regional, and queueing people counting methods. Up to 4 independent access detection lines and up to 4 independent area detection zones can be configured simultaneously. This supports multi-entry retail monitoring, queue management, or occupancy control across different sections of a space using a single camera where field of view permits.
- Does this camera require an NVR to record, or can it record locally?
The camera supports onboard Micro SD card storage up to 256GB, as well as NAS, FTP, and SFTP network storage. It can record independently of an NVR using edge storage, which makes it useful as a standalone device on remote sites or as a local backup alongside network recording. Available through Security Wholesalers, the camera is also compatible with Dahua Smart PSS, DSS, and DMSS for centralised management.
- What PoE standard does the DH-IPC-HDBW5442EP-ZE-2712 use and how much power does it draw?
The camera operates on PoE 802.3af (Class 0) and draws up to 12.4W. Standard 802.3af ports deliver a maximum of 15.4W at the switch, so this camera sits within the standard PoE budget but is toward the higher end. When planning a multi-camera install, confirm your switch’s per-port and total PoE budget accommodates this draw alongside other connected devices. It also accepts DC 12V and AC 24V as alternative power inputs.
