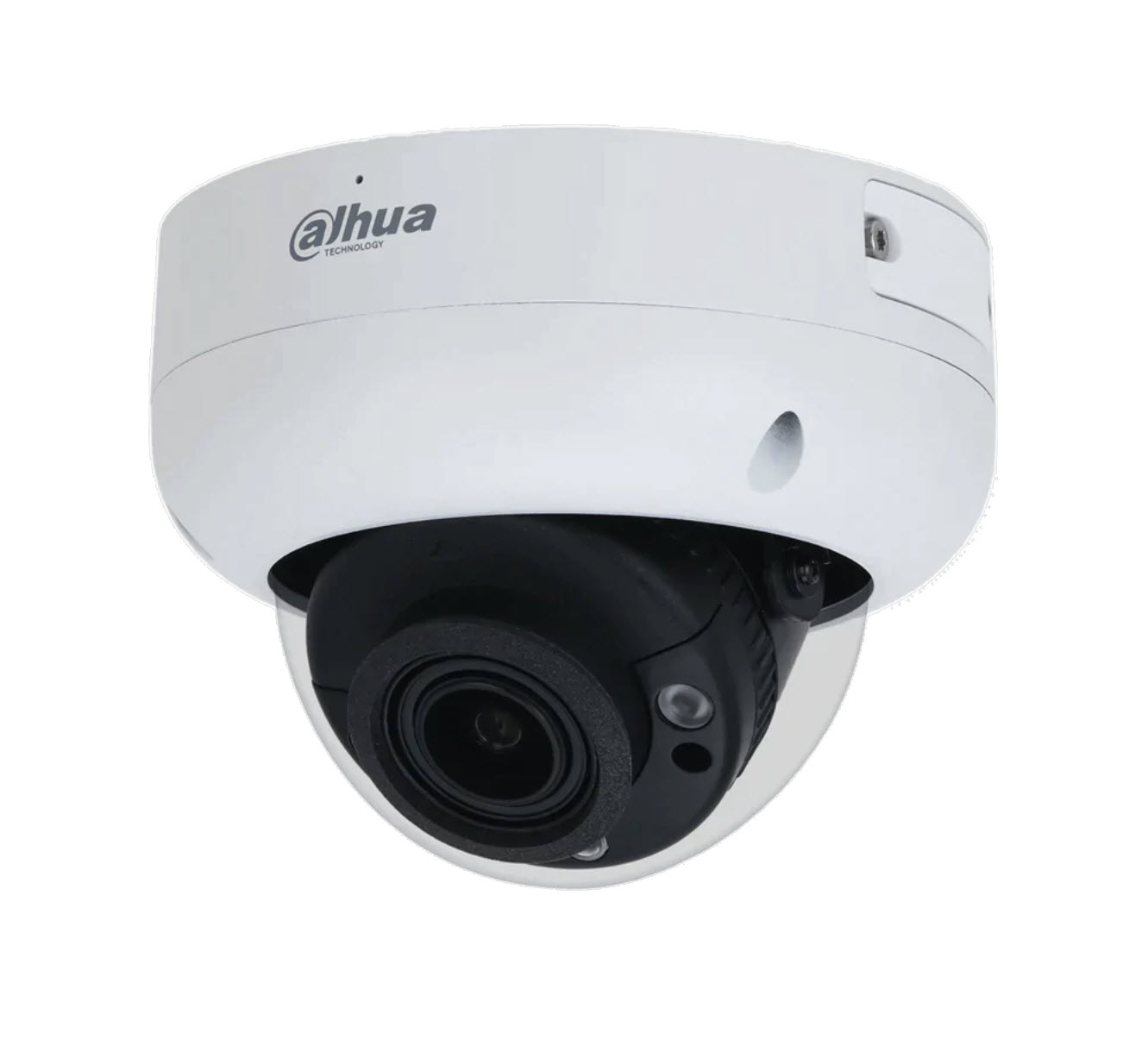

Dahua DH-IPC-HDBW3666RP-ZAS-AUS 6MP Motorised Dome Network Camera 40m IR with SMD 4.0

$294.65$355.00
SAVE $60.35FREE DELIVERYWARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team   ✔ Fast & Responsive Tech Support

Dahua DH-IPC-HDBW3666RP-ZAS-AUS | 6MP WizSense Motorised Dome | 2.7-13.5mm Varifocal | SMD 4.0 | IR 40m | IP67 | PoE

The Dahua DH-IPC-HDBW3666RP-ZAS-AUS delivers 6MP image clarity with a 2.7-13.5mm motorised varifocal lens, allowing remote zoom and focus adjustment without physical access to the camera. Equipped with SMD 4.0 (Smart Motion Detection), it accurately classifies humans and vehicles to reduce false alarms. Built with Starlight low-light technology, it maintains strong colour performance in near-darkness conditions. It also includes a built-in microphone for on-site audio capture, making it well suited to commercial and residential surveillance applications requiring flexible focal adjustment and reliable perimeter protection.

Key Features

  • 6MP Resolution: High-definition imaging for clear, detailed footage across day and night conditions.
  • Motorised Varifocal Lens: 2.7-13.5mm remote zoom and focus adjustment without physical access to the camera.
  • SMD 4.0: Smart Motion Detection accurately distinguishes humans and vehicles to minimise false alerts.
  • Starlight Low-Light Technology: Exceptional colour performance in near-darkness for improved night visibility.
  • Built-in Microphone: Integrated audio capture for complete on-site scene awareness.
  • IP67 Weatherproof: Fully sealed against dust and water ingress for reliable outdoor installation.
6MP
40m IR Night Vision
Motorised Lens
Varifocal
Weatherproof IP67
Built-in Microphone
False Alarm Filter
Low Light Performance



Additional Information

DH-IPC-HDBW3666RP-ZAS-AUS Spec Sheet

$294.65 $355.00 inc GST +3 Year Warranty & Support

Product SKU: DH-IPC-HDBW3666RP-ZAS-AUS

Product Overview

Installers working on commercial sites where coverage zones need to be dialled in precisely after mounting will find the Dahua DH-IPC-HDBW3666RP-ZAS-AUS a particularly practical choice. This IP67 and IK10-rated mini dome camera pairs a 6MP 1/2.7″ CMOS sensor with a 2.7-13.5mm motorised varifocal lens, enabling remote zoom and focus adjustment through compatible software without requiring a return visit to the camera position. Featuring SMD 4.0 smart motion detection, it classifies detected movement as human or vehicle, filtering out irrelevant triggers from animals, foliage, and shifting shadows. Built with Starlight low-light technology, it retains colour-accurate imaging in near-darkness rather than defaulting to washed-out IR footage. It also integrates a built-in microphone, alarm I/O, and a Micro SD card slot supporting up to 256GB of local edge storage. Rated for dust, water, and physical impact, this WizSense dome is suited to outdoor perimeters, car parks, warehouses, and retail environments where accurate detection and installation flexibility are both priorities.

Key Capabilities

6MP Starlight Sensor

The 1/2.7″ CMOS sensor captures 3072 x 2048 resolution at up to 30 fps. Starlight technology maintains colour-accurate imaging at very low ambient light levels, reducing reliance on IR illumination alone and producing more useful footage for identification purposes in dimly lit entrances, car parks, and perimeter zones.

Motorised Varifocal Lens (2.7-13.5mm)

Remote zoom and focus adjustment via software means the field of view can be refined after the dome is ceiling or wall-mounted, without physical access to the unit. The 5x optical range covers everything from a broad car park overview to a tighter corridor or entry-point view within a single camera.

SMD 4.0 Smart Motion Detection

SMD 4.0 uses AI-based classification to separate human and vehicle movement from non-relevant triggers such as animals, swaying branches, and lighting changes. Monitoring teams receive alerts that correspond to genuine activity rather than constant environmental noise, which significantly reduces alert fatigue across multi-camera installations.

Perimeter Protection with Tripwire and Intrusion Detection

Virtual tripwire and intrusion zone rules can be drawn over specific areas in the camera’s field of view. Alerts are triggered only when a classified human or vehicle crosses the defined boundary, making this particularly effective for monitoring access gates, restricted zones, and loading dock entry points.

IP67 and IK10 Dual-Rating

Full dust and water ingress protection at IP67 combined with IK10 impact resistance means this dome can handle both exposed outdoor installations and high-traffic indoor environments such as underground car parks or public corridors where accidental or deliberate contact with hardware is a real consideration.

H.265+ Compression and PoE Power

H.265+ smart encoding cuts bandwidth and storage requirements compared to standard H.264 without reducing image quality. PoE (IEEE 802.3af) simplifies cabling to a single Cat5e/Cat6 run per camera, lowering installation labour costs and making this dome straightforward to deploy across any PoE-capable network switch or NVR.

Best For

  • Commercial Properties and Warehouses: The motorised lens allows a single camera to monitor both wide bay areas and specific narrow zones such as loading docks or roller door entries, with coverage adjustable remotely as operational needs change.
  • Car Parks and Open Perimeters: SMD 4.0 vehicle and human classification combined with 40m IR night vision ensures reliable detection across parking bays and access lanes in the low-light conditions typical of basement and open-air car parks.
  • Retail Centres and Shopfronts: WDR capability and Starlight performance handle mixed lighting conditions at shopfront entries, delivering usable face-level detail during high-glare daylight and in poorly lit after-hours scenes.
  • Construction Sites: IP67 dust protection and IK10 impact resistance suit the harsh physical environment of active construction sites, while the motorised varifocal lens allows coverage to be re-aimed as the site layout evolves over time.
  • Residential Perimeters Requiring Local Storage: The built-in microphone, alarm I/O, and 256GB Micro SD card support allow this camera to operate as a self-contained unit for homeowners who want professional-grade perimeter coverage without depending entirely on a networked NVR.

Why Choose the DH-IPC-HDBW3666RP-ZAS-AUS

A fixed-lens IP dome can cover a defined area competently, but it cannot adapt once mounted, and standard motion detection will produce far more alerts than any monitoring team can usefully act on. The DH-IPC-HDBW3666RP-ZAS-AUS is built to address both of those limitations. The motorised 2.7-13.5mm lens gives installers and operators the ability to refine framing after the dome is in place, which saves return visits and allows the same unit to serve genuinely different coverage needs. SMD 4.0 brings AI-based classification to every alert, so only humans and vehicles trigger notifications rather than every passing bird or shadow shift. Starlight delivers colour-usable footage in conditions where cheaper sensors switch to monochrome IR. The IK10 vandal rating adds a layer of hardware protection not found on standard IP domes, and H.265+ keeps long-term storage costs manageable. Available through Security Wholesalers, this camera is a considered mid-to-upper-tier option that delivers real-world detection accuracy and installation flexibility without requiring a step into a significantly higher price bracket.

Buyer Decision Tips

Buyer Tip: If your installation site has a fixed, well-defined coverage zone that will not change after initial setup, a fixed-lens 6MP dome may represent better value. The motorised 2.7-13.5mm varifocal lens on this model earns its price on sites where coverage needs vary across zones, or where the camera will be mounted at height and re-aiming on a ladder would otherwise be required for any field-of-view change.

Buyer Tip: Local SD card storage up to 256GB means this dome can continue recording independently if the network or NVR goes offline. For sites where uninterrupted edge recording is a requirement, use a high-endurance Micro SD card rated for continuous 24/7 surveillance write cycles. Standard consumer-grade cards are not designed for this workload and may fail prematurely in always-on recording applications.

Key Features & Technical Specifications

Image Sensor 1/2.7″ CMOS
Max Resolution 6MP – 3072 x 2048
Frame Rate Max 25/30 fps at 6MP
Lens Type Motorised varifocal
Focal Length 2.7-13.5mm
IR Night Vision Distance Up to 40m
Low-Light Technology Starlight
Video Compression H.265+, H.265, H.264+, H.264, AI H.264/H.265, MJPEG
Smart Detection SMD 4.0 – human and vehicle classification; intrusion detection; tripwire; face detection
AI Features AI SSA (Smart Scene Adaptation); ROI; 3D NR; HLC; BLC; digital watermarking; rotation mode
Abnormality Detection Motion detection, privacy masking, scene changing, audio detection, SD card alerts, network disconnection, IP conflict, illegal access, voltage detection
WDR Wide Dynamic Range supported
Audio 1 audio input, 1 audio output; built-in microphone
Alarm I/O 1 alarm input, 1 alarm output
Storage Micro SD card slot, max 256GB
Power Supply 12VDC / PoE (IEEE 802.3af)
Ingress Protection IP67
Impact Resistance IK10
Camera Form Factor Mini dome (HDBW series)

Ideal Use Cases

Warehouse and Industrial Facilities

The motorised zoom lets a single dome cover both a wide floor area and a narrower aisle or dock entry, while IK10 impact resistance handles the accidental knocks common in busy industrial environments without housing damage or mounting misalignment.

Car Parks and Access Lanes

SMD 4.0 vehicle and human classification triggers alerts on genuine activity only, while 40m IR range ensures clear footage across bays and access lanes in the low-light and mixed-lighting conditions typical of both basement and open-air car parks.

Retail Centres and Shopfronts

WDR and Starlight performance manage the challenging mixed lighting at shopfront entries, producing usable face-level detail during high-glare daylight conditions and retaining colour in low ambient light after hours, supporting both loss prevention and incident review.

Schools and Educational Campuses

Face detection and virtual tripwire rules assist with monitoring access points, gates, and entry corridors. The compact dome form factor integrates cleanly into building architecture, and IK10 rating adds resilience in areas frequented by large numbers of people.

Construction Sites

IP67 dust and water protection paired with IK10 impact resistance suits the physically demanding conditions of active construction sites. The motorised varifocal lens allows coverage to be re-aimed remotely as the site layout and structures change over the project timeline.

Residential Perimeters with Local Recording

The built-in microphone, alarm I/O, and 256GB Micro SD card support allow this dome to function as a standalone recording unit, capturing perimeter activity even if network connectivity is temporarily interrupted, making it practical for residential properties without a dedicated NVR.

Choosing the Right Model

  • Choose this model if: You need a 6MP motorised varifocal dome with SMD 4.0 human and vehicle detection, Starlight low-light colour performance, built-in microphone, local SD card storage, and both IP67 and IK10 ratings for a demanding outdoor or high-traffic indoor installation.
  • Choose a different model if: Your site has a fixed, clearly defined coverage zone with no expectation of future adjustment. In that scenario, a fixed-lens 6MP dome or eyeball camera delivers equivalent resolution at a lower cost, since the motorised lens will not be utilised.
  • Choose a different model if: Full-colour night vision is a priority over IR-assisted Starlight imaging. For sites with sufficient ambient lighting where colour detail at night matters more than maximum IR throw distance, a Dahua Full-Colour series camera would be a more appropriate selection.

FAQs

  1. What does SMD 4.0 actually do differently from standard motion detection?
    Standard motion detection triggers on any pixel-level change in the image, including animals, shadows, and vehicle headlight sweeps. SMD 4.0 applies AI classification to each detection event and only generates an alert when it confirms the moving object is a human or a vehicle. This narrows alerts to activity that is likely to require a response, reducing the volume of irrelevant notifications across the installation.
  2. Can the zoom and focus be adjusted without physically accessing the dome?
    Yes. The motorised varifocal lens (2.7-13.5mm) supports remote adjustment through compatible Dahua software including SmartPSS and via NVRs with motorised lens control. Once the dome is mounted and cabled, an installer or operator can refine the field of view from a laptop or NVR interface without returning to the camera position, which is particularly useful for ceiling-mounted or elevated installations.
  3. Does this dome record locally if the network goes down?
    Yes. The DH-IPC-HDBW3666RP-ZAS-AUS includes a Micro SD card slot supporting up to 256GB, which allows the camera to continue recording directly to the card if the network or NVR becomes unavailable. This edge recording capability makes it suitable for sites where network reliability cannot be guaranteed. A high-endurance, surveillance-rated Micro SD card is recommended for continuous 24/7 write workloads.
  4. What is AI SSA and when does it apply?
    AI SSA stands for Smart Scene Adaptation. It enables the camera to automatically adjust its image processing parameters based on changes in the scene, such as shifts in lighting conditions or significant environmental changes within the field of view. This maintains consistent image quality without manual reconfiguration, which is particularly useful in outdoor installations where lighting conditions change substantially between day and night.
  5. Is this camera compatible with third-party NVRs and VMS platforms?
    The DH-IPC-HDBW3666RP-ZAS-AUS supports ONVIF protocol, which allows basic integration with many third-party NVRs and video management systems. However, SMD 4.0 alert events, AI perimeter rules, motorised lens control, and face detection functions are fully accessible only when the camera is paired with a compatible Dahua NVR or managed through Dahua SmartPSS software.
  6. What does the IK10 rating mean for real-world installation?
    IK10 is the highest impact resistance rating under the international IEC 62262 standard, indicating the housing can withstand impacts of up to 20 joules. In practical terms, this means the dome enclosure is resistant to deliberate strikes and significant accidental impacts, making it appropriate for public-facing areas, underground car parks, and any location where hardware durability is a genuine concern rather than a secondary consideration.
  7. Where is this camera available and is Australian warranty covered?
    The DH-IPC-HDBW3666RP-ZAS-AUS is part of the Security Wholesalers range, supplied as a genuine Australian-market product. Purchasing through an authorised local supplier ensures access to Australian warranty processes and technical support, and avoids the compatibility and warranty limitations that can affect grey-market or parallel-imported units.
  8. Does the built-in microphone support continuous audio recording?
    The built-in microphone supports continuous audio capture alongside video recording when configured to do so through the camera’s settings. Audio recording can also be set to activate on detected sound events. Note that audio surveillance laws vary between Australian states and territories. Always confirm that your intended audio recording configuration complies with local legislation before enabling the microphone for continuous or event-triggered capture.
