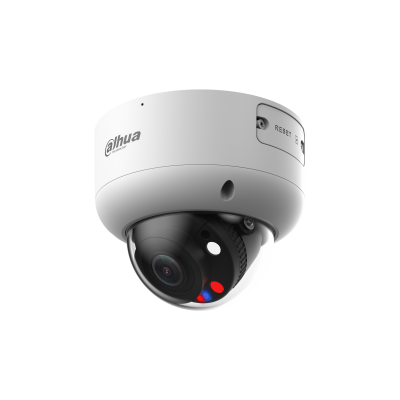

Dahua IPC-HDBW3549R1-ZAS-PV 5MP Smart Dual Light TIOC Motorised Dome WizSense Network Camera
$329.00$423.00
SAVE $94.00FREE DELIVERYWARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support
Dahua IPC-HDBW3549R1-ZAS-PV | 5MP TIOC Dome | Motorised Varifocal | Active Deterrence | IP67
The Dahua IPC-HDBW3549R1-ZAS-PV delivers a compact 5MP WizSense TIOC dome camera designed for proactive surveillance at retail sites, warehouses, residential properties, and small business entries. Equipped with Smart Dual Illuminators, the camera automatically switches between infrared and warm white light based on scene conditions, providing clear footage in complete darkness. It also includes built-in red and blue strobe lights and a siren that trigger on detection to actively warn and deter intruders. A built-in microphone and speaker enable real-time two-way communication, while SMD 4.0 analytics accurately distinguish humans and vehicles to reduce false alarms.
Key Features
Smart Dual Illumination: Automatically switches between infrared and warm white light based on scene conditions for full-colour or IR night vision.
Active Deterrence: Built-in red and blue strobe lights and siren trigger on detection to actively warn and deter intruders.
AI Perimeter Protection: SMD 4.0 analytics accurately detect humans and vehicles, reducing false alarms from environmental triggers.
Two-Way Audio: Integrated microphone and speaker allow real-time communication and remote voice warnings.
Motorised Varifocal Lens: Motorised zoom lens allows flexible focal length adjustment for precise coverage without physical repositioning.
Weatherproof Construction: IP67-rated housing suits both indoor and outdoor installations in harsh environments.
Combining active deterrence with full-colour night vision and AI-powered perimeter intelligence, the Dahua IPC-HDBW3549R1-ZAS-PV is built for outdoor installations where passive recording is not enough. This 5MP WizSense TiOC dome camera integrates red and blue flashing warning lights, a built-in siren, and smart dual illuminators into a single vandal-rated housing — making it capable of intervening in real time rather than simply documenting what occurred. Equipped with a 2.7–13.5mm motorised varifocal lens and autofocus, the camera allows remote field-of-view adjustment without requiring physical access after mounting. Smart Dual Illuminators automatically switch between infrared and warm LED output based on scene activity, delivering up to 60m IR coverage or full-colour imaging out to 30m. AI human and vehicle classification filters environmental false triggers, and the integrated microphone and speaker add practical two-way communication. Rated IP67 and IK10, the IPC-HDBW3549R1-ZAS-PV suits retail entries, warehouse perimeters, residential driveways, and education campuses where deterrence and detection must work together.
Key Capabilities
Smart Dual Illuminators
Automatically transitions between infrared illumination up to 60m and warm white LED up to 30m based on motion events or a configured schedule. This means the camera delivers discreet IR monitoring during quiet periods and full-colour imaging when activity is detected, without any manual switching required.
Active Deterrence — Strobe and Siren
Red and blue flashing warning lights combined with a built-in loudspeaker allow the camera to actively warn trespassers the moment detection occurs. This converts the camera from a passive recording device into a first-response tool that can discourage intrusion before it escalates into a reportable incident.
WizSense AI — Human and Vehicle Classification
Deep-learning analytics accurately distinguish humans and vehicles from animals, foliage, and other environmental triggers. SMD 4.0 filtering ensures that alerts generated by this camera are genuinely actionable, reducing the volume of irrelevant notifications across commercial and residential deployments.
Motorised Varifocal Lens with Autofocus
The 2.7–13.5mm motorised lens provides 5x optical zoom and remote focus control via a compatible NVR, VMS, or mobile app. Installers can precisely frame a scene from the ground after the camera is mounted at height, eliminating the need to reposition the unit during commissioning.
Built-In Two-Way Audio
An integrated microphone and speaker enable real-time voice communication between remote operators and individuals within camera range. This supports verbal warnings, visitor communication, and delivery management without requiring a separate intercom device at the same location.
IP67 and IK10 Rated Housing
Full weatherproof sealing and IK10 vandal resistance make this dome suitable for exposed outdoor locations where tampering or harsh conditions are a real concern. The operating temperature range of -40°C to +60°C accommodates demanding Australian environments including rooftop and north-facing wall installations.
Best For
Retail and Commercial Entries: Motion-triggered strobe and siren alerts activate on confirmed human detection, deterring after-hours loitering and break-in attempts before they develop.
Residential Driveways and Perimeter Fences: Full-colour night imaging from the warm LED illuminator and two-way audio allow homeowners to monitor and communicate with visitors or intruders remotely.
Warehouse and Logistics Perimeters: Tripwire and intrusion zone detection backed by AI human and vehicle classification reliably secures restricted access areas without generating constant false triggers.
Education Campuses After Hours: Automatic active deterrence responds to unauthorised movement across building perimeters and outdoor areas without requiring security personnel to be on site.
Construction and Temporary Sites: Edge recording via the onboard microSD slot ensures footage is captured locally even without a permanent NVR, making this camera viable as a standalone deployment on temporary infrastructure.
Why Choose the IPC-HDBW3549R1-ZAS-PV
Most IP cameras capture incidents — the IPC-HDBW3549R1-ZAS-PV is engineered to interrupt them. The TiOC architecture brings together 3 functions that would otherwise require separate hardware: full-colour imaging, active deterrence via strobe and siren, and AI-based perimeter detection. The motorised varifocal lens adds a level of installation flexibility that fixed-lens cameras at the same form factor cannot offer, allowing remote zoom and focus adjustment across a 2.7–13.5mm range. IK10 vandal resistance is a meaningful physical safeguard for exposed outdoor domes that face tampering risk, and the -40°C to +60°C temperature rating gives the camera a credible claim in genuinely demanding outdoor environments. The WizSense SMD 4.0 classification layer reduces false deterrence triggers to human and vehicle events only, which matters when the alert includes a flashing siren rather than a silent notification. Available through Security Wholesalers, the IPC-HDBW3549R1-ZAS-PV is a substantive step up from standard network domes for installations where deterrence accuracy and proactive response are the primary objectives.
Buyer Decision Tips
Buyer Tip — NVR and VMS Compatibility for Active Deterrence: The strobe and siren deterrence functions rely on your NVR or VMS supporting TiOC event-based triggering. Not all Dahua recorders activate these outputs automatically — confirm compatibility with your recorder model before purchasing. Without a compatible recorder, the camera will still record and detect, but the automatic deterrence response will not function.
Buyer Tip — Lens Range and Scene Matching: The 2.7–13.5mm motorised varifocal lens provides a wide coverage range, but the correct zoom setting depends on your specific detection or identification distance requirements. Before installation, use Dahua’s DORI calculator or the published datasheet to confirm the lens range matches the distances involved in your scene — particularly for wide driveways or long fence lines where field of view and detection accuracy interact.
Key Features & Technical Specifications
Image Sensor
1/2.7″ Progressive Scan CMOS
Resolution
2880 × 1620 (5MP)
Frame Rate
25fps at 5MP
Lens Type
Motorised varifocal with autofocus
Focal Length
2.7–13.5mm (5x optical zoom)
Smart Dual Illuminators
IR illumination up to 60m; warm LED up to 30m
Minimum Illumination
Colour: 0.005 Lux @ F1.6; B/W: 0.0005 Lux; 0 Lux with IR
Wide Dynamic Range
120dB
Day/Night Mode
Auto (ICR), Colour, B/W
Active Deterrence
Red/blue flashing warning lights and built-in siren speaker
AI-confirmed human detection triggers the red/blue strobe and siren automatically at entry points after hours, actively discouraging loitering and break-in attempts while full-colour warm LED imaging captures usable evidence at up to 30m.
Residential Driveways and Entry Points
The Smart Dual Illuminator switches to warm white LED on motion detection, producing full-colour footage of faces and vehicles at the driveway. Two-way audio allows direct verbal communication with visitors or trespassers without leaving the premises.
Warehouse and Logistics Perimeters
Tripwire and intrusion zone detection filters out environmental movement and responds only to confirmed human or vehicle activity, reducing alert fatigue while protecting high-value goods and restricted areas across large outdoor footprints.
Education Campuses After Hours
Automated active deterrence responds to detected movement across building perimeters and open outdoor areas without requiring on-site personnel. The IK10-rated dome housing resists tampering in high-access student environments.
Construction and Temporary Sites
Edge recording via the onboard microSD card slot — supporting up to 256GB — allows the camera to store footage locally where a permanent NVR infrastructure is not yet in place, making it viable as a standalone unit on temporary sites.
Choosing the Right Model
Choose this model if: Your installation requires active deterrence with strobe and siren response, full-colour night vision, AI human and vehicle classification, and a motorised varifocal lens that can be remotely adjusted after mounting — particularly in exposed outdoor environments where IK10 vandal resistance and a wide temperature operating range are essential.
Choose a different model if: Your application only requires passive recording and evidence capture, active deterrence is not a priority, or your NVR does not support TiOC triggering and a simpler fixed-lens network dome would meet the brief at a lower overall cost.
FAQs
What does TiOC mean and how does it apply to this camera? TiOC stands for Three-in-One Camera, referring to the combination of full-colour imaging, active deterrence (red/blue strobe lights and siren), and AI-based smart detection within a single housing. The IPC-HDBW3549R1-ZAS-PV delivers all 3 functions without requiring separate lighting, speaker, or detection hardware, which simplifies installation and reduces the number of devices needed at each coverage point.
Does the strobe and siren trigger automatically, or does it need to be activated manually? The active deterrence can be configured to trigger automatically when the camera’s AI analytics detect a human or vehicle crossing a defined tripwire or entering an intrusion zone. Manual activation is also available through compatible Dahua software or a VMS. For automatic triggering, confirm that the connected NVR or VMS supports TiOC event-based deterrence outputs — not all Dahua recorders include this function.
What is the practical difference between the IR and warm LED illuminators on this model? The infrared illuminator produces invisible light that is undetectable to the human eye, providing black-and-white night vision up to 60m. The warm white LED produces visible light, enabling full-colour imaging up to 30m. The Smart Dual Illuminator system switches between these modes automatically based on motion detection events or a user-defined schedule, so the most appropriate illumination type is applied without manual intervention.
Can the motorised lens be adjusted remotely after the camera is installed? Yes. The 2.7–13.5mm motorised varifocal lens with autofocus can be adjusted remotely through a compatible Dahua NVR, the DSS/DMSS application, or a supported VMS platform. This is a significant practical advantage when cameras are mounted at height, on eaves, or in locations where physical repositioning after installation would be difficult or time-consuming.
Is this camera capable of recording without a network recorder connected? Yes. The IPC-HDBW3549R1-ZAS-PV includes a microSD card slot supporting cards up to 256GB, enabling local edge recording directly on the camera. This makes it suitable as a standalone device on temporary sites, as a failover recording layer during network outages, or in deployments where a central NVR has not yet been installed.
How does the camera perform in extreme heat typical of Australian outdoor installations? The camera is rated for operating temperatures between -40°C and +60°C. This range covers rooftop positions, west and north-facing wall mounts, and metal enclosure installations in Australian climates where ambient temperatures during summer can significantly exceed standard outdoor ratings. No additional thermal management is required within this operating range.
What AI detection functions does this camera support beyond basic motion detection? The IPC-HDBW3549R1-ZAS-PV uses WizSense SMD 4.0 analytics to classify detected objects as human or vehicle. It supports tripwire detection and intrusion zone detection, which generate alerts only when a human or vehicle crosses a defined line or enters a designated area. This filtering eliminates triggers from animals, swaying vegetation, and lighting changes that would otherwise generate irrelevant notifications.
Where can I purchase the IPC-HDBW3549R1-ZAS-PV in Australia? The IPC-HDBW3549R1-ZAS-PV is part of the Security Wholesalers range, an Australian supplier of professional-grade Dahua IP cameras and network surveillance systems. Purchasing through an authorised channel ensures access to genuine product, local technical support, and valid warranty coverage for the Australian market.
Product Video Samples
NOTE: For best quality viewing, change YouTube settings to 2160p resolution using the gear icon.
All Dahua IP cameras and recording devices (NVRs/DVRs) are covered by a
3-year back-to-base manufacturer warranty.
Note: Disk drives are limited to a 3-year warranty.
Our warranty is limited to the replacement of faulty items or parts
and does not include damage caused by incorrect fitting of parts or accessories.
(a) Australian Consumer Law (ACL)
Certain legislation, including the Australian Consumer Law (ACL) in the Competition and Consumer Act 2010 (Cth), and similar consumer protection
laws and regulations may confer you with rights, warranties, guarantees, and remedies
relating to the provision of goods or services to you by us via the Site which cannot
be excluded, restricted, or modified. Our liability is governed solely by the ACL and
these Terms.
(b) Goods
If you are a consumer as defined in the ACL, the following notice applies to you:
“Our goods come with warranties and guarantees that cannot be excluded under the
Australian Consumer Law (Consumer Guarantees). You are entitled to a replacement or
a refund for a major failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major
failure.”
(c) Our Warranties
To the extent permitted by law, we exclude all express and implied warranties,
and all material and work is provided to you without warranties of any kind,
either express or implied. We expressly disclaim all warranties including but
not limited to implied warranties of merchantability and fitness for a particular
purpose.
(d) Manufacturer Warranties
Certain products, including particular models of IP security cameras and DVR/NVR
equipment, may come with a manufacturer’s warranty. The manufacturer’s warranty is
in addition to but may overlap with any rights and remedies you may have under
applicable law, including any Consumer Guarantees. If you are not considered a
“consumer” within the meaning of the ACL, the manufacturer’s warranty may be your
sole remedy. Many manufacturers’ warranties do not apply in a business or commercial
setting. Please contact the manufacturer if you would like to make a claim under
the manufacturer’s warranty.
(e) Repair, Replacement, or a Refund
If you wish to seek repair, replacement, or a refund for a product, please
contact us and we will explain the requirements to you. This may include you
providing evidence of the faulty product to us.
(f) Refund
You are not entitled to a refund for change of mind. If you are entitled to a
refund, we will only provide it once evidence of the faulty product is received
by us, or once we have received the product at our warehouse and inspected it
to assess whether it is eligible for a refund under these Terms. Any refund we
make will be by the same payment method used to purchase the product.
(g) Installed Products
Subject to this clause, we will not accept for return any product that has been
used, connected, installed, attempted to be connected or installed, or if your
product is custom-made or is a special buy product.
(h) Packaging
You must adequately package any product you are returning for our collection
to ensure that it is not damaged during return delivery to our warehouse. You
are also responsible for arranging the return delivery and the costs involved.
(i) Duty of Care
You have a duty of care for the product while it is in your possession. If
you damage products and then subsequently return them, you may be liable to pay
to repair the product to its original condition. In these circumstances, where
a repair is not economically viable, no refund will be made.
Everything you need to choose the right Dahua TiOC camera for your needs.
1. What is Dahua TiOC?
Dahua’s TiOC (Three-in-One Camera) series combines full-colour imaging, active deterrence, and advanced AI analytics. This all-in-one solution delivers 24/7 colour monitoring, proactive security through strobe lights and sirens, and intelligent detection of humans and vehicles, significantly reducing false alarms.
2. Key Benefits of Dahua TiOC
Full-Colour Imaging: Captures vivid colour footage around the clock, even in low-light environments without relying solely on infrared.
Active Deterrence: Built-in strobe lights and sirens help deter intruders in real time.
AI-Powered Analytics: Detects and differentiates between people and vehicles, improving detection accuracy and reducing false alerts.
Integrated Design: Combines multiple capabilities into a single camera, making installation and monitoring more efficient.
3. Recommended Use Cases
Residential driveways and front doors
Retail shops and entryways
Warehouse loading docks
Commercial office corridors
Public parks, carparks and shared spaces
4. Types of Dahua TiOC Cameras
Turret: Compact and flexible; ideal for both indoor and outdoor settings.
Dome: Vandal-resistant and discreet; great for public-facing areas.
Bullet: Offers extended range for perimeter and driveway surveillance.
PTZ: Remote-controlled panning, tilting, and zooming for wide-area coverage.
Mini Cameras: Suitable for discreet indoor coverage in narrow spaces.
Also available: AcuSense, Live Guard, 4K resolution, dual-lens panoramic, and more.
5. Choose by Resolution
2MP (1080p): Suitable for basic surveillance and general observation.
4MP (2K): Enhanced clarity ideal for recognising faces and vehicles.
6MP: Balanced resolution for larger areas without excessive bandwidth usage.
8MP (4K): High-detail imaging for premium security coverage.
6. Choose by Smart Features
Built-in Microphone: Records audio alongside video for better context.
Built-in Speaker: Enables two-way communication and verbal warnings.
Strobe Light + Siren: Alerts intruders with both visual and audio deterrents.
Smart Motion Detection: Detects people and vehicles intelligently using AI.
AI / Deep Learning: Reduces false alarms and improves detection accuracy using advanced analytics.
7. Choosing by Environment
Location
Recommended Camera Type
Reason
Front Door
Turret with Mic
Compact with audio for clear visitor recording
Driveway
Bullet 4MP or 8MP
Long-range view for vehicles and movement
Retail Store
Dome 2MP or 4MP
Discreet and vandal-resistant in busy areas
Warehouse Loading Dock
Bullet with AI
Wide coverage with accurate motion detection
Office Corridor
Mini or Turret
Ideal for hallway visibility and minimal intrusion
8. Installation Tips
Use PoE (Power over Ethernet) to simplify wiring and minimise setup time.
Position cameras away from reflective surfaces to avoid glare or false triggers.
Mount at eye level or slightly above for optimal angle and image quality.
Adjust the camera’s field of view to ensure full coverage of entry points.
Engage a licensed installer to ensure proper setup and compliance with Australian regulations.
