Product SKU: IPC-EBW81242-AS-S2
© Security Wholesalers Australia. All rights reserved. https://www.securitywholesalers.com.au/product/dahua-dh-ipc-ebw81242p-as-s2-12mp-ir-fisheye-wizmind-network-camera/
Product Overview

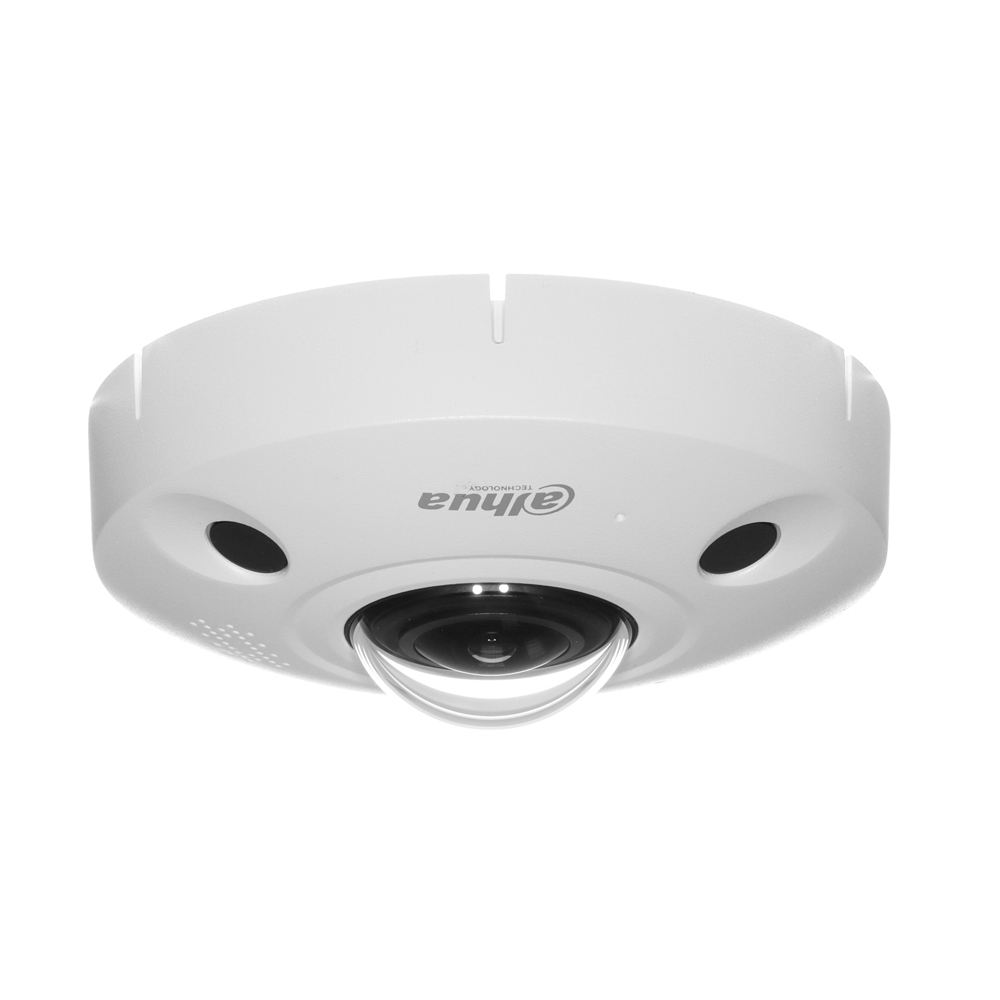

Wide-area monitoring from a single ceiling-mounted point is where the Dahua IPC-EBW81242-AS-S2 delivers its core advantage. This 12MP fisheye network camera captures a full panoramic view using a 1/1.7″ CMOS sensor, outputting up to 4000 x 3000 resolution at 25fps, allowing installers to cover large open spaces such as retail floors, building lobbies, open-plan offices, and warehouse interiors without multiple camera positions. Equipped with WizMind intelligent analytics including intrusion detection, tripwire, heat map, and people counting, it goes beyond basic recording to provide actionable spatial data. Built-in dual-array microphones and a speaker support 2-way audio, while 2 alarm inputs and 2 alarm outputs allow integration with external devices. IK10 impact resistance and IP67 weatherproofing mean it suits both indoor and sheltered outdoor ceiling installations. On-board storage via Micro SD (up to 256GB) and flexible PoE or 12V DC power make deployment straightforward.
Key Capabilities
12MP Fisheye Panoramic Coverage
A single ceiling-mounted fisheye unit captures a full 360-degree view at 4000 x 3000 resolution, reducing the number of cameras needed to monitor large open areas like retail floors, reception spaces, and warehouse interiors.
WizMind AI Analytics
Intrusion detection, tripwire, heat map, and people counting are built directly into the camera. Heat mapping and people counting make this particularly useful for retail analytics, crowd management, and understanding foot traffic patterns over time.
Built-in 2-Way Audio
Dual-array microphones and a built-in speaker enable 2-way audio communication directly through the camera. This supports live monitoring with remote voice capability, useful in lobbies, queuing areas, or supervised access points.
Alarm I/O Integration
With 2 alarm inputs and 2 alarm outputs, the IPC-EBW81242-AS-S2 connects to external sensors, doors, lights, or sirens. This enables event-driven responses without requiring a separate alarm controller in smaller deployments.
IK10 and IP67 Protection
IK10 impact resistance protects the unit in high-traffic public spaces where accidental or deliberate knocks are likely. IP67 dust and water ingress protection extends suitability to sheltered outdoor ceilings and covered entry points.
Smart Compression and Local Storage
SMART H.265+ and H.264+ compression reduces bandwidth and storage load significantly compared to standard encoding. Combined with a Micro SD slot supporting up to 256GB, the camera can operate with local recording as a backup or standalone option.
Best For
- Retail Floor Monitoring: Heat map and people counting analytics provide customer behaviour data across the sales floor from a single ceiling mount, reducing camera count while delivering spatial intelligence.
- Building Lobbies and Reception Areas: Full 360-degree coverage from a single ceiling point captures all entry and exit movement, with 2-way audio available for remote communication with visitors.
- Open-Plan Offices and Meeting Spaces: Wide-area coverage with intrusion and tripwire detection supports after-hours monitoring of open spaces without the installation complexity of multiple cameras.
- Sheltered Outdoor Ceilings and Covered Entryways: IP67 and IK10 ratings make the camera suitable for covered carpark entrances, undercover loading areas, and protected outdoor ceiling installations where conditions vary.
Why Choose the IPC-EBW81242-AS-S2
The IPC-EBW81242-AS-S2 is one of the few fisheye cameras in its class that combines a 12MP sensor with a full WizMind analytics suite, including heat mapping and people counting, in a single vandal-resistant housing. A standard fixed dome or bullet camera at the same price point will not deliver 360-degree panoramic coverage, built-in 2-way audio, or on-board alarm I/O from a single unit. The dual-array microphone and speaker arrangement means audio capability does not require a separate device, keeping installation clean and reducing points of failure. For projects where reducing camera count, cable runs, and NVR channel usage matters, the fisheye approach genuinely changes the calculation. The IK10-rated housing handles public-area installations where dome cameras without impact protection are a liability. This model is available through Security Wholesalers as part of the Dahua WizMind camera range, suited to commercial installers and integrators specifying analytics-capable panoramic coverage.
Buyer Decision Tips
Fisheye Dewarping and NVR Compatibility: The IPC-EBW81242-AS-S2 outputs a circular fisheye image that requires dewarping to produce usable flat-format views such as 360-degree panoramic, quad-split, or PTZ-style virtual views. Confirm your NVR or VMS supports Dahua fisheye dewarping before specifying this camera. Without compatible dewarping software, the raw circular image will be difficult to monitor or review effectively.
IR Range Limitation: The built-in IR illumination on this model is rated to a maximum of 10 metres. This is appropriate for indoor ceiling installations at typical floor-to-ceiling heights, but it is not suited to large open warehouses with high ceilings or outdoor spaces where the subject may be further than 10 metres from the camera. For those scenarios, supplementary lighting or a different camera type should be considered.
Key Features & Technical Specifications
| Model |
DH-IPC-EBW81242P-AS-S2 |
| Image Sensor |
1/1.7″ CMOS |
| Resolution |
12MP (4000 x 3000) |
| Max Frame Rate |
12M @ 25fps; 8M (3280 x 2480) @ 25/30fps |
| IR Illumination |
Built-in IR LED, max distance 10m |
| Intelligent Analytics |
Intrusion, tripwire, heat map, people counting |
| Video Compression |
SMART H.265+, H.265, SMART H.264+, H.264 |
| Audio |
1 audio in, 1 audio out; built-in dual-array microphone and speaker |
| Alarm |
2 alarm inputs, 2 alarm outputs |
| Local Storage |
Micro SD card, supports up to 256GB |
| Power Supply |
12V DC / PoE (IEEE 802.3af) |
| Ingress Protection |
IP67 |
| Impact Resistance |
IK10 |
| Camera Series |
Dahua WizMind |
Ideal Use Cases
Retail Stores and Supermarkets
Heat map analytics and people counting give retail operators usable data on customer movement, dwell zones, and peak traffic periods. A single ceiling-mounted unit covers areas that would otherwise require 3 or 4 standard cameras.
Hotel and Building Lobbies
360-degree panoramic coverage from the ceiling captures all movement across a lobby without visible directional cameras. Built-in 2-way audio supports front desk communication with the monitoring station when staff are away from the desk.
Open-Plan Office Floors
Intrusion and tripwire detection across large open workspaces can be handled with fewer camera positions using fisheye coverage. After-hours monitoring of open floor plans is a practical application where the 12MP resolution supports identification at a distance.
Public Spaces and Transport Hubs
IK10 impact-rated housing withstands physical contact in high-traffic public environments. People counting supports crowd management and occupancy monitoring in spaces such as waiting areas, ticketing halls, and public concourses.
Covered Outdoor Entry Points
IP67 protection and IK10 rating make the IPC-EBW81242-AS-S2 suitable for installation under building overhangs, covered carpark entry points, and sheltered outdoor ceilings where weather exposure is moderate and vandal resistance is needed.
Choosing the Right Model
- Choose this model if: You need 360-degree panoramic ceiling coverage with built-in AI analytics including heat mapping and people counting, and your NVR or VMS supports Dahua fisheye dewarping. The IK10 rating, dual-array audio, and alarm I/O make it suited to public-facing or commercial indoor installations where a single camera must do more than simply record.
- Choose a different model if: Your priority is long-range IR coverage beyond 10 metres, in which case a bullet or varifocal turret camera will be more appropriate. If your VMS does not support fisheye dewarping, a standard fixed dome or turret will deliver more usable footage out of the box. For very high ceiling installations, the 10m IR range may be insufficient without supplementary lighting.
FAQs
- What resolution does the IPC-EBW81242-AS-S2 record at?
The camera records at a maximum of 12MP (4000 x 3000) at 25fps. It also supports 8MP (3280 x 2480) at 25 or 30fps. This high resolution is important for fisheye installations because the image is digitally dewarped and cropped into multiple viewing zones, so starting with a higher pixel count preserves detail in each individual view.
- Does this camera need a special NVR to dewarp the fisheye image?
Yes. The raw output of a fisheye camera is a circular image that requires dewarping software to produce flat, usable views such as a 360-degree panoramic strip, quad split, or virtual PTZ view. Compatible Dahua NVRs and Dahua’s DSS/DMSS software support fisheye dewarping natively. Confirm dewarping compatibility with your recording platform before installation.
- What AI analytics are built into the camera?
As part of the Dahua WizMind range, the IPC-EBW81242-AS-S2 supports intrusion detection, tripwire, heat map, and people counting. Heat map and people counting are particularly well-suited to fisheye installations because the overhead view provides an accurate spatial representation of an entire floor area without the perspective distortion of angled cameras.
- How far does the built-in IR reach on this model?
The built-in IR LED is rated to a maximum illumination distance of 10 metres. This is suitable for standard indoor ceiling heights of 3 to 4 metres and closer-range covered outdoor applications. It is not designed for large open warehouses with high ceilings or outdoor areas where subjects may be beyond 10 metres from the camera at night.
- Can the camera record locally without an NVR?
Yes. The IPC-EBW81242-AS-S2 accepts a Micro SD card up to 256GB for on-board local recording. This can function as a standalone recording option in smaller deployments or as a redundant backup when the network connection to an NVR is interrupted. The SD card slot is separate from the alarm and audio connections and does not affect those functions.
- Does the camera support 2-way audio and how does it work?
The camera includes a built-in dual-array microphone and a built-in speaker. Combined with the 1 audio input and 1 audio output, this enables live 2-way communication between the camera location and the monitoring station through compatible Dahua software. This is useful in reception areas, supervised entry points, or retail environments where remote staff communication is needed.
- Is this camera suitable for outdoor installation?
The IPC-EBW81242-AS-S2 carries an IP67 dust and water ingress rating and IK10 impact resistance, which makes it suitable for sheltered outdoor ceiling installations such as covered building entries, undercover carparks, and protected eave mounts. It is not recommended for fully exposed outdoor environments where it would be subject to direct rain or sunlight over extended periods, as it is primarily designed for ceiling-down mounting. This model is available through Security Wholesalers as part of the Dahua WizMind camera range.
Additional Information
