Product SKU: DH-IPC-EB5541P-AS
Product Overview

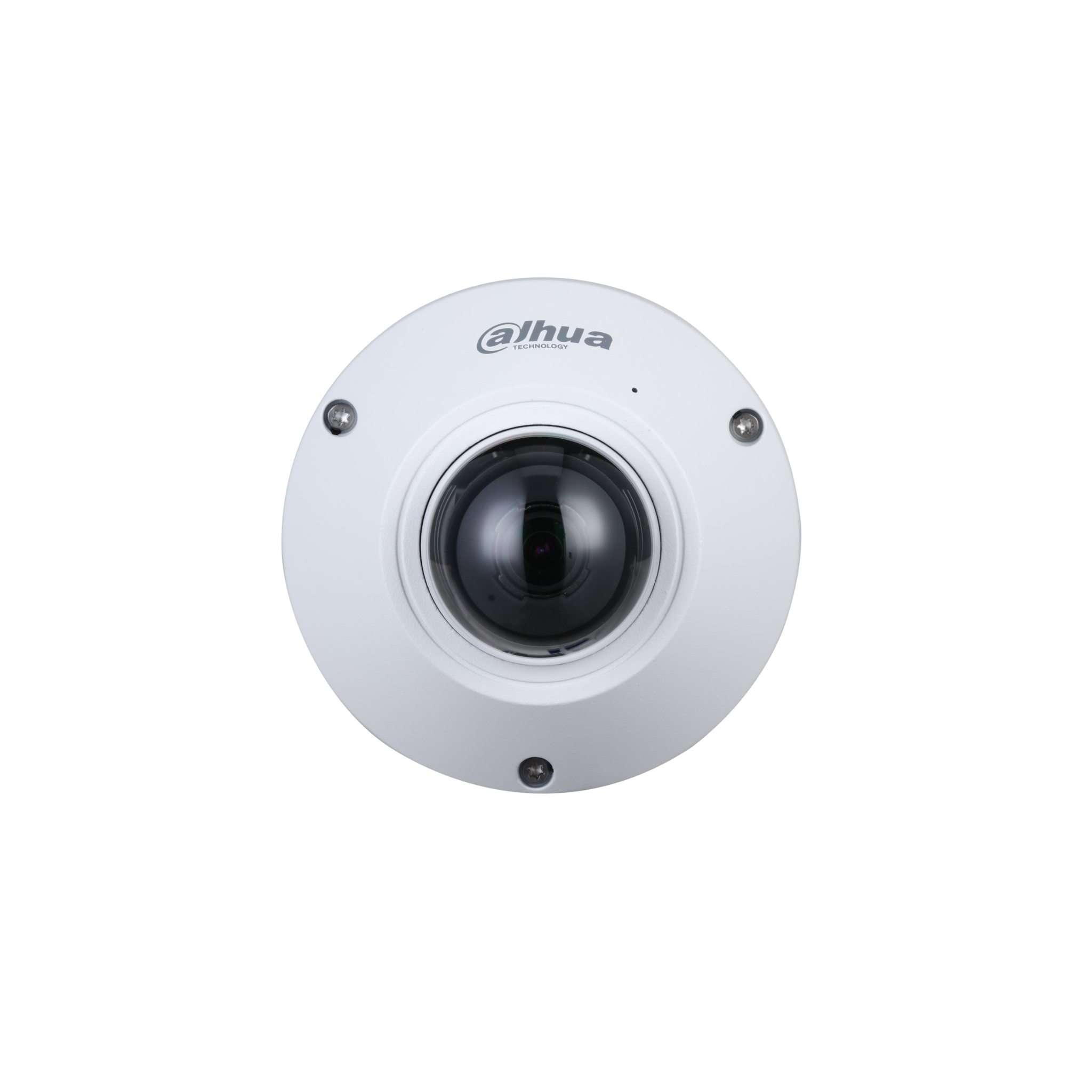

For large open spaces where a single camera must cover every angle, the Dahua IPC-EB5541-AS is a 5 MP WizMind fisheye network camera engineered for ceiling-mounted panoramic surveillance. Its 180°x180° fisheye lens delivers a full 360° floor-level view from one installation point, eliminating the blind spots that fixed cameras leave between mounting positions. Featuring a 1/2.7″ progressive CMOS sensor capable of 2592×1944 resolution at 25/30 fps and a minimum illumination of just 0.006 lux, it maintains usable image quality in low-light environments. Built into a metal housing rated IP67 and IK10, it handles outdoor exposure and physical impact without housing compromises uncommon in this camera class. Equipped with WizMind AI analytics including intrusion detection, tripwire, people counting, and heat mapping, this camera produces operational intelligence beyond basic video recording. PoE simplifies single-cable installation, while onboard micro-SD storage up to 256 GB and alarm I/O add flexibility for standalone or integrated deployments. Please note this product carries an 8 week lead time as a special order from Dahua.
Key Capabilities
360° Single-Point Coverage
The 180°x180° fisheye lens captures a complete 360° panoramic view from a single ceiling-mounted position. One camera replaces multiple fixed units in open-plan spaces, reducing installation complexity and eliminating coverage gaps between camera angles.
WizMind AI Analytics
On-device WizMind processing supports intrusion detection, tripwire/line-crossing alerts, people counting, and heat map generation. These analytics operate without a separate server, enabling real-time event triggers and operational insights directly from the camera.
5 MP Low-Light Imaging
A 1/2.7″ progressive CMOS sensor resolves 2592×1944 at up to 30 fps with a minimum illumination of 0.006 lux. Combined with 120 dB True WDR and 3D DNR, the camera maintains detail in high-contrast scenes and dimly lit environments common in retail and transit settings.
IP67 and IK10 Metal Housing
The all-metal body carries both a full weather-seal rating and an IK10 impact resistance rating, which is uncommon in fisheye cameras. This allows ceiling deployment in semi-exposed or high-traffic areas where dust, moisture, and physical contact are realistic risks.
PoE with Local Storage
Power-over-Ethernet delivers both power and data over a single Cat cable, simplifying ceiling installation significantly. A micro-SD card slot supports up to 256 GB of local storage, providing edge recording continuity if the network connection is disrupted.
Alarm I/O and Two-Way Audio
Built-in audio input and output support two-way communication or event-triggered audio recording. One alarm input and one alarm output allow integration with door contacts, sirens, or access control panels, expanding the camera’s role beyond passive video capture.
Best For
- Large Retail Floors and Supermarkets: Central ceiling placement provides a complete overhead view of sales areas, with heat mapping revealing high-traffic zones for merchandising decisions and people counting supporting staff scheduling.
- Transit Concourses and Ticket Halls: Wide open layouts at train stations and transit hubs benefit from the single-camera 360° view, while tripwire and intrusion detection flag after-hours activity and two-way audio enables operator communication.
- Warehouses and Distribution Centres: The IP67 and IK10-rated metal housing tolerates dust, forklift vibration, and hose-down cleaning conditions that standard indoor fisheye cameras cannot manage. A single unit covers intersection points between racking aisles.
- Public Areas Requiring Crowd Analytics: Airports, lobbies, and event foyers can use the on-device heat map and people counting features to assess crowd density and flow in real time, informing both safety responses and operational planning.
Why Choose the IPC-EB5541-AS
The IPC-EB5541-AS occupies a specific position among fisheye cameras: it combines WizMind AI analytics, a 5 MP sensor with 0.006 lux low-light performance, and a metal IP67/IK10 housing in a single unit. Most entry-level fisheye cameras offer panoramic optics without onboard AI, requiring a separate analytics server to generate people counting or heat map data. This camera processes those analytics on-device, reducing infrastructure costs in multi-point deployments. The alarm I/O and two-way audio expand integration options beyond what passive fisheye units support. The IK10 impact rating is particularly relevant for semi-public ceiling positions where vandal resistance matters. Available through Security Wholesalers as a special order, the IPC-EB5541-AS is suited to installers and integrators specifying WizMind-compatible systems where operational business intelligence is as important as raw video coverage.
Buyer Decision Tips
Dewarping Requires a Compatible NVR or SmartPlayer: The IPC-EB5541-AS does not perform onboard image dewarping. The raw fisheye output will appear as a circular image unless viewed through a Dahua Deep Learning-compatible NVR or the Dahua SmartPlayer software. If your existing NVR does not support fisheye dewarping, factor in the cost of a compatible recorder before specifying this camera. Confirm NVR compatibility with your Dahua supplier before ordering.
Lead Time Planning: This camera is a special order from Dahua with an 8 week lead time. It is not suitable for projects requiring immediate delivery. Confirm your project timeline before ordering and communicate the lead time to end clients at the quoting stage to avoid scheduling conflicts.
Key Features & Technical Specifications
| Model |
Dahua IPC-EB5541-AS |
| Resolution |
5 MP (2592 x 1944) |
| Sensor |
1/2.7″ progressive scan CMOS |
| Lens Type |
Fisheye, 180°x180° panoramic |
| Frame Rate |
Up to 25/30 fps at 5 MP |
| Minimum Illumination |
0.006 lux |
| Wide Dynamic Range |
120 dB True WDR |
| Video Compression |
H.265, Smart H.264+ |
| Noise Reduction |
3D DNR |
| Image Settings |
HLC, BLC |
| AI Analytics |
WizMind: intrusion detection, tripwire/line crossing, people counting, heat mapping |
| Onboard Dewarping |
Not supported – requires compatible NVR or Dahua SmartPlayer |
| Power Supply |
Power-over-Ethernet (PoE) |
| Housing Material |
Metal |
| Protection Rating |
IP67, IK10 |
| Local Storage |
Micro-SD up to 256 GB |
| Alarm I/O |
1 alarm input, 1 alarm output |
| Audio |
Audio input and audio output |
| Protocol |
ONVIF |
| Lead Time |
8 weeks – special order from Dahua |
Ideal Use Cases
Retail Store Floors
Mounted centrally on the ceiling, the IPC-EB5541-AS covers the entire shop floor from a single point. Heat mapping identifies popular product zones while people counting tracks foot traffic volume, giving store managers actionable data alongside full-coverage video.
Train Stations and Transit Hubs
Ticket halls and platform concourses require wide-area coverage with minimal camera count. The 360° fisheye view covers these open spaces while built-in tripwire detection and audio I/O support after-hours security alerting and operator communication.
Warehouse Intersection Points
Aisle crossings and loading bay entries benefit from single-point 360° monitoring. The IP67 and IK10 ratings mean the camera survives the dust, moisture, and occasional physical contact typical of active warehouse environments without housing failure.
Building Lobbies and Reception Areas
A single ceiling-mounted unit covers the full reception footprint, eliminating the multi-camera setups typically required to cover entry, waiting, and desk zones. Intrusion detection triggers out-of-hours alerts if the lobby is accessed unexpectedly.
Airports and Event Venues
High-density crowd environments benefit from real-time heat map data to assess congestion and density. The 5 MP sensor resolves fine detail across the full panoramic field at 30 fps, maintaining useful imagery even as crowd density increases across the frame.
Choosing the Right Model
- Choose this model if: You need 360° panoramic coverage from a single ceiling point, require on-device WizMind AI analytics including heat mapping and people counting, and have a compatible Dahua NVR or SmartPlayer available to handle fisheye dewarping. The IP67/IK10 metal housing also makes this appropriate where a standard plastic indoor fisheye would not survive the installation environment.
- Choose a different model if: Your NVR or VMS does not support fisheye dewarping, as the raw circular output will not be usable for routine monitoring. A multi-sensor panoramic camera with onboard dewarping may suit environments where a compatible NVR upgrade is not viable. If the installation site is indoors and the camera position is not at risk of physical impact, a lighter plastic-housed fisheye may be sufficient and more cost-effective.
FAQs
- Does the IPC-EB5541-AS dewarp the fisheye image internally?
No. The camera does not support onboard dewarping. The raw output is a circular fisheye image that requires dewarping software to produce usable flat or panoramic views. This must be handled by a compatible Dahua Deep Learning NVR or the Dahua SmartPlayer application. Confirm your recorder supports fisheye dewarping before specifying this camera.
- What AI analytics does the WizMind engine support on this camera?
The IPC-EB5541-AS supports intrusion detection, tripwire/line-crossing detection, people counting, and heat map generation on-device. These analytics run without a separate server and can trigger alarm outputs or push event notifications to a connected NVR. Heat map data is particularly useful for tracking occupancy patterns over time in retail and public-area deployments.
- Is this camera suitable for outdoor installation?
Yes. The IP67 rating provides full dust exclusion and protection against water immersion, while the IK10 impact rating confirms the metal housing can withstand significant physical force. This makes it suitable for exposed ceiling positions in covered outdoor areas, semi-open transit stations, or indoor environments subject to washdown or heavy forklift activity.
- What is the minimum illumination and does this camera have IR?
The minimum illumination is 0.006 lux, which allows the camera to capture detail in near-dark conditions without supplemental lighting. The product data does not confirm built-in IR illuminators, so performance in complete darkness will depend on any ambient light present in the installation environment.
- How much local storage does the camera support?
The IPC-EB5541-AS includes a micro-SD slot supporting cards up to 256 GB. This provides edge recording continuity if the network link to the NVR drops, allowing footage to be stored locally and retrieved once connectivity is restored. It also supports standalone deployment in locations where network infrastructure is limited.
- Can I use the alarm I/O and audio for integration with other systems?
Yes. The camera includes 1 alarm input and 1 alarm output, which can be wired to door contacts, motion sensors, or sirens to create triggered responses to detected events. Audio input and output support two-way communication or event-triggered recording. This makes the camera functional as part of a broader access control or intercom integration, not only as a standalone video device.
- What is the lead time and where can I order this camera?
The IPC-EB5541-AS is a special order from Dahua with an 8 week lead time. It is not held in local stock. Factor this timeline into your project schedule and advise end clients accordingly. The camera is part of the Security Wholesalers range and should be ordered well in advance of any installation date to avoid project delays.
