Product SKU: DH-CS4010-8GT-110
Product Overview

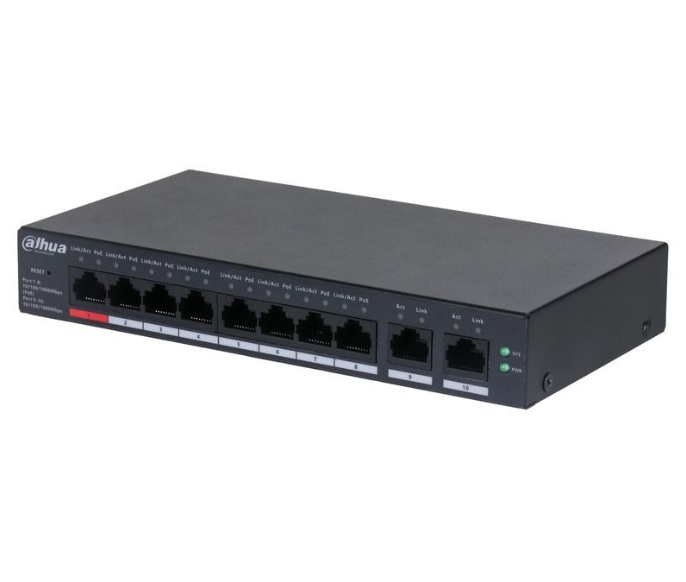

The Dahua DH-CS4010-8GT-110 is a Layer 2 cloud-managed PoE switch designed for professional CCTV, security and small business networks. It provides eight 10/100/1000 Mbps PoE ports for compatible cameras, wireless access points and other powered devices, together with two 100/1000 Mbps SFP uplink ports for fibre network connections. The switch has a shared 110 W PoE budget and supports IEEE 802.3af, IEEE 802.3at, Hi-PoE and IEEE 802.3bt, with high-power output available on the designated red ports. Local web management and centralised DoLynk Care cloud management support network monitoring, topology visualisation, fault alarms and remote maintenance. Layer 2 functions include VLANs, STP, RSTP, static link aggregation, port isolation and mirroring. A DIP switch also provides access to unmanaged, PoE Watchdog and 250-metre Extend operating modes.
Key Capabilities
Eight Gigabit PoE Ports
Eight 10/100/1000 Mbps PoE ports provide high-speed data and power for compatible IP cameras and other powered devices, making the switch suitable for higher-resolution surveillance networks.
Two Gigabit SFP Uplinks
Two 100/1000 Mbps SFP ports support fibre uplinks to a recorder, aggregation switch or wider network. Compatible SFP transceivers are selected separately according to fibre type and distance.
110 W Intelligent PoE Budget
The switch manages a shared PoE budget of up to 110 W, supports per-port power control and can disable PoE output if an overload is detected.
High-Power IEEE 802.3bt Output
Ports 1 and 2 support high-power devices with output up to 90 W per port, subject to the switch’s total 110 W budget. Ports 3 to 8 support up to 30 W each.
DoLynk Care Cloud Management
Centralised cloud management supports real-time network monitoring, device status, topology visualisation, error alarms and remote operation and maintenance through the DoLynk Care platform.
Layer 2 Network Control
VLANs, STP, RSTP, static link aggregation, port isolation, mirroring, storm control and loop prevention provide more control and resilience than a basic unmanaged PoE switch.
Best For
- Professional CCTV Networks: Supports up to eight Gigabit PoE cameras with fibre uplinks and centralised network monitoring.
- High-Power PTZ Cameras: The designated high-power ports can support compatible IEEE 802.3bt or Hi-PoE devices.
- Retail and Hospitality: Suitable for shops, restaurants, cafés and hotels requiring remotely managed security infrastructure.
- Factories and Warehouses: Provides VLANs, loop protection and fibre uplinks for more structured industrial surveillance networks.
- Multi-Site Installations: DoLynk Care cloud management helps service providers monitor and maintain switches across multiple locations.
Why Choose the DH-CS4010-8GT-110
The DH-CS4010-8GT-110 combines Gigabit PoE connectivity, high-power device support and practical cloud management in a compact desktop switch. Unlike a basic unmanaged model, it allows installers to configure VLANs, monitor network status, review fault alarms and remotely manage supported functions through DoLynk Care. Its two SFP uplink ports also make it suitable for fibre-linked buildings, remote equipment rooms and larger surveillance networks where copper uplinks are not ideal. Available through Security Wholesalers, this model is particularly useful for systems containing high-resolution cameras, PTZs, wireless access points or other devices with mixed PoE requirements. The shared 110 W power budget, SFP module selection and operating mode should be planned before installation.
Buyer Decision Tips
Buyer Tip: Calculate the maximum power requirement of every connected device. Ports 1 and 2 can each support high-power loads, but the total available PoE budget across all eight powered ports remains 110 W.
Buyer Tip: SFP transceivers are not universal. Select modules according to single-mode or multimode fibre, connector type, wavelength, transmission distance and the equipment installed at the opposite end of the link.
Key Features & Technical Specifications
| Product Type |
10-port Layer 2 cloud-managed Gigabit PoE switch. |
| Model |
DH-CS4010-8GT-110. |
| PoE Ports |
8 × RJ45 10/100/1000 Mbps PoE ports. |
| Uplink Ports |
2 × SFP 100/1000 Mbps Gigabit uplink ports. |
| Network Layer |
Layer 2. |
| PoE Standards |
IEEE 802.3af, IEEE 802.3at, Hi-PoE and IEEE 802.3bt. |
| Ports 1–2 PoE Output |
Up to 90 W per port, subject to the total power budget. |
| Ports 3–8 PoE Output |
Up to 30 W per port. |
| Total PoE Budget |
Up to 110 W. |
| PoE Management |
Power consumption monitoring, per-port PoE control and overload shutdown. |
| Long-Distance PoE |
Up to 250 metres at 10 Mbps in Extend Mode. |
| PoE Watchdog |
Monitors ports 1 to 8 and restarts an inactive PoE port when no traffic is detected for two minutes in supported operating mode. |
| DIP Switch Modes |
Managed Mode, Unmanaged Mode, PoE Watchdog and Extend Mode. |
| Management |
Local web management and DoLynk Care cloud management. |
| Switching Capacity |
20 Gbps. |
| Packet Forwarding Rate |
14.88 Mpps. |
| Packet Buffer |
4 Mbit. |
| MAC Address Table |
8K entries. |
| Jumbo Frame |
15,360 bytes. |
| VLAN Support |
IEEE 802.1Q VLAN with support for up to 32 VLANs. |
| Spanning Tree |
STP and RSTP. |
| Link Aggregation |
Static aggregation. |
| Additional Layer 2 Features |
Port isolation, port mirroring, LLDP, loop prevention, storm control, MAC and port binding and DHCP client. |
| Logs and Alerts |
System logs and fault alarms. |
| Power Supply |

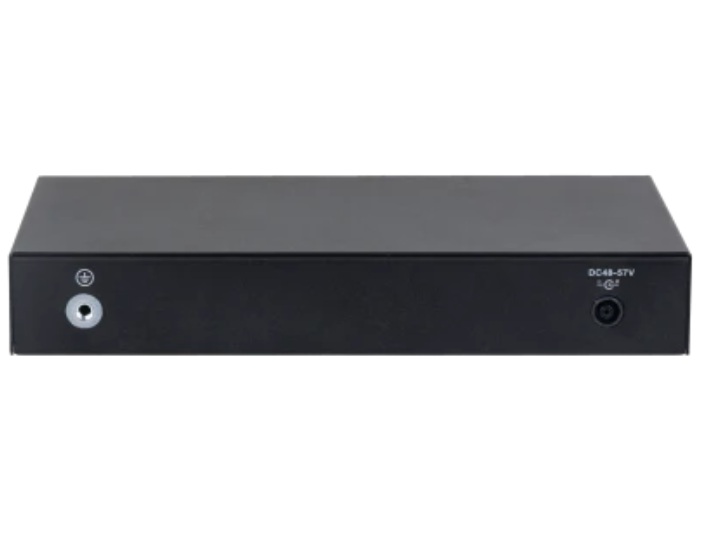

External 54 VDC, 2.22 A power adapter. |
| Idle Power Consumption |
Approximately 3.8 W. |
| Full-Load Power Consumption |
Approximately 114 W. |
| Electrostatic Protection |
8 kV air discharge and 6 kV contact discharge. |
| Lightning Protection |
6 kV common mode and 1 kV differential mode. |
| Operating Temperature |
-10°C to 55°C. |
| Operating Humidity |
10% to 90% relative humidity, non-condensing. |
| Storage Temperature |
-40°C to 75°C. |
| Enclosure |
Sheet-metal housing. |
| Installation |
Desktop or wall mounting. |
| Dimensions |
184.6 mm × 103.3 mm × 27 mm. |
| Net Weight |
Approximately 0.36 kg. |
| Included Accessories |
Power adapter, power cord, user documentation and regulatory information. |
Ideal Use Cases
High-Resolution CCTV Systems
Provides Gigabit PoE connectivity for up to eight cameras with fibre uplinks to the recorder or wider network.
PTZ Camera Installations
High-power PoE ports can support compatible PTZ cameras and other devices requiring IEEE 802.3bt or Hi-PoE.
Multi-Building Networks
SFP uplinks suit fibre connections between equipment rooms, buildings or distant surveillance areas.
Retail and Hospitality
Cloud monitoring and fault alerts support remotely maintained switches across shops, cafés, restaurants and hotels.
Factories and Warehouses
Layer 2 controls, loop prevention and rugged temperature support suit structured industrial surveillance networks.
Long Cable Runs
Extend Mode can support selected PoE devices up to 250 metres when Managed Mode is disabled.
Choosing the Right Model
- Choose this model if: The project needs eight Gigabit PoE ports, two fibre uplinks, cloud management and a shared 110 W budget.
- Choose a larger PoE switch if: More than eight powered devices or more than 110 W of total PoE capacity is required.
- Choose an unmanaged switch if: VLANs, cloud monitoring, fault alerts and remote network administration are unnecessary.
- Choose a higher-capacity managed model if: The network requires more SFP ports, Layer 3 routing, redundant power or greater switching capacity.
FAQs
- How many PoE devices can the Dahua CS4010-8GT-110 connect?
The CS4010-8GT-110 provides eight Gigabit PoE ports, allowing it to connect and power up to eight compatible PoE devices. Ports 9 and 10 are separate SFP Gigabit uplinks. The total PoE budget is 110 W, so the combined maximum power demand of all connected devices must remain within that limit.
- Does the CS4010-8GT-110 support cloud management?
Yes. The switch supports centralised cloud management through the DoLynk Care application as well as local web management. Administrators can monitor network status, review alarms and manage supported switch functions remotely when the switch is connected and configured for cloud-managed operation.
- Which ports support high-power PoE?
Ports 1 and 2 support high-power output up to 90 W per port through IEEE 802.3bt or Hi-PoE, while ports 3 to 8 support up to 30 W each. The switch still has a shared total PoE budget of 110 W, so using a high-power device reduces the power available to other ports.
- Can the CS4010-8GT-110 transmit PoE up to 250 metres?
Yes. In Extend Mode, ports 1 to 8 support transmission up to 250 metres at 10 Mbps. This mode operates only when Managed Mode is switched off. Actual distance and delivered power depend on cable type, cable condition and the power demand of the connected device.
- What managed network functions are supported?
The CS4010-8GT-110 supports Layer 2 features including IEEE 802.1Q VLANs, STP, RSTP, static link aggregation, port isolation, port mirroring, loop prevention, LLDP, storm control, MAC and port binding, DHCP client operation, logs and fault alarms.
- What should be checked before buying the CS4010-8GT-110?
Confirm the number of PoE devices, their combined wattage, whether any device requires IEEE 802.3bt or Hi-PoE, the required SFP modules, cable distances and cloud-management requirements before ordering. The CS4010-8GT-110 is available through Security Wholesalers for compatible surveillance networks, but SFP transceivers are selected separately.
Additional Information
Dahua DH-CS4010-8GT-110_Datasheet
