Product SKU: DH-PFB206W
Product Overview

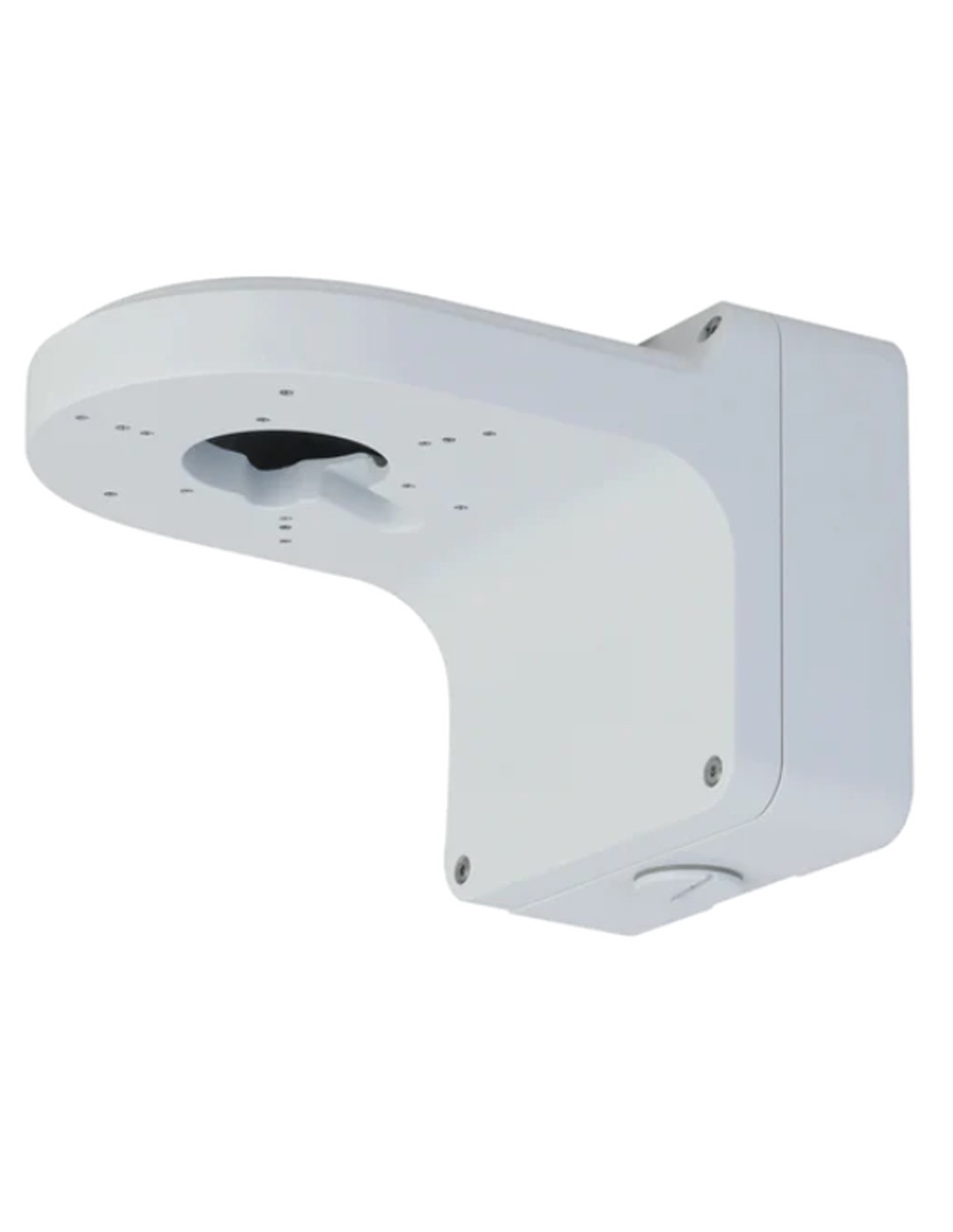

The Dahua DH-PFB206W is an aluminium wall-mount bracket designed to position compatible Dahua security cameras away from a vertical mounting surface. Its 222mm projection provides clearance for suitable dome and related camera assemblies, helping installers achieve a clean wall-mounted arrangement with protected cable routing. The bracket supports a maximum load of 3kg and uses a G 3/4 threaded connection as part of its cable and water-joint arrangement. A white aluminium-alloy body provides a coordinated appearance with compatible Dahua equipment, while the included screws, expansion bolts, wrench, water joint and mounting sticker support installation. The bracket operates from −40°C to +60°C and carries basic anti-corrosion protection. Camera compatibility is model-specific and should be confirmed through the current accessory selection before purchase.
Key Capabilities
Purpose-Designed Wall Mounting
The bracket positions a confirmed compatible camera away from the wall, providing useful clearance for the camera body, viewing direction and cable route.
3kg Load Capacity
A stated load-bearing capacity of 3kg supports suitable camera and adapter combinations when the complete suspended load remains within the bracket’s limit.
Aluminium-Alloy Construction
The aluminium-alloy body provides a rigid camera support while keeping the bracket’s net weight to 1.1kg.
Integrated Cable Path
The wall arm and circular camera interface provide an internal route for suitable camera cabling, supporting a cleaner installation than exposed surface wiring.
Installation Hardware Included
The package includes mounting screws, expansion bolts, an S3.0 wrench, a water joint and a mounting sticker for the intended wall installation.
Best For
- Commercial Building Walls: Positions a compatible camera away from the facade for clearer coverage of entrances, pathways and external areas.
- Retail and Office Entrances: Supports a clean wall-mounted camera arrangement above doors, reception approaches and customer access points.
- Warehouses and Workshops: Provides additional projection where beams, wall surfaces or equipment affect direct camera mounting.
- Protected Cable Installations: Allows compatible camera wiring to pass through the bracket rather than remain exposed along the mounting surface.
Why Choose the DH-PFB206W
The DH-PFB206W provides a more predictable camera installation than adapting a generic wall arm or fabricated bracket. Its 222mm projection, 3kg load limit, G 3/4 connection and camera-interface dimensions are clearly defined, helping installers assess wall clearance, cable routing and structural loading before work begins. Aluminium-alloy construction provides a rigid support with a coordinated white finish, while the supplied fixings, wrench, water joint and mounting sticker simplify preparation. Available through Security Wholesalers, this bracket should be selected only after checking the exact camera model, any required adapter, mounting-hole pattern, wall material and complete installed weight.
Buyer Decision Tips
Compatibility Tip: The DH-PFB206W is suitable for selected camera models rather than every Dahua camera. Confirm the current accessory compatibility and whether a separate camera adapter is required before ordering.
Structural and Environmental Tip: The wall, anchors and fixings must support the bracket’s 1.1kg weight plus the complete camera assembly. No IP rating is specified for the bracket, and its anti-corrosion level is basic protection.
Key Features & Technical Specifications
| Model |
DH-PFB206W |
| Product Type |
Wall-mount camera bracket |
| Material |
Aluminium alloy |
| Colour |
White |
| Installation Type |
Wall mount |
| Product Dimensions |
222.0 × 160.7 × 144.4mm |
| Wall-Base Width |
Approximately 124mm as shown in the dimensional drawing |
| Camera Interface |
Circular mounting interface with multiple mounting-hole patterns |
| Screw Thread Type |
G 3/4 |
| Load Bearing |
3.0kg |
| Net Weight |
1.1kg |
| Gross Weight |
1.5kg |
| Applicable Cameras |
Refer to the current Dahua accessory selection for confirmed camera compatibility |
| Operating Temperature |
−40°C to +60°C |
| Operating Humidity |
Less than 90% relative humidity |
| Storage Temperature |
−40°C to +60°C |
| Storage Humidity |
10%–90% relative humidity |
| Anti-Corrosion Level |
Basic protection |
| Packaging Dimensions |
219.0 × 218.0 × 275.0mm |
| Package Contents |
1 × wall-mount bracket, 3 × M4 × 10 screws, 4 × ST4 × 25 screws, 4 × plastic expansion bolts, 1 × S3.0 wrench, 1 × water joint and 1 × mounting sticker |
Ideal Use Cases
Building Entrances
Positions a compatible camera away from the wall for improved coverage of doors, approaches and visitor areas.
Retail Shopfronts
Provides a clean camera mounting point above shop entrances, loading doors and external customer areas.
Warehouse Walls
Extends a compatible camera beyond wall obstructions for coverage of yards, loading zones and access routes.
Office Exteriors
Supports a neat wall-mounted surveillance arrangement around reception entrances and staff access points.
Protected Outdoor Areas
Can form part of an outdoor mounting assembly where the camera, cable sealing, wall fixings and corrosion exposure are suitable.
Choosing the Right Model
- Choose the DH-PFB206W if: The confirmed camera and accessory arrangement requires this wall bracket and the complete supported load does not exceed 3kg.
- Choose a different adapter if: The camera’s mounting-hole pattern does not attach directly to the bracket’s circular interface.
- Choose a pole or corner mount if: The installation surface is a pole, column corner or another location without a suitable flat wall.
- Choose a higher-capacity bracket if: The camera and any adjoining adapter exceed the stated 3kg load limit.
FAQs
- What is the Dahua DH-PFB206W used for?
The DH-PFB206W is an aluminium wall-mount bracket used to position a confirmed compatible Dahua camera away from a vertical mounting surface. Its arm and circular camera interface provide space for the camera, cable route and included water joint. Compatibility is not universal, so the exact camera model and any required adapter should be checked through the current Dahua accessory selection before installation.
- What is the maximum load capacity of the DH-PFB206W?
The bracket has a stated load-bearing capacity of 3kg. This limit applies to the supported camera and any adjoining adapter or mounting hardware carried by the bracket. The wall, anchors and fixings must also support the bracket’s 1.1kg net weight and the complete installed assembly. Do not assess suitability using the camera weight alone.
- What are the dimensions of the DH-PFB206W?
The DH-PFB206W measures 222.0 × 160.7 × 144.4mm. The mounting-base drawing shows a body approximately 124mm wide and 160.7mm high, while the camera interface includes several mounting-hole patterns. Check the complete drawing, wall clearance, camera diameter, cable route and nearby obstructions before drilling or selecting the installation position.
- Which thread does the DH-PFB206W use?
The bracket uses a G 3/4 screw thread for its cable and water-joint arrangement. The adjoining components and cable entry must match the intended installation design. A similar-looking thread or generic camera bracket should not be assumed to fit, because Dahua camera and mounting families can use different hole patterns, adapter plates and thread specifications.
- Can the DH-PFB206W be installed outdoors?
The bracket operates from −40°C to +60°C and below 90% relative humidity, but no IP weatherproof rating is specified for the bracket itself. Outdoor suitability depends on the compatible camera, included water joint, cable sealing, wall fixings and corrosion exposure. The listed anti-corrosion level is basic protection, so coastal or highly corrosive sites require additional assessment.
- What is included with the DH-PFB206W wall bracket?
The package contains one wall-mount bracket, three M4 × 10 screws, four ST4 × 25 screws, four plastic expansion bolts, one S3.0 wrench, one water joint and one mounting sticker. The camera and any model-specific adapter are not listed as included. Before ordering through Security Wholesalers, confirm every component required for the complete mounting arrangement.
- What should be checked before ordering the DH-PFB206W?
Confirm the exact camera model, current accessory compatibility, 3kg load limit, wall material, fixing method, G 3/4 connection, cable route and environmental exposure before ordering. The bracket measures 222.0 × 160.7 × 144.4mm and weighs 1.1kg net. Check that the wall and anchors can support the complete camera and bracket assembly with suitable installation margin.
Additional Information

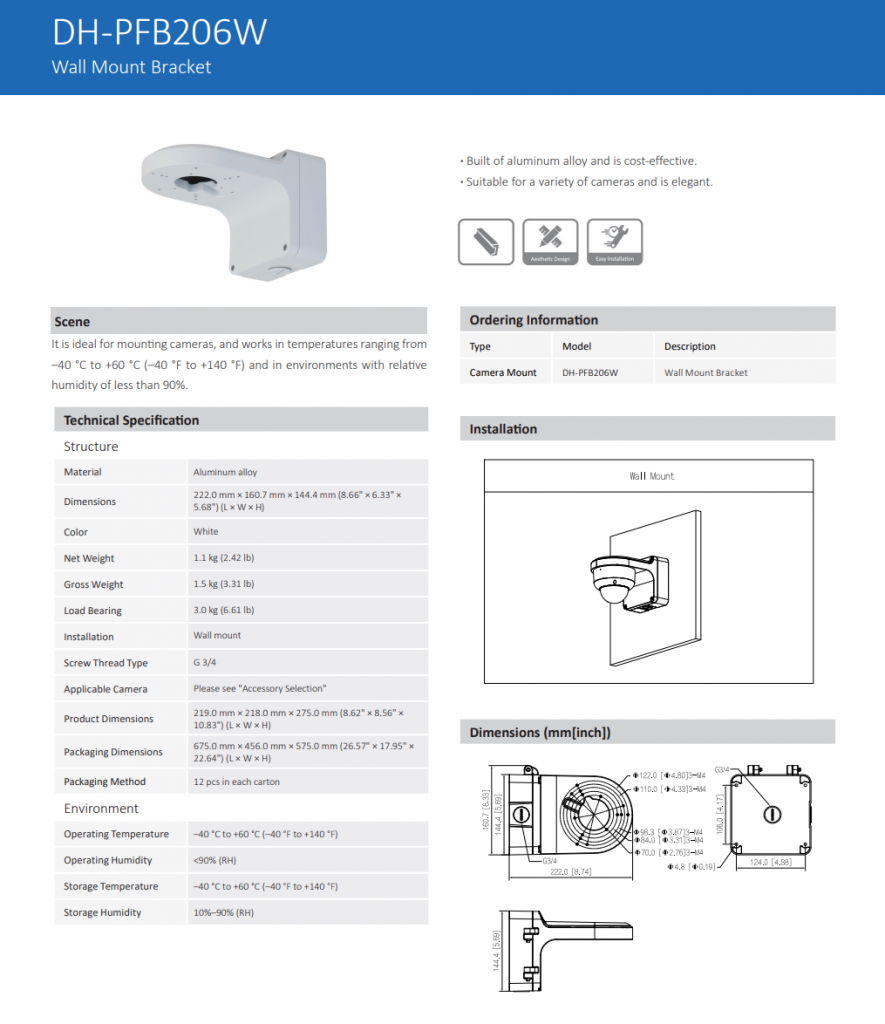

Dahua DH-PFB206W_Datasheet
